Bosch GHG 20-63 Professional Heat Gun User Manual

Product Overview

The Bosch GHG 20-63 Professional Heat Gun is a powerful and versatile tool designed for various applications requiring controlled heat. It features precise temperature and airflow control, ensuring optimal performance and safety for professional use.

Figure 1: Bosch GHG 20-63 Professional Heat Gun, showing its ergonomic design and nozzle.

Key Features:

• Airflow and temperature control in steps of ten for precise working.
• Three working temperature settings for versatile applications.
• Heating automatically switches off and cools when overheating, for long service life.
• Powerful 2000-watt motor for efficient operation.

Safety Instructions

Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure adequate ventilation when working, especially when removing paint or other materials that may produce fumes.
• Do not direct the hot air stream at people or animals.
• Allow the tool to cool down completely before storing.
• Always disconnect the power plug from the socket before carrying out any work on the tool itself.

Setup

Before initial use, ensure the heat gun is free from any packaging materials and inspect it for any damage. Connect the heat gun to a suitable power outlet. For optimal performance and safety, it is recommended to use a power outlet with sufficient amperage, ideally a 20A socket if available, especially for continuous use.

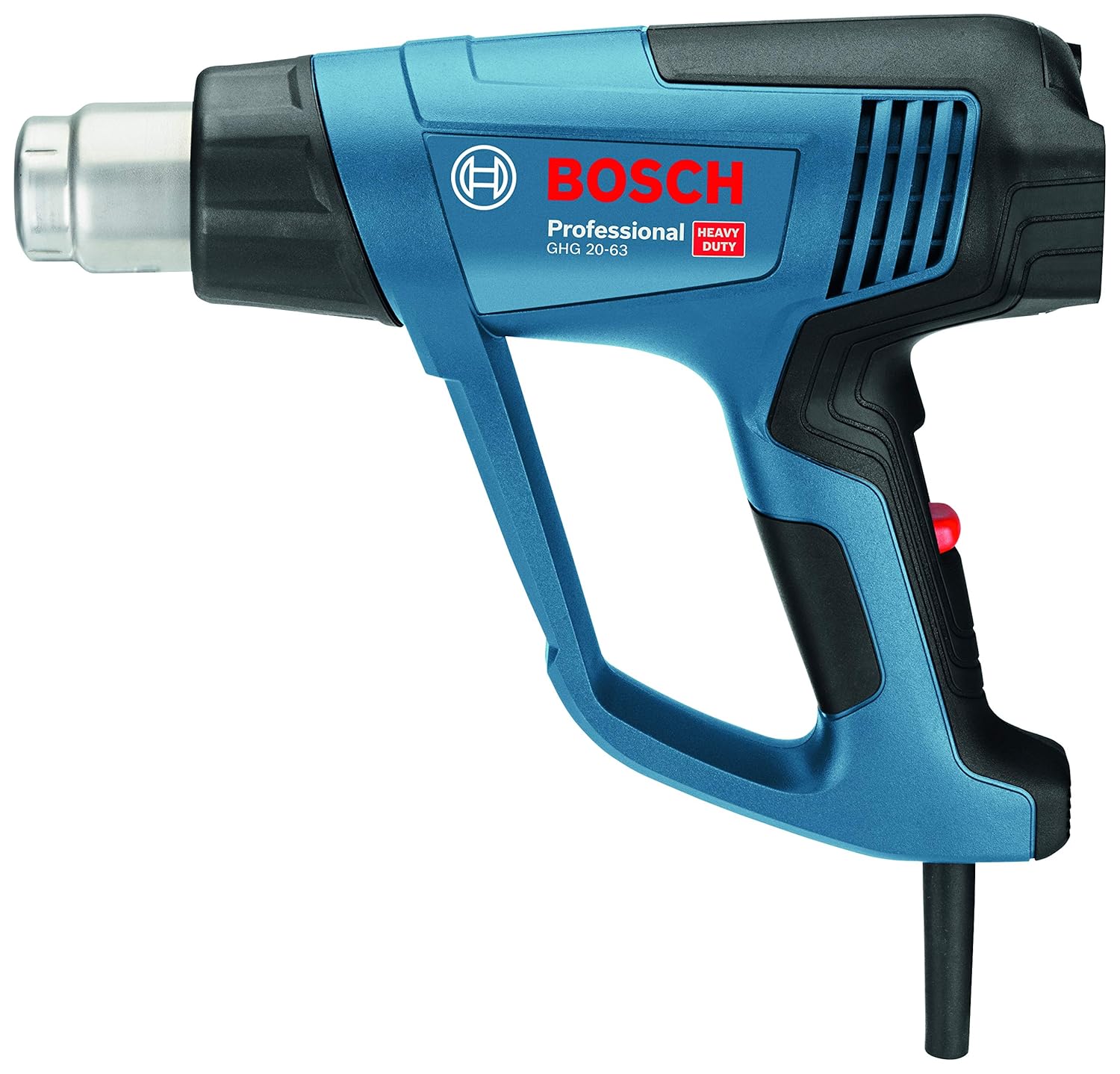

Figure 2: Side view of the heat gun, illustrating its robust construction and power cord connection point.

Operating Instructions

Temperature and Airflow Control:

The Bosch GHG 20-63 offers precise control over both temperature and airflow. The tool features three main working temperature settings, allowing for adaptation to various tasks. Additionally, fine-tuning of temperature and airflow can be done in steps of ten for highly specific applications.

Figure 3: Operating the heat gun, demonstrating the digital display for temperature monitoring during use.

Applications:

This heat gun is suitable for a wide range of tasks, including:

• Removing paint and varnish.
• Shaping and welding plastics.
• Shrinking heat-shrink tubing.
• Thawing frozen pipes.
• Drying and curing materials.

Figure 4: Detailed view of the heat gun in action, effectively removing old paint from a surface.

Figure 5: A wider perspective of the heat gun being used for paint stripping on a door frame, highlighting its utility in renovation tasks.

Speed and Constant Temperature Features:

Figure 6: Icon representing the Speed Selection feature, indicating adjustable airflow settings.

Figure 7: Icon representing the Constant Speed feature, ensuring consistent airflow during operation.

The heat gun is equipped with both speed selection and constant speed features. Speed selection allows you to choose the appropriate airflow for your task, while the constant speed feature maintains a consistent airflow rate, which is crucial for uniform heating and precise work.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Bosch GHG 20-63 heat gun.

• Cleaning: After each use, allow the tool to cool down. Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Air Vents: Keep the air vents clear of dust and debris to prevent overheating. Use compressed air to blow out any accumulated dust.
• Storage: Store the heat gun in a dry, secure place, away from direct sunlight and extreme temperatures.
• Cord Inspection: Regularly inspect the power cord for any signs of damage, cuts, or fraying. If damaged, have it replaced by a qualified service technician.

Troubleshooting

This section addresses common issues you might encounter with your heat gun.

Specifications

Detailed technical specifications for the Bosch GHG 20-63 Professional Heat Gun:

Figure 8: Comparison of Bosch heat gun models, highlighting key differences in specifications like max temperature, airflow rate, and weight.

Warranty and Support

The Bosch GHG 20-63 Professional Heat Gun typically comes with a 12-month manufacturer's warranty, covering defects in materials and workmanship under normal use. Please retain your purchase receipt as proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please contact Bosch customer service or an authorized service center. Refer to the packaging or the official Bosch website for contact details specific to your region.

Manufacturer: GOOD DEAL IMPEX-LLP
