LUBBYGIM GWC-BLK-SBN05

LUBBYGIM Collapsible Folding Wagon Instruction Manual

Model: GWC-BLK-SBN05

1. Introduction

Thank you for choosing the LUBBYGIM Collapsible Folding Wagon. This utility wagon is designed for convenient transport of various items, featuring a heavy-duty foldable design and large capacity. It is suitable for a wide range of activities including family outings, gardening, outdoor events, and shopping. This manual provides essential information for the safe and effective use, setup, and maintenance of your wagon.

ATTENTION: This wagon is not designed for transporting children.

2. Key Features

  • Sturdy Frame Construction & Large Capacity: Equipped with a high-quality heavy-duty alloy steel frame, supporting a static weight load of up to 300 pounds and a dynamic weight load of up to 220 pounds.
  • Double Bearing Design & Adjustable Handle: Features built-in double bearings for smooth rolling and strong maneuverability across various terrains. The handle length can be extended from 26 inches to 35.4 inches to accommodate different user heights.
  • High-Quality & Durable Fabric: Constructed with 600D oxford fabric and PVC material, offering tear resistance and waterproof properties. The fabric is removable for easy washing and drying.
  • Compact & Portable Design: Folds down to a compact size of 25.6" x 18.0" x 5.1" (L*W*H) for easy transport and storage in a trunk or behind a seat.
  • Anti-Skid Universal Wheels: Features non-slip PVC wheels with skid lines, designed for low noise, smooth rolling, and 360-degree rotation, ensuring stability over mud, grass, bumps, and curbs.
  • Convenient Storage: Includes two front pockets for holding drinks or small items.

3. Setup Instructions

  1. Unfolding the Wagon:
    • Place the folded wagon on a flat, stable surface.
    • Gently pull the sides of the wagon outwards until the frame fully extends.
    • Press down on the center base of the wagon until it lies flat and locks into place.
    LUBBYGIM Collapsible Folding Wagon in unfolded and folded states, showing dimensions.
    Figure 3.1: The wagon in its unfolded state with dimensions, and its compact folded form.

    The wagon is designed for quick and easy setup, requiring no assembly. Simply expand the frame and push down the base.

  2. Adjusting the Handle:
    • Locate the handle at the front of the wagon.
    • Press the release button or lever on the handle mechanism.
    • Extend or retract the handle to your desired length (between 26 and 35.4 inches).
    • Ensure the handle locks securely into position before use.
    Close-up of the LUBBYGIM wagon handle being adjusted, showing its extendable and angle-adjustable features.
    Figure 3.2: The adjustable handle of the LUBBYGIM wagon, which can be extended and its angle modified for comfortable pulling.

4. Operating Instructions

  1. Loading the Wagon:
    • Distribute weight evenly within the wagon to maintain balance and stability.
    • Do not exceed the dynamic weight capacity of 220 pounds to ensure safe operation and prevent damage.
    • Utilize the two front pockets for smaller items or beverages.

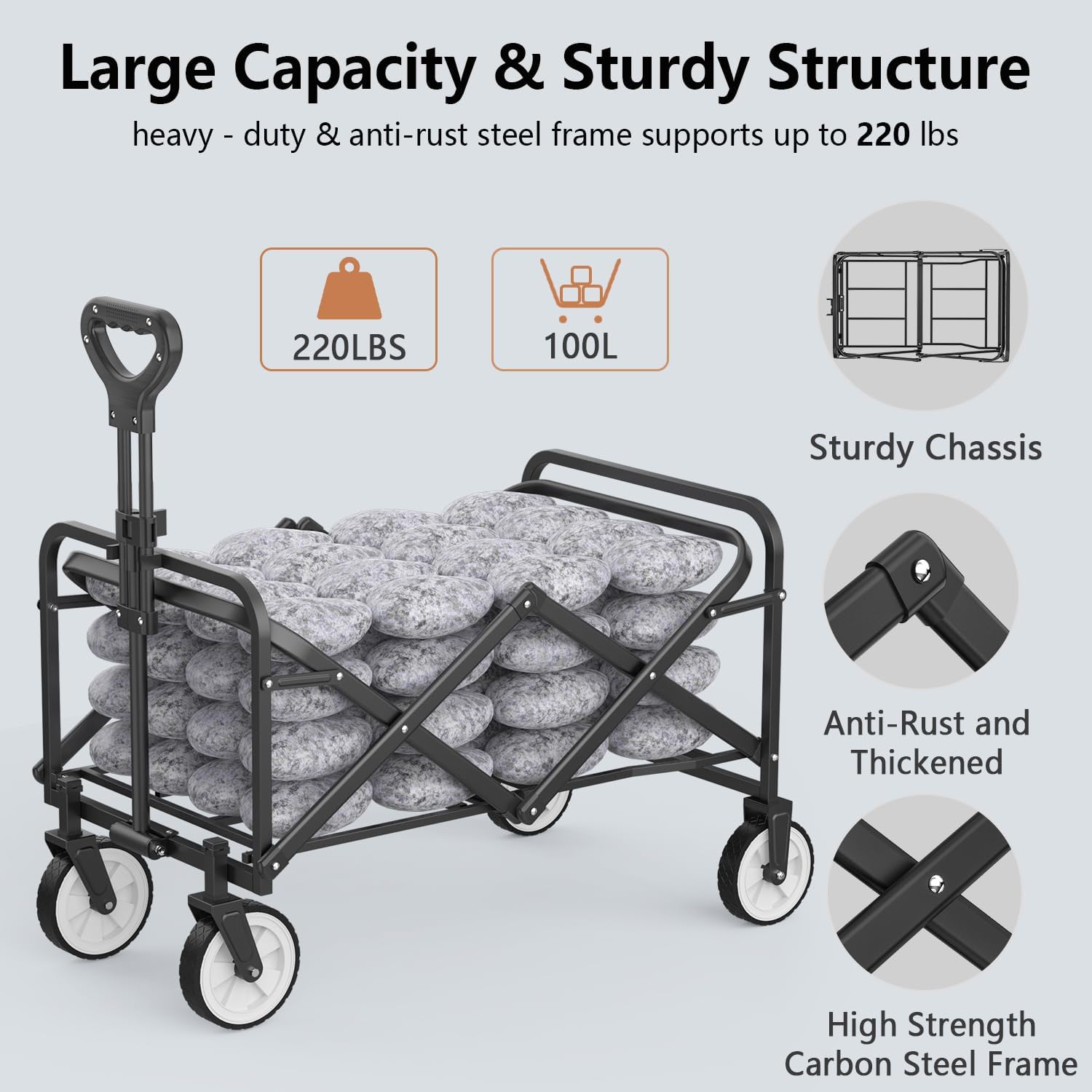

    LUBBYGIM Collapsible Folding Wagon loaded with heavy rocks, demonstrating its large capacity and sturdy structure.
    Figure 4.1: The wagon loaded with rocks, illustrating its robust construction and capacity to handle heavy loads up to 220 lbs.
  2. Maneuvering the Wagon:
    • Hold the adjustable handle firmly.
    • The 360-degree rotating front wheels allow for easy steering and navigation around obstacles.
    • The non-slip PVC wheels are designed to roll smoothly and quietly over various surfaces, including uneven terrain like mud, grass, and gravel.
    Close-up of the LUBBYGIM wagon's anti-skid universal wheels, highlighting their non-slip PVC material, low noise, smooth roll, double bearings, and 360-degree rotation capability.
    Figure 4.2: Detailed view of the wagon's wheels, emphasizing features like non-slip PVC, low noise, smooth operation, double bearings, and full rotation for easy movement.
  3. Typical Uses:
    • Beach Trips: Transport towels, coolers, and beach gear.
    • Camping: Carry tents, sleeping bags, and cooking equipment.
    • Gardening: Move soil, plants, tools, and harvested produce.
    • Shopping: Haul groceries or other purchases with ease.
    • Sports Events: Transport sports equipment, chairs, and refreshments.
    LUBBYGIM Collapsible Folding Wagon being used in various scenarios: camping, gardening, as a pet cart, and for shopping, showcasing its versatility.
    Figure 4.3: Examples of the wagon's multifunctional use in different settings, from outdoor leisure to daily errands.

5. Folding and Storage

  1. Folding the Wagon:
    • Ensure the wagon is empty and clean.
    • Lift the center strap or handle located in the middle of the wagon's base.
    • Pull upwards firmly. The sides of the wagon will begin to collapse inwards.
    • Continue pulling until the wagon is fully folded into its compact form.
    LUBBYGIM Collapsible Folding Wagon in unfolded and folded states, showing dimensions.
    Figure 5.1: The wagon's compact folded dimensions (25.6" x 18.0" x 5.1") for easy storage.
  2. Storing the Wagon:
    • Once folded, the wagon can be secured with any integrated straps or clips (if present) to prevent it from unfolding.
    • Store the wagon in the provided carrying bag to protect it from dust and damage.
    • Its compact size allows for storage in car trunks, closets, or small spaces.

6. Maintenance

  • Cleaning the Fabric: The 600D oxford fabric is removable for cleaning. Detach the fabric from the frame, wash it with mild soap and water, and allow it to air dry completely before reattaching.
  • Frame Care: Wipe the alloy steel frame with a damp cloth to remove dirt and debris. Ensure the frame is dry to prevent corrosion.
  • Wheel Maintenance: Periodically check the wheels for any debris or obstructions. Clean as needed to ensure smooth operation. The double bearings are designed for durability but avoid excessive exposure to harsh elements.
  • Storage: Store the wagon in a dry place, preferably in its carrying bag, to protect it from extreme temperatures and moisture.
Features of the LUBBYGIM wagon's 600D Oxford waterproof fabric, highlighting scratch resistance, durability, waterproof nature, corrosion resistance, and removability for washing.
Figure 6.1: The durable and easy-to-clean 600D Oxford waterproof fabric, which is removable and washable.

7. Troubleshooting

ProblemPossible CauseSolution
Wagon does not fold/unfold smoothly.Debris in joints; mechanism not aligned.Check for obstructions in the folding mechanism. Ensure the center base is properly lifted/pressed.
Wheels are stiff or not rotating freely.Dirt/sand in wheel bearings; worn wheels.Clean wheels and axles. If issues persist, contact customer support for replacement parts.
Wagon tips over easily.Uneven weight distribution; overloaded.Ensure weight is evenly distributed. Do not exceed the maximum dynamic load capacity of 220 pounds.

8. Specifications

FeatureDetail
Product Dimensions (Open)29.5"D x 18"W x 35.4"H
Folding Size18.0" x 5.1" x 25.6" (L*W*H)
BrandLUBBYGIM
MaterialAlloy Steel Frame, 600D Oxford Fabric, PVC
ColorMatt Black
Dynamic Weight Limit220 Pounds
Static Weight Limit300 Pounds
Adjustable Handle Length26" to 35.4"
Item Weight15.5 Pounds
Number of Wheels4 (360° Swivel Front Wheels)
Assembly RequiredNo
Special FeaturesRemovable Cover, Built-In Cup Holder, Compact, Foldable

9. Warranty & Support

LUBBYGIM offers a 1-Year Warranty and a life-time free replacement for all parts. We are committed to providing top-notch customer service.

If you have any questions, concerns, or require assistance with your LUBBYGIM Collapsible Folding Wagon, please do not hesitate to contact our customer support team. We aim to respond to all inquiries within 12 hours.

For support, please refer to the contact information provided with your product packaging or visit the official LUBBYGIM website.
