1. Introduction
This manual provides essential instructions for the safe and efficient operation of your FIERRG Miniature Electric Vacuum Pump. This device is designed for applications requiring small negative pressure suction, offering a compact and efficient solution. Please read this manual thoroughly before use and retain it for future reference.
Image 1.1: FIERRG Miniature Electric Vacuum Pump. This image shows the compact design of the vacuum pump, featuring a clear section for internal components and a black housing with a red power switch.
2. Safety Information
To ensure safe operation and prevent damage to the product, please observe the following safety precautions:
- Do not operate the pump with wet hands or in wet conditions.
- Ensure the power supply voltage matches the pump's requirements (12V for this model).
- Keep the pump away from flammable liquids or gases.
- Do not block the air inlet or outlet during operation.
- Disconnect power before performing any maintenance or cleaning.
- This product is not a toy. Keep out of reach of children.
3. Package Contents
Verify that all items listed below are present in your package:
- 1x Miniature Electric Vacuum Pump
- 1x Power Supply (AC/DC Adapter)
- 1x Suction Cup
- 1x Silicone Tube (1 meter, 6*9mm)

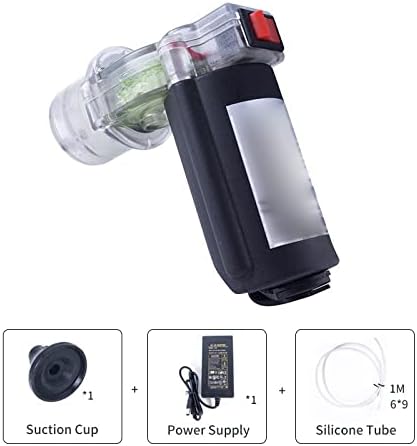

Image 3.1: Package Contents. This image displays the main components included in the 'Full Set' package: the vacuum pump, a suction cup, a power supply adapter, and a silicone tube.
4. Product Overview
Familiarize yourself with the main components of the vacuum pump:
- Portable Switch: Used to turn the pump ON or OFF.
- Power Supply Hole: Connects the pump to the AC/DC adapter.
- Dust Plug: Protects the power supply hole when not in use.
- Air Inlet/Outlet: Connection points for the silicone tube.
Image 4.1: Portable Switch. This image highlights the red portable switch located on the top of the pump's housing, used for power control.
Image 4.2: Power Supply Hole and Dust Plug. This image shows the power input port at the base of the pump, protected by a black rubber dust plug.
5. Setup
Follow these steps to set up your vacuum pump:
- Connect Silicone Tube: Attach one end of the silicone tube to the air inlet/outlet port of the pump. The other end can be connected to the suction cup or your desired application.
- Connect Power Supply: Insert the DC plug of the AC/DC adapter into the Power Supply Hole on the pump.
- Plug into Power Outlet: Plug the AC/DC adapter into a standard electrical outlet.
Image 5.1: Power Supply Connection. This image illustrates the correct way to connect the AC/DC power adapter to the vacuum pump's power input port.
6. Operating Instructions
Once set up, operate the pump as follows:
- Power On: Press the Portable Switch to the 'ON' position. The pump will begin operation.
- Monitor Operation: Observe the pump's performance. Ensure there are no obstructions in the air path.
- Power Off: When finished, press the Portable Switch to the 'OFF' position.
- Disconnect: Unplug the power adapter from the electrical outlet and then from the pump.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your pump:
- Cleaning: Periodically wipe the exterior of the pump with a soft, dry cloth. Do not use abrasive cleaners or immerse the pump in water.
- Tube Inspection: Check the silicone tube for any kinks, cracks, or blockages. Replace if necessary.
- Storage: Store the pump in a cool, dry place away from direct sunlight and extreme temperatures when not in use. Ensure the dust plug is in place.
8. Troubleshooting
If you encounter issues, refer to the table below:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not turn on | No power supply; Switch is OFF; Faulty power adapter | Check power connection; Turn switch ON; Test power adapter |
| Weak suction | Blocked tube/inlet; Air leak in connections; Damaged pump | Clear obstructions; Check all connections for airtight seal; Contact support if pump is damaged |
| Unusual noise during operation | Internal obstruction; Pump malfunction | Disconnect power and check for foreign objects; Contact support |
9. Specifications
| Feature | Specification |
|---|---|
| Brand | FIERRG |
| Model | Miniature Electric Vacuum Pump (Full Set) |
| Voltage Options | 8V, 12V (This model: 12V) |
| Power | 10W |
| Flow Rate | 8 L/min |
| Structure | Piston Pump |
| Pressure | High Pressure |
| Operation Mode | Automatic |
| Item Weight | 300 Grams (approx. 10.6 ounces) |
| Manufacturer | FIERRG |
10. Warranty and Support
For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
