1. Introduction
This manual provides essential instructions for the safe and effective use of your Generic Cervical Massager Electric Neck Massager, model HHS-AMA004. This device is designed to provide targeted relief to the muscles in the neck and shoulders through low-frequency pulse massage and heat therapy. Please read this manual thoroughly before first use and retain it for future reference.
2. Important Safety Information
WARNING: To reduce the risk of electric shock, burns, fire, or injury, read all instructions before using this appliance.
- Consult a physician before use if you have a pacemaker, heart condition, epilepsy, are pregnant, or have any other medical conditions.
- Do not use on open wounds, swollen areas, or skin eruptions.
- Do not use while sleeping or in a drowsy state.
- Keep out of reach of children.
- Do not disassemble, repair, or modify the device yourself. Contact qualified service personnel.
- Do not immerse the device in water or use it in excessively humid environments. This product is not water resistant.
- Ensure the power adapter (if applicable) is compatible with your local power supply.
- Stop use immediately if you experience any discomfort or pain.
3. Package Contents
- 1 x Generic Cervical Massager Electric Neck Massager (HHS-AMA004)
- 1 x Remote Control
- 1 x Charging Cable (or Power Adapter, depending on model variant)
- 1 x User Manual
4. Product Features
- Low Frequency Pulse Massage: Utilizes TENS (Transcutaneous Electrical Nerve Stimulation) technology to stimulate sensory fibers for muscle relief.
- Constant Temperature Hot Compress: Provides a soothing 42°C heat therapy.
- Multiple Massage Modes: Features three distinct massage modes (Automatic, Kneading, Vibration) to cater to different preferences.
- Adjustable Strength Levels: Offers 15 levels of intensity adjustment for personalized comfort.
- Lightweight and Portable: Weighs approximately 160g, making it convenient for use anytime, anywhere.
- Remote Control Operation: Easy adjustment of settings without removing the device.
- Silicone Airbag Neck Protection: Designed for comfortable and secure fit.
- Safety Assurance: Includes leakage protection features.
5. Setup
- Initial Charge: Before first use, fully charge the massager using the provided charging cable. Connect the cable to the massager's charging port and a suitable USB power source. The indicator light will show charging status and turn off or change color when fully charged.
- Positioning: Place the massager around your neck, ensuring the electrode pads make direct contact with your skin. Adjust for a comfortable and secure fit.
- Remote Control: Ensure the remote control has a working battery. If not, insert or replace the battery according to the markings inside the battery compartment.
Figure 1: Diagram showing the dimensions of the neck massager and icons representing its key features: Pulse (TENS electrical pulse technology), Three massage modes, 15 gear strength adjustment, 42°C constant temperature hot compress, Balloon neck guard, Remote control switch, and Leakage protection.
6. Operating Instructions
- Power On: Press and hold the power button on the massager or the remote control to turn on the device. An indicator light will illuminate.
- Select Mode: Use the 'Mode switching' button on the remote control to cycle through the three available massage modes: Automatic, Kneading, and Vibration.
- Adjust Strength: Use the '+' button on the remote to increase the massage strength and the '-' button to decrease it. There are 15 levels of intensity. Start with a low intensity and gradually increase to a comfortable level.
- Activate Heat Function: Press the 'Heating mode' button on the remote control to activate the 42°C hot compress function. Press again to turn it off.
- Session Duration: The device typically has an automatic shut-off timer (e.g., 15 minutes). Do not exceed recommended usage times.
- Power Off: Press and hold the power button on the massager or remote control to turn off the device after use.

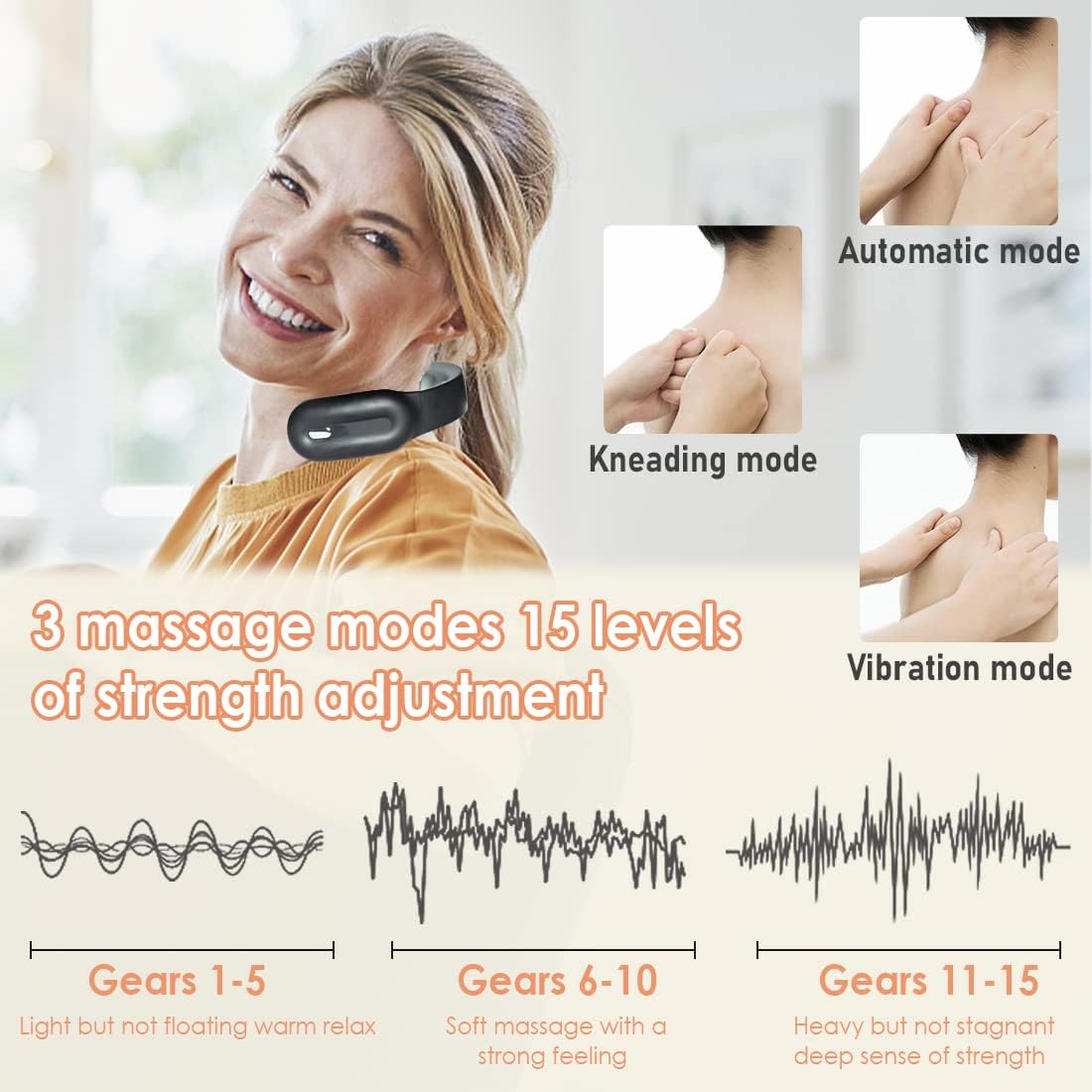

Figure 2: Illustration of the three massage modes (Automatic, Kneading, Vibration) and the 15 levels of strength adjustment, categorized into Gears 1-5 (light), Gears 6-10 (soft with strong feeling), and Gears 11-15 (heavy, deep sense of strength).
Figure 3: Image demonstrating the remote control for the neck massager, highlighting buttons for 'Heating mode', 'Mode switching', 'strengthen' (+), and 'weakening of strength' (-).
Figure 4: Visual representation of the neck massager's portability, showing it being used in different environments such as during work, at home, after sports, and while traveling.
7. Maintenance
- Cleaning: After each use, gently wipe the electrode pads and the main body of the massager with a soft, damp cloth. Do not use abrasive cleaners or immerse in water.
- Storage: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case to prevent damage.
- Battery Care: If the device is not used for an extended period, charge it periodically to maintain battery health.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery; Device not properly charged. | Charge the device fully. Ensure charging cable is securely connected. |
| No pulse sensation. | Electrode pads not making good skin contact; Intensity too low; Dry skin. | Adjust the massager for better skin contact. Increase intensity. Moisten skin with a damp cloth if dry. |
| Remote control not working. | Remote battery depleted; Obstruction between remote and massager. | Replace remote control battery. Ensure clear line of sight between remote and massager. |
| Heat function not working. | Heat function not activated; Device malfunction. | Ensure 'Heating mode' is pressed on the remote. If problem persists, contact customer support. |
9. Specifications
- Model: HHS-AMA004
- Brand: Generic
- Manufacturer: Huhusleeper
- Product Dimensions: 7.72 x 7.09 x 2.24 inches (19.6 x 18.0 x 5.7 cm)
- Weight: Approximately 160g
- Material: Polycarbonate (PC), Silicone
- Power Source: Corded Electric (likely rechargeable via USB)
- Massage Techniques: Pat, Massage, Acupressure, Percussion (simulated)
- Massage Modes: 3 (Automatic, Kneading, Vibration)
- Strength Levels: 15 adjustable levels
- Heat Function: 42°C Constant Temperature Hot Compress
- Water Resistance Level: Not Water Resistant
- UPC: 767950229447
Figure 5: Image depicting the neck massager in use by a person, with an inset showing a heat map illustrating the concept of pain relief and improved blood circulation in the neck area.
10. Warranty and Support
Specific warranty information for this Generic product is not provided in the product details. For any support inquiries, troubleshooting assistance beyond this manual, or warranty claims, please refer to the retailer or platform where the product was purchased. Keep your purchase receipt as proof of purchase.
