QPlay Rito Toddler Tricycle Instruction Manual

1. Introduction

The QPlay Rito Toddler Tricycle is a versatile 3-stage premium push trike designed to grow with your child from 12 months to 5 years. It features easy storage and transportability, a safety harness, an adjustable canopy, and a parent handle. This manual provides essential information for safe assembly, operation, and maintenance of your tricycle.

Figure 1: QPlay Rito Toddler Tricycle, showcasing its full and folded configurations for easy transport and storage.

2. Safety Information

Always ensure your child's safety by adhering to the following guidelines:

• Read all instructions before assembly and use.
• Ensure all parts are securely fastened before each use.
• Always use the integrated 3-point safety harness and waist bar to secure your child.
• Supervise children at all times when using the tricycle.
• Do not use on uneven terrain, near stairs, or in traffic.
• Ensure the child's feet are placed on the footrests or pedals to prevent injury.
• The maximum recommended age is 5 years, and the maximum weight capacity should not be exceeded.

3. Parts List

Before assembly, verify that all components are present:

• Main Frame with Seat and Backrest
• Front Wheel Assembly with Pedals
• Rear Wheel Assemblies (2)
• Parent Push Handle
• Adjustable Canopy
• Safety Bar/Waist Bar
• Footrests (removable)
• Detachable Storage Bags (2)
• Assembly Tools (if included)

Figure 2: Key components of the tricycle, highlighting the padded seat and headrest, detachable storage bags, and air-filled rubber tires for a smoother ride.

4. Setup and Assembly

Follow these steps for proper assembly:

1. Unfold the Frame: Locate the "2 button fold" mechanism and unfold the main frame until it locks into place.
2. Attach Rear Wheels: Securely attach both rear wheel assemblies to the main frame. Ensure they click into place.
3. Install Front Wheel: Attach the front wheel assembly, ensuring the steering mechanism is correctly aligned.
4. Attach Parent Handle: Insert the parent push handle into the designated slot at the rear of the tricycle until it locks.
5. Install Canopy: Attach the adjustable canopy to the top of the seat frame.
6. Secure Safety Bar: Attach the safety bar/waist bar around the seat. It should click securely into place.
7. Attach Footrests/Pedals: Depending on the child's age, attach the footrests or ensure the pedals are ready for use. The footrests can be adjusted or removed as the child grows.
8. Attach Storage Bags: Secure the detachable storage bags to their respective positions on the tricycle.

Figure 3: The tricycle's effortless folding mechanism, allowing it to fold and unfold in seconds for convenient storage and transport.

5. Operating Instructions

The QPlay Rito Tricycle is designed to adapt to your child's growth through three main stages:

Stage 1: Push Trike (12 Months & Up)

• Use the parent push handle to steer and control the tricycle.
• Ensure the child is secured with the 3-point harness and safety bar.
• Footrests should be in place for the child's comfort and safety.

Stage 2: Assisted Tricycle (24 Months & Up)

• The child can begin to use the pedals while the parent still maintains steering control via the push handle.
• The "free handle & wheel clutch" feature allows parents to maintain control even if the child is moving the handlebars or pedals.
• The safety bar can be removed if the child is stable enough.

Stage 3: Independent Tricycle (48 Months & Up)

• The parent push handle and canopy can be removed.
• The child can independently pedal and steer the tricycle.
• Ensure the child is confident and capable of independent operation before transitioning to this stage.

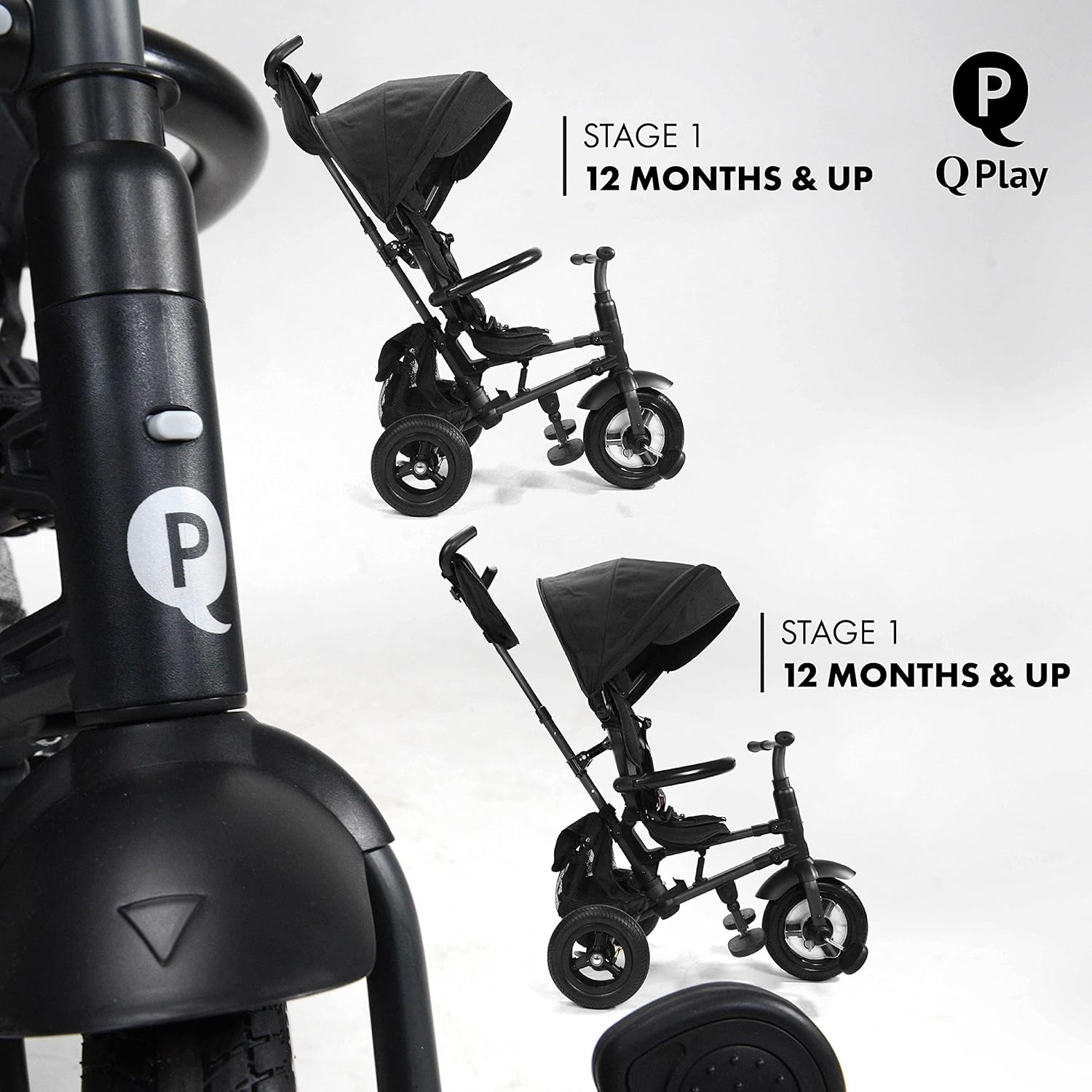

Figure 4: Tricycle in Stage 1, suitable for children 12 months and older, where the parent controls the movement.

Figure 5: Progression through stages: Stage 2 (24 months & up) with parent assistance, and Stage 3 (48 months & up) for independent riding.

Adjustments:

• Seat Adjustment: The seat can be reclined and adjusted for optimal comfort and to accommodate your child's growth.
• Footrest Positions: Multiple footrest positions are available to prevent your child from dragging their feet.
• Folding: To fold the tricycle, locate the "2 button fold" technology and follow the instructions to collapse it into a compact size for storage or transport.

Figure 6: The adjustable seat allows for reclining and positioning to ensure your child's comfort as they grow.

Figure 7: The tricycle's compact folded size makes it easy for parents to carry and transport, ideal for travel.

6. Maintenance

• Cleaning: Wipe down the frame with a damp cloth and mild soap. Do not use abrasive cleaners. The fabric parts can be spot cleaned or removed for gentle washing if specified by care labels.
• Tires: The air-filled rubber tires should be checked periodically for proper inflation to ensure a smooth ride and prevent damage.
• Lubrication: Periodically apply a small amount of lubricant to moving parts like wheel axles and pedal mechanisms to ensure smooth operation.
• Storage: Store the tricycle in a dry, cool place away from direct sunlight and extreme temperatures to prevent material degradation. Utilize its folding feature for compact storage.
• Inspections: Regularly inspect all bolts, screws, and fasteners to ensure they are tight. Check for any signs of wear or damage to the frame, wheels, or safety features. Replace worn or damaged parts immediately.

7. Troubleshooting

8. Specifications

• Product Dimensions: 29.5 x 19 x 42 inches (Unfolded)
• Item Weight: 20 pounds
• Recommended Age: 12 months - 5 years
• Material: Metal frame with durable fabric and rubber tires
• Safety Features: 3-point harness, waist bar, multiple footrest positions
• Special Features: Easy 2-button fold, air-filled rubber tires, parent steering control, adjustable canopy, detachable storage bags.

Figure 8: Product dimensions and a description of the free handle and wheel clutch, allowing parents to maintain control even if the child is manipulating the handlebars or pedals.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact POSH BABY & KIDS customer service. Refer to the product packaging or the official POSH BABY & KIDS website for the most up-to-date contact details.

Additional protection plans may be available for purchase. Please check with your retailer for details.

Manufacturer: Q-Play
