Philips HD9257/80 Airfryer User Manual

Introduction

Welcome to the user manual for your new Philips HD9257/80 Airfryer. This appliance is designed to help you prepare delicious and healthy meals with up to 90% less fat. It features a 5.6-liter capacity, suitable for up to 4 persons, and a transparent cooking window for easy monitoring. Please read this manual carefully before using the appliance to ensure safe and optimal operation.

Important Safety Information

Always follow basic safety precautions when using electrical appliances.

• Do not immerse the appliance in water or any other liquid.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage.
• Keep the appliance and its cord out of reach of children.
• Do not operate the appliance if the plug, the mains cord, or the appliance itself is damaged.
• Always unplug the appliance after use and before cleaning.
• Do not block the air inlet and outlet openings.
• The surfaces may become hot during use. Do not touch hot surfaces directly.
• Use only original Philips accessories or parts.

Product Overview

Familiarize yourself with the components of your Philips Airfryer.

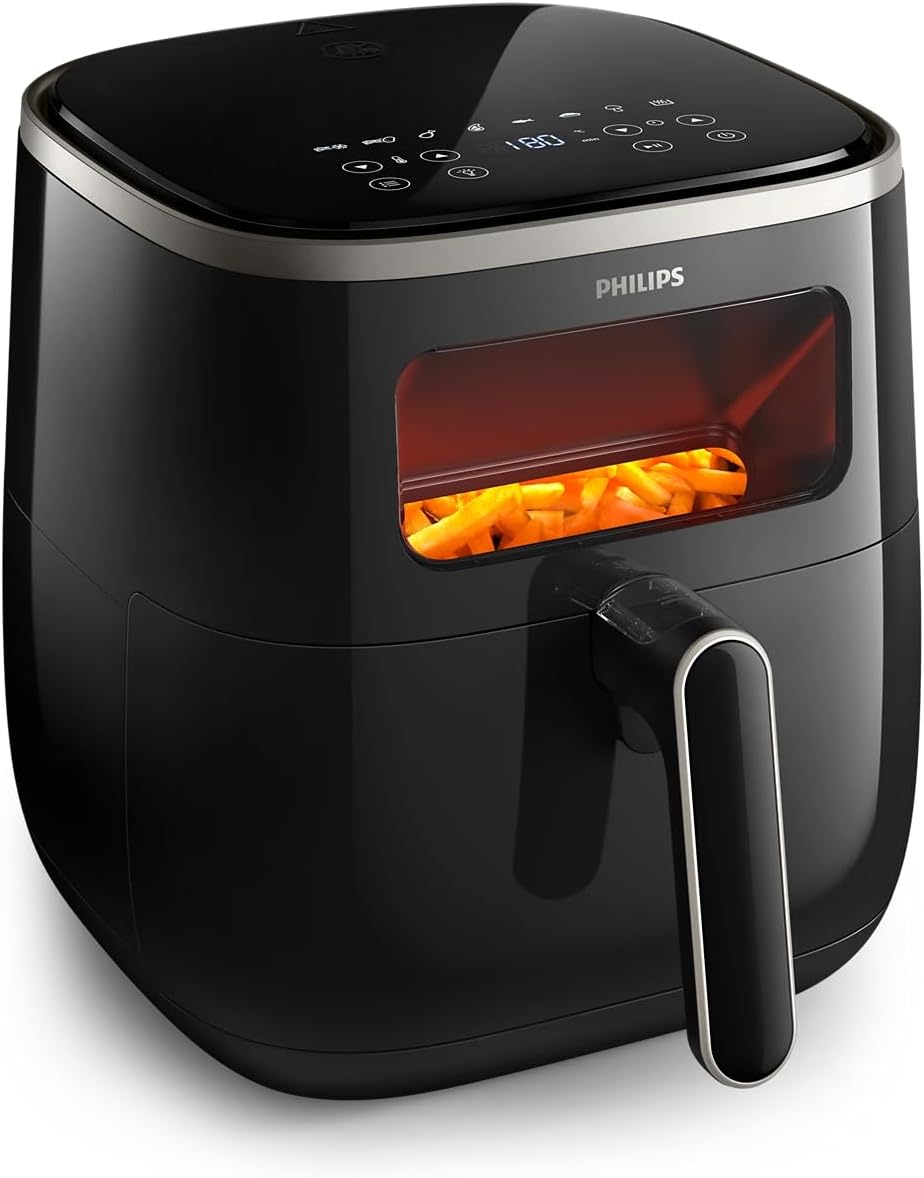

Figure 1: Front view of the Philips HD9257/80 Airfryer, showcasing its sleek black design and transparent cooking window.

Figure 2: Angled view of the Philips HD9257/80 Airfryer, highlighting the handle and top control panel.

Figure 3: The Philips HD9257/80 Airfryer in operation, showing food cooking inside through the transparent window.

Figure 4: Illustration of the RapidAir technology inside the Philips HD9257/80 Airfryer, demonstrating the optimal hot air circulation.

Components:

• Main Unit: Houses the heating element and fan.
• Basket: For holding food during cooking.
• Pan: Collects fat and juices.
• Digital Touchscreen Display: For setting time, temperature, and selecting presets.
• Transparent Cooking Window: Allows monitoring of food without opening the basket.

Setup

Before First Use:

1. Remove all packaging materials and stickers.
2. Clean the basket and pan thoroughly with hot water, dish soap, and a non-abrasive sponge.
3. Wipe the inside and outside of the appliance with a damp cloth.
4. Place the Airfryer on a stable, horizontal, and level surface. Ensure there is at least 10 cm of free space at the back and sides, and 10 cm above the appliance.

Operating Instructions

General Use:

1. Plug the mains plug into a grounded wall socket.
2. Pull the pan out of the Airfryer.
3. Place the ingredients in the basket. Do not exceed the MAX indication.
4. Slide the pan back into the Airfryer.
5. Press the power button to turn on the appliance.
6. Select a preset program from the 8 available options (frozen snacks, fries, meat, fish, chicken drumsticks, cake, grilled vegetables, warm-keeping) or manually set the temperature and time using the touchscreen controls.
7. Press the start button to begin cooking.
8. Some ingredients require shaking halfway through the preparation time. Pull the pan out by the handle and shake it. Then slide the pan back into the Airfryer.
9. When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a heat-resistant surface.
10. Check if the ingredients are ready. If not, slide the pan back into the appliance and set the timer for a few extra minutes.
11. Empty the basket into a bowl or onto a plate.

Cooking Tips:

• For best results with homemade fries, soak potato sticks in water for 30 minutes, then dry them thoroughly before adding a small amount of oil.
• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time.
• Do not prepare extremely greasy ingredients like sausages in the Airfryer.

Maintenance

Cleaning:

Clean the appliance after every use.

1. Unplug the appliance and let it cool down completely.
2. Wipe the outside of the appliance with a damp cloth.
3. Clean the pan and basket with hot water, dish soap, and a non-abrasive sponge. The QuickClean basket is designed with a non-stick coating for easy cleaning. All removable parts are dishwasher-safe.
4. For stubborn food residues, soak the pan and basket in hot water with some dish soap for about 10 minutes.
5. Clean the inside of the appliance with hot water and a non-abrasive sponge.
6. Clean the heating element with a cleaning brush to remove any food residues.

Storage:

Store the Airfryer in a dry place, away from direct sunlight and out of reach of children.

Troubleshooting

Specifications

• Model Number: HD9257/80
• Capacity: 5.6 Liters (1 kg food capacity)
• Power: 1700 Watts
• Weight: Approximately 6.54 Kilograms
• Color: Black
• Features: RapidAir Technology, Digital Touchscreen with 8 Presets, Transparent Cooking Window, Dishwasher-safe parts.

Warranty and Support

Information regarding product warranty and customer support was not available in the provided data. Please refer to the product packaging or the official Philips website for detailed warranty terms and contact information for support.
