Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Shnile 17542LT carburetor. Please read these instructions carefully before proceeding with any installation or maintenance to ensure proper function and longevity of the product.
Product Overview
The Shnile 17542LT carburetor is designed as a replacement part for specific Poulan and Nikki mower models. It is crucial to verify compatibility before installation.

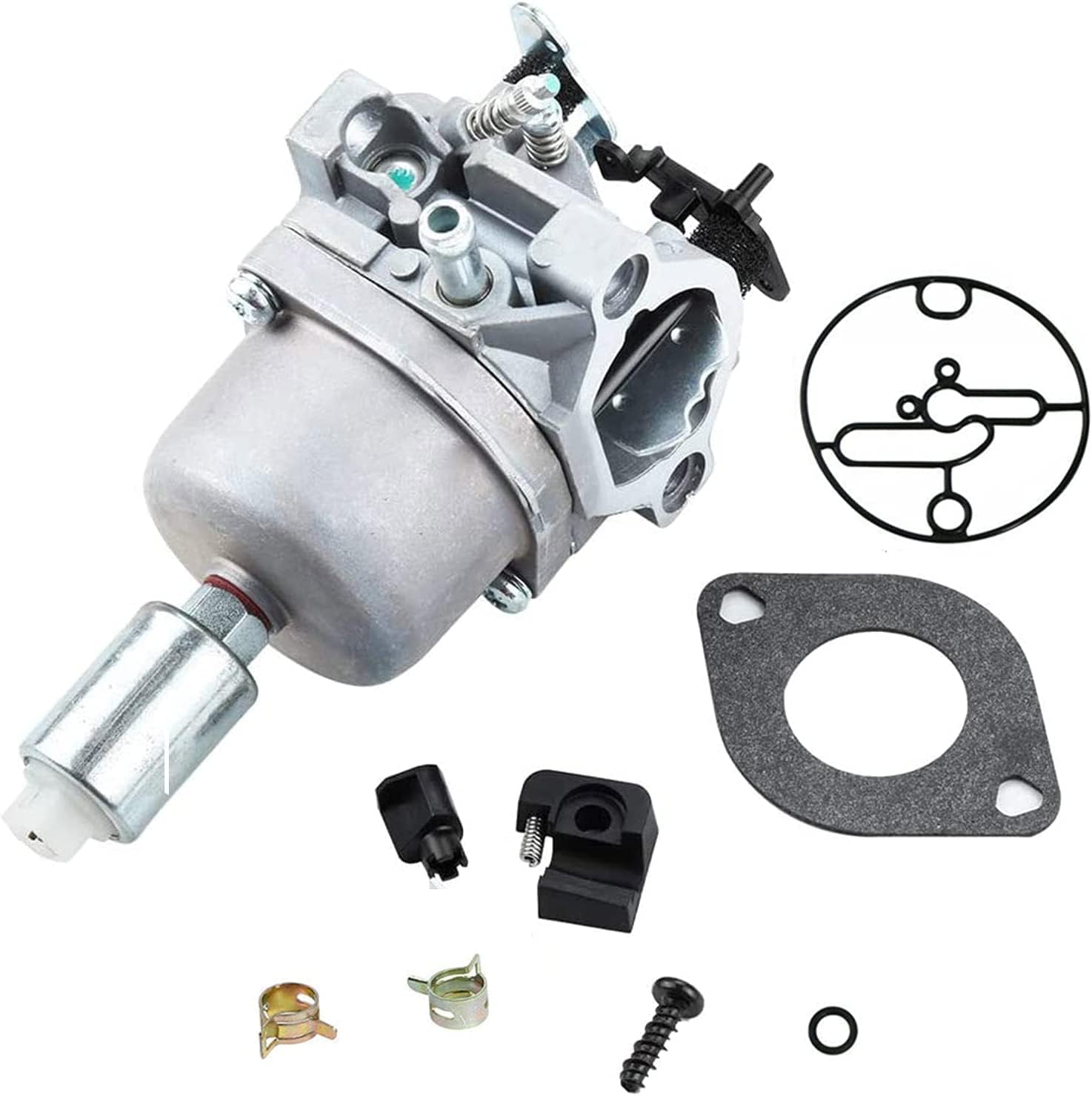

Included Components:
- 1 Carburetor
- 1 Fuel Line
- 1 Mounting Gasket & kits
- 1 Check Valve
- 1 Fuel Filter
Compatibility
This carburetor is compatible with the following models and part numbers:
- For Nikki Poulan mower w.17.5 power built Briggs model # PO17542LT
- For Poulan Pro PP19A42, PO17542LT, PB195H42LT, PP175G42, PP105G30, PD185H42ST, PD15538LT Riding Mower
- Replaces Nikki part numbers: 592953, 592224, 592223, 592226
Installation Guide
General Installation Steps:
- Safety First: Ensure the engine is cool and the spark plug wire is disconnected to prevent accidental starting.
- Drain Fuel: Drain the fuel tank to prevent spills during carburetor removal.
- Remove Air Filter: Carefully remove the air filter housing and air filter.
- Disconnect Linkages: Disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Note their positions for reassembly.
- Remove Old Carburetor: Unbolt and remove the old carburetor and gasket.
- Install New Gasket: Place the new mounting gasket in position.
- Install New Carburetor: Mount the new Shnile 17542LT carburetor, ensuring it is seated correctly.
- Reconnect Linkages: Reattach the throttle linkage, choke linkage, and fuel line to the new carburetor. Ensure all connections are secure.
- Install Fuel Filter and Check Valve: If replacing, install the new fuel filter and check valve in the fuel line.
- Reassemble: Reinstall the air filter and housing.
- Refill Fuel: Add fresh fuel to the tank.
- Test: Reconnect the spark plug wire and start the engine to test for proper operation and leaks.
If you are unsure about any step, it is recommended to consult a qualified technician or refer to your mower's specific service manual.
Operation
The carburetor's primary function is to mix air and fuel in the correct ratio for combustion in the engine. Once installed, the carburetor operates automatically, regulating fuel flow based on engine demand. Ensure all linkages are free-moving and not obstructed for optimal performance.
Maintenance
Regular maintenance helps ensure the longevity and efficient operation of your carburetor.
- Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel can clog carburetor passages.
- Fuel Filter: Inspect and replace the fuel filter periodically (e.g., annually or as recommended by your mower's manual) to prevent debris from reaching the carburetor.
- Air Filter: Ensure the air filter is clean and properly installed. A dirty air filter can restrict airflow, affecting the fuel-air mixture.
- Storage: If storing the mower for an extended period, drain the fuel system or use a fuel stabilizer to prevent fuel degradation and carburetor gumming.
Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel filter, clogged carburetor jet, incorrect choke setting | Check fuel level, replace fuel filter, clean carburetor, adjust choke |
| Engine runs rough/stalls | Dirty carburetor, improper fuel-air mixture, air leak | Clean carburetor, check for air leaks around gaskets, ensure proper fuel quality |
| Fuel leaks | Loose connections, damaged fuel line, faulty gasket, stuck float | Tighten connections, replace fuel line/gasket, inspect carburetor float |
| Lack of power | Clogged carburetor, dirty air filter, incorrect engine speed adjustment | Clean carburetor, replace air filter, adjust engine speed |
Specifications
| Specification | Detail |
|---|---|
| Brand | Shnile |
| Model Number | 17542LT |
| Vehicle Service Type | Mower |
| Flange Type | Bolt On |
| Recommended Uses | Lawn Mower |
Important Notes
A minor difference in carburetor design may result in a different model. Please carefully check if the provided pictures match your existing carburetor. If you are uncertain about compatibility, it is recommended to contact the manufacturer or seller with clear pictures of your current carburetor from each side, along with your mower's model number, to ensure the correct match.
Warranty and Support
For information regarding warranty coverage or technical support, please refer to the contact information provided by your retailer or the Shnile manufacturer's official channels. Keep your purchase receipt as proof of purchase.
