Ellington Gifts A6-PRO UV-C Ultrasonic Cleaner Instruction Manual

1. Introduction and Overview

Thank you for choosing the Ellington Gifts A6-PRO UV-C Ultrasonic Cleaner. This device combines high-frequency ultrasonic waves with UV-C sterilization technology to provide a deep and hygienic cleaning for a variety of personal items. Designed for convenience and effectiveness, it helps maintain the cleanliness of your valuables with ease.

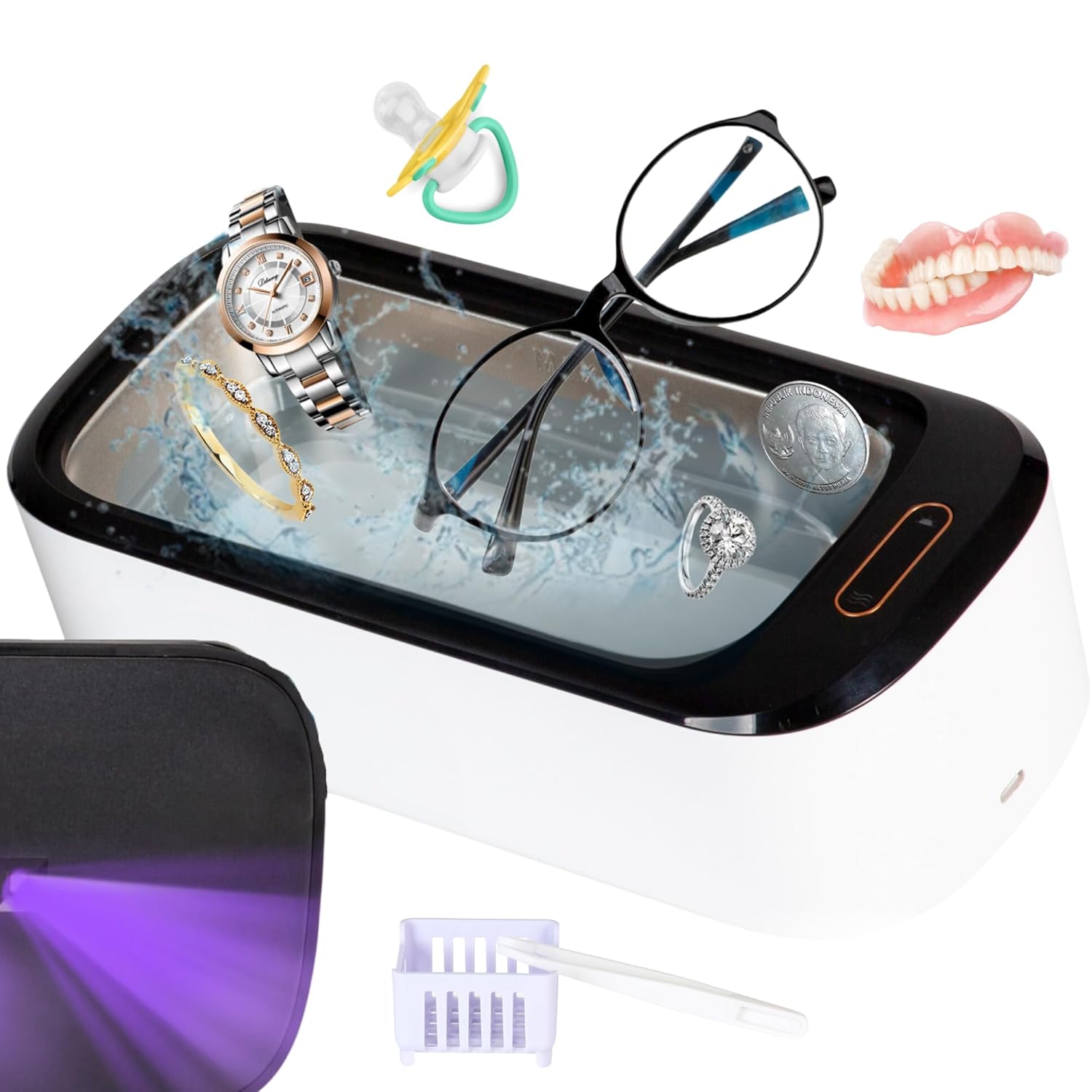

Image 1.1: The Ellington Gifts A6-PRO UV-C Ultrasonic Cleaner in operation, cleaning various items.

2. Safety Information

Please read all safety instructions carefully before using the device to prevent injury or damage.

• Do not immerse the main unit in water or other liquids.
• Ensure the power adapter and cable remain dry. Avoid wetting the power input port.
• Keep out of reach of children.
• Use only the provided USB-C power adapter. Do not use standard USB chargers as the device requires 12V DC power.
• Unplug the device when not in use or before cleaning.
• Do not operate the device without water in the tank.

Items Not Suitable for Ultrasonic Cleaning:

Certain items may be damaged by ultrasonic cleaning. Avoid cleaning the following:

• Damaged soft items (e.g., pearls, emeralds, opals, coral, jade).
• Watches that are not water-resistant (only watch heads, not straps, if water-resistant).
• Jewelry with loose stones or delicate settings.
• Coated or plated jewelry where the coating is compromised.
• Damaged lenses or lenses with non-adhered coatings.

Image 2.1: Visual guide for items not recommended for ultrasonic cleaning.

3. Package Contents

Verify that all items are present in the package:

• Ellington Gifts A6-PRO UV-C Ultrasonic Cleaner Unit
• Plastic Tweezers
• Plastic Cleaning Basket (for jewelry and watches)
• Microfiber Cleaning Cloth
• USB-C Power Adapter

Image 3.1: Contents of the Ellington Gifts A6-PRO package.

4. Product Features

• Dual Cleaning Technology: Combines 46,000 Hz ultrasonic waves for deep cleaning with UV-C sterilization for disinfection.
• Generous Capacity: Features an 18 oz (550 ml) SUS-304 stainless steel tank, suitable for various items.
• Compact and Portable: Measuring approximately 22 x 10.5 x 7.2 cm (8.6 x 4.1 x 2.8 inches), it is ideal for home and travel.
• Automatic Timer: Equipped with a 3-minute automatic cleaning cycle for optimal results.
• USB-C Powered: Conveniently powered via USB-C DC, ensuring versatility.
• Stable Design: Features anti-slip rubber feet for enhanced stability during operation.

Image 4.1: The device features built-in UV-C sterilization for enhanced hygiene.

5. Setup

1. Placement: Place the ultrasonic cleaner on a stable, flat, and dry surface.
2. Power Connection: Connect the provided USB-C power adapter to the device and then plug it into a suitable power outlet.
3. Fill with Water: Open the lid and fill the stainless steel tank with tap water. Ensure the water level is between the 'MIN' and 'MAX' marks. For enhanced cleaning, a few drops of mild dish soap can be added. Avoid using boiling water directly from a kettle to prevent limescale residue.

Image 5.1: Filling the cleaner with water.

6. Operating Instructions

1. Prepare Items: Place the items you wish to clean into the plastic cleaning basket. For delicate items, ensure they are securely placed.
2. Insert Basket: Carefully lower the basket with your items into the water-filled tank. Ensure items are fully submerged but not overcrowded.
3. Close Lid: Close the lid of the ultrasonic cleaner.
4. Start Cleaning: Press the power button to start the cleaning cycle. The device will automatically run for 3 minutes, utilizing both ultrasonic waves and UV-C sterilization. A gentle buzzing sound indicates operation.
5. Cycle Completion: The device will automatically shut off after 3 minutes.
6. Remove Items: Open the lid and use the plastic tweezers to carefully remove the cleaning basket and your items.
7. Rinse and Dry: Rinse the cleaned items under clean water and dry them thoroughly with the provided microfiber cleaning cloth or a soft, lint-free cloth.

Image 6.1: Placing glasses into the cleaner.

Image 6.2: Using the cleaning basket for small items like rings.

Image 6.3: Spoons undergoing ultrasonic cleaning.

Image 6.4: Drying a cleaned item with the microfiber cloth.

7. Maintenance

1. Emptying the Tank: After each use, unplug the device and carefully pour out the water from the tank. Avoid spilling water onto the power input port.
2. Cleaning the Tank: Wipe the inside of the stainless steel tank with a soft cloth to remove any residue. Do not use abrasive cleaners or harsh chemicals.
3. Exterior Cleaning: Wipe the exterior of the unit with a damp cloth. Ensure the unit is completely dry before storing or next use.
4. Storage: Store the cleaner in a cool, dry place away from direct sunlight.

8. Troubleshooting

• Device Does Not Turn On:
  • Ensure the USB-C power adapter is securely connected to both the device and the power outlet.
  • Verify that the power outlet is functional.
  • Confirm you are using the correct 12V DC USB-C power adapter provided.
• Cleaning Not Effective:
  • Ensure items are fully submerged in water.
  • Do not overcrowd the tank; clean items in smaller batches if necessary.
  • For heavily soiled items, consider adding a few drops of mild, non-abrasive cleaning solution (e.g., dish soap) to the water.
  • Ensure the water level is appropriate (between MIN and MAX).
• Unusual Noise During Operation:
  • A gentle buzzing sound is normal during ultrasonic operation.
  • If the noise is excessively loud or unusual, ensure the device is on a stable surface and not vibrating against other objects.

9. Specifications

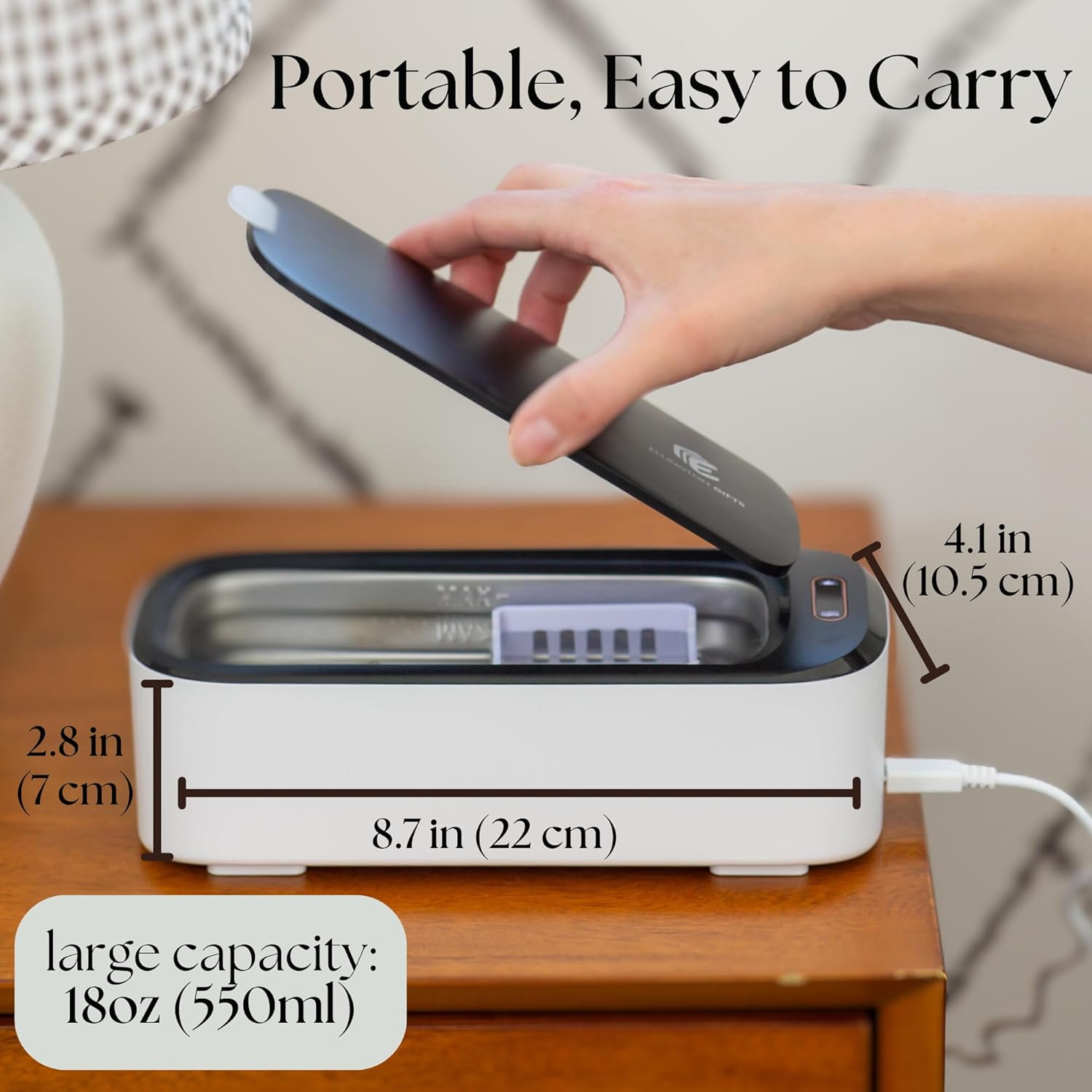

Image 9.1: Dimensions of the ultrasonic cleaner.

10. Warranty and Support

The Ellington Gifts A6-PRO UV-C Ultrasonic Cleaner comes with a 1-year replacement promise from the date of purchase. This warranty covers manufacturing defects and ensures your peace of mind.

For warranty claims, technical support, or any questions regarding your product, please contact Ellington Gifts customer service through your purchase platform or the contact information provided with your product packaging.
