Technical Precision Replacement Ignition Coil for PRESTOLITE 201522

1. Introduction

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Technical Precision Replacement Ignition Coil, designed as a compatible replacement for PRESTOLITE 201522 ignition coils. Please read this manual thoroughly before installation to ensure proper function and safety.

An ignition coil is a crucial component in the ignition system of an internal combustion engine. It transforms the low voltage from the vehicle's battery into the high voltage required to create a spark at the spark plugs, igniting the fuel-air mixture.

2. Safety Information

• Always disconnect the vehicle's battery before performing any work on the ignition system to prevent electrical shock.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure the engine is cool before working on ignition components to avoid burns.
• Handle the ignition coil with care to avoid damage.
• If you are unsure about any step, consult a qualified automotive technician.

3. Package Contents

• 1 x Technical Precision Replacement Ignition Coil (compatible with PRESTOLITE 201522)

4. Setup and Installation

Note: Installation of automotive ignition components can be complex. Professional installation by a certified mechanic is recommended.

1. Preparation: Park the vehicle on a level surface and engage the parking brake. Ensure the engine is off and cool. Disconnect the negative terminal of the vehicle's battery.
2. Locate the Old Coil: Identify the existing ignition coil in your vehicle. Refer to your vehicle's service manual for the exact location.
3. Disconnect Wiring: Carefully disconnect the electrical connectors and spark plug wires from the old ignition coil. Note their positions for correct reinstallation.
4. Remove Old Coil: Unbolt and remove the old ignition coil from its mounting bracket.
5. Install New Coil: Position the new Technical Precision Replacement Ignition Coil in the same location. Secure it with the mounting bolts.
6. Connect Wiring: Reconnect the electrical connectors and spark plug wires to the new coil, ensuring they are firmly seated in their original positions.
7. Final Steps: Reconnect the negative terminal of the vehicle's battery. Start the engine and check for proper operation.

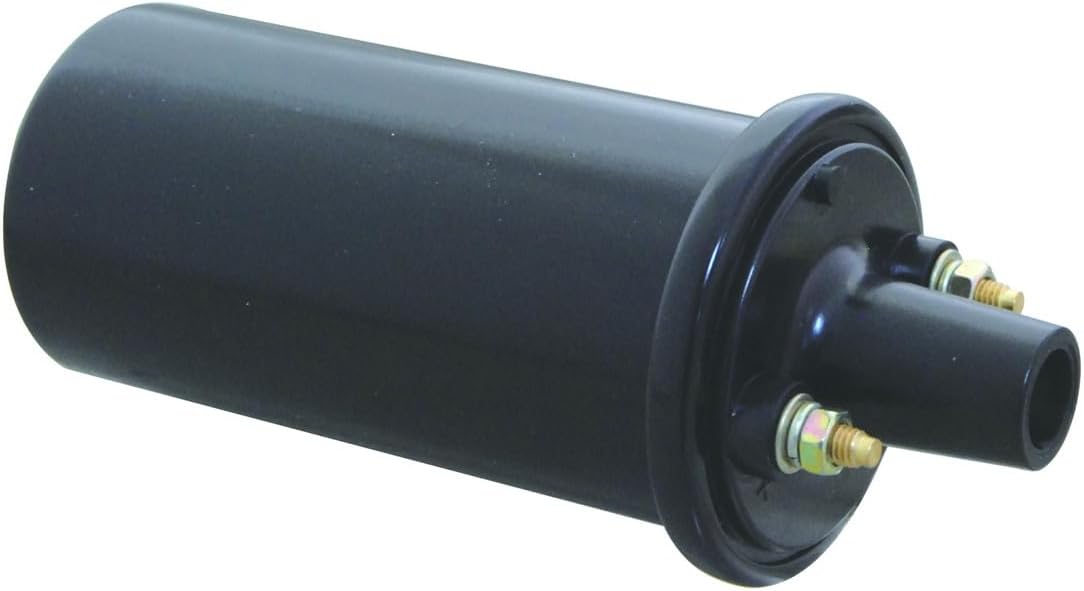

Figure 1: Technical Precision Replacement Ignition Coil. This image displays the cylindrical black ignition coil with two brass terminals and a high-tension output tower.

5. Operating Principles

The ignition coil functions by using electromagnetic induction to step up the low voltage from the vehicle's battery (typically 12V) to several thousand volts. This high voltage is then sent to the spark plugs, creating a spark that ignites the air-fuel mixture in the engine's cylinders. The coil operates in conjunction with the vehicle's engine control unit (ECU) or ignition module, which controls the timing of the spark.

6. Maintenance

Ignition coils are generally maintenance-free components. However, regular inspection of the surrounding ignition system components can help ensure optimal performance and longevity:

• Inspect Wiring: Periodically check all electrical connections and wiring leading to the ignition coil for signs of wear, corrosion, or damage.
• Spark Plugs and Wires: Ensure spark plugs and spark plug wires are in good condition and replaced according to your vehicle manufacturer's recommendations. Faulty spark plugs or wires can put undue stress on the ignition coil.
• Keep Clean: Keep the area around the ignition coil clean and free from excessive dirt, oil, or moisture.

7. Troubleshooting

If you experience issues after installing the replacement ignition coil, consider the following common troubleshooting steps:

• Engine Misfire or Rough Idling:
  • Check Connections: Ensure all electrical connectors and spark plug wires are securely attached to the coil and spark plugs.
  • Inspect Spark Plugs: Worn or fouled spark plugs can cause misfires. Inspect and replace if necessary.
  • Verify Compatibility: Double-check that the coil is the correct replacement for your vehicle and the PRESTOLITE 201522 model.
• No Start Condition:
  • Battery Check: Ensure the vehicle's battery is fully charged and terminals are clean.
  • Ignition Fuse: Check the ignition system fuse in your vehicle's fuse box.
  • Professional Diagnosis: If the issue persists, a professional diagnostic scan may be required to identify underlying electrical or engine control problems.
• Check Engine Light:
  • Scan for Codes: Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs). These codes can pinpoint the specific issue.

For complex issues, it is always recommended to consult a certified automotive technician.

8. Specifications

9. Warranty and Support

Technical Precision products are manufactured to high standards. For specific warranty information or technical support, please refer to the documentation included with your purchase or visit the official Technical Precision website. You may also contact the seller directly through the platform where the purchase was made.
