EROMMY Louvered Pergola 12' x 20' User Manual

1. Introduction

Thank you for choosing the EROMMY Louvered Pergola. This outdoor hard top pergola is designed to enhance your garden or patio space, offering an adjustable louvered roof for versatile sun and shade control, along with integrated curtains and netting for privacy and protection. This manual provides essential information for the safe assembly, operation, and maintenance of your new pergola. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Safety Information

Your safety and the safety of others are very important. Please read and follow all safety instructions carefully.

• Always assemble the pergola with at least 3-4 adults. Do not attempt to assemble alone.
• Ensure all components are present and undamaged before beginning assembly. Contact customer service immediately if any parts are missing or damaged.
• Choose a level and stable surface for installation. Proper anchoring is crucial for stability.
• Do not assemble or use the pergola in strong winds, heavy rain, or snowy conditions.
• Keep children and pets away from the assembly area to prevent injury.
• Wear appropriate safety gear, such as gloves, during assembly.
• Regularly inspect the pergola for loose connections, damage, or wear. Address any issues promptly.

3. Package Contents

The EROMMY Louvered Pergola comes with all necessary components for assembly. All parts are clearly labeled for easy identification. A detailed list of all components and hardware can be found in the packing list included with your product. Please verify all parts against this list before starting assembly.

Figure 3.1: Overview of the pergola's dimensions, showing height, length, and width measurements.

4. Setup

Assembly of the EROMMY 12x20 louvered pergola typically requires 3-4 people and can be completed in approximately 2-3 hours by following the step-by-step instructions provided in the manual.

4.1 Site Preparation

• Select a flat, stable, and clear area for installation.
• Ensure there is adequate space around the pergola for assembly and future use.

4.2 Assembly Steps

Refer to the detailed assembly manual included in your package for specific, step-by-step instructions. General steps include:

1. Unpack all components and verify against the packing list.
2. Assemble the main frame structure, including posts and beams.
3. Install the louvered roof panels.
4. Attach the curtains and netting.
5. Securely anchor the pergola to the ground using the provided anchoring designs at the base of the pillars.

Figure 4.1: The EROMMY Louvered Pergola providing a shaded outdoor living space next to a swimming pool.

Figure 4.2: Close-up views illustrating the stable structure, humanized straps for curtains, and the durable anchor frame at the base of the posts.

5. Operating Instructions

5.1 Adjustable Louvered Roof

The pergola features an adjustable louvered roof with four separate sections, allowing you to control the amount of sunlight and shade. Rotate the louvers to:

• Open: Position the louvers to allow full sunlight for sunbathing or maximum ventilation.
• Close: Position the louvers to create a sheltered area, protecting from sun or light rain.

Figure 5.1: Illustration of the adjustable louvered roof, showing how the panels can be rotated to open for sun or close for shelter.

5.2 Integrated Drainage System

The pergola is designed with an innovative in-built gutter system. Horizontal beams act as drainage channels, collecting rainwater from each panel and directing it into the gutter system. The water is then discharged through the hollow pillars, effectively preventing water accumulation on the roof.

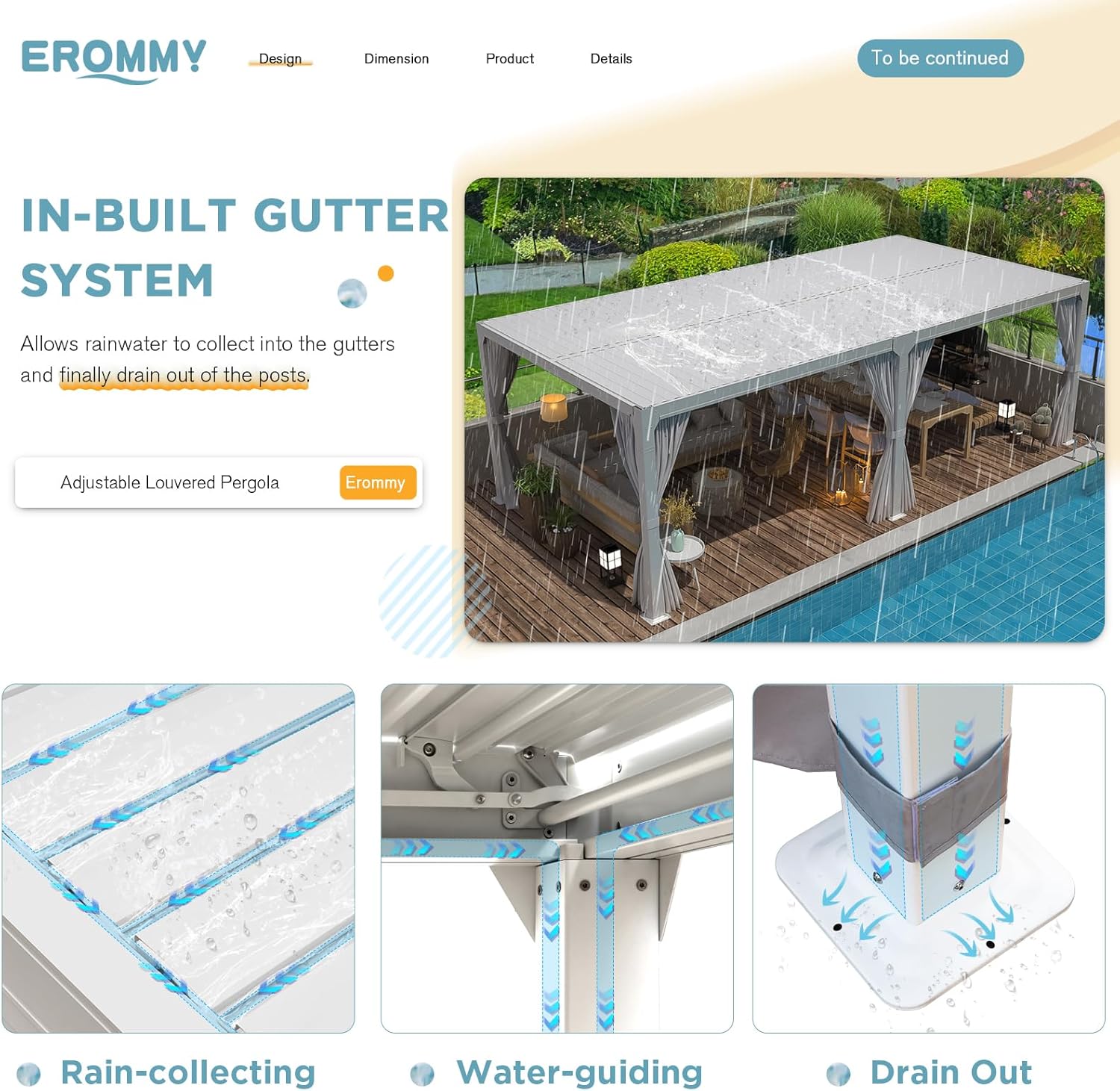

Figure 5.2: Visual explanation of the pergola's in-built gutter system, demonstrating rain collection, water guiding, and drainage through the posts.

5.3 Curtains and Netting

The pergola includes removable curtains and mesh screens. These can be used to:

• Enhance Privacy: Close the curtains for a more secluded space.
• Provide Protection: Use the mesh screens for insect protection.
• Control Shade: Adjust curtains to block low-angle sun.

The three bands on the poles are designed to secure the detachable curtains and nets, preventing them from flying during strong winds.

Figure 5.3: Depiction of the customizable side shade, showing options for privacy, anti-mosquito protection, full ventilation, and full enclosure for waterproofing.

6. Maintenance

To ensure the longevity and optimal performance of your EROMMY Louvered Pergola, regular cleaning and inspection are recommended.

• Cleaning: Clean the aluminum frame and louvered roof with mild soap and water. Rinse thoroughly with clean water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Fabric Care: The curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or retracting to prevent mildew.
• Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary. Inspect the anchoring points for stability.
• Drainage System: Ensure the gutter system and pillars are free of debris (leaves, dirt) to allow for proper water drainage.

7. Troubleshooting

This section addresses common issues you might encounter with your pergola.

• Issue: Water accumulation on the roof.
  Solution: Check the integrated gutter system and pillars for any blockages (e.g., leaves, debris). Ensure the louvered panels are properly closed and aligned to direct water into the channels.
• Issue: Curtains or netting flying in strong winds.
  Solution: Ensure the three securing bands on the poles are properly utilized to hold the curtains and nets in place. If winds are excessively strong, it is recommended to fully retract and secure the curtains/netting or remove them if possible.
• Issue: Louvered roof not adjusting smoothly.
  Solution: Inspect the louver mechanisms for any obstructions or debris. Clean the tracks and moving parts. If the issue persists, check for any bent or damaged components.
• Issue: Pergola feels unstable.
  Solution: Immediately check all anchoring points and ensure they are securely fastened to the ground. Verify that all frame connections are tight. If installed on an uneven surface, this can affect stability.

8. Specifications

9. Warranty and Support

EROMMY is committed to providing high-quality products and excellent customer service. If you encounter any issues with your pergola, our service team is ready to respond promptly.

• For assistance, please refer to the contact information provided in your product packaging or visit the official EROMMY store on Amazon: EROMMY Store.
• Protection plans may be available for purchase to extend coverage beyond the standard warranty. Please check product listing details for more information.
