Generic Replacement Remote Control User Manual

1. Introduction

This manual provides instructions for the Generic replacement remote control. This remote is designed to function as a replacement for original remote controls of various Benq TV/Audio/Projector models, including MK2442, MK2443, ML2441, and ML2442. Please note that as a replacement, some advanced or specific functions of the original remote may not be fully supported.

2. Setup

2.1 Battery Installation

The remote control requires two (2) AAA batteries for operation. Follow these steps to install the batteries:

1. Locate the battery compartment on the back of the remote control.
2. Slide open the battery compartment cover.
3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Close the battery compartment cover until it clicks securely into place.

Important: Do not mix old and new batteries, or different types of batteries. Remove batteries if the remote will not be used for an extended period.

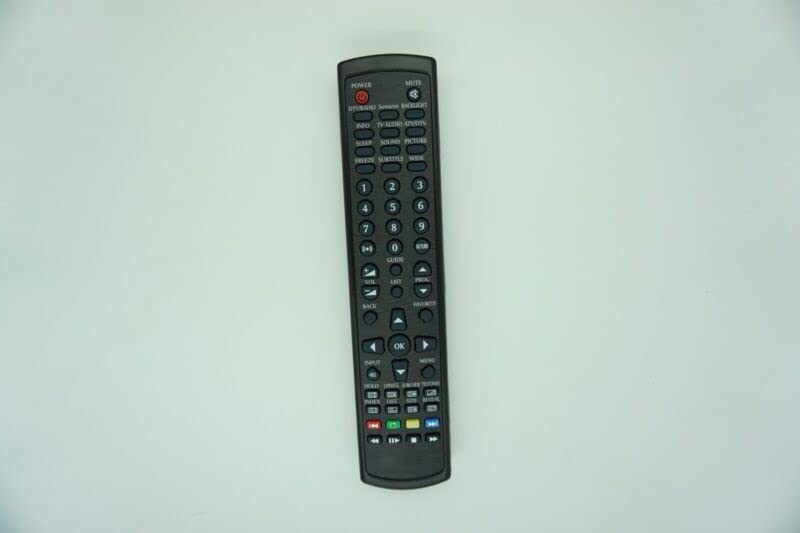

Image 1: Front view of the Generic Replacement Remote Control. The remote is black with various buttons for power, numbers, navigation, and media control. The battery compartment is located on the back.

2.2 Initial Setup

This replacement remote control typically requires no programming or setup. Once batteries are installed, it should be ready for immediate use with compatible Benq models.

3. Operating Instructions

Point the remote control directly at the infrared (IR) receiver on your device (TV, Audio system, or Projector) for optimal performance.

3.1 Basic Functions

• POWER: Turns the device on or off.
• MUTE: Mutes or unmutes the audio.
• Number Buttons (0-9): Used to directly select channels or input numerical values.
• INPUT: Cycles through available input sources (e.g., HDMI 1, HDMI 2, AV).
• VOL +/-: Adjusts the volume level.
• CH +/- (or PROG +/-): Changes the channel up or down.
• Navigation Buttons (Up, Down, Left, Right, OK): Used to navigate menus and confirm selections.
• BACK: Returns to the previous menu or screen.
• MENU: Opens the main menu of the device.
• INFO: Displays information about the current program or input.
• SOUND: Accesses audio settings.
• PICTURE: Accesses picture settings.
• SUBTITLE: Toggles subtitles on or off.
• WIDE: Adjusts the screen aspect ratio.
• LIST: Accesses channel lists or media lists.
• GUIDE: Opens the electronic program guide (EPG).
• FAVORITE: Accesses favorite channels or content.

3.2 Specific Functions

Some buttons, such as those labeled 'DVDRADIO', 'Senseye', 'BACKLIGHT', 'FREEZE', 'SLEEP', 'ATVDTV', 'HOLD', 'UPDATE', 'INDEX', may have specific functions depending on your original device model. As this is a replacement remote, the functionality of these specific buttons may vary or may not be supported on all compatible devices.

4. Maintenance

4.1 Cleaning

To clean the remote control, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical wipes, as these can damage the surface or internal components.

4.2 Battery Care

• Always use the specified battery type (2 x AAA).
• Ensure correct polarity when inserting batteries.
• Remove batteries if the remote is not used for an extended period to prevent leakage and damage.
• Dispose of used batteries responsibly according to local regulations.

5. Troubleshooting

5.1 Remote Not Responding

• Check Batteries: Ensure batteries are correctly inserted and not depleted. Replace with fresh AAA batteries if necessary.
• Line of Sight: Make sure there are no obstructions between the remote control and the device's IR receiver.
• Distance: Ensure you are within the effective operating range of the remote control.

5.2 Limited Functionality

• As a replacement remote, some advanced or specific functions found on your original remote may not be supported. This is not a defect of the product.
• If a critical function is missing, verify compatibility with your specific device model.

6. Specifications

7. Warranty and Support

This product is a replacement remote control. For specific warranty information or technical support, please refer to the seller or manufacturer directly. It is recommended to retain your purchase receipt for any support inquiries.
