PARKSIDE® 20V Cordless Orbital Sander

1. Introduction and Product Overview

The PARKSIDE® PAEXS 20-Li B2 Cordless Orbital Sander is a versatile power tool designed for efficient sanding of various surfaces. It operates on a 20V battery system, offering cordless convenience for a wide range of DIY and professional tasks. Its compact design, ergonomic handles, and integrated dust collection system ensure comfortable and clean operation.

Key features include:

• Compact design with comfortable guidance.
• Ergonomic handles with non-slip soft grip.
• Damped front handle with adjustable angle.
• Integrated dust extraction function with collection box.
• Connector for external dust extraction, adapter included.
• Easy sanding sheet replacement via abrasive sheet fixer and hook-and-loop fastening.
• Compatible with all batteries from the PARKSIDE X 20V Team series.

2. Safety Instructions

Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Keep this instruction manual for future reference.

General Power Tool Safety Warnings:

• Work Area Safety: Keep work area clean and well lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection, dust mask, non-skid safety shoes, hard hat, or hearing protection. Stay alert, watch what you are doing and use common sense.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or remove the battery pack before making any adjustments, changing accessories, or storing power tools.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts.

3. Package Contents

Carefully unpack all items and check for completeness and transport damage. If any parts are missing or damaged, contact customer service immediately.

• 1 x PARKSIDE® PAEXS 20-Li B2 Cordless Orbital Sander
• 1 x 20V / 2Ah Li-Ion Battery (PARKSIDE X20V Team series)
• 1 x 20V / 2.4A Charger (PARKSIDE X20V Team series)
• 4 x Sanding Sheets (Grits: 60, 80, 120, 240)
• 1 x Sanding Sheet Fixer
• 1 x Adapter for external dust extraction
• 1 x Plastic Carrying Case
• 1 x Instruction Manual (this document)

4. Setup

4.1 Charging the Battery

Before first use, fully charge the battery. Connect the charger to a power outlet. Insert the battery into the charger. The charging indicator on the charger will show the charging status. Once fully charged, remove the battery from the charger.

4.2 Installing the Battery

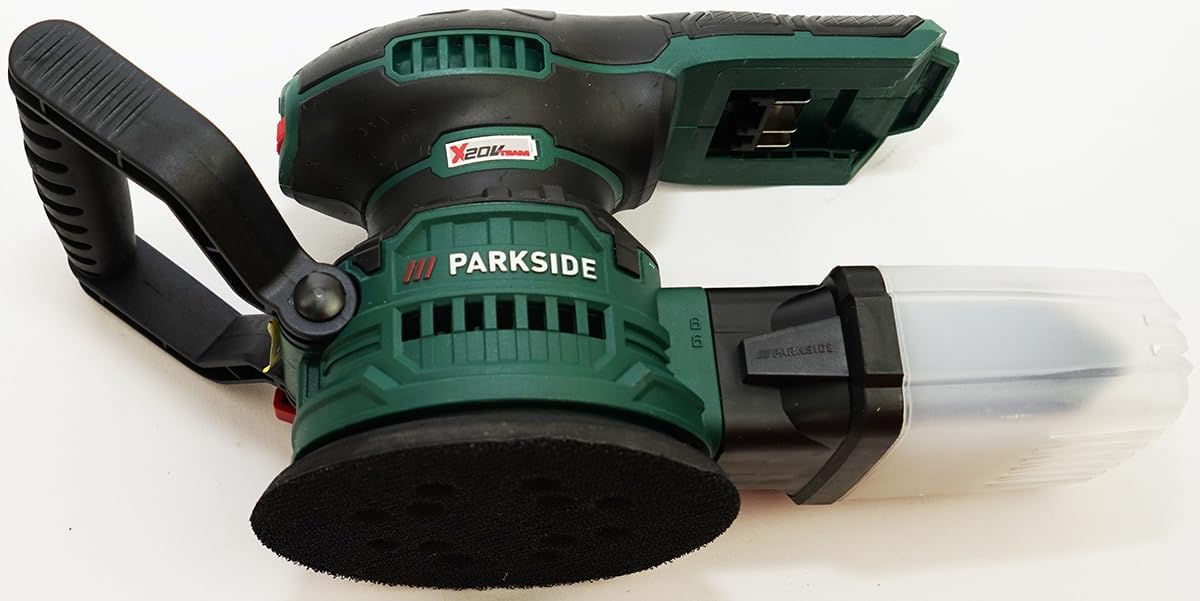

Slide the charged battery pack into the battery slot at the rear of the sander until it clicks securely into place. Ensure it is firmly seated to prevent accidental disconnection during operation.

4.3 Attaching Sanding Sheets

The sander uses 125mm diameter sanding sheets with hook-and-loop fastening. Align the holes on the sanding sheet with the holes on the sanding pad for optimal dust extraction. Press the sanding sheet firmly onto the pad to secure it.

4.4 Connecting Dust Collection

The sander comes with an integrated dust collection box. Attach the dust box to the dust port on the sander. For external dust extraction, use the provided adapter to connect a vacuum cleaner hose to the dust port.

5. Operating Instructions

5.1 Turning On/Off

To turn on the sander, press the ON/OFF switch. To turn it off, release or press the switch again, depending on the switch type (toggle or push-button with lock-on function).

5.2 Adjusting Speed

The sander features variable speed control, allowing adjustment of the no-load speed from 3000 to 12000 min⁻¹ and oscillation rate from 6000 to 24000 min⁻¹. Use the speed adjustment dial or trigger to select the appropriate speed for your material and sanding task.

5.3 Sanding Techniques

• Always hold the sander firmly with both hands.
• Start the sander before placing it on the workpiece.
• Apply light, even pressure. Let the tool do the work.
• Move the sander in overlapping circular or elliptical patterns for best results and to avoid swirl marks.
• Do not press too hard, as this can reduce sanding efficiency and damage the sanding pad or workpiece.
• For fine finishing, use higher grit sandpaper and lighter pressure.

6. Maintenance

6.1 Cleaning the Dust Box

Regularly empty the dust collection box to maintain optimal dust extraction performance. Detach the box, empty its contents, and reattach it securely.

6.2 Cleaning the Tool

After each use, wipe down the sander with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation openings are clear of dust and debris to prevent overheating.

6.3 Storage

Store the sander, battery, and charger in the provided carrying case in a dry, cool place, away from direct sunlight and moisture. Ensure the battery is partially charged (not fully discharged or fully charged) for long-term storage.

7. Troubleshooting

8. Specifications

9. Warranty and Support

This PARKSIDE® product is covered by a 3-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

The warranty covers defects in material and workmanship. It does not cover damage caused by improper use, normal wear and tear, or unauthorized repairs.

For technical support, warranty claims, or spare parts, please contact FITNMORE customer service. Refer to the contact information provided with your purchase documentation or visit the official FITNMORE website.
