1. Introduction
Thank you for choosing the VickyHome 120W Cordless High Pressure Car Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read it thoroughly before first use and keep it for future reference.
2. Safety Instructions
Always follow basic safety precautions when using this product to reduce the risk of injury or damage.
- Read all instructions carefully before operation.
- Wear appropriate personal protective equipment, including eye protection, during operation.
- Do not point the spray nozzle at people, animals, or electrical equipment.
- Ensure all connections are secure before starting the unit.
- Keep children and pets away from the operating area.
- Use only the charger provided for the batteries.
- Do not operate the pressure washer in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Disconnect the battery before performing any maintenance or cleaning.
3. Package Contents
Verify that all items listed below are included in your package:
- Pressure Washer Unit (x1)
- Charger (x1)
- 5m Water Pipe (x1)
- 25cm Water Pipe (x1)
- Foam Bottle (x1)
- Filter (x1)
- Duckbill Nozzles (x1)
- Quick Connector (x1)
- 1300mAh Batteries (x2)
- User Manual (x1)
Image 3.1: All components included in the VickyHome Cordless Pressure Washer package, including the main unit, batteries, charger, hoses, foam bottle, filter, and nozzles.
4. Product Overview and Components
Familiarize yourself with the parts of your pressure washer before assembly and operation.

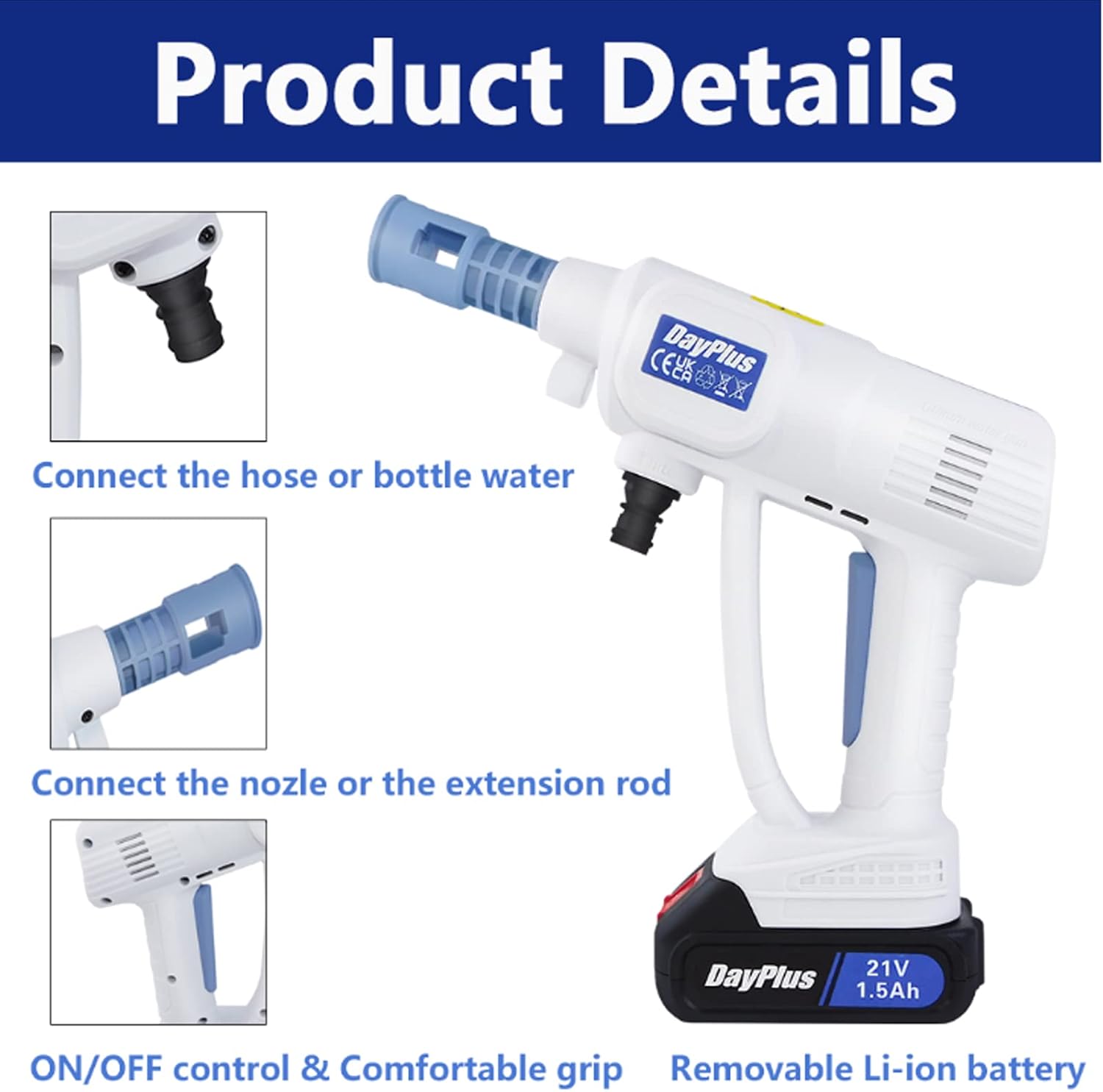

Image 4.1: Detailed view of the pressure washer showing the connection points for the hose/bottle, nozzle/extension rod, ON/OFF control, comfortable grip, and removable Li-ion battery.
Image 4.2: Dimensions of the pressure washer in both portable mode (with short nozzle) and length mode (with long nozzle extension).
Image 4.3: Diagram illustrating various components such as the multi-adjustable nozzle, foam pot, water filter, lithium battery, charger, hoses, and connectors.
5. Setup Instructions
Follow these steps to prepare your pressure washer for use.
- Charge the Battery: Insert the 1300mAh battery into the charger and plug the charger into a power outlet. Ensure the battery is fully charged before first use.
- Attach the Battery: Align the charged battery with the slot on the bottom of the pressure washer handle and slide it in until it clicks securely into place. To remove, press the release button and slide the battery out.
- Connect the Water Inlet Filter: Attach the water inlet filter to the water intake port at the bottom of the pressure washer.
- Connect the Water Pipe:
- For bucket use: Connect the 5m water pipe to the water inlet filter. Place the other end of the pipe with the filter into a bucket of water.
- For faucet connection: If using a faucet, you will need to source an appropriate adapter (not included) to connect the water pipe to your faucet.
- Attach the Nozzle/Extension Rod:
- For short mode: Directly attach the duckbill nozzle to the front of the pressure washer.
- For long mode: First, attach the extension rod to the front of the pressure washer, then attach the duckbill nozzle to the end of the extension rod. Ensure all connections are tight.
- Optional: Attach Foam Bottle: If using the foam function, fill the foam bottle with appropriate cleaning solution and attach it to the nozzle connection point.
Image 5.1: Visual guide for connecting the quick connector, aligning the barrel of the cleaning gun with the water outlet, and inserting the battery.
6. Operating Instructions
Learn how to effectively use your pressure washer for various cleaning tasks.
- Prime the Pump: Before turning on, ensure the water pipe is submerged in water (if using a bucket) or connected to a water source. Squeeze the trigger for a few seconds to allow water to flow through and remove any air from the system.
- Start the Pressure Washer: Press the ON/OFF control button on the handle to start the unit. The motor will begin to run.
- Adjust Spray Pattern: The 6-in-1 nozzle allows for various spray patterns. Rotate the nozzle head to select the desired pattern:
- High Pressure Direct Injection: For stubborn dirt and concentrated cleaning.
- Fan-shaped Injection: For wider coverage and general cleaning.
- 0-180° Free Jet: Adjustable angle for reaching difficult areas like chassis or roof.
- Shower Mode: For gentle rinsing or watering plants.
- Foam Injection: When using the foam bottle for applying detergent.
- Begin Cleaning: Hold the pressure washer firmly and direct the spray towards the surface to be cleaned. Maintain a safe distance to avoid damage to the surface.
- Stop Operation: Release the trigger to stop the water flow. Press the ON/OFF button to turn off the unit completely.
Image 6.1: Illustration of the multifunctional sprinkler showing different spray patterns: high pressure direct injection, fan-shaped injection, 0-180° free jet, and foam injection.
Image 6.2: The cordless pressure washer drawing water from a bucket, demonstrating its portability and ease of use with various water sources.
Image 6.3: Examples of the pressure washer's multi-purpose applications, including home car wash, cleaning air conditioners, ground cleaning, watering plants, high-rise building cleaning, and pet bathing.
7. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pressure washer.
- Cleaning: After each use, rinse the unit and accessories with clean water. Wipe down the exterior with a damp cloth.
- Nozzle Care: Clear any blockages from the nozzle tip using a small pin or the included nozzle cleaning tool (if applicable).
- Filter Cleaning: Regularly inspect and clean the water inlet filter to prevent debris from entering the pump.
- Battery Storage: Store batteries in a cool, dry place away from direct sunlight. For long-term storage, charge batteries to approximately 50% capacity.
- Unit Storage: Store the pressure washer in a dry, frost-free environment. Disconnect all hoses and drain any remaining water from the unit to prevent freezing damage.
8. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | Battery not charged or improperly inserted. | Ensure battery is fully charged and securely inserted. |
| Low water pressure | Insufficient water supply; clogged water inlet filter; air in the system. | Check water source; clean filter; prime the pump by squeezing trigger before starting. |
| Water leaks from connections | Loose connections; worn O-rings. | Tighten all connections; inspect and replace O-rings if damaged. |
| Motor runs but no water sprays | No water supply; clogged nozzle. | Ensure water source is connected and turned on; clean nozzle tip. |
9. Specifications
Technical details of the VickyHome Cordless High Pressure Car Washer.
- Power Source: Battery Powered
- Battery Type: 21V Lithium Battery, 1300mAh (x2 included)
- Maximum Flow Rate: 3 Liters Per Minute
- Product Dimensions: 22.05"L x 2.83"W x 11.81"H (approximate, assembled)
- Manufacturer: VickyHome
- Model Number: car pressure washer
10. Warranty and Support
This product comes with a 2-Year Warranty from the date of purchase. For warranty claims or technical support, please contact VickyHome customer service through your original point of purchase. Please retain your proof of purchase for warranty validation.
