1. Introduction

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Samoser Gas Range Oven Bake Burner Igniter. This product is an aftermarket replacement part designed for specific Amana and Caloric gas range ovens. Please read this manual thoroughly before attempting any installation or repair to ensure proper function and safety.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always disconnect electrical power to the appliance before servicing.
• Turn off the gas supply to the appliance before servicing.
• Gas appliance repair should only be performed by qualified personnel. If you are unsure about any step, consult a certified technician.
• Wear appropriate personal protective equipment, such as gloves and safety glasses.
• Ensure all gas connections are leak-free after installation. Use a non-corrosive leak detection solution.
• Keep children and pets away from the work area.

3. Package Contents

Your package should contain the following item:

• 1 x Samoser Gas Range Oven Bake Burner Igniter

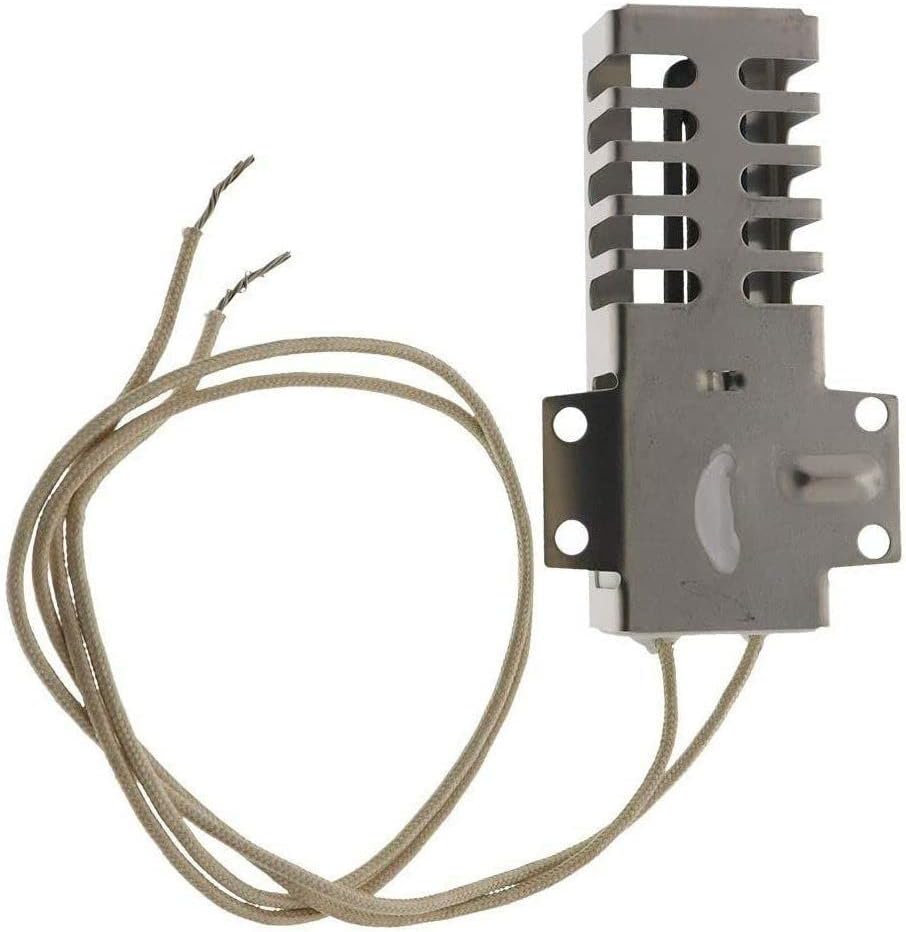

Image 1: Front view of the Samoser Gas Range Oven Bake Burner Igniter with wiring.

4. Compatibility

This aftermarket igniter is designed as a replacement part for various Amana and Caloric gas range oven models. To confirm compatibility with your specific appliance, please cross-reference your oven's model number with the list below. If your model number is not listed, or if you are unsure, it is recommended to contact the seller for assistance.

Compatible Models Include:

• ARGS7650 Series (e.g., ARGS7650WW-P1130762NWW, ARGS7650WW-P1130764NWW, ARGS7650WW-P1130765NWW)
• OEMA1-ARG7600L, OEMA1-ARG7600LL, OEMA1-ARG7600W, OEMA1-ARG7600WW
• OEMA1-ARG7800E, OEMA1-ARG7800LL, OEMA1-ARG7800WW
• ARGS7650CC, ARGS7650E, ARGS7650LL, ARGS7650SS
• And other similar models.

Note: Use the 'Ctrl + F' (or 'Command + F' on Mac) function on your device to search for your specific model number within the product description or this manual.

5. Installation Instructions

Before You Begin: Ensure you have read and understood the Safety Information section. This procedure involves working with gas and electricity and should only be performed by individuals comfortable with appliance repair. If in doubt, consult a professional.

5.1 Tools Required

• Screwdriver (Phillips and/or Flathead)
• Wrench or Nut Driver (appropriate size for oven fasteners)
• Wire Strippers/Crimpers (if wire nuts are not pre-attached or need replacement)
• Flashlight
• Work Gloves
• Leak Detection Solution (for gas connections)

5.2 Step-by-Step Installation

1. Disconnect Power and Gas: Locate your oven's circuit breaker and turn off the power. Turn off the gas supply valve to the oven. This is a critical safety step.
2. Access the Oven Interior: Open the oven door and remove oven racks. Depending on your model, you may need to remove the oven bottom panel to access the bake burner and igniter. This panel is usually held by a few screws.
3. Locate the Old Igniter: The bake burner igniter is typically located near the gas burner tube at the bottom of the oven cavity. It is a small, ceramic-like component with two wires.
4. Disconnect the Old Igniter: Carefully disconnect the wires leading to the old igniter. Note how they are connected. You may need to cut the wires and use wire nuts for the new connection, or they might have a quick-disconnect terminal. Remove any screws holding the old igniter in place.
5. Remove the Old Igniter: Once disconnected and unscrewed, carefully remove the old igniter from its mounting bracket.
6. Install the New Igniter: Position the new Samoser igniter in the same location as the old one. Secure it with the mounting screws. Ensure it is firmly in place and not touching any other components.


Image 2: Rear view of the igniter showing mounting brackets and wire connections.

7. Connect Wiring: Connect the wires of the new igniter to the oven's wiring. If using wire nuts, ensure a secure and insulated connection. Match the wires correctly.


Image 3: Side view of the igniter, highlighting the ceramic connectors and wiring.

8. Reassemble Oven: Replace the oven bottom panel and any other components removed to gain access. Replace oven racks.
9. Restore Gas and Power: Turn the gas supply back on. Turn the electrical power back on at the circuit breaker.
10. Check for Gas Leaks: Apply a non-corrosive leak detection solution (soapy water) to all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas immediately and tighten connections until the leak stops. Do not proceed until all leaks are resolved.
11. Test Operation: Set the oven to bake at a moderate temperature (e.g., 350°F or 175°C). Observe the igniter. It should glow brightly within 30-60 seconds, and then the gas should ignite, producing a flame.

6. Operation

The Samoser Gas Range Oven Bake Burner Igniter operates automatically. When the oven is set to a bake temperature, the control system sends voltage to the igniter. The igniter heats up, drawing current, which then opens the gas valve. Once the gas valve opens, the hot igniter ignites the gas, and the bake burner produces a flame to heat the oven cavity. The igniter will continue to glow during the bake cycle to ensure consistent ignition.

7. Troubleshooting

If your oven is not functioning correctly after igniter replacement, consider the following common issues:

• Igniter Glows, But No Gas Ignition:
  • The igniter may not be drawing enough current to open the gas valve. Even if it glows, it might be weak.
  • Check for proper gas supply to the oven.
  • Ensure the igniter is positioned correctly near the burner ports.
• Igniter Does Not Glow:
  • Verify electrical power to the oven.
  • Check wiring connections to the igniter for looseness or damage.
  • The igniter itself may be faulty (though unlikely if newly installed).
  • A faulty oven control board could also prevent power from reaching the igniter.
• Oven Not Heating Evenly or Taking Too Long:
  • Ensure the igniter is fully igniting the gas burner across its length.
  • This could indicate other issues with the oven's gas pressure or burner components, not directly related to the igniter.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your Samoser Gas Range Oven Bake Burner Igniter, please refer to the product listing or contact the seller directly. For technical support or further assistance with compatibility and installation, please reach out to the seller through your purchase platform.
