Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Qufute Feather LED Dimmable Wall Sconce. Please read this manual thoroughly before installation and retain it for future reference.

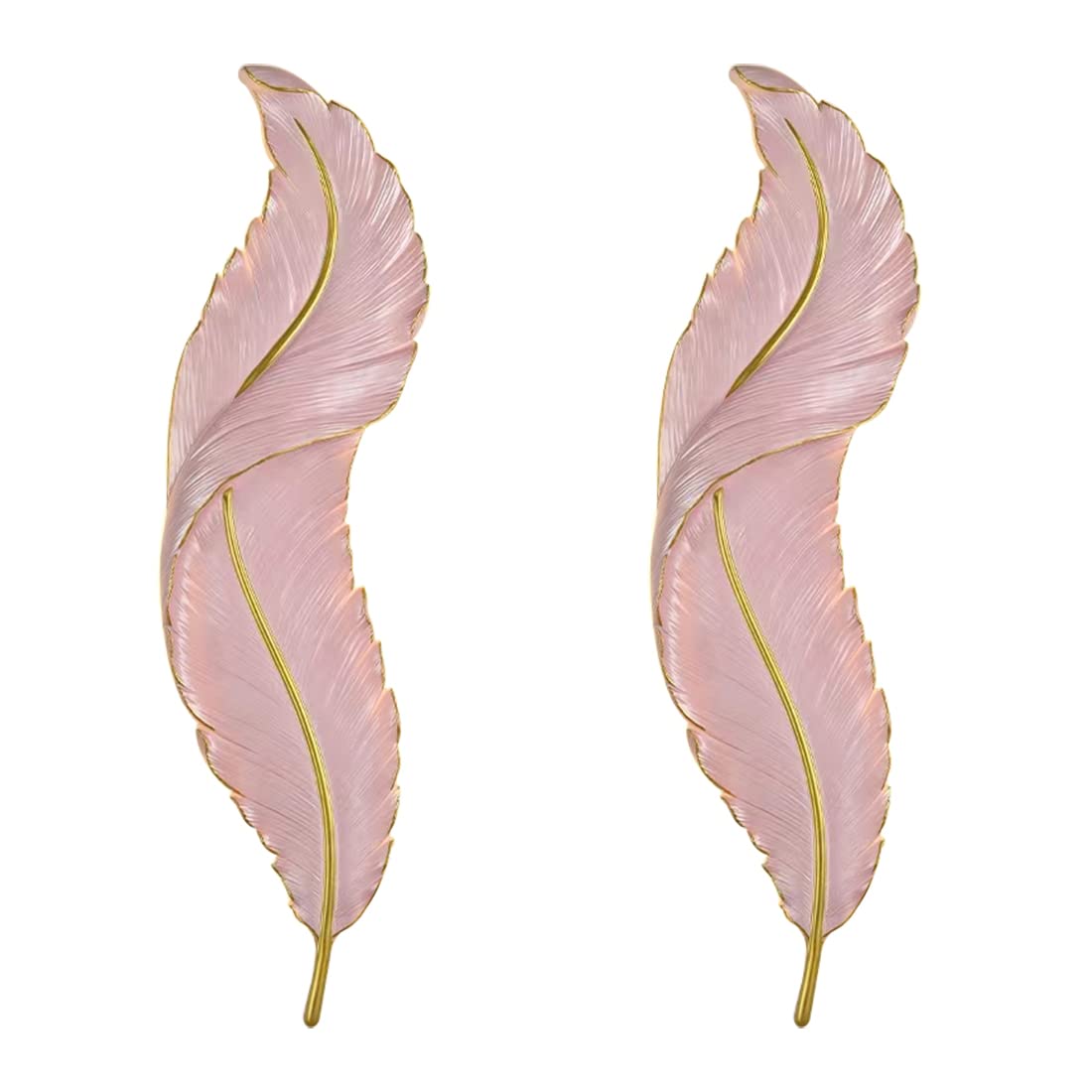

The Qufute Feather LED Dimmable Wall Sconce in Pink, 2-Light configuration.
The Qufute Feather Wall Sconce features a unique feather-style design crafted from environment-friendly resin, offering both artistic appeal and functional lighting. It includes a dimmable LED light source with three color temperature options (Warm, Neutral, White) to suit various moods and settings.
Safety Information
- Electrical Safety: Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical wiring. Always turn off the main power supply at the circuit breaker before installation or maintenance.
- Voltage: Ensure the voltage supply matches the fixture's requirements (110 Volts).
- Mounting: Mount the fixture securely to a U.S. standard junction box. Do not install on unstable surfaces.
- Handling: Handle the product with care to avoid damage to the resin feather design or electrical components.
- Indoor Use Only: This product is designed for indoor use only. Do not expose to moisture or outdoor elements.
Package Contents
Verify that all components are present before beginning installation:
- Feather Wall Sconce Fixture
- Mounting Hardware Kit
- LED Light Source (integrated)
- Instruction Manual
Specifications
| Brand | Qufute |
| Model Number | Qu |
| Color | Pink |
| Material | Resin |
| Style | Modern |
| Light Source | LED |
| Number of Light Sources | 1 (per feather unit) |
| Voltage | 110 Volts |
| Wattage | 40 watts |
| Light Color | White, Warm White, Neutral Light (Dimmable 3000K-6000K) |
| Power Source | Hardwired |
| Mounting Type | Wall Mount |
| Dimensions (L x W x H) | 7.1"L x 7.1"W x 25.6"H (18cm x 18cm x 65cm) |
Product dimensions: 18cm/7.1" wide, 65cm/25.6" high.
Setup & Installation
This wall sconce is designed for hardwired installation. All necessary mounting hardware and instructions are included. The mounting base is compatible with U.S. standard junction boxes.
- Prepare the Wall: Identify the desired location for the sconce. Use a drill to create pilot holes for mounting screws.
- Insert Wall Plugs: Insert the provided rubber plugs into the drilled holes and tighten the screws slightly to secure them.
- Connect Wiring: Turn off power at the circuit breaker. Connect the fixture's wires to the corresponding household wires (Live, Neutral, Ground) according to local electrical codes. Ensure all connections are secure.
- Mount the Fixture: Align the fixture's mounting base with the wall screws and secure it firmly.
Visual guide for installation steps: 1. Wall Punching, 2. Plug the hole with rubber plug and tighten the screw, 3. Connect the power cord, 4. Fixed lamp body.
Official product video demonstrating the Qufute Feather Wall Light and its features.
Operating Instructions
The Qufute Feather LED Wall Sconce features a 3-color dimmable design, allowing you to adjust the light color temperature to your preference.
- Power On/Off: Use your standard wall switch to turn the light fixture on or off.
- Change Color Temperature: Quickly toggle the wall switch (off then on) to cycle through the three available light colors: Warm Light (3000K), Neutral Light (4500K), and White Light (6000K).
The wall sconce offers three distinct light color temperatures: White Light (6000K), Warm Light (3000K), and Neutral Light (4500K).
Maintenance
To ensure the longevity and appearance of your Qufute Feather LED Dimmable Wall Sconce, follow these maintenance guidelines:
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to gently wipe the resin feather and metal components. Avoid abrasive cleaners, solvents, or polishes that may damage the finish.
- Dusting: Regularly dust the fixture to prevent buildup, which can affect light output and appearance.
- LED Care: The LED light source is integrated and designed for long-term use. Do not attempt to replace the LED bulbs yourself.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Loose wiring connection. Faulty switch. | Check circuit breaker. Verify all wiring connections are secure (ensure power is off first). Test the wall switch. |
| Light flickers. | Loose wiring. Incompatible dimmer switch (if applicable). | Check wiring connections. Ensure a compatible LED dimmer switch is used if dimming functionality is desired. |
| Cannot change light color. | Incorrect switching method. | Ensure you are quickly toggling the wall switch off and on to cycle through colors. |
If you encounter issues not listed here or if the problem persists, please contact Qufute customer support.
Warranty & Support
The Qufute Feather LED Dimmable Wall Sconce comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any questions regarding your product, please contact Qufute customer support through the retailer's platform or visit the official Qufute Lighting store online.
Please retain your proof of purchase for warranty validation.
