Outsunny 2-Seater Wooden Garden Swing Instruction Manual

Introduction

Thank you for choosing the Outsunny 2-Seater Wooden Garden Swing. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new garden swing. Please read this manual thoroughly before assembly and keep it for future reference.

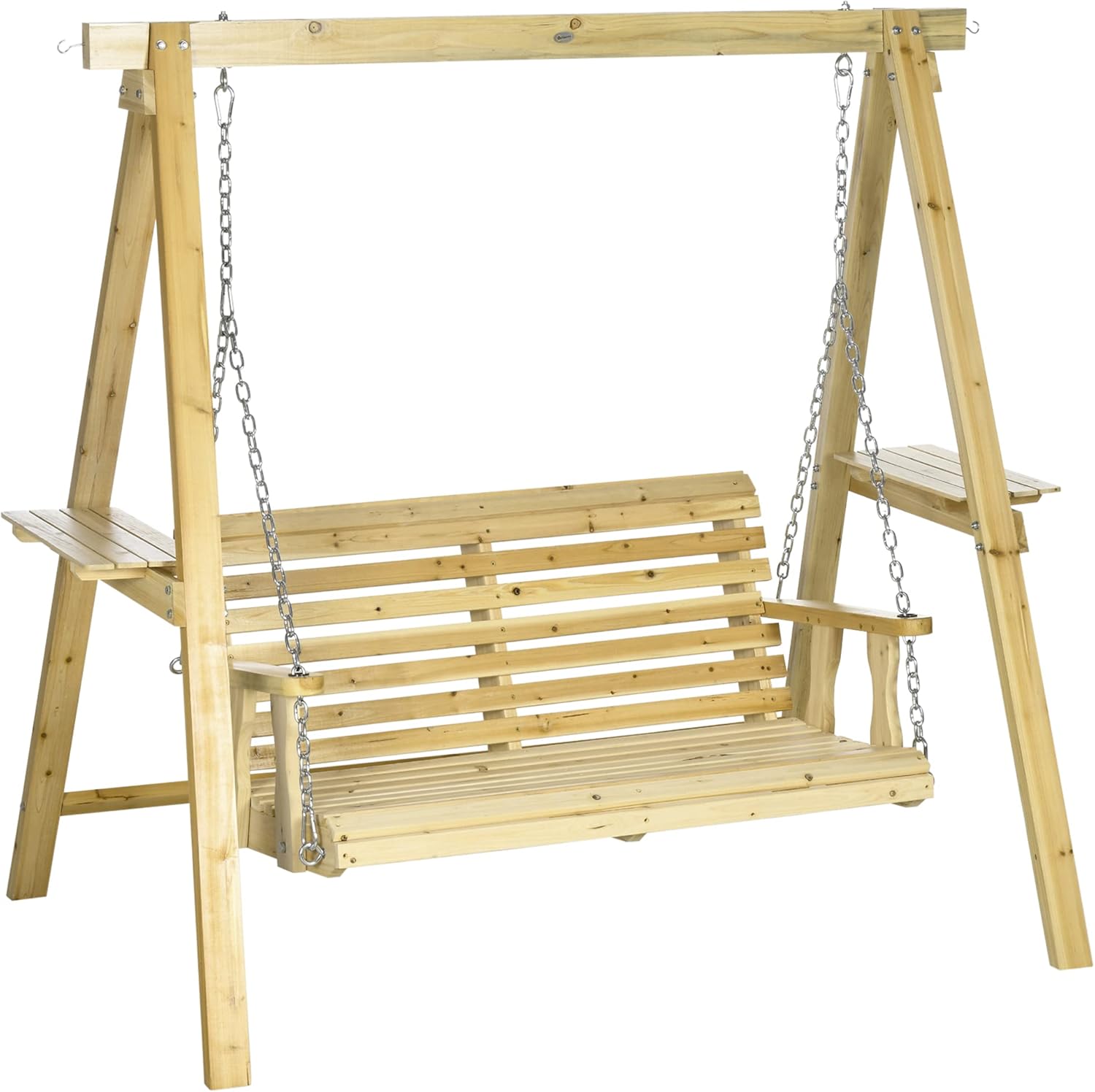

Figure 1: The Outsunny 2-Seater Wooden Garden Swing, showcasing its natural wood finish and sturdy construction.

Safety Instructions

To ensure safe use of your garden swing, please observe the following precautions:

• Always assemble the swing on a flat, stable surface.
• Ensure all bolts and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum recommended load capacity of 240 kg (approximately 2 adults).
• Keep children under supervision when they are near or using the swing.
• Avoid standing on the swing or using it in an unsafe manner.
• Do not use the swing during strong winds or severe weather conditions.
• Regularly inspect the swing for any signs of wear, damage, or loose components. Discontinue use if damage is found and repair or replace parts as needed.
• Place the swing on a soft surface like grass or mulch if possible, to minimize injury risk from falls.

Parts List

Before beginning assembly, verify that all parts are present and undamaged. Refer to the detailed parts diagram in the included assembly manual for specific component identification.

Setup and Assembly

Assembly of the Outsunny Garden Swing is designed to be straightforward with the included illustrated manual. Below are general steps and important considerations:

1. Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratching. Identify each part according to the parts list.
2. Assemble the Main Frame: Begin by connecting the main wooden frame beams. Ensure all connections are snug but do not overtighten bolts until the frame is fully assembled and stable.
3. Attach Side Tables: Secure the two side tables to the main frame using the provided hardware.
4. Install the Swing Seat: Attach the pre-assembled swing seat to the main frame using the metal chains and hooks. Ensure the chains are securely fastened to both the seat and the overhead beam.
5. Adjust Height (Optional): The swing's height and angle can be adjusted by changing the position of the metal chains on the support hooks. Refer to the detailed diagram for adjustment points.
6. Final Tightening: Once the entire swing is assembled and stands stable, go back and securely tighten all bolts and fasteners.

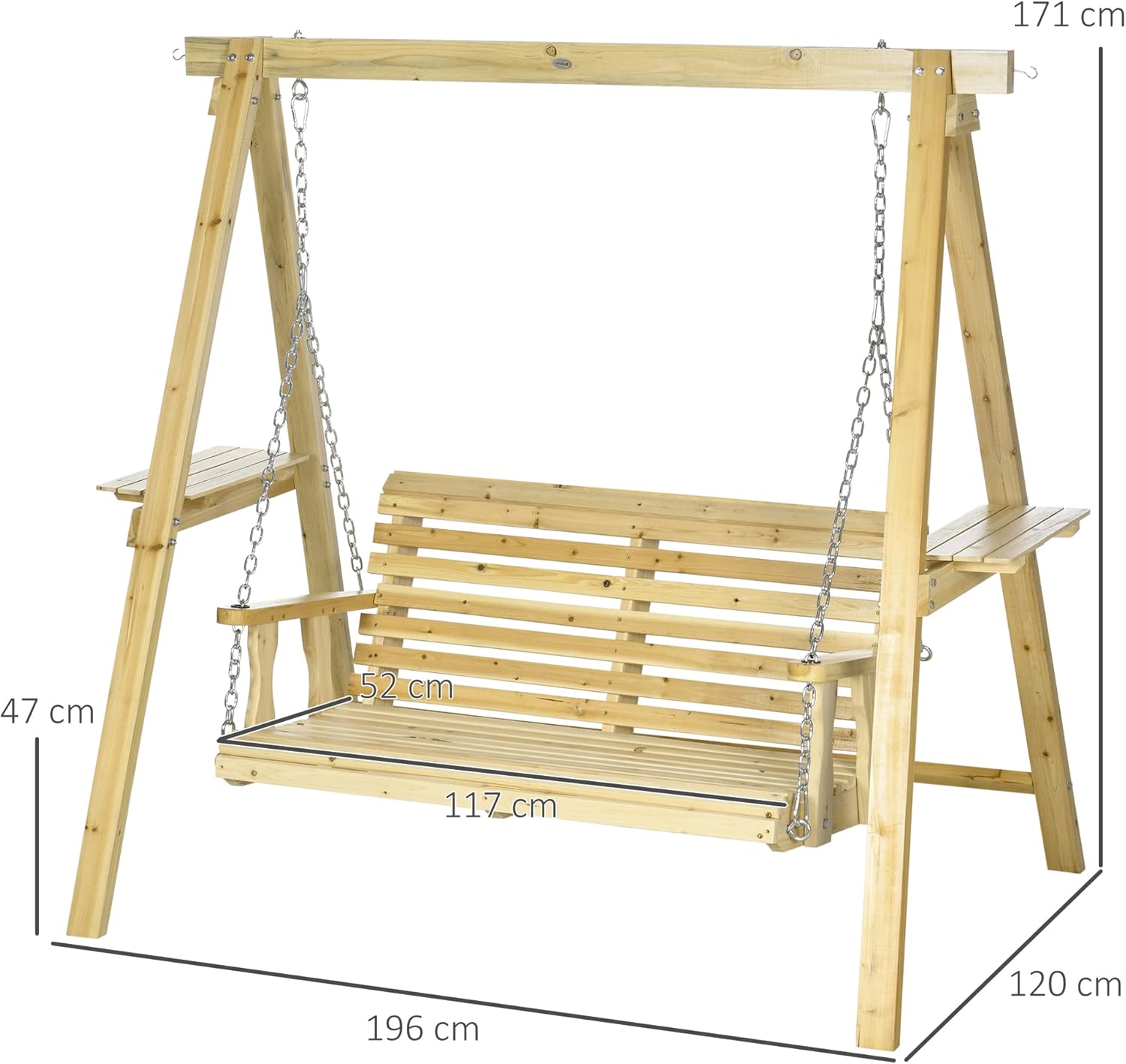

Figure 2: Detailed dimensions of the swing, useful for planning placement in your garden or patio. Overall dimensions: 196 cm (length) x 120 cm (width) x 171 cm (height).

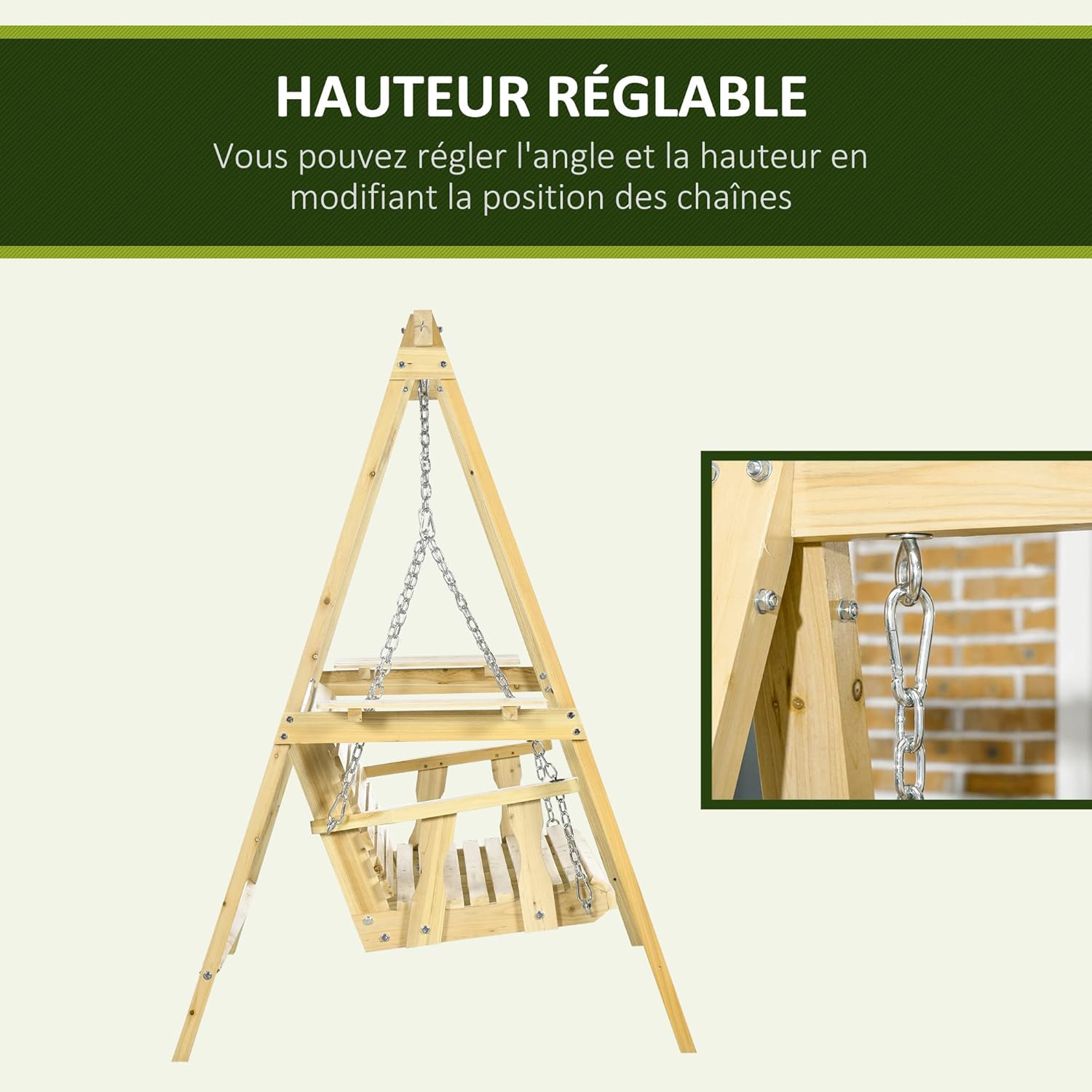

Figure 3: Illustration of the adjustable height feature, showing how the chains can be repositioned to modify the swing's angle and height.

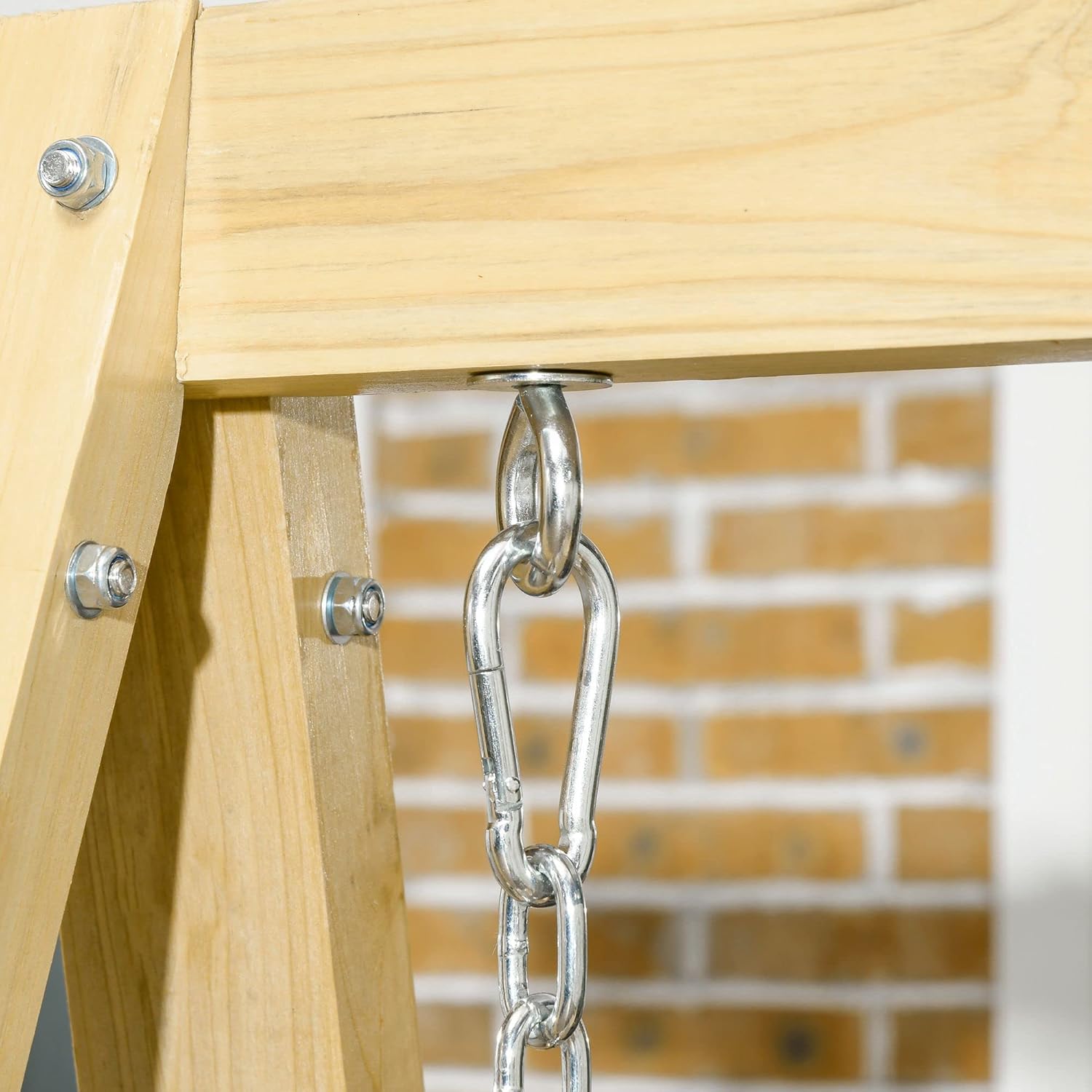

Figure 4: Close-up view of the secure metal chain connection, highlighting the robust hardware used for suspension.

Operating Instructions

The Outsunny Garden Swing is designed for comfortable relaxation. To operate:

• Gently sit on the swing seat. The ergonomic design with a slightly inclined backrest and deep seat provides optimal comfort.
• Use the wide armrests for support.
• The integrated side tables are convenient for placing drinks, books, or small personal items while you relax.
• Initiate gentle swinging motions with your feet. Avoid excessive force or aggressive swinging.

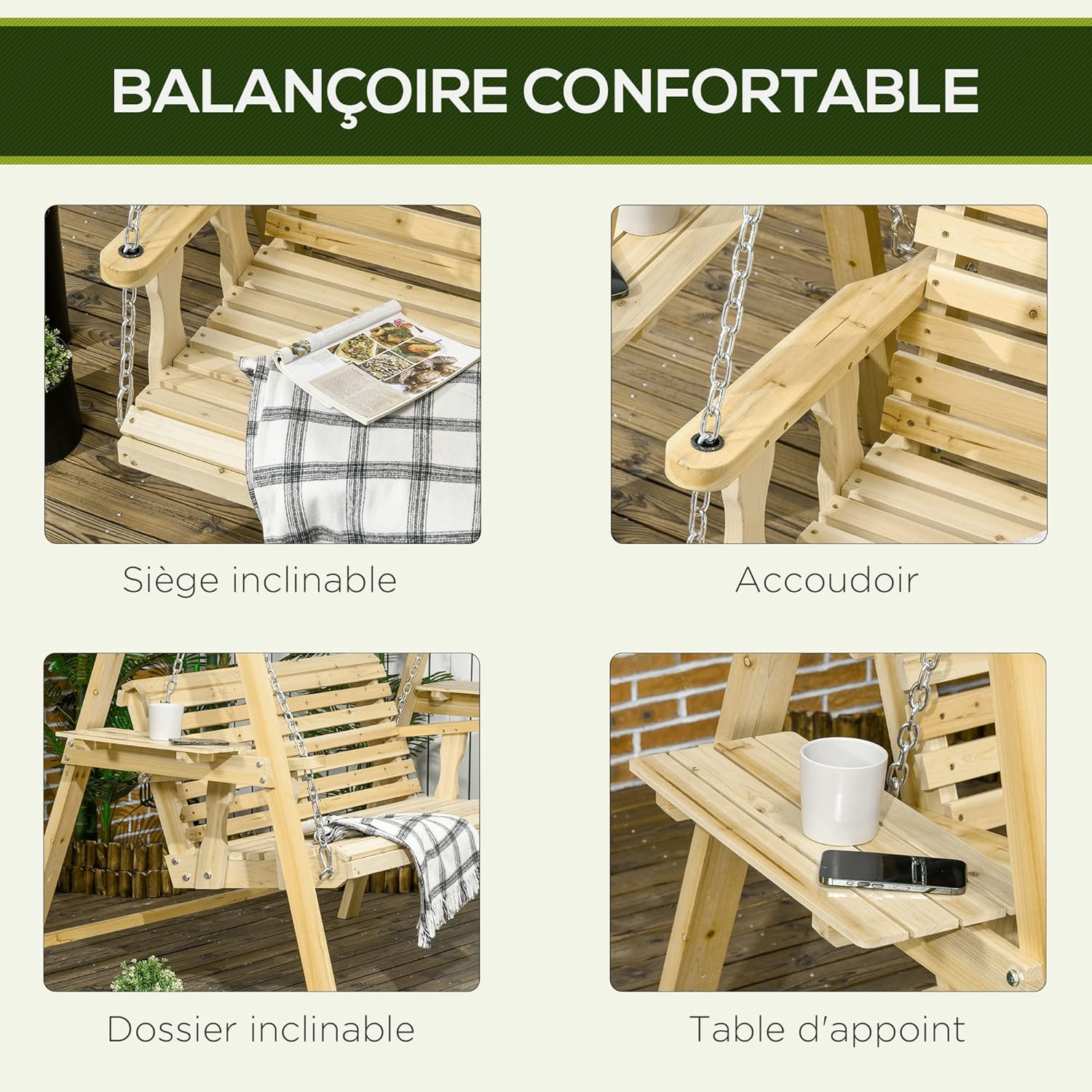

Figure 5: This image illustrates the comfort features of the swing, including the wide armrests and convenient side tables for holding items like drinks or books.

Maintenance

Proper maintenance will extend the life and appearance of your Outsunny Garden Swing:

• Cleaning: Wipe down the wooden surfaces with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners.
• Wood Care: The wood is pre-oiled for resistance against weather elements like sun and rain. To maintain its condition and enhance longevity, it is recommended to re-oil or apply a suitable wood sealant periodically, especially if the swing is exposed to harsh weather.
• Hardware Inspection: Regularly check all bolts, nuts, and chain connections for tightness. Re-tighten any loose hardware to ensure stability and safety.
• Storage: During prolonged periods of non-use or severe weather (e.g., winter), it is advisable to cover the swing or store it indoors to protect it from the elements.

Figure 6: A close-up view of the wooden slats, demonstrating the natural finish and texture of the fir wood used in the swing's construction.

Troubleshooting

If you encounter any issues with your Outsunny Garden Swing, refer to the following common problems and solutions:

• Swing feels unstable:
  • Ensure all assembly bolts are fully tightened.
  • Verify the swing is placed on a level surface.
  • Check for any damaged or warped wooden components.
• Squeaking noise during swinging:
  • Apply a silicone-based lubricant to the chain connections and any moving metal parts.
  • Check if any bolts are loose and tighten them.
• Wood appears faded or dry:
  • This is normal over time due to sun exposure. Re-apply a suitable outdoor wood oil or sealant to restore its appearance and protection.

If problems persist, please contact Outsunny customer support for assistance.

Specifications

Warranty and Support

Outsunny products are manufactured to high-quality standards. Specific warranty details are typically provided with your purchase documentation or can be obtained by contacting Outsunny customer service directly. Please retain your proof of purchase for any warranty claims.

For customer support, spare parts inquiries, or further assistance, please visit the official Outsunny website or contact their customer service department. Information regarding spare parts availability may vary.

Return Policy: This product is subject to a 30-day refund/replacement return policy from the date of purchase. Please refer to your retailer's specific return terms and conditions.
