1. Introduction
This manual provides essential instructions for the assembly, operation, maintenance, and safety of your AVASTA Rubato 18 Inch Freestyle BMX Bike. This bike is designed for young riders, typically aged 5 to 8 years, who are beginners in BMX riding. Please read this manual thoroughly before assembly and first use to ensure safe and optimal performance.

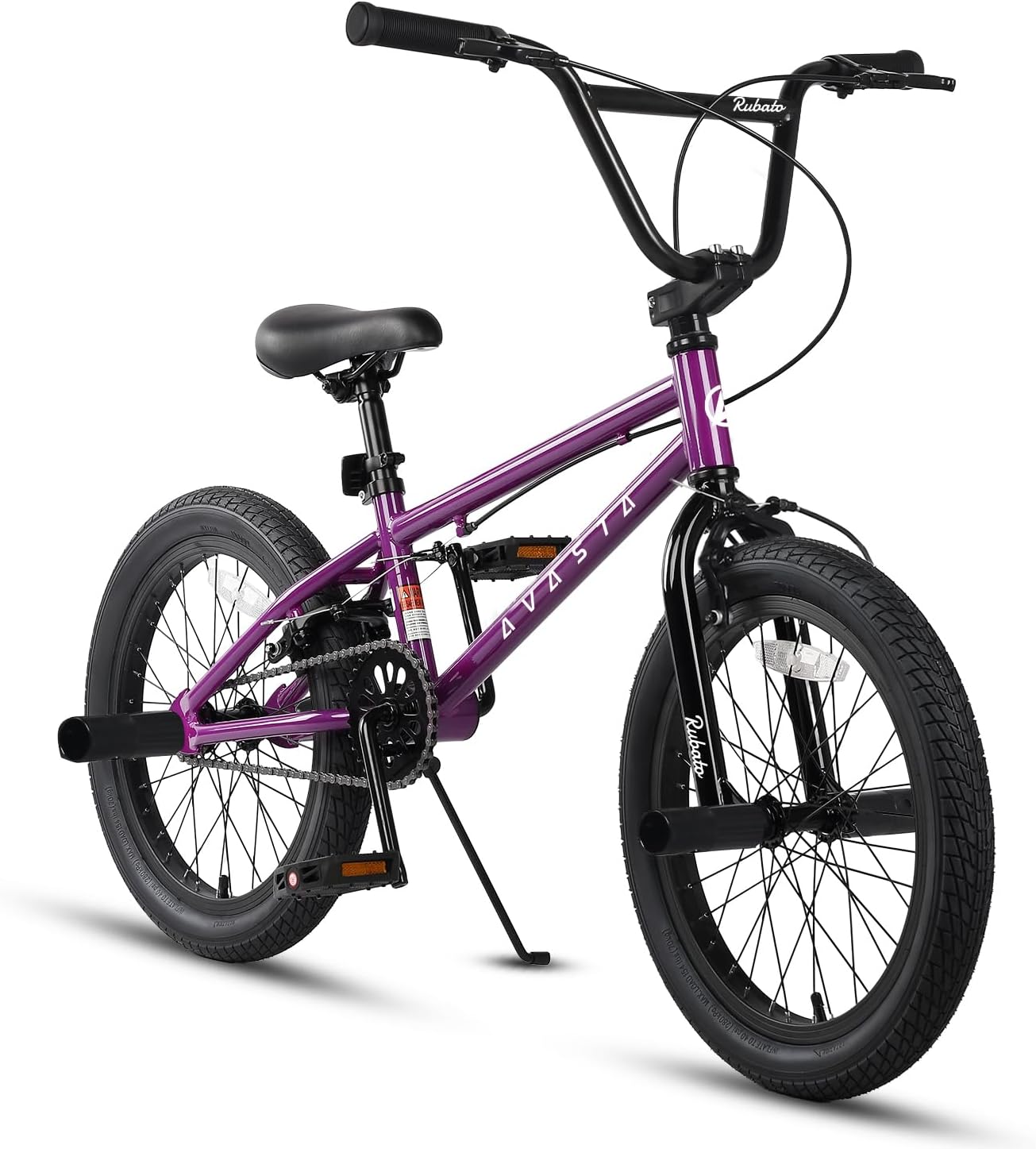

Image 1.1: Full view of the AVASTA Rubato 18'' BMX bike in purple.
2. Safety Information
Your safety is paramount. Always adhere to the following safety guidelines:
- Wear a Helmet: Always wear a properly fitted helmet that meets safety standards.
- Supervision: Young riders should always be supervised by an adult.
- Pre-Ride Check: Before each ride, check tire pressure, brake function, handlebar and seat tightness, and ensure all quick releases are secure.
- Road Rules: Obey all local traffic laws and regulations. Ride predictably and signal turns.
- Visibility: Use lights and reflectors when riding in low-light conditions. Wear bright clothing.
- Avoid Distractions: Do not use headphones or mobile devices while riding.
- Weather Conditions: Avoid riding in adverse weather conditions such as heavy rain, snow, or ice.
3. Package Contents
Upon opening the package, verify that all components are present:
- AVASTA Rubato 18 Inch BMX Bike (85% pre-assembled)
- Front Wheel
- Handlebar
- Seat Post and Saddle
- Pedals (Left and Right)
- Kickstand
- Assembly Tools (wrenches, hex keys, screwdriver)
- User Manual
4. Setup and Assembly
Your AVASTA Rubato 18 Inch BMX Bike arrives 85% pre-assembled. The following steps detail the remaining assembly process. Refer to the included assembly tools.
- Install the Front Wheel:
- Carefully remove the bike from its packaging.
- Align the front wheel with the fork dropouts.
- Insert the axle into the dropouts and secure with the axle nuts. Ensure the wheel is centered and spins freely.
- Attach the Handlebar:
- Loosen the stem bolts on the fork.
- Insert the handlebar stem into the fork steerer tube.
- Align the handlebar perpendicular to the front wheel and tighten the stem bolts securely.
Image 4.1: Close-up of the handlebar stem and clamp on the AVASTA Rubato 18'' BMX bike.
- Install the Seat Post and Saddle:
- Insert the seat post into the frame's seat tube.
- Adjust the seat height to an appropriate level for the rider (refer to Section 5 for guidance).
- Tighten the seat post clamp securely.
Image 4.2: Close-up of the adjustable seat on the AVASTA Rubato 18'' BMX bike.
- Attach the Pedals:
- Identify the Left (L) and Right (R) pedals. The left pedal has a reverse thread.
- Thread the 'R' pedal clockwise into the right crank arm.
- Thread the 'L' pedal counter-clockwise into the left crank arm.
- Tighten both pedals firmly with a wrench.
- Adjust Brakes:
- Ensure brake pads are aligned with the rim and make full contact.
- Adjust cable tension so that brake levers engage smoothly and stop the bike effectively without touching the handlebar.
Image 4.3: Close-up of the front linear pull brake system on the AVASTA Rubato 18'' BMX bike.
Image 4.4: Close-up of the rear linear pull brake system and chain on the AVASTA Rubato 18'' BMX bike.
- Install Kickstand:
- Attach the kickstand to the designated mounting point near the rear wheel.
- Secure it with the provided bolts.
5. Operating Instructions
Understanding how to properly operate your BMX bike ensures a safe and enjoyable riding experience.
5.1 Rider Sizing
The AVASTA Rubato 18'' BMX bike is recommended for riders with a height between 3'5" (104 cm) and 4'3" (130 cm), typically aged 5 to 9 years. Proper sizing is crucial for control and comfort.
Image 5.1: AVASTA Crossea size guide table, showing recommended wheel size, rider height, and age.
5.2 Seat Height Adjustment
Adjust the seat height so that the rider can comfortably touch the ground with the balls of their feet when seated. For beginners, a slightly lower seat height can provide more confidence and easier stopping.
5.3 Braking Technique
The bike is equipped with linear pull brakes (U-brakes) for precise speed control. Practice braking in a safe, open area. Apply both front and rear brakes simultaneously and gradually to avoid skidding or losing control. The front brake provides more stopping power, while the rear brake helps with stability.
Image 5.2: Close-up of the handlebar grip and brake lever on the AVASTA Rubato 18'' BMX bike.
5.4 Pedaling
The bike features a 152mm one-piece crank with a 32T chainring and 16T freewheel for a smooth pedaling experience. Ensure feet are properly placed on the pedals to maintain balance and power.
Image 5.3: Close-up of the 152mm crank and 32T chainring on the AVASTA Rubato 18'' BMX bike.
6. Maintenance
Regular maintenance extends the life of your bike and ensures safe operation.
- Tire Pressure: Check tire pressure before each ride. Maintain the recommended PSI (pounds per square inch) indicated on the tire sidewall.
- Chain Lubrication: Lubricate the chain regularly, especially after riding in wet conditions. Use a bicycle-specific chain lubricant.
- Brake Adjustment: Periodically check brake pad wear and cable tension. Adjust as needed to ensure effective braking.
- Cleaning: Clean your bike regularly with mild soap and water. Avoid high-pressure washers, which can damage bearings.
- Bolt Tightness: Periodically check all bolts and nuts for tightness, especially on the handlebars, seat post, wheels, and crankset.
- Storage: Store the bike in a dry place, away from direct sunlight and extreme temperatures, to prevent rust and material degradation.
7. Troubleshooting
This section addresses common issues you might encounter with your bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Brakes feel spongy or ineffective | Loose brake cable, worn brake pads, misaligned pads | Tighten brake cable, replace worn pads, realign pads with rim |
| Tires lose air quickly | Puncture, loose valve stem, low tire pressure | Inspect for punctures and repair/replace tube, tighten valve stem, inflate to correct PSI |
| Chain makes noise or slips | Dry chain, bent chain link, worn chain/sprocket | Lubricate chain, inspect and replace bent links, consider professional inspection for worn components |
| Handlebar or seat feels loose | Loose clamp bolts | Tighten stem bolts (handlebar) or seat post clamp (seat) |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | AVASTA |
| Model Name | Rubato 18'' |
| Bike Type | BMX Bike |
| Wheel Size | 18 Inch |
| Frame Material | Hi-Ten Steel |
| Suspension Type | Rigid |
| Brake Type | Linear Pull Brake (U-brake) |
| Crank | 152 mm one-piece |
| Chainring | 32T |
| Freewheel | 16T |
| Tires | 18" x 2.125" |
| Rims | Single-wall 36H Aluminum |
| Hubs | 3/8" |
| Color | Purple |
| Recommended Rider Height | 3'5" - 4'3" (104-130 cm) |
| Recommended Rider Age | 5-9 Years |
| Package Dimensions | 109 x 53 x 18 cm |
| Weight | 13 kg |
| Included Components | Kickstand, Assembly Tools |
9. Warranty and Support
9.1 Warranty Information
The AVASTA Rubato 18 Inch Freestyle BMX Bike comes with a limited lifetime warranty. This warranty covers manufacturing defects in materials and workmanship for the lifetime of the original owner. Please retain your proof of purchase for warranty claims. The warranty does not cover normal wear and tear, improper assembly or maintenance, or damage due to accidents or misuse.
9.2 Customer Support
For any questions, concerns, or technical assistance regarding your AVASTA bike, please contact the seller or manufacturer directly. Refer to your purchase documentation for contact details. When contacting support, please have your model name (Rubato 18'') and purchase date available.
