Samoser 4KNED3100JW 4KNED4605FW
Dryer Timer Control Replacement Manual
Model: 4KNED3100JW, 4KNED4605FW and compatible models
Brand: Samoser
Introduction
This manual provides instructions for the installation, operation, and maintenance of the Samoser Dryer Timer Control. This aftermarket replacement part is compatible with various dryer models from Maytag, Whirlpool, Amana, and Crosley. Please read this manual thoroughly before proceeding with any installation or repair to ensure safe and correct usage.
Safety Information
Always disconnect power to the dryer before attempting any repair or installation. Failure to do so can result in serious injury or death. If you are unsure about any step, consult a qualified technician.
- Ensure the dryer is unplugged from the electrical outlet.
- Turn off the circuit breaker supplying power to the dryer.
- Wear appropriate personal protective equipment (PPE), such as gloves and safety glasses.
- Keep children and pets away from the work area.
Product Overview
The Dryer Timer Control regulates the drying cycles of your appliance. This replacement part is designed to restore proper functionality to your dryer's timing mechanism.

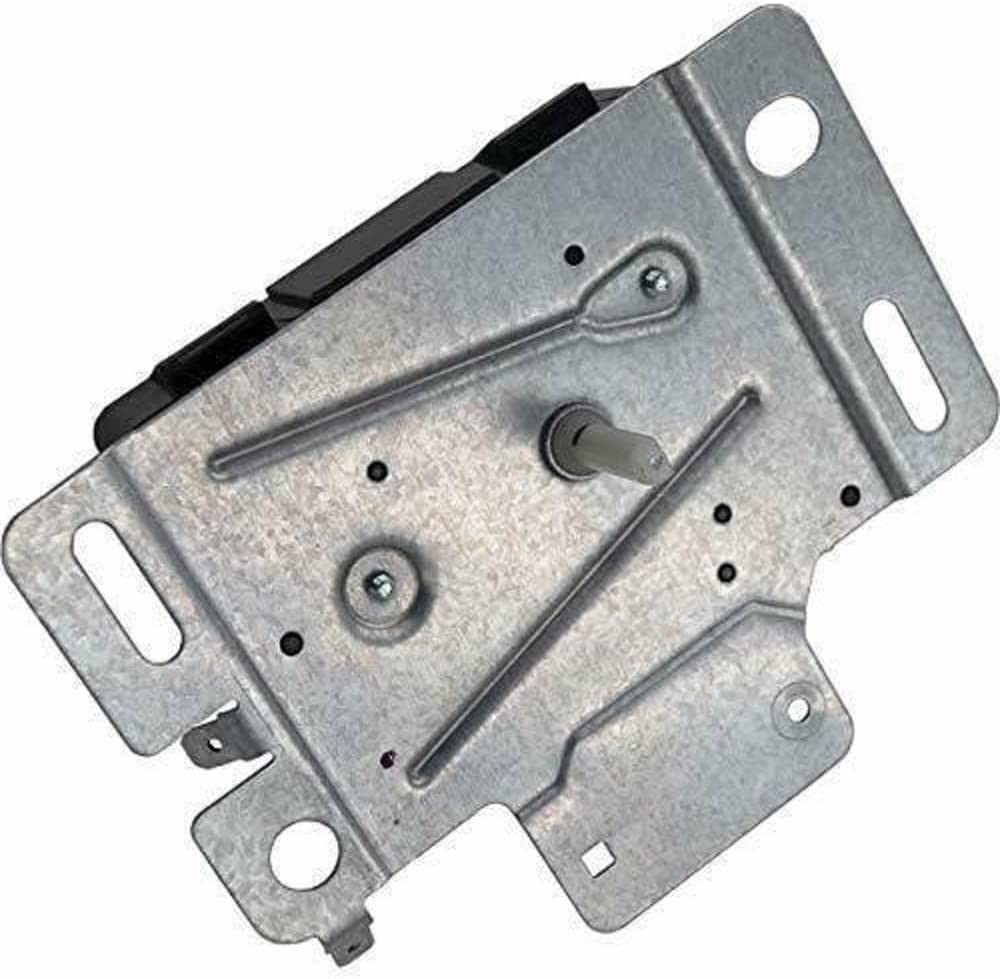

Figure 1: Samoser Dryer Timer Control Unit. This image shows the metallic housing of the timer control with various mounting points, a central shaft for the control knob, and electrical connection points on the side (partially visible black component).
Compatibility
This aftermarket dryer timer control is compatible with a range of models from the following brands:
- Maytag
- Whirlpool
- Amana
- Crosley
- Admiral
- Roper
Specific compatible model numbers include, but are not limited to:
- 4KMEDC215FW0
- 4KMEDC410JW0
- 4KNED3100JW0
- 4KNED4605FW0
- YNED4655EW1
- 4KWED4605FW0
- 4KWED5600JW0
- AED4516HW0
- RED4516FW0
- VED6505GW0
- YIED4671EW1
Note: If you are unsure about compatibility, please verify your dryer's model number against this list or consult a professional.
Installation Instructions
The following steps outline the general procedure for replacing a dryer timer control. Specific steps may vary slightly depending on your dryer model. Refer to your dryer's service manual for detailed instructions if available.
- Disconnect Power: Unplug the dryer from the wall outlet and turn off the corresponding circuit breaker.
- Access the Control Panel: Depending on your dryer model, you may need to remove screws from the back of the control panel or lift the top panel to gain access to the timer.
- Locate the Old Timer: Identify the existing dryer timer control. It is typically mounted behind the control knob on the front panel.
- Photograph Wiring: Before disconnecting any wires, take clear photographs of the existing wiring connections to the old timer. This will serve as a reference for connecting the new timer.
- Disconnect Wires: Carefully disconnect all electrical wires from the old timer. Note the position of each wire.
- Remove Old Timer: Unscrew or unclip the old timer from its mounting bracket.
- Install New Timer: Position the new Samoser Dryer Timer Control in the same location as the old one and secure it with the appropriate screws or clips.
- Connect Wires: Using your photographs as a guide, connect all electrical wires to the new timer. Ensure each connection is secure.
- Reassemble Dryer: Carefully reassemble the dryer's control panel and any other components that were removed.
- Restore Power: Plug the dryer back into the wall outlet and turn on the circuit breaker.
- Test Functionality: Test the dryer's various cycles to ensure the new timer control is functioning correctly.
Operating Instructions
Once the new timer control is installed, the operation of your dryer should return to its original functionality. Refer to your dryer's original user manual for specific operating instructions, including cycle selection, temperature settings, and special features.
The timer control allows you to select the desired drying time or cycle. Rotate the timer knob to the desired setting. The timer will advance through the cycle and automatically shut off the dryer when complete.
Maintenance
The dryer timer control itself typically requires no routine maintenance. However, regular maintenance of your dryer can help prolong the life of all its components, including the timer.
- Clean Lint Filter: Clean the lint filter before or after every load to ensure proper airflow and prevent overheating.
- Inspect Venting: Periodically check the dryer's exhaust vent for blockages. A clogged vent can cause the dryer to run longer, putting extra strain on components.
- Keep Area Clear: Ensure the area around the dryer is clear of obstructions to allow for adequate ventilation.
Troubleshooting
If you experience issues after installing the new timer control, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start. | No power; Door switch faulty; Thermal fuse blown; Wiring error. | Check power supply and circuit breaker. Ensure door is fully closed. Inspect wiring connections to the timer. Consult a technician if other components are suspected. |
| Timer does not advance. | Faulty timer motor; Wiring error; Other component failure (e.g., heating element). | Verify all wiring connections are secure. If the timer motor is suspected, the timer may need replacement again. Check other dryer components. |
| Dryer runs continuously. | Faulty timer; Wiring error. | Ensure the timer is correctly installed and wired. If the issue persists, the timer may be defective. |
Disclaimer: Troubleshooting steps are for general guidance. Always prioritize safety and consult a qualified appliance repair technician for complex issues.
Specifications
- Part Type: Aftermarket Dryer Timer Control
- Compatibility: Replaces various OEM parts for Maytag, Whirlpool, Amana, Crosley, Admiral, Roper dryers.
- Model Numbers (Partial List): 4KNED3100JW, 4KNED4605FW, VED6505GW, AED4516HW, 4KMEDC215FW0, 4KMEDC410JW0, YNED4655EW1, 4KWED4605FW0, 4KWED5600JW0, RED4516FW0, YIED4671EW1
- Manufacturer: Samoser
Warranty and Support
For information regarding warranty coverage or technical support for your Samoser Dryer Timer Control, please refer to the seller's information or contact the point of purchase. If you are unsure about compatibility or have installation questions, it is recommended to contact the seller for advice.
The seller states: "If you are not sure about the compatibility please contact us for advice. we will solve your problem within 24 hours."
