Introduction
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your SEAFLO 20A Solid State Electric Field Bilge Pump Switch. Designed for marine environments, this intelligent water level sensor offers reliable and efficient bilge water management without moving parts, ensuring long-term durability.

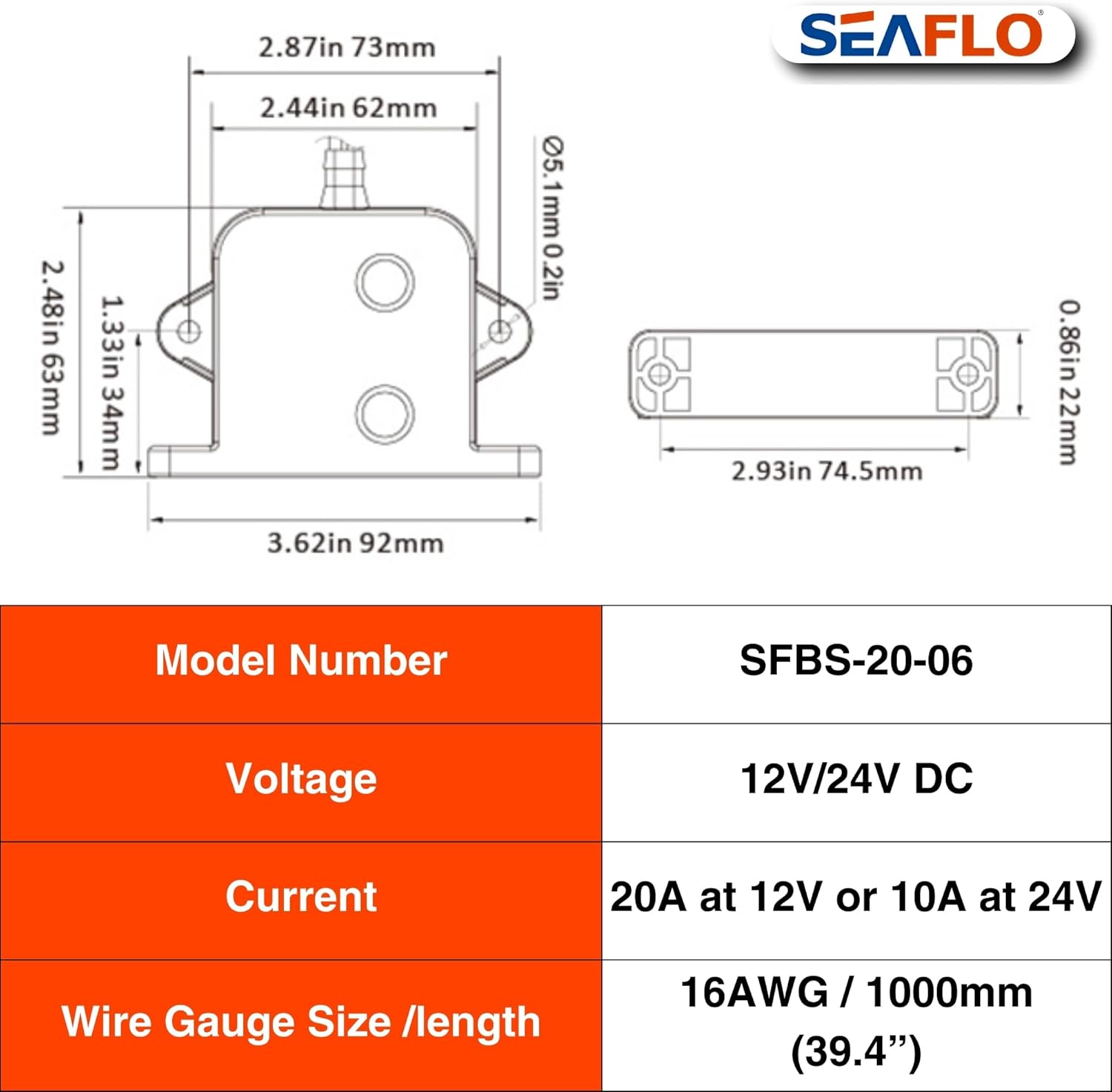

Specifications
| Feature | Detail |
|---|---|
| Model Number | SFBS-20-06 |
| Voltage | 12V / 24V DC |
| Current | 20A at 12V, 10A at 24V |
| Wire Gauge Size | 16AWG |
| Wire Lead Length | 1000mm (39.4”) |
| Activation Level | 41mm (1.6”) |
| Deactivation Level | 9.5mm (0.37”) |
| Operation Mode | Automatic |
| Contact Type | Normally Open |
| Mounting Type | Surface Mount |
| Product Dimensions | 3.62 x 0.86 x 2.48 inches |
| Item Weight | 3.2 ounces |
Note: Specifications are subject to change without notice.
Setup and Installation
The SEAFLO Electric Field Bilge Pump Switch is designed for user-friendly installation. Ensure all power is disconnected before beginning installation.
Mounting the Switch
The switch can be mounted using its base or the integrated mounting ears. Position the switch in the lowest part of the bilge where water collects, ensuring the sensor pads are clear of obstructions.
Image: Illustration of mounting options for the SEAFLO bilge pump switch, showing attachment via the base or side mounting ears.
Wiring Diagram
Connect the switch according to the following diagram. The switch requires a 12V or 24V DC power source. Ensure all connections are secure and properly insulated to prevent corrosion and short circuits.
- Connect the positive (+) wire from the battery to the switch.
- Connect the other wire from the switch to the positive (+) terminal of your bilge pump.
- Connect the negative (-) wire from the bilge pump directly to the negative (-) terminal of the battery.
Image: A clear wiring diagram illustrating how to connect the SEAFLO float switch to a battery and a submersible bilge pump.
Operating Instructions
The SEAFLO Solid State Electric Field Bilge Pump Switch operates automatically based on water levels detected by its integrated sensors. It features intelligent water level detection and false start prevention.
Automatic Operation
- The pump activates automatically when the water level reaches 41mm (1.6 inches) at the higher sensor.
- The pump deactivates when the water level drops to 9.5mm (0.37 inches) at the lower sensor.
- A built-in three-second delay prevents unnecessary activation caused by water sloshing in the bilge, ensuring precise operation.
Image: Visual representation of the intelligent water level detection, indicating the activation point at 1.6 inches (41mm) and deactivation point at 0.37 inches (9.5mm).

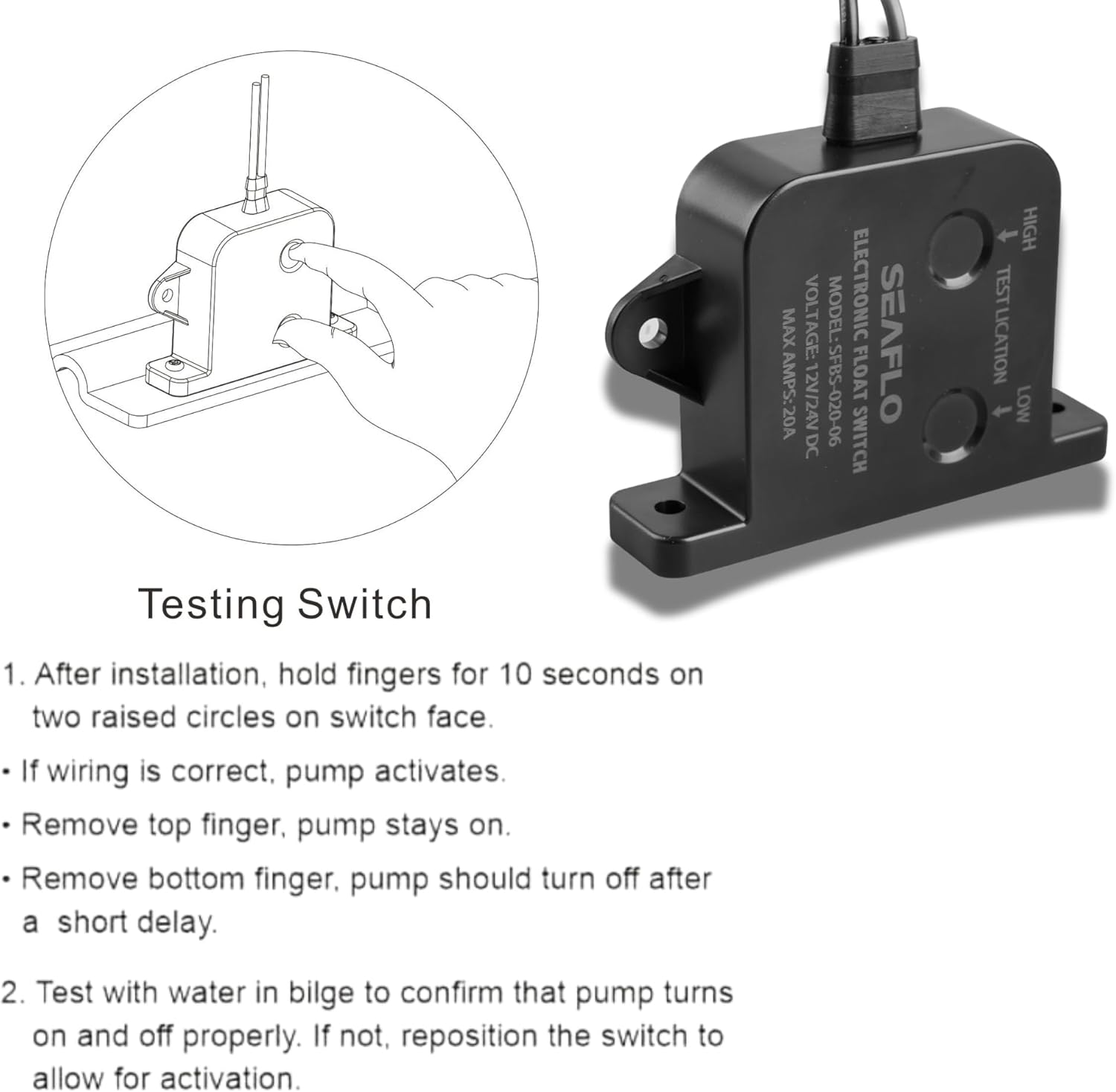

Testing the Switch
To test the functionality of the switch after installation or periodically:
- After installation, hold your fingers for 10 seconds on the two raised circles (sensor pads) on the switch face.
- If wiring is correct, the pump will activate.
- Remove your top finger; the pump should stay on.
- Remove your bottom finger; the pump should turn off after a short delay.
- Alternatively, test with water in the bilge to confirm that the pump turns on and off properly. If not, reposition the switch to allow for proper activation and deactivation levels.
Image: A diagram demonstrating how to manually test the switch by touching the sensor pads, which simulates water presence.
Product Demonstration Video
Video: This video demonstrates the unboxing and testing of the SEAFLO Electric Field Bilge Switch, showing how it activates and deactivates the bilge pump based on water levels and manual testing.
Maintenance
The SEAFLO Solid State Electric Field Bilge Pump Switch is designed for minimal maintenance due to its robust construction and lack of moving parts.
- Regular Inspection: Periodically inspect the switch and its wiring for any signs of damage, corrosion, or debris accumulation.
- Cleaning: If debris or residue accumulates on the sensor pads, gently wipe them clean with a damp cloth. Ensure the pads are free from oil, grease, or silicone, as these can affect sensor performance.
- Corrosion Resistance: The fully sealed electronics and absence of exposed sensors make the switch highly resistant to corrosion in both saltwater and freshwater environments.
Troubleshooting
If you encounter issues with your SEAFLO Bilge Pump Switch, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not activate when water level is high. |
|
|
| Pump does not turn off when water level is low. |
|
|
| Pump activates too frequently (false starts). |
|
|
Warranty and Support
SEAFLO stands behind the quality of its products. The SEAFLO 20A Solid State Electric Field Bilge Pump Switch is backed by a 4-Year Warranty, ensuring reliable performance and peace of mind.
Warranty Claims
For warranty claims or technical support, please contact SEAFLO customer service directly. Keep your proof of purchase for all warranty inquiries.
Additional Protection Plans
Extended protection plans may be available for purchase to further safeguard your investment:
- 3-Year Protection Plan
- 4-Year Protection Plan
- Complete Protect: One plan covers all eligible past and future purchases (monthly billing)
For details on these plans, please refer to the product listing or contact your retailer.
