Samsung 236L Double Door Refrigerator User Manual

1. Introduction

Welcome to the user manual for your new Samsung 236L 2 Star Inverter Frost-Free Double Door Refrigerator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before using the refrigerator and keep it for future reference.

2. Safety Information

Your safety and the safety of others are very important. Please read all safety messages in this manual and on your appliance. This section outlines important safety precautions to prevent injury and property damage.

General Safety Precautions:

• Ensure the refrigerator is properly grounded.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not damage the refrigerant circuit.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Unplug the appliance before cleaning or performing any maintenance.
• Do not allow children to play with or inside the refrigerator.

3. Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your refrigerator. Follow these steps carefully.

Unpacking:

Carefully remove all packaging materials. Inspect the refrigerator for any shipping damage. Report any damage to your retailer immediately.

Location:

• Place the refrigerator on a flat, stable surface.
• Ensure adequate clearance around the appliance for proper ventilation (at least 5 cm on sides and back, 10 cm on top).
• Avoid direct sunlight or heat sources (e.g., stoves, radiators) as they can increase energy consumption.
• Do not install in areas where the temperature may drop below 10°C (50°F) or rise above 43°C (110°F).

Leveling:

Use the adjustable front legs to level the refrigerator. A level appliance ensures proper door sealing and efficient operation.

Electrical Connection:

• Connect the refrigerator to a dedicated, grounded 220 Volt, 50 Hz AC outlet.
• Do not use extension cords or adapter plugs.
• Allow the refrigerator to stand upright for at least 2-3 hours before plugging it in to allow refrigerants to settle.

What's in the Box:

• 1 Refrigerator Unit
• 1 User Manual
• Warranty Card

Image: Front view of the Samsung 236L Double Door Refrigerator, showcasing its elegant inox finish and top freezer design.

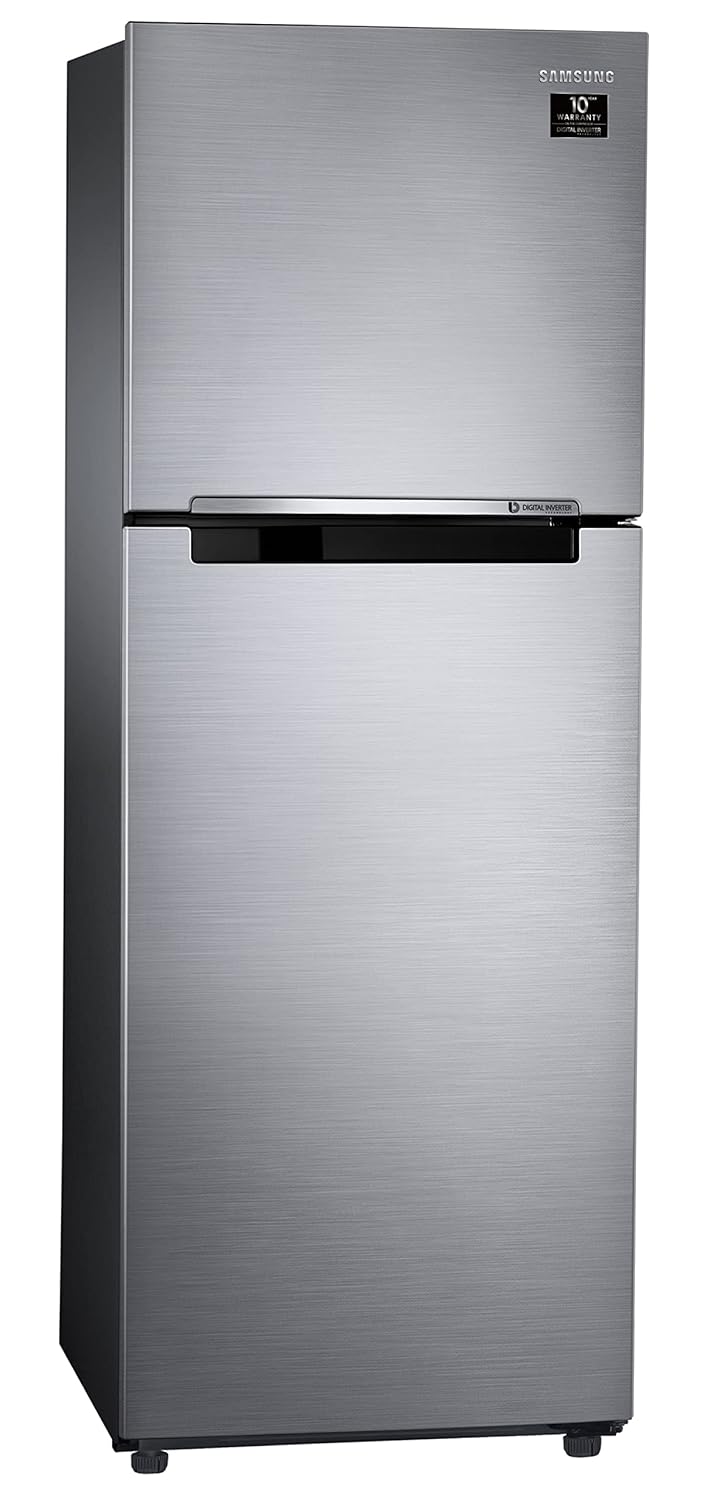

Image: Angled view of the refrigerator, highlighting its sleek design and compact footprint.

Image: Rear view of the refrigerator, displaying the compressor unit and cooling system components. Ensure adequate space for ventilation behind the unit.

4. Operating Instructions

Familiarize yourself with the features and controls of your refrigerator for optimal food preservation.

Temperature Control:

The refrigerator features an internal temperature control dial. Adjust the dial to set the desired cooling level. A lower number typically indicates warmer temperatures, while a higher number indicates colder temperatures. For general use, a medium setting is often sufficient.

Key Features:

• Auto Defrost Refrigerator: Ensures powerful cooling and long-lasting freshness without manual defrosting.
• Digital Inverter Compressor: Enjoy greater energy efficiency, less noise, and a long-lasting performance. Consumes 50% less power.
• Power Cool: With a single touch, Power Cool blows cold air into the fridge to quickly cool your groceries or drinks.
• Power Freeze: With a single touch, Power Freeze delivers cold air into the freezer to rapidly freeze food or make ice.
• Movable Ice Maker: A simple twist is all it takes to dispense a large quantity of ice.
• MoistFresh Zone: Adjusts the moisture level to maintain optimal humidity for perishable food, keeping fruits and vegetables fresh longer.
• Natural Fiber Deodorizing Filter: Eliminates strong smells as air is passed through carbon filters, maintaining a fresh interior.
• Toughened Glass Shelves: Durable and easy to clean, capable of holding heavy items.
• All-around Cooling: Ensures consistent temperature throughout the refrigerator.
• Anti Bacterial Gasket: Helps prevent the growth of bacteria and mold.
• LED Light: Bright and energy-efficient interior lighting.

Image: Interior layout of the refrigerator, showing the freezer compartment at the top and the fresh food compartment below, with various shelves and door bins.

Image: Refrigerator interior demonstrating storage capacity with various food items, including fruits, vegetables, and beverages, highlighting the efficient use of space.

Image: Detailed view of the Movable Ice Maker located in the freezer section, designed for easy ice dispensing.

Image: Close-up of the Easy Slide shelf, illustrating its convenient pull-out design for easier access to items stored at the back.

Image: Close-up of the Tall Bottle Guard in the refrigerator door, designed to securely hold large bottles and containers.

Image: Close-up of the Big Box crisper drawer, shown filled with various fruits and vegetables, demonstrating its capacity for fresh produce.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure your refrigerator operates efficiently and remains hygienic.

Exterior Cleaning:

• Wipe the exterior surfaces with a soft cloth dampened with mild detergent and water.
• For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain.
• Avoid abrasive cleaners or solvents.

Interior Cleaning:

• Unplug the refrigerator before cleaning the interior.
• Remove all food items, shelves, and drawers.
• Wash shelves and drawers with warm, soapy water. Rinse and dry thoroughly.
• Wipe the interior walls with a solution of baking soda and warm water (1 tablespoon baking soda to 1 liter water) to neutralize odors.
• Ensure all parts are dry before returning them to the refrigerator and plugging it back in.

Gasket Cleaning:

Clean the door gaskets regularly with a mild detergent and water. Ensure they are dry to prevent mold growth and maintain a good seal.

Deodorizing Filter:

The Natural Fiber Deodorizing Filter helps eliminate odors. While it is designed for long-term use, if persistent odors occur, ensure the filter area is clean and free from obstructions.

6. Troubleshooting

Before contacting service, try these simple solutions for common issues.

7. Specifications

Detailed technical specifications for your Samsung Refrigerator.

8. Warranty and Support

Your Samsung Refrigerator comes with a comprehensive warranty to ensure peace of mind.

Warranty Information:

• The Digital Inverter Compressor is backed by a 20-year warranty.
• For specific warranty terms and conditions for the entire appliance, please refer to the Warranty Card included with your product.

Customer Support:

If you encounter any issues not covered in the troubleshooting section or require professional assistance, please contact Samsung Customer Service. Have your model number (RT28C3052S8/HL) and serial number ready when you call.

You can find more information and support on the official Samsung website: www.samsung.com
