User Manual: Ring Stretcher & Enlarger & Reducer Jewelry Sizer Band Repair Tool

1. Introduction

This manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of the TUF Ring Stretcher & Enlarger & Reducer. This versatile 2-in-1 heavy-duty tool is designed for quickly resizing jewelry bands, offering both enlarging and reducing capabilities. It is suitable for professional jewelers and personal use.

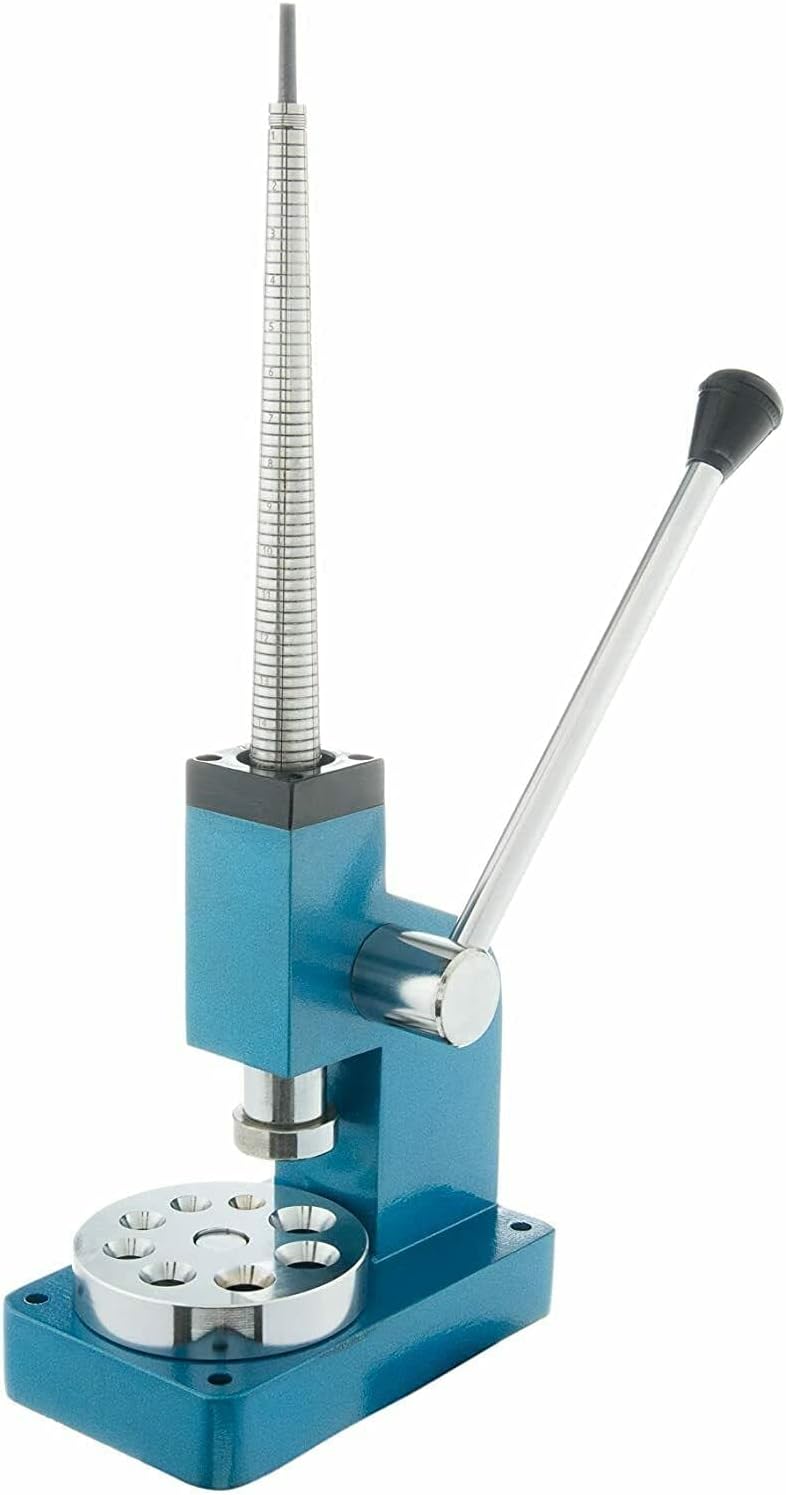

Figure 1: Overview of the TUF Ring Stretcher and Reducer Tool. This image shows the complete assembly of the tool, including the base, the vertical mandrel for enlarging, and the horizontal reducing plate with various size depressions.

2. Safety Instructions

• Always wear appropriate personal protective equipment, such as safety glasses, when operating the tool.
• Ensure the tool is placed on a stable, flat, and secure workbench before use to prevent tipping or movement.
• Keep hands and fingers clear of moving parts, especially the expanding mandrel and the reducing die, during operation.
• Do not attempt to resize rings beyond the tool's specified capacity (Size Range: 1-36).
• Avoid excessive force when operating the lever; apply gradual, controlled pressure.
• Inspect the tool for any damage or wear before each use. Do not use if components are loose or damaged.
• Keep the tool clean and free of debris to ensure smooth operation.

3. Components

The TUF Ring Stretcher & Enlarger & Reducer consists of the following main components:

• Base Unit: The sturdy foundation of the tool.
• Vertical Mandrel: A tapered, graduated shaft used for enlarging rings. It features a 4-segment spline enlarging system.
• Operating Lever: Used to apply pressure to the mandrel or reducing die.
• Reducing Plate: A reversible base plate with various sized depressions (dies) for reducing rings.
• Reducing Die: The component that presses the ring into the reducing plate.

Figure 2: Side view of the tool, highlighting the vertical mandrel and the operating lever. This perspective shows the robust construction and the mechanism for applying force.

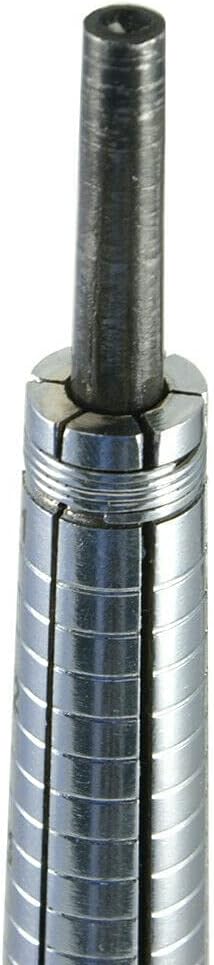

Figure 3: Detailed view of the 4-segment spline enlarging system on the vertical mandrel. This system ensures uniform expansion of the ring.

4. Setup

1. Unpacking: Carefully remove all components from the packaging.
2. Placement: Position the tool on a sturdy, level workbench or surface. The base of the tool has pre-drilled holes for permanent mounting, if desired, using appropriate fasteners (not included).
3. Familiarization: Identify the vertical mandrel, the operating lever, and the reversible reducing plate.

5. Operating Instructions

5.1. Enlarging Rings

The vertical mandrel is used to enlarge rings. The maximum enlargement is typically 0-5 mm, and generally, the tool will not expand more than one finger size per operation to prevent damage to the ring.

1. Ensure the reducing plate is rotated away or removed to allow clearance for the ring.
2. Slide the ring onto the vertical mandrel. Position the ring so it rests on the expanding segments.
3. Slowly and gently pull the operating lever downwards. This action will push the tapered core into the segmented mandrel, causing the segments to expand outwards and stretch the ring.
4. Apply pressure gradually. Do not force the lever.
5. After applying pressure, release the lever and remove the ring. Check the size.
6. Repeat the process, rotating the ring slightly each time, until the desired size is achieved. This ensures uniform expansion.

5.2. Reducing Rings

The reversible reducing plate is used to reduce ring sizes.

1. Rotate the reducing plate to align the appropriate size depression (die) with the reducing die located directly below the operating mechanism. Select a die that is slightly smaller than the current ring size.
2. Place the ring directly over the selected depression on the reducing plate. Ensure the ring is centered.
3. Slowly and gently pull the operating lever downwards. The reducing die will press the ring into the chosen depression, causing it to compress and reduce in size.
4. Apply pressure gradually. Do not force the lever.
5. After applying pressure, release the lever and remove the ring. Check the size.
6. Repeat the process, if necessary, using a smaller die or applying more pressure, until the desired size is achieved.

Figure 4: Close-up view of the reversible reducing plate with various sized depressions. This plate is crucial for accurately reducing ring sizes.

Figure 5: Another detailed view of the reducing plate, showing the different sized holes for various ring reduction needs. The precision of these dies is important for accurate resizing.

6. Maintenance

• Cleaning: After each use, wipe down the tool with a soft, dry cloth to remove any dust or debris. For stubborn grime, a slightly damp cloth can be used, followed by immediate drying.
• Lubrication: Periodically apply a small amount of light machine oil to the moving parts, such as the pivot points of the lever and the sliding mechanism of the mandrel, to ensure smooth operation. Wipe off any excess oil.
• Storage: Store the tool in a clean, dry environment to prevent rust and corrosion.
• Inspection: Regularly inspect the mandrel segments and reducing dies for wear or damage. Replace components if they show signs of significant wear that could affect performance.

7. Troubleshooting

8. Specifications

• Model: TUF-56721
• Brand: TUF
• Material: Iron
• Power Source: Hand-powered
• Dimensions: 17-1/2" (H) x 7-1/4" (W) x 4-1/4" (D) (approximately)
• Ring Size Range: 1-36 (US/Canada standard)
• Maximum Enlarging: 0-5 mm (approximately 1 finger size)
• Features: 2-in-1 (Stretcher & Reducer), Vertical Mandrel, Smooth Reducing Plate, Reversible Base Plate Reduction Die, 4-Segment Spline Enlarging System.

9. Support

For further assistance, technical support, or inquiries regarding your TUF Ring Stretcher & Enlarger & Reducer, please refer to the contact information provided with your purchase or visit the official TUF brand website.
