FocalTop Right Hand Vacuum Recovery Tank Latch Instruction Manual

Introduction

This instruction manual provides detailed information for the installation, operation, and maintenance of the FocalTop 36153097 440007388 Right Hand Vacuum Recovery Tank Latch. This component is designed as a direct replacement part for specific Hoover Steam Cleaner models, ensuring proper function and secure attachment of the recovery tank.

Product Overview

The FocalTop Right Hand Vacuum Recovery Tank Latch is a crucial component for maintaining the integrity of your Hoover Steam Cleaner's recovery tank system. It is specifically designed to secure the recovery tank in place, preventing leaks and ensuring efficient operation of the vacuum cleaner.

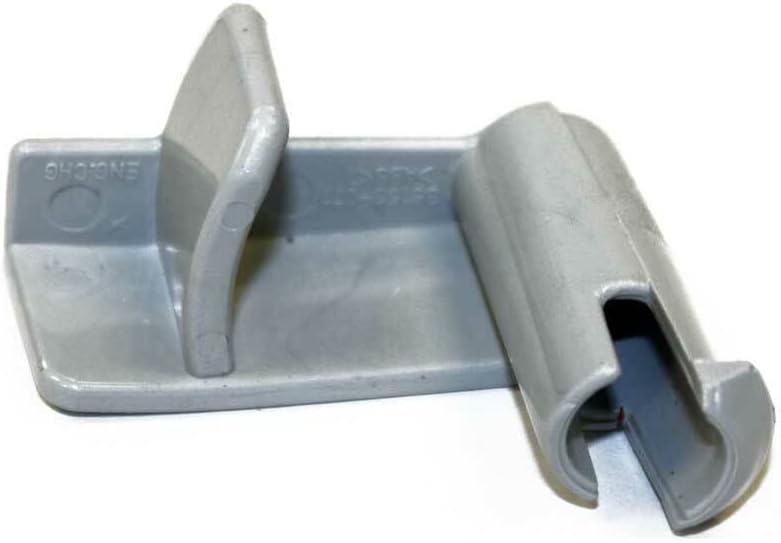

Figure 1: The FocalTop Right Hand Vacuum Recovery Tank Latch (Part Number 440007388). This image shows the gray plastic latch component, designed to secure the recovery tank on compatible Hoover Steam Cleaners. The latch features a base for attachment and a curved arm for engaging the tank.

This replacement part is engineered to meet the specifications of the original equipment, providing a reliable and durable solution for worn or broken latches. It is identified by part number 440007388 and also replaces part numbers 36153076, 36153098, and 36153081.

Compatibility

This Right Hand Vacuum Recovery Tank Latch is compatible with the following Hoover Steam Cleaner models:

• Hoover Steam Cleaner F7429
• Hoover Steam Cleaner F7450
• Hoover Steam Cleaner F7428900
• Hoover Steam Cleaner F7431900
• Hoover Steam Cleaner F7458900

Please verify your Hoover Steam Cleaner model number before attempting installation to ensure proper fit and function.

Installation Instructions

Before beginning installation, ensure your Hoover Steam Cleaner is unplugged from the power outlet to prevent accidental operation or electrical shock. It is recommended to wear gloves for protection during handling.

1. Prepare the Cleaner: Disconnect the steam cleaner from the power supply. Remove the recovery tank from the cleaner. Empty any remaining water or cleaning solution from the tank.
2. Locate the Old Latch: Identify the existing right-hand recovery tank latch on your Hoover Steam Cleaner. Observe how it is attached.
3. Remove the Old Latch: Carefully detach the old or broken latch. This may involve unscrewing it, prying it gently, or releasing clips, depending on the specific cleaner model. Take note of the orientation of the old latch for correct installation of the new one.
4. Install the New Latch: Position the new FocalTop Right Hand Vacuum Recovery Tank Latch (Part Number 440007388) in the same location and orientation as the one you removed. Ensure it aligns correctly with the mounting points.
5. Secure the New Latch: Secure the new latch firmly. If screws were removed, reinsert and tighten them. If it uses clips, ensure they snap securely into place. Verify that the latch is stable and does not wobble.
6. Reattach Recovery Tank: Once the new latch is securely installed, reinsert the recovery tank into its designated position on the steam cleaner.
7. Test the Latch: Engage the new latch to secure the recovery tank. Ensure the tank is held firmly in place and there is no excessive movement or gaps that could lead to leaks during operation.

Note: Specific removal and installation steps may vary slightly depending on your exact Hoover Steam Cleaner model. Refer to your cleaner's original manual for detailed diagrams if necessary.

Operating Instructions

Once the FocalTop Right Hand Vacuum Recovery Tank Latch is installed, its operation is integrated with the normal use of your Hoover Steam Cleaner.

• Securing the Tank: After filling or emptying the recovery tank, place it back onto the steam cleaner. Ensure the tank is properly seated. Engage the latch by pressing it down or sliding it into position until it clicks or locks, firmly holding the tank in place.
• Releasing the Tank: To remove the recovery tank for emptying or cleaning, disengage the latch. This typically involves lifting a lever or pressing a release button on the latch mechanism, allowing the tank to be lifted off the cleaner.

Always ensure the recovery tank is securely latched before operating the steam cleaner to prevent spills and ensure proper suction.

Maintenance

To ensure the longevity and proper function of your FocalTop Right Hand Vacuum Recovery Tank Latch, consider the following maintenance tips:

• Regular Cleaning: Periodically wipe the latch and surrounding area with a damp cloth to remove any dirt, dust, or cleaning solution residue that may accumulate.
• Inspect for Wear: Regularly inspect the latch for any signs of wear, cracks, or damage. If the latch appears loose, damaged, or no longer secures the tank effectively, it may need replacement.
• Avoid Force: Do not apply excessive force when engaging or disengaging the latch. Gentle and firm pressure is sufficient.

Troubleshooting

If you encounter issues with your new recovery tank latch, consider the following:

• Latch Does Not Secure Tank:
  • Ensure the recovery tank is correctly seated in its position on the cleaner.
  • Verify that the latch is installed in the correct orientation and is not obstructed by debris.
  • Check if the latch itself is damaged or if its mounting points are compromised.
• Tank Leaks After Latch Installation:
  • Confirm the tank is fully seated and the latch is securely engaged.
  • Inspect the tank's seal or gasket for damage or misalignment, as this may be the cause of the leak rather than the latch itself.
• Latch Feels Loose:
  • Re-check the installation to ensure all screws or clips are tightened and engaged properly.
  • If the latch was forced during installation, it might be damaged and require replacement.

If problems persist, consult the original Hoover Steam Cleaner manual or contact customer support.

Specifications

Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the seller's policies on the platform where the product was purchased or contact FocalTop directly. Keep your purchase receipt as proof of purchase.

For general inquiries or assistance with your Hoover Steam Cleaner, please consult the original manufacturer's documentation or their official support channels.
