Rowenta Compact Power XXL Animal Bagless Canister Vacuum Cleaner

Product Overview

The Rowenta Compact Power XXL Animal is a powerful bagless canister vacuum cleaner designed for deep cleaning with maximum efficiency. It features a compact and lightweight design, making it easy to maneuver and store. Equipped with a high-performance motor and advanced filtration system, it ensures a clean and healthy environment.

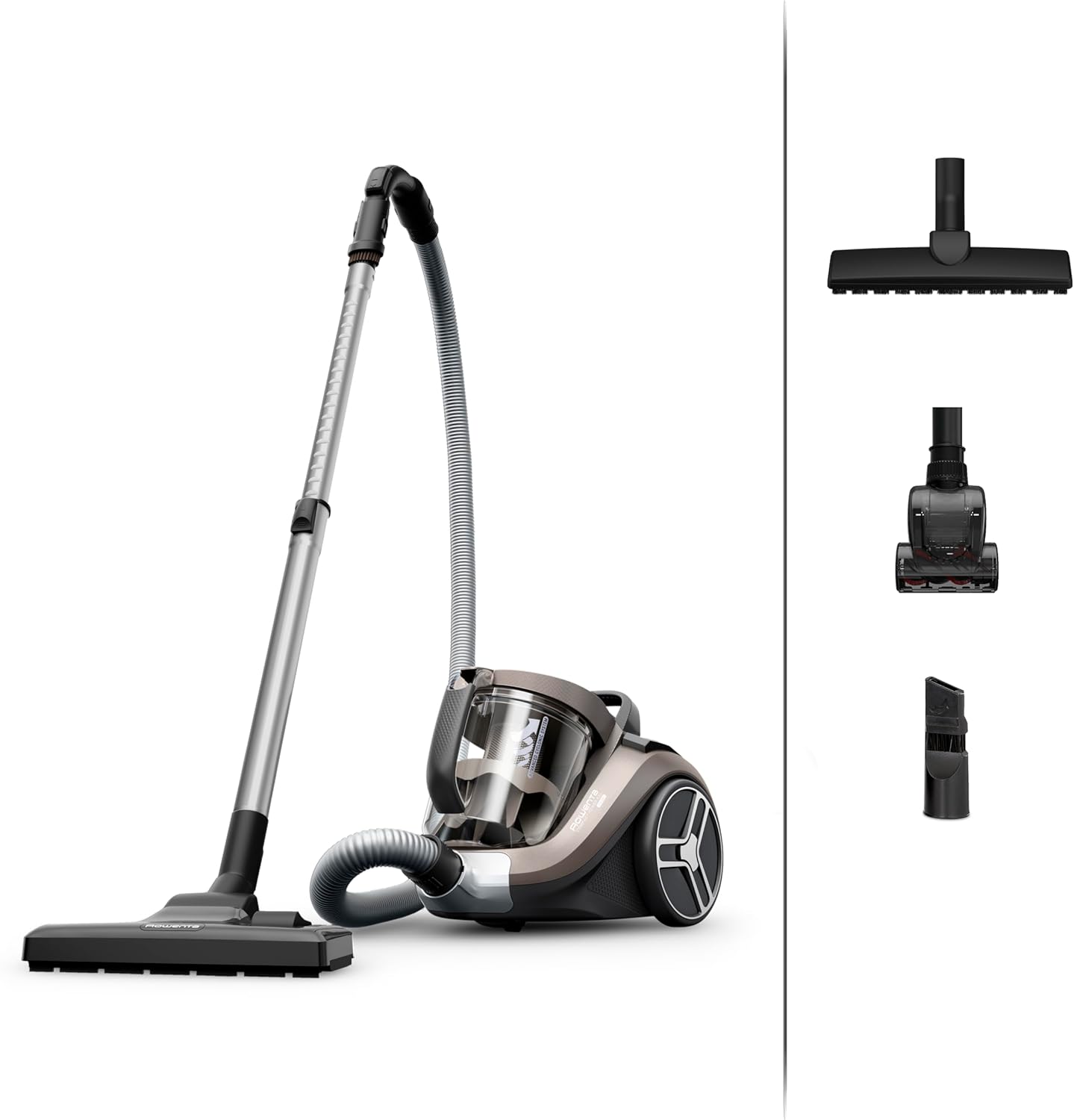

Figure 1: Rowenta Compact Power XXL Animal vacuum cleaner and included accessories.

Key Features

• XXL Cleaning Power: Features a powerful 900W max motor and advanced cyclonic technology for excellent cleaning results with low energy consumption.


  Figure 2: The powerful 900W max motor.

• Exceptional Filtration Performance: A 3-level filtration system captures over 99.98% of dust particles, ensuring clean air in your home.


  Figure 3: Illustration of the vacuum's advanced filtration system.
• XXL Dust Bin Capacity: Equipped with a large 2.5-liter dust bin, ideal for various living spaces, offering extended cleaning sessions without frequent emptying.


  Figure 4: The 2.5L XXL dust bin being removed from the vacuum.

• Compact Design: Its ultra-compact, bagless format ensures maximum comfort, a smoother vacuuming experience, and easy storage in most cabinets.


  Figure 5: The vacuum's compact design allows for convenient storage.
• Extended Cleaning Radius: A long 6.2m power cable provides an impressive 8.8m cleaning radius, allowing you to clean large areas without frequently changing power outlets.
• Easy-to-Empty Dust Bin: The dust bin is designed for easy removal, emptying, and cleaning, providing a hassle-free vacuuming experience.


  Figure 6: Emptying the dust bin is a simple process.

• Included Accessories: Comes with a parquet brush, mini turbo brush, and a 2-in-1 crevice tool for versatile cleaning options.

Setup Instructions

1. Unpacking: Carefully remove all components from the packaging. Ensure all listed accessories are present.
2. Assembling the Hose: Insert the flexible hose into the air inlet on the main unit until it clicks securely into place.
3. Attaching the Telescopic Tube: Connect the telescopic tube to the handle end of the hose. Extend the tube to a comfortable length by pressing the adjustment button and pulling.
4. Connecting the Floor Brush: Attach the desired floor brush (e.g., main floor brush or parquet brush) to the end of the telescopic tube. Ensure it is firmly attached.
5. Power Connection: Unwind the power cord and plug it into a suitable electrical outlet. The vacuum cleaner is designed for 220-240V power supply.

Operating Instructions

1. Starting the Vacuum: Press the On/Off button located on the main unit to start the vacuum cleaner.
2. Adjusting Suction Power: The vacuum operates at a fixed power of 900W. There is no adjustable suction power setting.
3. Vacuuming: Guide the floor brush over the surface to be cleaned. For optimal results, move the brush slowly and steadily.


   Figure 7: Using the vacuum cleaner on a carpeted surface.

4. Using Accessories:
   • Parquet Brush: Ideal for delicate hard floors like wood or laminate.
   • Mini Turbo Brush: Effective for removing pet hair from upholstery and carpets.
   • 2-in-1 Crevice Tool: Use the narrow end for tight spaces and corners, and the brush attachment for dusting surfaces.
5. Stopping the Vacuum: Press the On/Off button again to turn off the vacuum cleaner.
6. Retracting the Cord: Gently pull the power cord slightly, and it will automatically retract into the unit.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Rowenta Compact Power XXL Animal vacuum cleaner.

1. Emptying the Dust Bin:

   It is recommended to empty the 2.5L dust bin after each use or when the MAX fill line is reached. To empty:

   • Press the release button to detach the dust bin from the main unit.
   • Hold the dust bin over a trash can and open the bottom flap to release the debris.
   • Close the flap securely before reattaching the bin.
2. Cleaning the Dust Bin and Filter:

   Periodically clean the dust bin and the foam filter to maintain filtration efficiency.

   • Remove the dust bin as described above.
   • Remove the foam filter from the dust bin.
   • Rinse the dust bin and foam filter under running water. Ensure they are completely dry before reassembling. Do not use hot water or detergents.
   • Reassemble the filter and dust bin, then reattach to the vacuum cleaner.
3. Cleaning Accessories:

   Clean brushes and tools regularly to remove tangled hair or debris.

   • Remove any hair or fibers from the main floor brush and mini turbo brush using scissors if necessary.
   • Wipe down all accessories with a damp cloth.
4. Exterior Cleaning: Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Troubleshooting

Specifications

Figure 8: Product dimensions.

Warranty and Support

Rowenta is committed to providing long-term support for its products. For most products, Rowenta pledges to maintain the availability of spare parts for 15 years after the date of purchase.

For further assistance, troubleshooting, or to inquire about spare parts, please visit the official Rowenta website or contact their customer support.

Figure 9: Rowenta's commitment to repairability and spare parts availability.
