Mrzneaoch Electric Cordless Grass Trimmer 1800W User Manual
Model: Cordless Grass Trimmer 1800W
1. Important Safety Information
Always read and understand this manual before operating the Electric Cordless Grass Trimmer. Failure to follow instructions can result in serious injury or property damage. Keep this manual for future reference.
General Safety Precautions:
- Personal Protective Equipment (PPE): Always wear safety glasses and gloves during operation to protect your eyes and hands from debris.
- Dual Control Switch: The trimmer features a double control switch for enhanced safety. Both the safety switch and the start switch must be pressed simultaneously to operate the machine, preventing accidental activation.
- Safety Shield: Ensure the safety shield is properly installed before use to protect against flying debris.
- Clear Work Area: Keep children, pets, and bystanders at a safe distance (at least 15 meters) from the operating area.
- Inspect Before Use: Before each use, inspect the trimmer for any damaged parts, loose connections, or worn blades. Do not operate if damaged.
- Battery Safety: Use only the specified 24V batteries and charger. Do not expose batteries to extreme temperatures or moisture.
- Secure Grip: Always maintain a firm grip on the comfortable non-slip handle during operation.
- Rotating Baffle Design: The rotating baffle helps prevent splashing of debris during trimming.
2. Product Components
The Mrzneaoch Electric Cordless Grass Trimmer comes with the following components:
- 1 x Cordless Grass Trimmer Unit
- 2 x 24V 6000MA Lithium Batteries
- 1 x Fast Charger
- 2 x Manganese Steel Circular Saw Blades (for thicker shrub branches)
- 4 x Stainless Steel Metal Blades (for lawns, weeds, small shrubs)
- 10 x Household Plastic Blades (for soft grass)
- 1 x Pair of Gloves
- 1 x Pair of Safety Glasses
- 1 x Auxiliary Handle
- 1 x Wrench for blade installation
Figure 2.1: Overview of all included components.
Figure 2.2: Labeled parts of the trimmer for easy identification.
3. Setup Guide
3.1 Charging the Battery
Before first use, fully charge both 24V batteries using the provided fast charger. Insert the battery into the charger and plug the charger into a standard power outlet. The indicator light on the charger will show charging status.
3.2 Attaching the Auxiliary Handle
Slide the auxiliary handle onto the main shaft and secure it at a comfortable position using the adjustment knob. The handle can be rotated 180 degrees for optimal grip and control.
Figure 3.1: Adjusting the auxiliary handle.
3.3 Installing the Blade
Select the appropriate blade type for your task (plastic, stainless steel, or saw blade). Follow these steps for secure installation:
Figure 3.2: Saw blade installation steps. Ensure the blade is firmly secured before operation.
3.4 Adjusting the Telescopic Rod
The trimmer features an adjustable telescopic rod, allowing length adjustment between 33.7 and 46.25 inches (approximately 1-30 cm adjustment range) to suit your height and reach. Press the button down to adjust the length, then release to lock it in place.
Figure 3.3: Adjusting the telescopic rod for comfortable use.
Figure 3.4: Detail of the length adjustment mechanism.
4. Operating Instructions
4.1 Starting and Stopping
To start the trimmer, simultaneously press the safety switch and the start switch. Release both to stop the machine. This dual-switch mechanism is a safety feature to prevent accidental activation.
Figure 4.1: Location of the safety and start switches.
4.2 Adjusting the Trimmer Head Angle
The machine head can be rotated and adjusted from 0 to 90 degrees. This flexibility allows you to trim in various complex environments, such as under trees, in corners, or around flower beds.
Figure 4.2: Trimmer head angle adjustment.
4.3 Choosing the Right Blade
The trimmer supports three types of cutter heads, each designed for specific tasks:
- Plastic Cutter Head: Ideal for mowing soft grass and light trimming.
- Stainless Steel Cutter Head: Suitable for more complex terrain, tougher weeds, and small shrubs.
- Alloy Saw Blade: Designed for pruning thicker shrub branches and more demanding cutting tasks.
Figure 4.3: Different blade types and their applications.
4.4 Practical Applications
The Mrzneaoch Electric Cordless Grass Trimmer is versatile and can be used in various scenarios, including:
- Maintaining lawns in parks and courtyards.
- Pruning tea trees and other small plants.
- Trimming green belts and garden edges.
Figure 4.4: Trimmer in use for general grass cutting.
Video 4.1: Demonstration of the Electric Cordless Trimmer in use for both pruning branches and cutting grass.
5. Maintenance
5.1 Cleaning
After each use, ensure the trimmer is turned off and the battery is removed. Clean the cutting head and shield to remove grass clippings, dirt, and debris. The head is designed to be waterproof and easy to clean. Use a damp cloth; avoid using harsh chemicals or abrasive materials.
5.2 Blade Care and Replacement
Regularly inspect blades for sharpness and damage. Dull or damaged blades can reduce cutting efficiency and increase strain on the motor. Replace blades as needed following the installation instructions in Section 3.3. Always use genuine replacement blades.
5.3 Battery Storage
Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge batteries to about 50% capacity. Do not store fully discharged batteries.
5.4 General Storage
When not in use, store the trimmer in a dry, secure location, out of reach of children. The telescopic design allows for compact storage, making it convenient for transport in a car trunk.

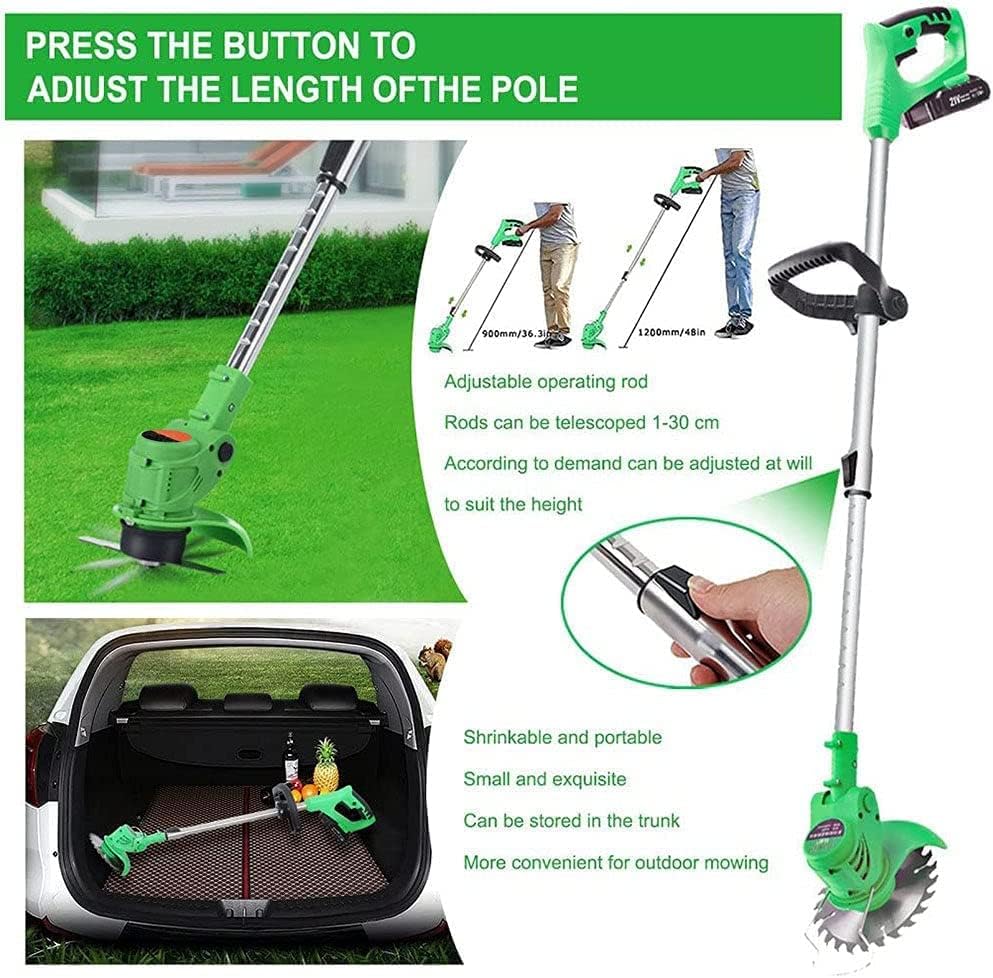

Figure 5.1: Compact storage of the trimmer.
6. Troubleshooting
If you encounter issues with your Mrzneaoch Electric Cordless Grass Trimmer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start | Battery not charged or improperly installed. Safety switch not engaged. | Ensure battery is fully charged and correctly inserted. Press both safety and start switches simultaneously. |
| Poor cutting performance | Dull or damaged blade. Incorrect blade type for material. Excessive material. | Replace the blade. Select the appropriate blade for the task. Do not overload the trimmer; cut in smaller passes. |
| Trimmer stops during operation | Battery is low. Overheating. | Recharge the battery. Allow the trimmer to cool down before resuming use. |
| Excessive vibration | Blade is loose or damaged. | Check blade for secure attachment. Replace damaged blades immediately. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
- Brand: Mrzneaoch
- Model: Cordless Grass Trimmer 1800W
- Power Source: Cordless Electric, Battery Powered
- Color: Green
- Cutting Width: 15 Centimeters
- Product Dimensions: 120"L x 1"W (fully extended)
- Speed: 6000 RPM
- Assembly Required: Yes
- Battery: 24V 6000MA Lithium Battery (x2)
- Motor Power: 1800W
8. Warranty and Support
The Mrzneaoch Electric Cordless Grass Trimmer comes with a 3-year product service guarantee. Our commitment to quality ensures professional support for your product.
For any questions, concerns, or technical assistance, our professional team is available to provide answers within 24 hours. Please refer to your purchase documentation for contact details or visit the official Mrzneaoch store on Amazon.
