1. Introduction
Thank you for choosing the Generic Elliptical Machine. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before using the machine and retain it for future reference.
Image 1.1: A user demonstrating the Generic Elliptical Machine in use. This image shows the overall design and how the machine is operated.
2. Important Safety Information
WARNING: Before starting any exercise program, consult your physician. This is especially important for individuals over the age of 35 or those with pre-existing health conditions.
- Read all instructions in this manual before using the equipment.
- Keep children and pets away from the equipment during use.
- Place the equipment on a solid, level surface with adequate clearance around it.
- Wear appropriate exercise clothing and athletic shoes.
- Inspect the equipment for worn or loose parts before each use. Do not use if any parts are damaged.
- Do not overexert yourself. Stop exercising immediately if you feel faint, dizzy, or experience pain.
- The maximum user weight capacity for this machine is 265 lbs (120 kg).
3. Setup and Assembly
The Generic Elliptical Machine requires assembly. Please follow the instructions provided in the included assembly guide. Ensure all components are present before beginning assembly.
Image 3.1: An exploded diagram illustrating the various components of the elliptical machine. This image helps identify parts for assembly.
3.1 Unpacking
- Carefully remove all components from the packaging.
- Place all parts on a clear, flat surface.
- Verify that all parts listed in the assembly guide are present.
3.2 Assembly Steps (General)
While specific steps are detailed in the separate assembly manual, general steps include:
- Attaching the base stabilizers to the main frame.
- Mounting the upright post and handlebars.
- Connecting the pedals and crank arms.
- Installing the seat and adjusting its height.
- Connecting the console wires.
Ensure all bolts and nuts are securely tightened after assembly to prevent instability during use.
4. Operating Instructions
This elliptical machine offers a versatile workout experience, combining elements of a sprint road bike, upright bike, and elliptical cross trainer.

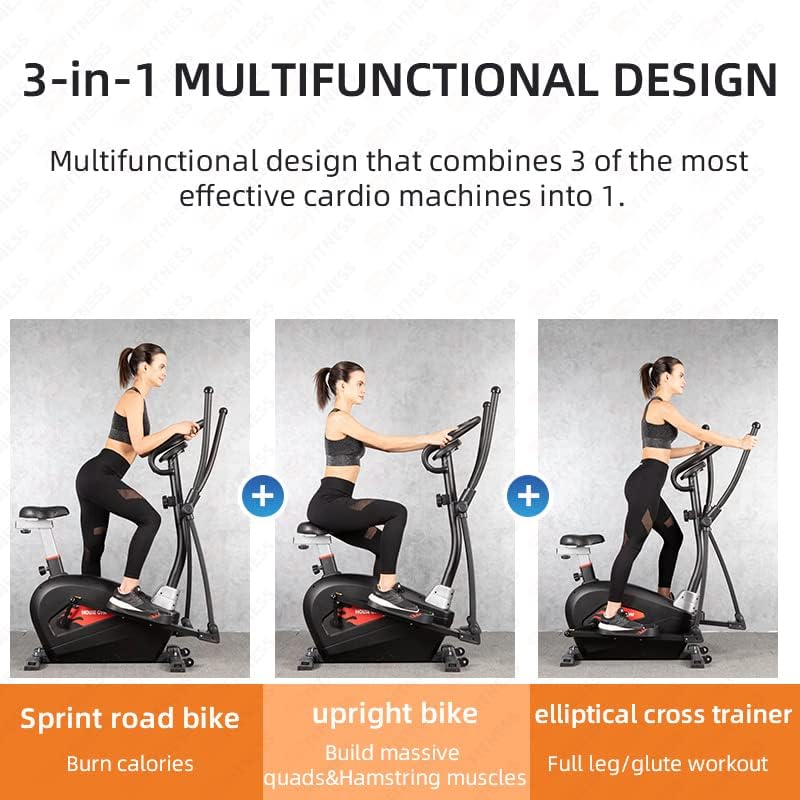

Image 4.1: This diagram illustrates the 3-in-1 multifunctional design, showcasing how the machine can be used as a sprint road bike, upright bike, and elliptical cross trainer for varied workouts.
4.1 Adjusting the Machine
- Seat Adjustment: The seat can be adjusted both vertically (8 gears, 76-96cm) and horizontally to accommodate different user heights and preferences. Loosen the adjustment knob, slide the seat to the desired position, and tighten the knob securely.
- Handlebar Adjustment: The handlebars can also be adjusted for optimal comfort and posture during your workout.
Image 4.2: A close-up view of the adjustable seat mechanism, highlighting the 8-gear adjustment range for user comfort.
4.2 Resistance Adjustment
The machine features 16 levels of adjustable magnetic resistance. To increase or decrease the workout intensity, turn the tension resistance knob located on the main frame. Turning clockwise increases resistance, while turning counter-clockwise decreases it.
Image 4.3: This image displays the 16-level adjustable resistance knob and the internal magnetic flywheel system, which provides smooth and quiet operation.
4.3 Using the LCD Monitor
The upgraded multifunctional digital LCD monitor tracks your workout progress. It displays the following metrics:
- Distance: Total distance covered during your workout.
- Heart Rate: Measured via integrated pulse sensors on the handlebars.
- Speed: Current workout speed.
- Duration: Elapsed time of your workout.
- Calories: Estimated calories burned.
The monitor typically has a scan mode that cycles through these metrics automatically. Refer to the monitor's specific instructions for detailed operation.
Image 4.4: A comprehensive diagram highlighting key features such as pulse sensors, multifunctional display, 16-level adjustable resistance, moveable pulley, floor stabilizers, adjustable seat, and smooth flywheel magnetic control system.
4.4 Proper Foot Placement
Ensure your feet are placed securely on the pedals. The design of the pedals is intended to provide stability and comfort during your workout. Maintain a natural stride throughout your exercise.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your elliptical machine.
- Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Inspection: Periodically check all bolts, nuts, and moving parts for tightness. Tighten any loose fasteners.
- Lubrication: Moving parts may require occasional lubrication. Refer to the assembly guide for specific lubrication points and recommended lubricants.
- Storage: Store the machine in a dry environment, away from direct sunlight and extreme temperatures. The machine features a moveable pulley for easier relocation.
6. Troubleshooting
This section addresses common issues you might encounter with your elliptical machine.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine is unstable or wobbles. | Loose bolts; uneven floor. | Tighten all assembly bolts. Adjust the floor stabilizers located at the base of the machine until stable. |
| Resistance is not changing. | Resistance cable disconnected or damaged; knob malfunction. | Check the resistance cable connection. If the issue persists, contact customer support. |
| LCD monitor is not displaying. | Batteries are dead or incorrectly installed; loose cable connection. | Replace batteries. Check the monitor's cable connection to the main frame. |
| Squeaking or grinding noise. | Loose parts; lack of lubrication; foreign object. | Inspect and tighten all bolts. Lubricate moving joints as per maintenance section. Check for any obstructions. |
7. Specifications
Below are the technical specifications for the Generic Elliptical Machine:
- Foot Pedal Style: Aluminum alloy pedal
- Heart Rate Monitoring: Integrated sensors
- Seat: Super soft, adjustable (8 gears, 76-96cm height)
- Net Weight: 79 lbs (35.8 kg)
- Gross Weight: 85 lbs (38.5 kg)
- Flywheel: 9 lbs (4.1 kg) casting wheel, smooth magnetic control system
- Maximum Load Capacity: 265 lbs (120 kg)
- Packing Size: 37 x 29 x 12.2 inches (94 x 73.7 x 31 cm)
- Drive Mechanism: Belt drive
- Resistance System: 16-level easily adjustable tension resistance knob (magnetic)
- Digital Monitor: Upgraded multifunctional LCD monitor (displays distance, heart rate, speed, duration, calories)
- Adjustability: Seat adjustment (vertical and horizontal), handlebar adjustment
- Stride Length: Approximately 36 cm
- Dimensions (Assembled): Approximately 115cm (Length) x 42cm (Width) x 150cm (Height)
Image 7.1: A diagram illustrating the key dimensions of the assembled elliptical machine, including height, length, and width.
Image 7.2: This image highlights the ergonomic design of the elliptical machine and indicates a stride length of 36cm, suitable for various users.
8. Warranty and Support
Information regarding product warranty and customer support is typically provided with your purchase documentation or on the manufacturer's official website. Please refer to those resources for details on warranty coverage, returns, and technical assistance.
For any questions or concerns not addressed in this manual, please contact the seller or manufacturer directly.
