Wutsar Hand Massager S2-MX02 Instruction Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your Wutsar Hand Massager S2-MX02. Please read this manual thoroughly before operating the device and retain it for future reference.

Image: The Wutsar Hand Massager S2-MX02, a black device designed for hand massage, shown alongside its packaging and a small manual roller accessory.

Safety Information

To ensure safe operation and prevent injury or damage, observe the following precautions:

• Use caution while charging the device.
• Do not use the massager in wet or humid conditions.
• Keep the device away from water and other liquids.
• Do not disassemble or attempt to repair the device yourself. Contact customer support for assistance.
• Consult a physician before use if you have any pre-existing medical conditions, especially related to hands or circulation.
• Remove all hand jewelry before use to prevent discomfort or injury.
• Do not use on injured, swollen, or inflamed areas.
• Keep out of reach of children.

Legal Disclaimer: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This device is not intended for medical use.

Product Features

The Wutsar Hand Massager S2-MX02 is designed to provide a comprehensive hand massage experience. Key features include:

• Acupressure Therapy: Precisely placed points target acupuncture points on the wrist, palm, and fingers.
• Soothing Heat Function: Helps to warm hands and ease muscle soreness. Features 5 adjustable heat levels.
• Air Compression Massage: 360-degree airbag wrapping provides wave pressing and kneading comfort, squeezing the palm in a three-dimensional manner.
• Rechargeable & Portable: Built-in 2200mAh battery allows for cordless use, lasting 60-90 minutes on a full charge.
• Multiple Programs: Offers 3 massage programs for a personalized experience.
• Soft Finger Feel: Equipped with a tempered glass touch screen for easy operation.

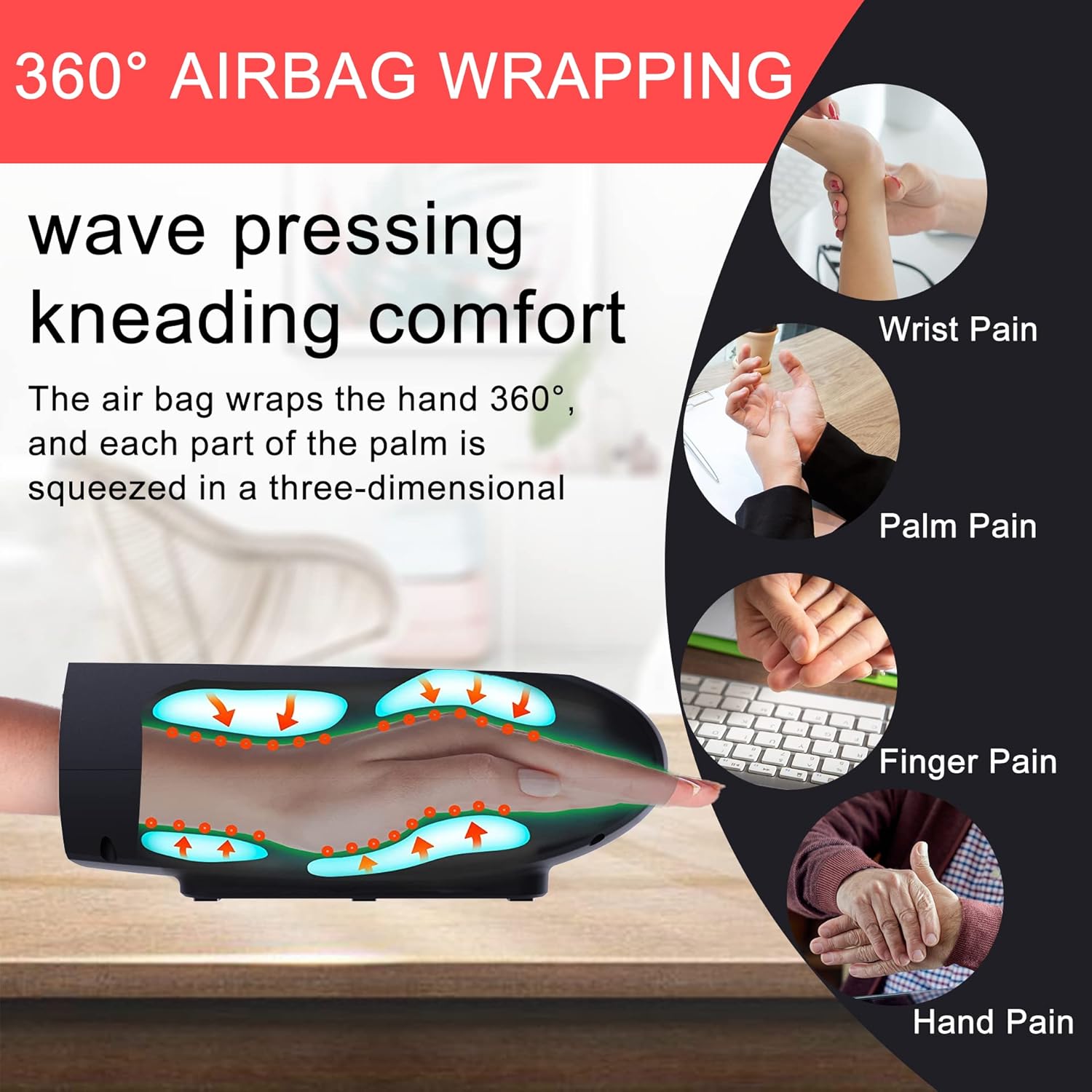

Image: A diagram illustrating the 360-degree airbag wrapping technology inside the massager, showing how air bags inflate to apply pressure to the hand, targeting areas prone to wrist, palm, finger, and general hand pain.

Image: An illustration demonstrating how the Wutsar Hand Massager targets acupuncture points on the palm through internal bump air sacs, with a man holding the device.

Setup

1. Unpacking: Carefully remove the hand massager and all accessories from the packaging. Verify that all components are present: the hand massager unit, a USB charging cable, and a small manual roller.
2. Initial Charge: Before first use, fully charge the device. Connect the provided USB cable to the charging port on the massager and plug the other end into a compatible USB power adapter (not included) or computer USB port. The charging indicator will show the charging status. A full charge typically takes approximately 4 hours and provides 60-90 minutes of use.
3. Placement: Place the massager on a stable, flat surface.

Operating Instructions

The Wutsar Hand Massager features an intuitive control panel. Refer to the diagram below for button identification.

Image: A detailed view of the Wutsar Hand Massager's control panel, labeling the Force key, Heating keys, Mode key, Power key, and Vibration key, along with brief operational notes.

1. Power On/Off: Press the Power key (stand-alone power button) to turn the device on. Press and hold to turn off. The device has an automatic shutdown feature after 10 minutes of operation.
2. Insert Hand: Gently place your hand into the massager opening, ensuring your palm and fingers are comfortably positioned. Remove all jewelry before use.
3. Select Mode: Press the Mode key to cycle through the 3 available massage techniques (programs). The corresponding indicator lights will illuminate.
4. Adjust Force: Press the Force key to adjust the intensity of the compression massage. There are 3 gears (levels) of force.
5. Activate Heat: Press the Heating key to turn on the heat function. The heating indicator light will turn red. Press again to cycle through 5 heat levels or turn off the heat.
6. Vibration: Press the Vibration key to activate or deactivate the vibration function.
7. Usage Duration: Each massage program runs for 10 minutes. It is recommended to use the massager for a maximum of 30 minutes per session.
8. Charging Note: The device cannot be used while charging. The function key indicators will flash from left to right, and the three lights of the function key will be on when fully charged.

Image: A composite image showing the Wutsar Hand Massager being used to massage fingers, push the palm, and knead the wrists, demonstrating its versatility for different hand areas.

Maintenance

• Cleaning: Disconnect the massager from the power source before cleaning. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.
• Storage: Store the massager in a cool, dry place, away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in frequent use.

Troubleshooting

If you encounter issues with your Wutsar Hand Massager, refer to the following common solutions:

• Device not turning on: Ensure the device is fully charged. Connect it to the charger and allow sufficient time for charging.
• No compression or heat: Check if the device is adequately charged. Ensure the desired mode and heat settings are activated on the control panel. The device cannot operate while charging.
• Weak massage intensity: Adjust the force level using the Force key. Ensure your hand is properly positioned within the massager.
• Device stops unexpectedly: The massager has an automatic shutdown feature after 10 minutes. If it stops before this, ensure the battery is not low.
• Tingling sensation: A tingling sensation during massage is normal. If it becomes uncomfortable or painful, reduce the intensity or discontinue use.

If the problem persists after attempting these steps, please contact customer support.

Specifications

Image: A visual representation of the Wutsar Hand Massager's dimensions (7.1 inches length, 5.5 inches width, 3.9 inches height) and a close-up of its tempered glass touch screen with "Hand Massager" label.

Warranty and Support

Wutsar products are crafted under strict quality standards. If you encounter any issues with your Wutsar Hand Massager, please contact customer support through your Amazon account. Our team is committed to resolving issues promptly and ensuring your satisfaction.

For more information about Wutsar products, you may visit the official Wutsar Store on Amazon: Wutsar Store.
