Bosch Series 6 Built-in Freezer GIN81AEF0U Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch Series 6 Built-in Freezer, model GIN81AEF0U. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Bosch Series 6 Built-in Freezer GIN81AEF0U is designed for seamless integration into your kitchen cabinetry, offering 212 liters of storage capacity with advanced features like NoFrost technology and automatic Super Freezing.

2. Safety Information

General Safety:

• Read all instructions before installation and use.
• Ensure the appliance is properly grounded to prevent electrical shock.
• Do not store explosive substances, such as aerosol cans with flammable propellants, in this appliance.
• Keep ventilation openings clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Electrical Safety:

• The appliance must be connected to a power supply that matches the voltage and wattage specified on the rating plate.
• Do not use extension cords or ungrounded adapters.
• Always unplug the appliance before cleaning or performing maintenance.

3. Product Overview

The Bosch Series 6 Built-in Freezer GIN81AEF0U features a spacious interior with multiple drawers for organized storage. Its NoFrost technology eliminates the need for manual defrosting, while the automatic Super Freezing function ensures rapid freezing of fresh items.

Key Features:

• Capacity: 212 Liters
• Installation: Built-in with flat hinge
• NoFrost: Prevents ice build-up, eliminating manual defrosting.
• Automatic Super Freezing: Optimally freezes smaller food loads faster and protects existing frozen items from defrosting by automatically decreasing temperature upon detection of a temperature increase.
• Electronic Control: 7-segment electronic display for precise temperature management.
• Warning Functions: Includes warning signals for an open door and temperature increase.

Components:

The freezer includes several transparent drawers for easy viewing and organization of frozen goods. The control panel is located at the top of the interior.

Image Description: An open Bosch Series 6 built-in freezer, showing its interior with multiple transparent drawers. The drawers contain various frozen food items, demonstrating the storage capacity and organization.

Image Description: The Bosch Series 6 built-in freezer seamlessly integrated into a white modern kitchen cabinet. The freezer door is open, revealing its interior, while the surrounding cabinetry creates a clean, flush look.

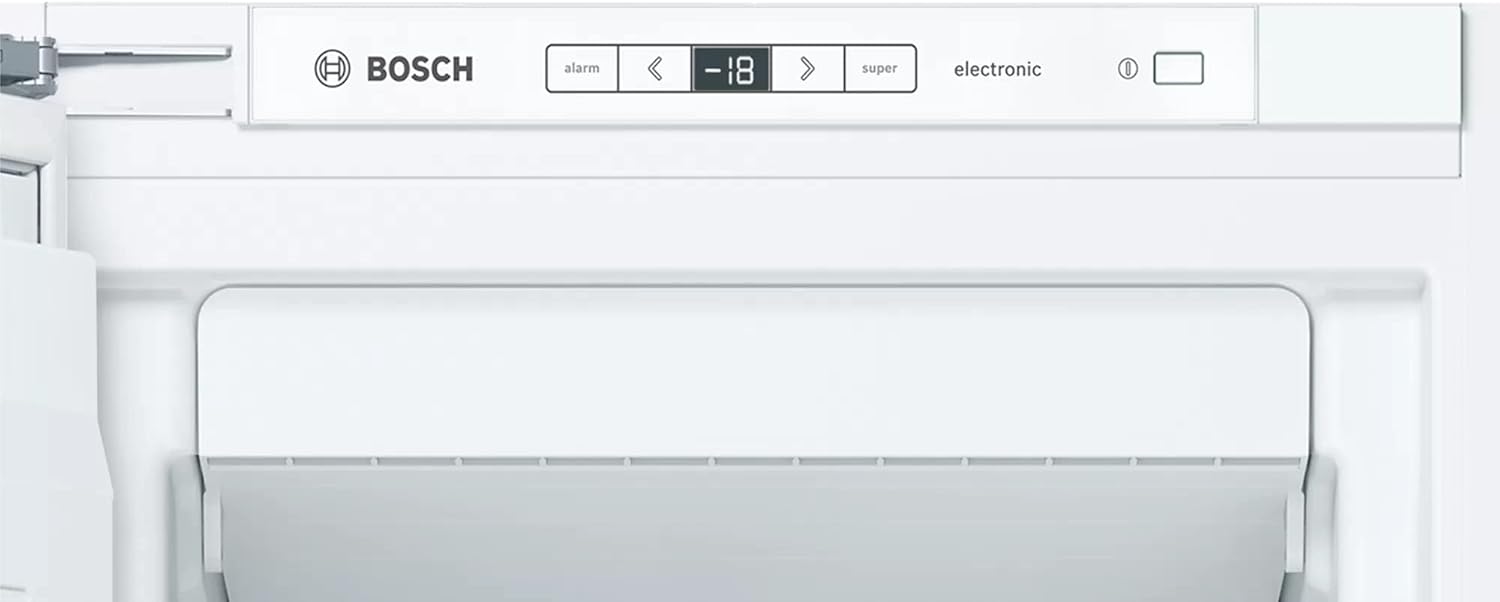

Image Description: A close-up view of the Bosch freezer's electronic control panel, located at the top interior. It displays the current temperature (-18) and features buttons for 'alarm', 'super', and 'electronic' settings.

4. Setup and Installation

This appliance is designed for built-in installation. Proper installation is crucial for optimal performance and safety. It features a flat hinge design for seamless integration with kitchen furniture.

Dimensions for Installation:

Refer to the diagram below for precise measurements required for cabinet integration. Ensure adequate ventilation space as specified in the separate installation instructions provided with the appliance.

Image Description: A technical diagram illustrating the precise dimensions of the Bosch built-in freezer in millimeters. Key measurements include height (1772 mm), width (558 mm), and depth (545 mm), along with specific hinge and panel heights.

• Product Dimensions (D x W x H): 54 x 55.8 x 177 cm
• Door Hinges: Left (can typically be reversed by a qualified technician)

Important: Installation should be performed by a qualified technician to ensure correct fitting and electrical connection.

5. Operating Instructions

Electronic Control Panel:

The freezer is equipped with a 7-segment electronic control panel for setting and monitoring the temperature. Use the arrow buttons to adjust the desired temperature. The 'Super' button activates the Super Freezing function.

Temperature Setting:

The recommended operating temperature for a freezer is -18°C. Adjust the temperature using the control panel as needed. Lower temperatures will consume more energy.

NoFrost Function:

This appliance features NoFrost technology, which automatically removes moisture from the freezer compartment, preventing ice build-up. This means you will never need to manually defrost the freezer.

Automatic Super Freezing Function:

Activate the Super Freezing function when adding a large quantity of fresh food to the freezer. This function rapidly lowers the temperature to quickly freeze new items, preserving their quality and protecting already frozen items from partial thawing. The function will automatically switch off once the optimal freezing temperature is reached.

Warning Functions:

The freezer is equipped with warning signals for:

• Door Open: An audible alarm will sound if the freezer door is left open for an extended period.
• Temperature Increase: An alarm will activate if the internal temperature rises above a safe level, indicating a potential issue or power outage.

6. Maintenance and Care

Due to the NoFrost feature, manual defrosting is not required for this appliance.

Cleaning the Interior:

• Always unplug the freezer before cleaning.
• Clean the interior and accessories with a soft cloth, lukewarm water, and a mild, neutral detergent.
• Avoid using abrasive cleaners, scouring pads, or solvents, as these can damage surfaces.
• Thoroughly dry all parts before reconnecting the power.

Cleaning the Exterior:

Wipe the exterior surfaces with a soft, damp cloth. For stainless steel parts (door material type), use a specialized stainless steel cleaner if necessary.

7. Troubleshooting

If you encounter issues with your freezer, consult the following basic troubleshooting steps before contacting service:

• Appliance not operating: Check if the power cord is securely plugged into the outlet and if there is power to the outlet.
• Temperature too high: Ensure the door is fully closed and the seal is intact. Check if the temperature setting is appropriate. Avoid placing hot food directly into the freezer.
• Alarm sounding: Check if the door is open or if there has been a power interruption causing a temperature rise.
• Unusual noises: Some operational noises (e.g., refrigerant circulation, fan) are normal. Ensure the appliance is level and not touching any walls or cabinets.

For persistent issues, refer to the detailed troubleshooting section in the full user manual or contact customer support.

8. Specifications

9. Warranty and Support

Your Bosch Series 6 Built-in Freezer GIN81AEF0U comes with a 5-year warranty. Please retain your proof of purchase for warranty claims.

For technical assistance, spare parts, or to schedule a service appointment, please contact Bosch customer service. Contact details can typically be found on the official Bosch website for your region or in the documentation supplied with your appliance.
