SKMEI Model 9271 Mechanical Men's Wrist Watch Instruction Manual

1. Introduction

Thank you for choosing the SKMEI Model 9271 Mechanical Men's Wrist Watch. This timepiece features an automatic mechanical movement and a distinctive skeleton dial design, offering both functionality and a unique aesthetic. This manual provides essential information for the proper setup, operation, and maintenance of your watch to ensure its longevity and accurate performance.

Image 1.1: Front view of the SKMEI Model 9271 Mechanical Men's Wrist Watch, showcasing its skeleton dial and Roman numerals.

2. Product Overview

The SKMEI Model 9271 is designed with a silver-toned zinc alloy case, a transparent skeleton dial, and a comfortable leather strap. The watch's automatic movement is visible through both the front dial and the transparent case back, highlighting its intricate craftsmanship.

Key Components:

• Crown: Used for winding the watch and setting the time.
• Skeleton Dial: Displays the internal mechanical movement.
• Roman Numerals: Classic hour markers for time reading.
• Leather Strap: Provides a secure and comfortable fit.
• Transparent Case Back: Allows visibility of the automatic movement from the rear.

Image 2.1: Detailed view of the watch, highlighting the skeleton dial, case engraving, and leather strap with buckle.

Image 2.2: Rear view of the watch, showing the transparent case back and the automatic movement.

3. Setup Instructions

3.1 Initial Winding

As a mechanical watch, the SKMEI 9271 requires initial winding to start its movement. If the watch has stopped or is not running, follow these steps:

1. Ensure the crown is pushed fully in (Position 0).
2. Rotate the crown clockwise approximately 20-30 times. This will manually wind the mainspring and initiate the movement.
3. You should observe the second hand beginning to move.

3.2 Setting the Time

To set the correct time:

1. Gently pull the crown out to Position 1.
2. Rotate the crown either clockwise or counter-clockwise to adjust the hour and minute hands to the desired time.
3. Once the time is set, push the crown back into Position 0 to engage the movement and start the watch.

4. Operating Instructions

4.1 Automatic Movement

The SKMEI 9271 features an automatic mechanical movement. This means the watch is primarily powered by the natural motion of your wrist while wearing it. When worn daily for approximately 8-10 hours, the watch will self-wind and maintain its power reserve.

4.2 Power Reserve

If the watch is not worn for an extended period (typically 24-48 hours, depending on activity), the power reserve will deplete, and the watch will stop. To restart it, follow the "Initial Winding" instructions in Section 3.1.

Image 4.1: The SKMEI 9271 watch being worn on a wrist, demonstrating its intended use.

5. Maintenance

5.1 Cleaning

• Case: Wipe the watch case with a soft, dry cloth to remove dust and fingerprints. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
• Leather Strap: Avoid prolonged exposure to water, direct sunlight, and harsh chemicals, as these can damage the leather. Clean with a specialized leather cleaner or a very lightly damp cloth, then allow to air dry completely.

5.2 Water Resistance

This watch has a water resistance rating of 30 meters (3ATM). This rating indicates that the watch is resistant to splashes, rain, and brief immersion in water, such as hand washing. It is not suitable for swimming, showering, diving, or any activities involving prolonged water exposure or high-pressure water.

• Do not operate the crown or pushers when the watch is wet or submerged.
• Ensure the crown is always fully pushed in to maintain water resistance.

Image 5.1: The watch shown with water splashes, illustrating its resistance to light water exposure.

5.3 Storage

When not wearing the watch, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. A watch box or pouch is recommended to protect it from dust and scratches.

6. Troubleshooting

6.1 Watch Not Running

• Check Winding: Ensure the watch has been sufficiently wound, either manually (Section 3.1) or by wearing it for an adequate period.
• Crown Position: Verify that the crown is fully pushed into Position 0.

6.2 Inaccurate Timekeeping

• Consistent Winding: Ensure the watch is receiving consistent power, either through daily wear or regular manual winding. Inconsistent power can affect accuracy.
• Magnetic Fields: Exposure to strong magnetic fields (e.g., from speakers, certain electronics) can affect mechanical watch accuracy. If suspected, keep the watch away from such sources.
• Professional Service: If accuracy issues persist despite proper winding and care, the watch may require inspection by a qualified watch technician.

7. Specifications

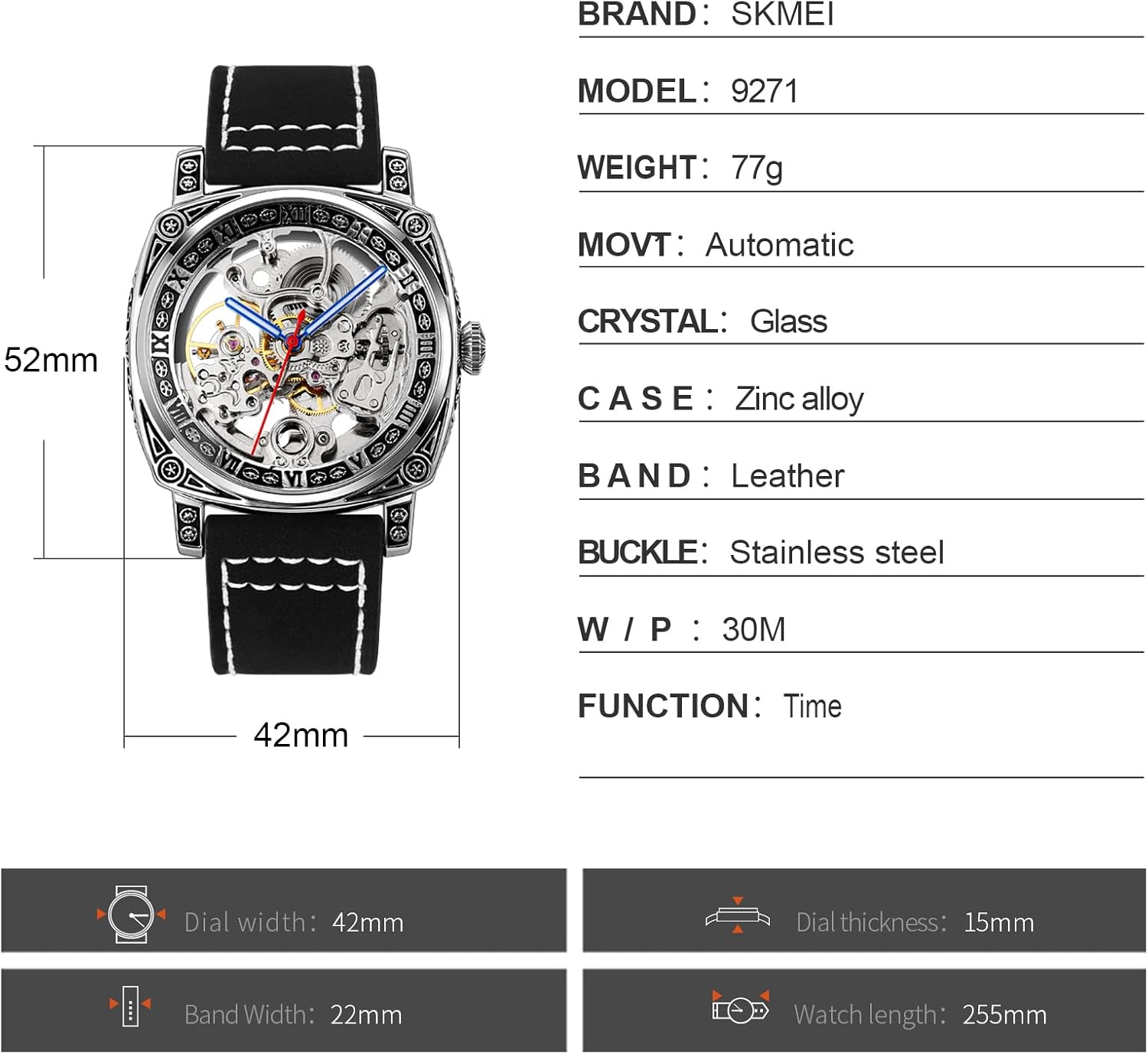

Image 7.1: Visual representation of the watch's dimensions and key specifications.

8. Warranty and Support

SKMEI is committed to providing high-quality products and customer service. If you encounter any issues or have questions regarding your SKMEI Model 9271 watch, please contact our customer support team. We are dedicated to assisting you and providing a satisfactory resolution.

For support inquiries, please refer to the contact information provided with your purchase or visit the official SKMEI website.
