Global Industrial Replacement Evaporator Fan Motor (Model 243256) Instruction Manual

Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Global Industrial Replacement Evaporator Fan Motor, Model 243256. This motor is specifically designed for compatibility with Nexel Reach-in Refrigerator and Nexel Merchandiser Refrigerator models 243035 and 243004. Please read this manual thoroughly before proceeding with any installation or service.

Safety Information

WARNING: Always disconnect power to the refrigerator unit before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or death from electrical shock.

• Only qualified personnel should perform installation and service.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
• Ensure all wiring connections are secure and comply with local electrical codes.
• Keep children and pets away from the work area.

What's in the Box

• 1 x Global Industrial Replacement Evaporator Fan Motor (Model 243256)
• 1 x Assembly Guide (refer to this guide for detailed installation steps)

Setup and Installation

This section provides general guidance for replacing the evaporator fan motor. For detailed, step-by-step instructions, please refer to the included Assembly Guide and the service manual for your specific Nexel refrigerator model.

1. Prepare the Unit:
   • Disconnect the refrigerator from its power source.
   • Empty the refrigerator compartment to allow access to the evaporator coil area.
2. Access the Evaporator Fan:
   • Locate and remove the interior panels that cover the evaporator coil and fan assembly. This typically involves unscrewing fasteners and carefully detaching clips.
3. Remove the Old Motor:
   • Carefully disconnect the wiring from the old evaporator fan motor. Note the orientation and connection points for reassembly.
   • Unmount the old motor from its bracket or housing.
4. Install the New Motor:
   • Mount the new Global Industrial Replacement Evaporator Fan Motor (Model 243256) into the existing bracket or housing. Ensure it is securely fastened.
   • Connect the wiring to the new motor, matching the connections noted during removal. Ensure all connections are tight and insulated.
5. Reassemble and Test:
   • Replace all interior panels and fasteners.
   • Reconnect the refrigerator to its power source.
   • Verify that the new fan motor operates correctly and quietly.

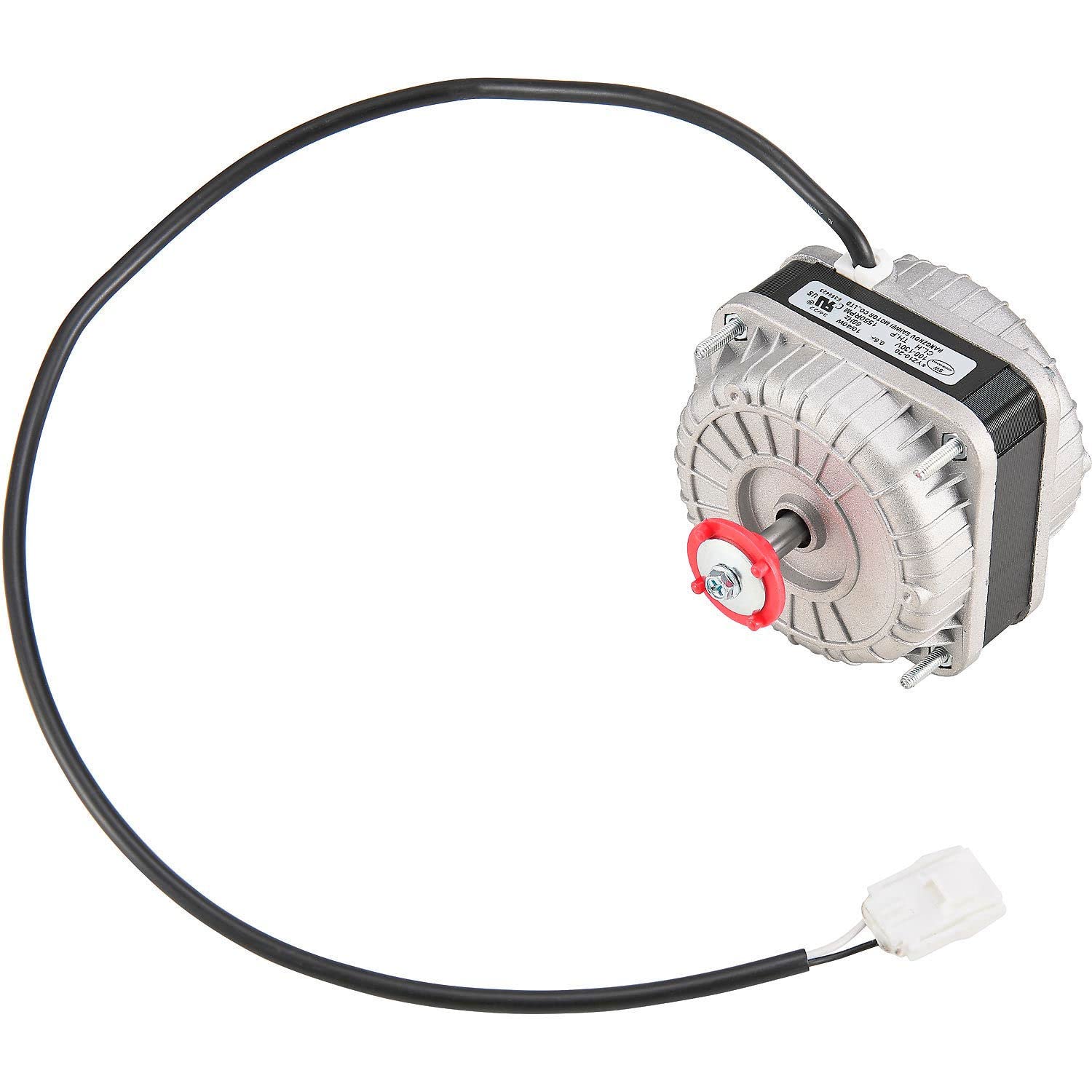

Image 1: Global Industrial Replacement Evaporator Fan Motor (Model 243256). This image shows the fan motor with its attached wiring harness, ready for installation.

Operating Principles

The evaporator fan motor is a critical component in your refrigerator's cooling system. Its primary function is to circulate air over the evaporator coil, which absorbs heat from the refrigerator compartment. This circulation ensures even cooling throughout the unit and efficient heat exchange. Once installed, the motor operates automatically as part of the refrigerator's cooling cycle, controlled by the unit's thermostat and defrost timer.

Maintenance

The Global Industrial Replacement Evaporator Fan Motor (Model 243256) is designed for long-term, reliable operation with minimal maintenance. However, periodic inspection can help ensure optimal performance.

• Annual Inspection: Annually, or if you notice unusual noises, disconnect power and inspect the fan blades for any obstructions (e.g., ice buildup, debris). Carefully remove any obstructions.
• Wiring Check: Ensure all electrical connections remain secure and free from corrosion.
• Cleanliness: Keep the area around the evaporator coil and fan free of dust and debris to maintain efficient airflow.

Do not attempt to lubricate the motor, as it is designed with sealed bearings that do not require external lubrication.

Troubleshooting

If you experience issues after installing the replacement motor, consult the following table:

If troubleshooting steps do not resolve the issue, contact customer support or a qualified service technician.

Specifications

Warranty Information

For specific warranty details regarding your Global Industrial Replacement Evaporator Fan Motor (Model 243256), please refer to the documentation provided at the time of purchase or contact Global Industrial customer service. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase. Keep your proof of purchase for warranty claims.

Customer Support

If you have questions about the installation, operation, or troubleshooting of your replacement evaporator fan motor, please contact Global Industrial customer support. You can typically find contact information on the Global Industrial website or on your purchase invoice.

For technical assistance related to your Nexel refrigerator unit, please refer to the Nexel product manual or contact Nexel customer service.
