STAKOL Evaporative Air Cooler User Manual

1. Important Safety Instructions

Please read all instructions carefully before using this appliance and retain for future reference. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Always use the appliance on a stable, flat, and dry surface.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug from outlet when not in use, before cleaning, or before moving.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Keep the appliance out of reach of children and pets.
• Do not block air openings or operate near curtains or other materials that may block airflow.
• Only use attachments/accessories specified by the manufacturer.
• Do not use outdoors. This appliance is for indoor household use only.

2. Product Overview

The STAKOL Evaporative Air Cooler is a versatile 3-in-1 appliance designed to provide cooling, humidification, and air circulation. It functions as an air cooler, a humidifier, and a regular tower fan, adapting to various environmental needs.

Figure 2.1: The 3-in-1 multifunctional design of the STAKOL Evaporative Air Cooler, illustrating its capabilities as a regular fan, humidifier, and cooler.

Package Contents:

• 1 x STAKOL 41-inch Tower Fan
• 4 x Ice Crystal Boxes
• 1 x Remote Control
• 1 x User Manual (this document)

Key Features:

• 3-in-1 Functionality: Air Cooler, Humidifier, and Fan.
• Multiple Settings: 3 Wind Speeds (Low/Medium/High) and 3 Wind Modes (Normal/Natural/Sleep).
• Convenient Control: Touch panel and remote control operation.
• Timer Function: 1-9 hour automatic shut-off timer.
• Wide Oscillation: 70° oscillation for broad air distribution.
• Quiet Operation: Designed for low noise levels (approx. 35 dB).
• Safety Features: Bladeless design, washable and removable filter.
• Portability: Built-in handle for easy movement.

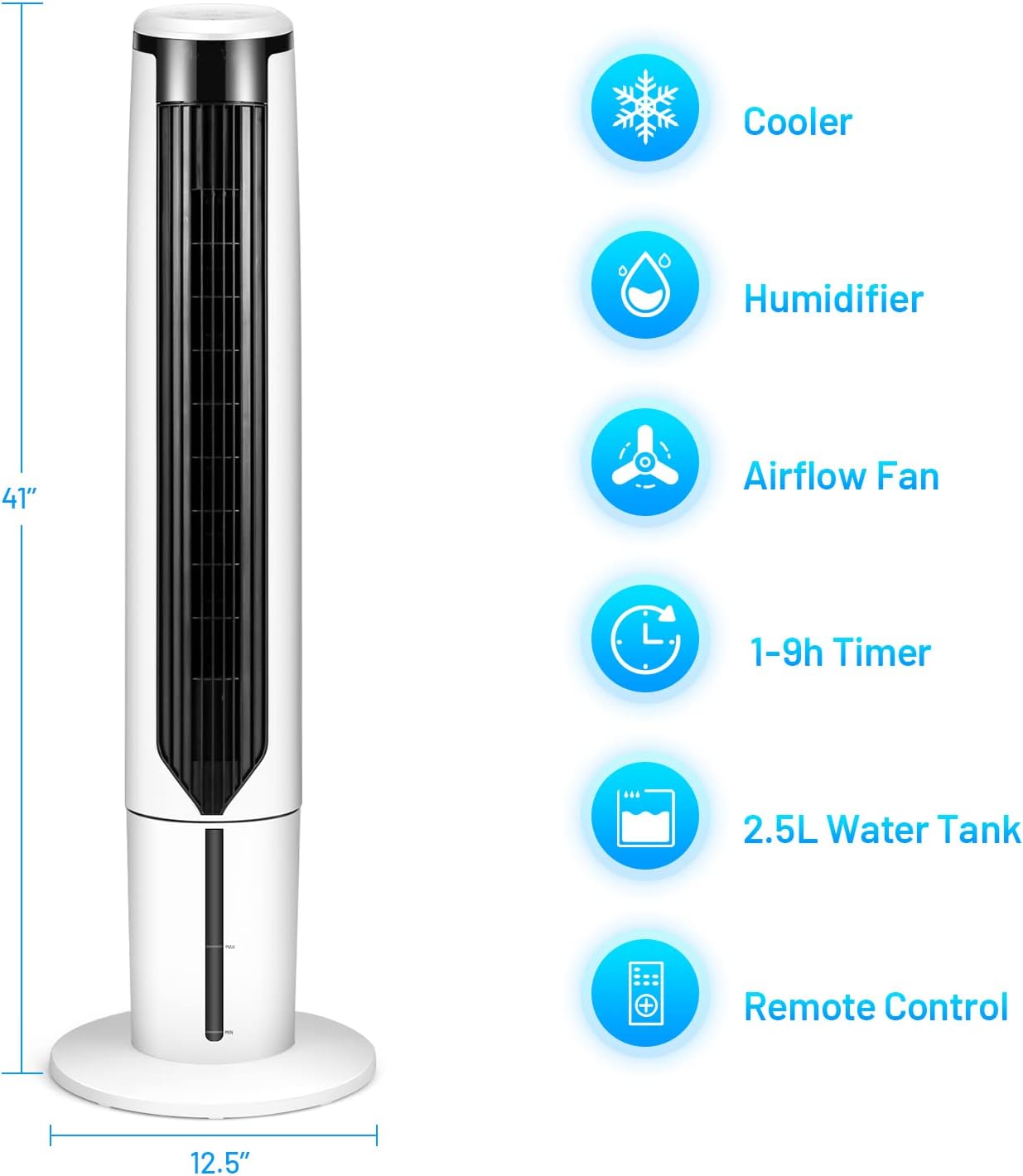

Figure 2.2: Visual representation of the cooler's dimensions (41 inches height, 12.5 inches width/depth) and key features including cooler, humidifier, airflow fan, 1-9H timer, 2.5L water tank, and remote control.

3. Setup

Follow these steps to set up your STAKOL Evaporative Air Cooler for first use.

3.1 Unpacking and Placement

1. Carefully remove the air cooler and all accessories from the packaging.
2. Place the unit on a firm, level, and dry surface, ensuring there is adequate space around it for proper airflow.

3.2 Filling the Water Tank and Using Ice Crystal Boxes

For cooling and humidifying functions, water must be added to the tank. For enhanced cooling, utilize the provided ice crystal boxes.

Figure 3.1: The STAKOL Evaporative Air Cooler shown with the included ice crystal boxes, ready for enhanced cooling performance.

1. Pull out the water tank from the bottom rear of the unit.
2. Fill the water tank with clean water. Do not exceed the 'MAX' fill line. The tank capacity is 2.5 liters (0.66 gallons).
3. For colder air, place the ice crystal boxes in a freezer for several hours until they are completely frozen.
4. Once frozen, place the ice crystal boxes into the water tank.
5. Carefully slide the water tank back into the unit until it clicks into place.

Figure 3.2: Detailed view of the STAKOL Evaporative Air Cooler, highlighting features such as the thoughtful watering design and visible water level indicator for easy refilling.

3.3 Power Connection

Plug the power cord into a standard 120V/60Hz electrical outlet. The unit is now ready for operation.

4. Operating Instructions

Your STAKOL Evaporative Air Cooler can be controlled via the touch control panel on top of the unit or the included remote control.

Figure 4.1: The convenient remote control and smart touch control panel for operating the STAKOL Evaporative Air Cooler from up to 6 meters (19.5 feet) away.

4.1 Power On/Off

• Press the Power button (⏸) on the control panel or remote to turn the unit on or off.

4.2 Adjusting Wind Speed

There are three wind speed settings: Low, Medium, and High.

• Press the Speed button (⚙) repeatedly to cycle through the speeds.

4.3 Selecting Wind Mode

Choose from three distinct wind modes: Normal, Natural, and Sleep.

Figure 4.2: Illustration of the multiple settings available, including 3 wind modes (Normal, Sleep, Cooling) and 3 wind speeds (Low, Medium, High).

• Normal Mode: Provides a constant, steady airflow.
• Natural Mode: Simulates a natural breeze by varying the fan speed.
• Sleep Mode: Gradually reduces fan speed and dims the display for undisturbed sleep.
• Press the Mode button (☼) repeatedly to select your desired mode.

4.4 Activating Cooling/Humidifying Function

To activate the evaporative cooling and humidifying function, ensure the water tank is filled.

• Press the Cooling button (❄) to turn on the water pump and begin the cooling/humidifying process. Press again to turn off.

4.5 Oscillation Function

The unit features a 70° wide oscillation to distribute air across a larger area.

Figure 4.3: The 70° wide oscillation feature of the STAKOL Evaporative Air Cooler, designed to promote faster air circulation in a wider area.

• Press the Oscillation button (↻) to start or stop the oscillation.

4.6 Timer Function

Set the unit to automatically turn off after a specified period (1-9 hours).

Figure 4.4: The STAKOL Evaporative Air Cooler operating quietly, featuring a screen auto-off function and a 1-9 hour timing function for convenience during sleep.

• Press the Timer button (⏱) repeatedly to set the desired shut-off time in 1-hour increments. The display will show the set time.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air cooler.

5.1 Cleaning the Exterior

• Before cleaning, always unplug the unit from the power outlet.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

5.2 Cleaning the Water Tank

It is recommended to clean the water tank regularly, especially if the unit is used frequently or if water has been stagnant for a long time.

• Unplug the unit.
• Pull out the water tank.
• Empty any remaining water. The unit features a bottom drain plug for convenience.
• Clean the tank with a mild detergent and rinse thoroughly with clean water.
• Ensure the tank is dry before reinserting it.

5.3 Cleaning the Filter

The air cooler is equipped with a washable and removable filter to ensure fresh and clean air output.

Figure 5.1: Diagram illustrating the effective filtration and cooling process of the STAKOL Evaporative Air Cooler, showing how hot air and dust are filtered to produce fresh and cool air.

1. Unplug the unit.
2. Locate the filter access panel (usually at the rear of the unit).
3. Remove the filter.
4. Rinse the filter under running water to remove dust and debris. For stubborn dirt, use a soft brush and mild detergent.
5. Allow the filter to air dry completely before reinserting it into the unit.

5.4 Storage

• If storing the unit for an extended period, ensure the water tank is empty and clean, and the filter is dry.
• Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter issues with your STAKOL Evaporative Air Cooler, please refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact STAKOL customer service for further assistance.

7. Specifications

Detailed technical specifications for the STAKOL Evaporative Air Cooler, Model ES10083US.

8. Warranty & Customer Service

STAKOL stands behind the quality of its products.

8.1 Warranty Information

• This product comes with a one-year warranty from the date of purchase.
• A 30-day free return policy is also provided.

8.2 Customer Support

For any pre-sale inquiries, after-sales support, or warranty claims, please do not hesitate to contact us. You can reach STAKOL customer service via Amazon station letter.

Please provide your product model number (ES10083US) and purchase details when contacting support to ensure a swift resolution.
