Bosch ErgoMaster Series 4 Hand Blender MSM4W210 Instruction Manual

Model: MSM4W210

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Bosch ErgoMaster Series 4 Hand Blender, model MSM4W210. Please read these instructions carefully before first use and keep them for future reference.

The Bosch ErgoMaster Series 4 hand blender is designed for blending, mixing, and pureeing various food items. Its powerful 600-watt motor and QuattroBlade system ensure efficient processing of even tough ingredients.

Bosch ErgoMaster Series 4 Hand Blender MSM4W210 with mixing beaker

Figure 1: Bosch ErgoMaster Series 4 Hand Blender MSM4W210 and included mixing beaker.

2. Product Components

The Bosch ErgoMaster Series 4 Hand Blender MSM4W210 includes the following main components:

  • Motor Unit: The main body containing the 600-watt motor and speed control.
  • Blender Foot (Stainless Steel): Detachable shaft with the QuattroBlade system.
  • Mixing Beaker: Graduated, BPA-free beaker for blending and measuring.

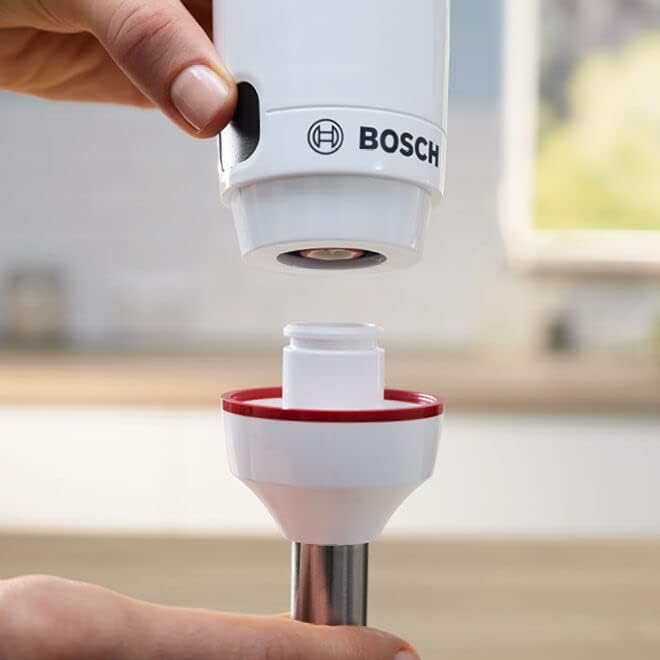

Detaching the blender foot from the motor unit

Figure 2: The detachable blender foot for easy assembly and cleaning.

3. Setup and Assembly

Before using your hand blender for the first time, ensure all packaging materials are removed and components are clean.

  1. Attach the Blender Foot: Align the blender foot with the motor unit and twist until it locks securely into place. You should hear a click.
  2. Connect to Power: Plug the appliance into a suitable power outlet.
  3. Unlock (if applicable): Some models may feature a safety unlock button. Press and hold the unlock button (if present) before pressing the speed control lever.

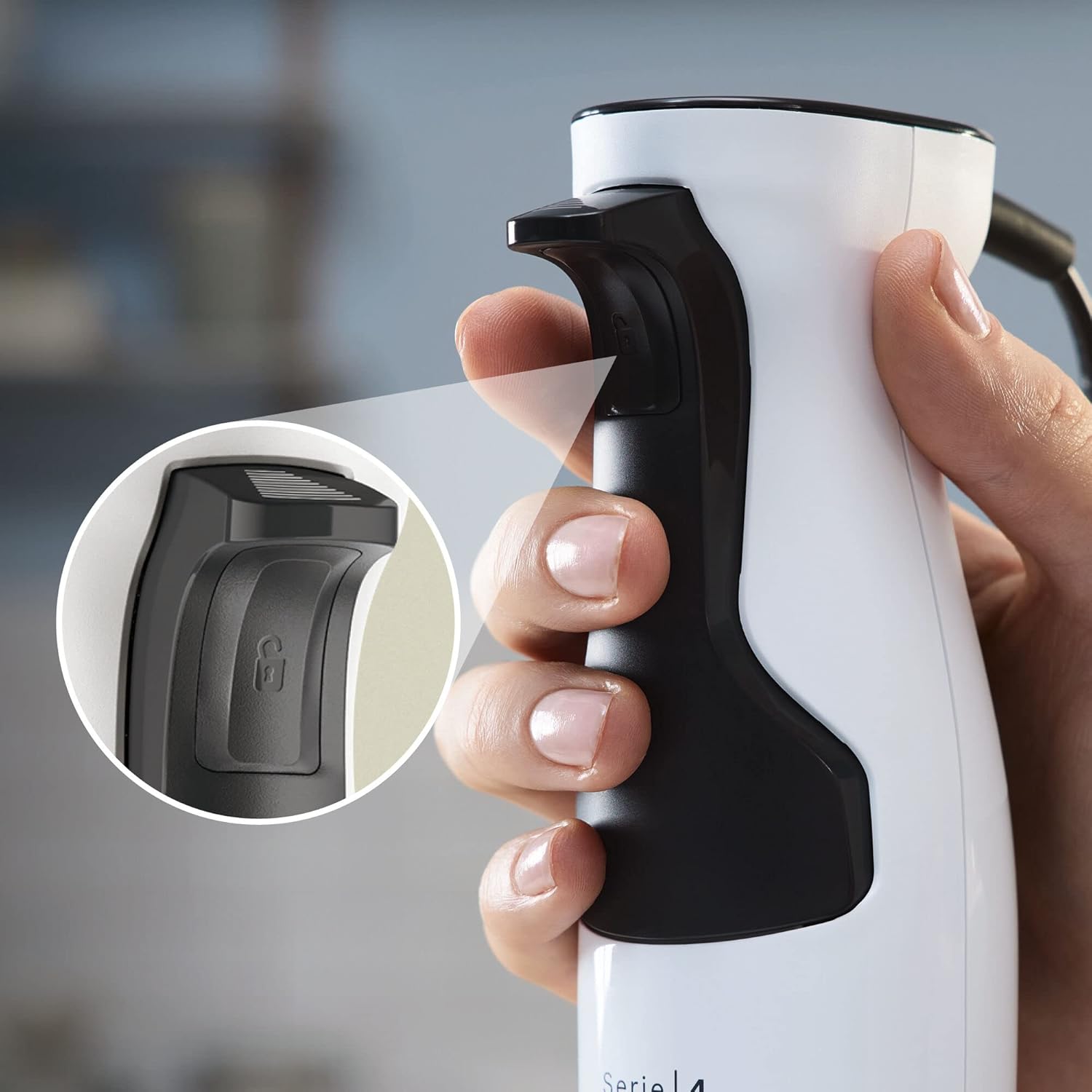

Close-up of the unlock button on the hand blender handle

Figure 3: Detail of the safety unlock button on the handle.

4. Operating Instructions

The ErgoMaster Series 4 hand blender features intuitive speed control for precise blending.

  1. Prepare Ingredients: Cut larger ingredients into smaller pieces to facilitate blending. Place ingredients into the mixing beaker or a suitable pot.
  2. Immerse Blender: Submerge the blender foot into the ingredients before switching on the appliance to prevent splashing.
  3. Activate and Control Speed:
    • Press and hold the unlock button (if present).
    • Press the speed control lever. The blending speed is directly proportional to how firmly you press the lever. Press gently for lower speeds and more firmly for higher speeds.
  4. Blending Technique: Move the blender foot up and down gently to ensure all ingredients are processed evenly. The unique bell design helps reduce splashes.
  5. Switch Off: Release the speed control lever to stop the appliance.
Hand blender mixing ingredients in a pot on a stovetop

Figure 4: Using the hand blender to mix ingredients in a pot.

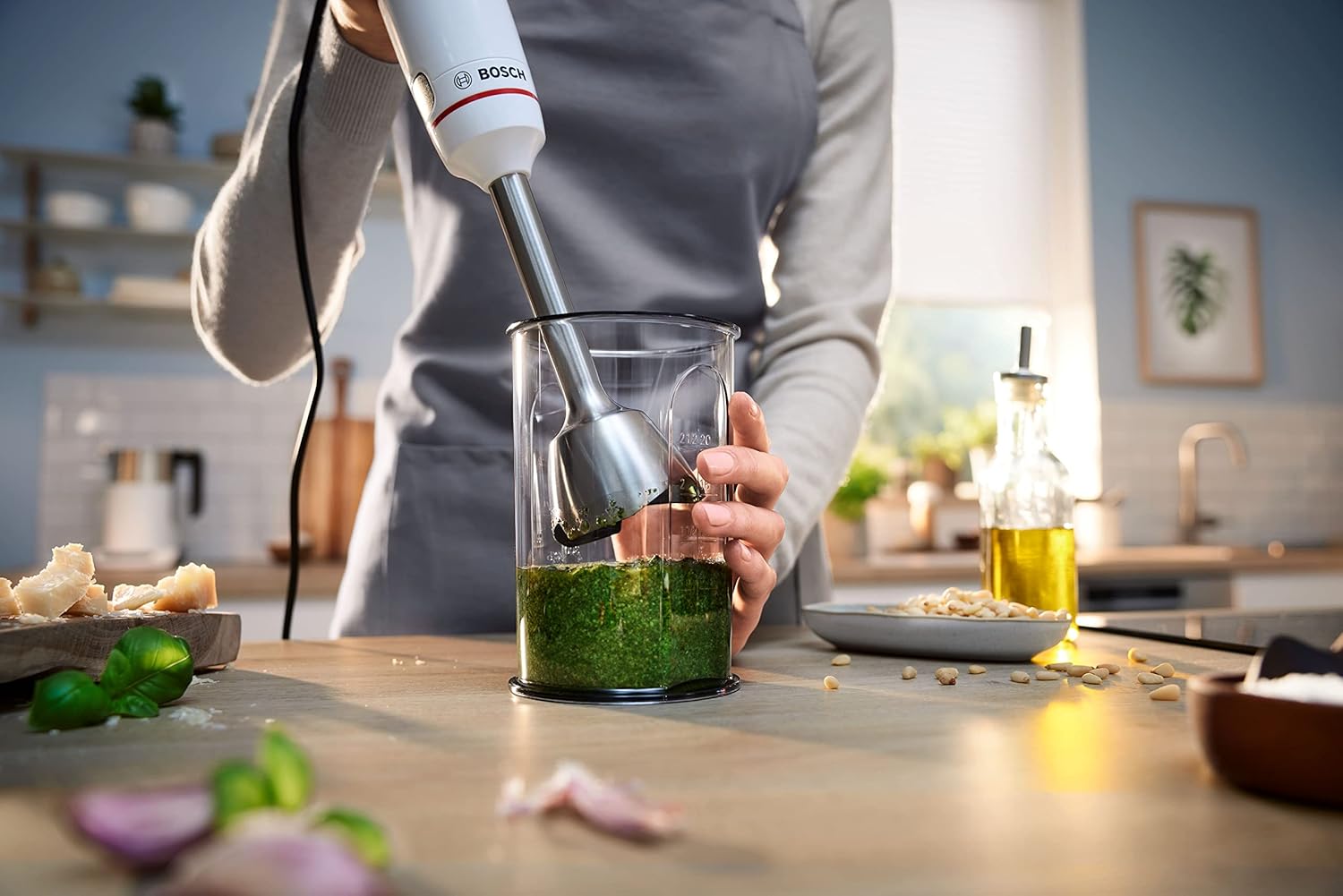

Hand blender mixing pesto in the included mixing beaker

Figure 5: Blending pesto in the graduated mixing beaker.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and hygienic operation of your hand blender.

  1. Disconnect Power: Always unplug the appliance from the power outlet before cleaning.
  2. Detach Blender Foot: Twist and remove the blender foot from the motor unit.
  3. Clean Blender Foot: Rinse the blender foot under running water immediately after use. The stainless steel blender foot is also dishwasher-safe. Ensure no food particles remain around the blades.
  4. Clean Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water or any other liquid.
  5. Clean Mixing Beaker: The mixing beaker can be washed by hand with warm soapy water or placed in the dishwasher.
  6. Storage: Store the cleaned and dried appliance in a safe place, away from children.
Blender foot being rinsed under running water and placed in a dishwasher rack

Figure 6: Cleaning the blender foot by rinsing and in a dishwasher.

6. Troubleshooting

If you encounter issues with your hand blender, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Appliance does not switch on.Not plugged in, power outage, safety lock engaged.Check power connection. Ensure the safety unlock button is pressed before operating.
Blender is not mixing effectively.Ingredients too large, insufficient liquid, blender foot not fully immersed.Cut ingredients smaller. Add more liquid if necessary. Ensure blender foot is fully submerged.
Excessive splashing during operation.Blender switched on before immersion, or lifted too high during operation.Always immerse the blender foot before switching on. Keep the bell housing submerged during blending.

7. Specifications

Technical specifications for the Bosch ErgoMaster Series 4 Hand Blender MSM4W210:

FeatureDetail
Model NumberMSM4W210
BrandBosch
Power600 Watts
Voltage220.0 V
MaterialPlastic, Stainless Steel
Dimensions (L x W x H)7.8 x 5.7 x 38.5 cm
Weight1 Kilogram
Capacity (Mixing Beaker)1 Litre
Noise Level75 dB
Special FeaturesVariable speed control, QuattroBlade system, Ceramic gear, Dishwasher-safe parts (blender foot, beaker)
Diagram showing dimensions of the Bosch ErgoMaster Series 4 Hand Blender

Figure 7: Product dimensions: 385mm height, 80mm top width, 60mm base width.

8. Warranty and Support

Bosch provides a 10-year motor warranty for the ErgoMaster Series 4 Hand Blender, ensuring long-term reliability.

Bosch ErgoMaster hand blender in use with a '10 Years Motor Warranty' badge

Figure 8: Bosch ErgoMaster Series 4 Hand Blender with 10-year motor warranty.

For detailed warranty conditions and customer support, please refer to the official Bosch website or contact your local Bosch service center.

Spare parts availability: 7 Years.
