Brastemp BLF08BB Dishwasher 8 Services User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Brastemp BLF08BB 8 Services Dishwasher. Please read all instructions carefully before using the appliance to ensure proper function and to prevent injury or damage.

The Brastemp BLF08BB dishwasher is designed for practicality, offering efficient cleaning for up to 8 place settings while optimizing water and energy consumption. Its compact design allows for flexible installation in various kitchen layouts.

2. Safety Instructions

Important Safety Information: Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Read all instructions before using the dishwasher.
• Ensure the appliance is properly grounded.
• Do not operate the dishwasher if it has a damaged power cord or plug.
• Keep children away from the dishwasher, especially when it is operating.
• Use only detergents and rinse aids specifically designed for automatic dishwashers.
• Do not touch the heating element during or immediately after use.
• Load sharp items so they are not likely to damage the door seal or interior.
• Do not wash plastic items unless they are marked "dishwasher safe".
• Disconnect the appliance from the power supply before cleaning or performing maintenance.

3. Product Overview

The Brastemp BLF08BB dishwasher combines modern design with advanced cleaning technology to handle tough dirt and grease. It features a capacity for 8 place settings, making it suitable for small to medium-sized households.

Key Features:

• 8 Place Settings Capacity: Accommodates up to 88 pieces of dinnerware per cycle, including plates, cups, and cutlery for up to 8 people.
• High Cleaning Performance: Utilizes high-pressure water jets and high temperatures to remove stubborn dirt, eliminating the need for pre-washing.
• Water Saving: Achieves significant water savings, using approximately 97 liters less water per wash compared to manual sink washing (5x more efficient).
• Acquaspray Function: A convenient feature that sprays water jets to rinse dishes and prevent odors while accumulating more items between meals.
• Compact and Flexible Design: Designed for easy installation in niches or on countertops, adapting to smaller kitchen spaces.
• Adjustable Interior: Features flexible shelves and specific baskets for flatware, allowing for versatile loading of various dish sizes and shapes.

Control Panel:

The control panel provides access to various wash programs and functions. Refer to the image below for a visual guide to the controls.

Figure 1: Front view of the Brastemp BLF08BB dishwasher, highlighting the control panel with program selection buttons and indicators.

4. Setup and Installation

The Brastemp BLF08BB dishwasher is designed for convenient installation on countertops or within kitchen niches. Proper installation is crucial for optimal performance and safety.

Unpacking:

1. Carefully remove the dishwasher from its packaging.
2. Inspect the appliance for any shipping damage. If damaged, do not install and contact customer service.
3. Remove all packing materials, including any internal protective elements.

Location Requirements:

• Power Supply: A dedicated power point (127 Volts) is required. Ensure the electrical outlet is properly grounded.
• Water Inlet: A cold water inlet connection is necessary.
• Drainage: A suitable drain connection for wastewater is required.
• Space: Ensure adequate space for the dishwasher, considering its dimensions.

Product Dimensions:

Before installation, verify the dimensions of your chosen space to ensure a proper fit. The following diagram illustrates the product dimensions.

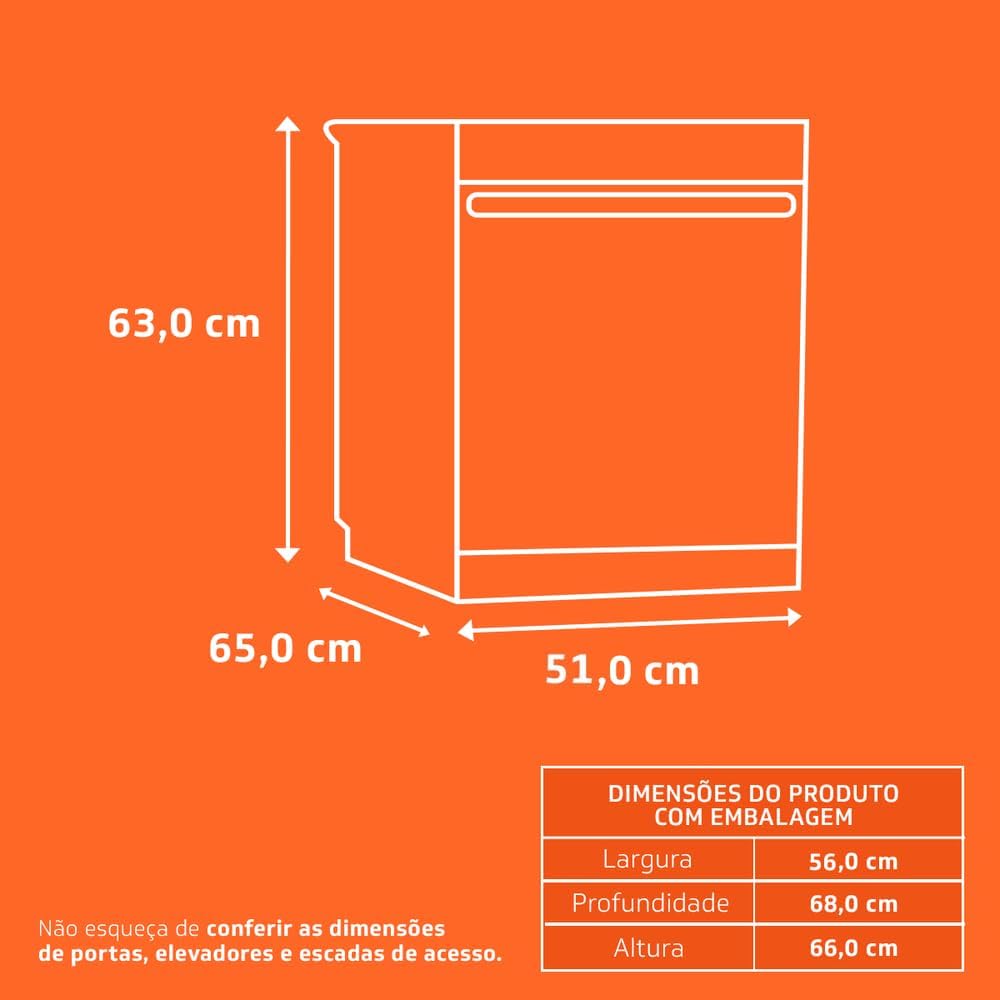

Figure 2: Diagram showing the product dimensions (width, depth, height) for installation planning. Product dimensions with packaging are: Width 56.0 cm, Depth 68.0 cm, Height 66.0 cm.

Note: Always check the dimensions of doors, elevators, and access stairs before transport and installation.

Connection Steps:

1. Connect the water inlet hose to a cold water supply tap. Ensure a tight seal to prevent leaks.
2. Connect the drain hose to a suitable drain pipe or sink drain. Ensure it is securely fastened and allows for proper drainage.
3. Plug the power cord into a grounded 127 Volt electrical outlet.
4. Ensure the dishwasher is level to prevent water pooling and ensure proper door closure.

5. Operating Instructions

Operating your Brastemp BLF08BB dishwasher is straightforward. Follow these steps for effective cleaning.

Loading the Dishwasher:

Proper loading is essential for optimal cleaning results. The dishwasher can wash up to 88 pieces of dinnerware for 8 people.

• Scrape off large food particles from dishes before loading. Pre-rinsing is generally not necessary due to the dishwasher's pre-wash cycle.
• Place larger items like pots and pans in the lower rack.
• Load glasses, cups, and smaller bowls in the upper rack.
• Utilize the specific baskets for flatware (forks, knives, spoons) to ensure thorough cleaning and prevent damage.
• Ensure that items do not block the spray arms, allowing water to reach all surfaces.
• The interior features flexible shelves to accommodate various sizes and shapes of dishes. Adjust as needed.

Figure 3: Interior view of the dishwasher during a wash cycle, demonstrating effective water distribution for cleaning dishes and highlighting water-saving capabilities.

Adding Detergent and Rinse Aid:

1. Open the detergent dispenser and add the recommended amount of dishwasher detergent. Close the dispenser lid securely.
2. Check the rinse aid dispenser and refill if necessary. Rinse aid helps with drying and prevents spots.

Selecting a Wash Cycle:

The Brastemp BLF08BB offers several wash programs to suit different needs:

• Normal: For everyday dishes with normal soil.
• Rinse: A short rinse cycle for dishes that will be washed later, preventing food from drying on.
• Acquaspray Function: If you have only a few dishes and plan to add more later, select this function. It sprays water jets to rinse away excess dirt and prevent odors without a full wash cycle.

Refer to the control panel (Figure 1) for specific program buttons.

Starting a Wash Cycle:

1. Close the dishwasher door firmly.
2. Select your desired wash program using the control panel.
3. Press the Start button to begin the cycle.

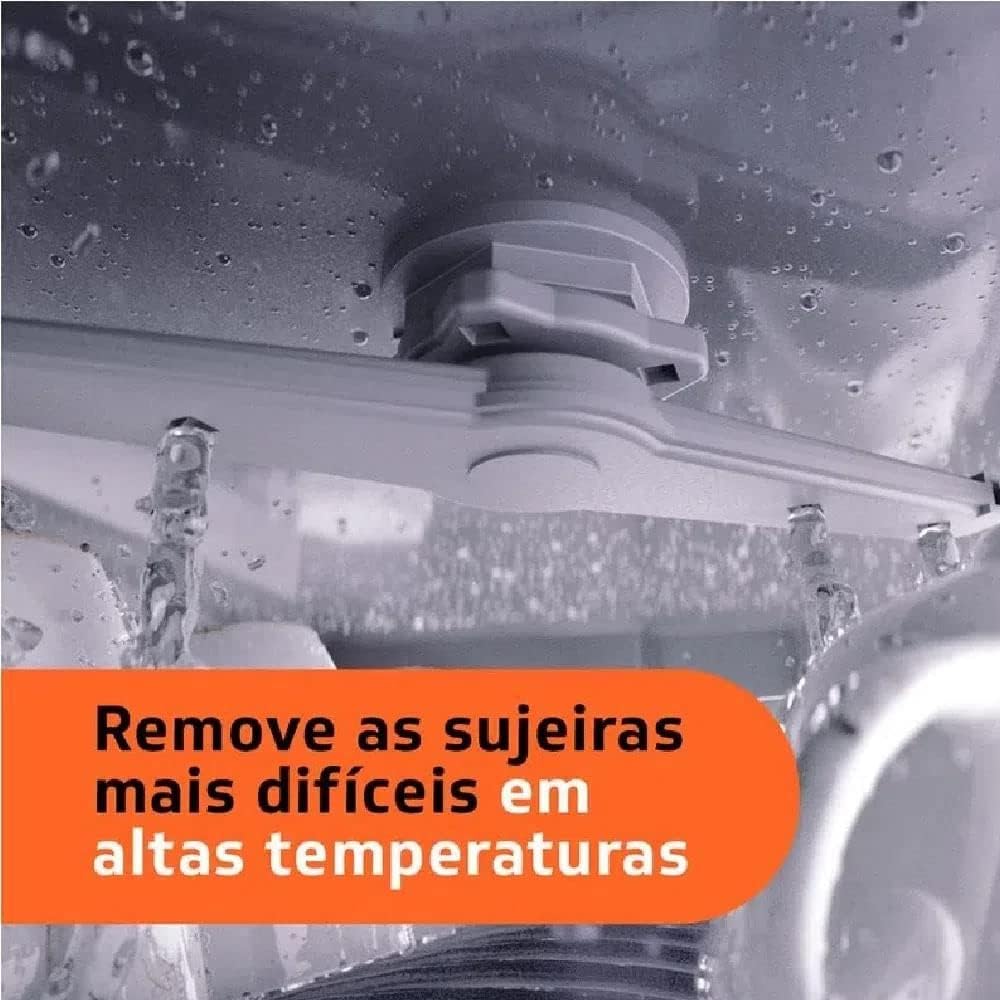

Figure 4: Close-up of the dishwasher's interior, illustrating the high-pressure water jets effectively removing tough dirt at high temperatures.

6. Maintenance and Cleaning

Regular maintenance ensures the longevity and optimal performance of your Brastemp BLF08BB dishwasher.

Exterior Cleaning:

• Wipe the exterior surfaces with a soft, damp cloth and mild detergent.
• Avoid abrasive cleaners or solvents that could damage the finish.

Interior Cleaning:

• Periodically clean the spray arms to ensure the nozzles are not clogged. Remove them if necessary and rinse under running water.
• Clean the filter system regularly to remove food particles. Refer to the appliance diagram for filter location and removal instructions.
• Run an empty cycle with a dishwasher cleaner or a cup of white vinegar to remove mineral buildup and odors.

Door Seal:

• Wipe the door seal with a damp cloth to remove any food residue or grime. This helps maintain a tight seal and prevents leaks.

7. Troubleshooting

Before contacting customer service, refer to the following common issues and their solutions.

8. Specifications

Detailed technical specifications for the Brastemp BLF08BB Dishwasher.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Brastemp website. Keep your proof of purchase for warranty claims.

If you encounter issues not covered in the troubleshooting section, please contact Brastemp customer service for assistance.
