Krollen Industrial FF300 Liquid Propane Floor Fryer

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Krollen Industrial FF300 Liquid Propane 40 lb. Stainless Steel Floor Fryer. Please read this manual thoroughly before installation or operation to ensure proper use and to prevent injury or damage.

The FF300 is a high-performance commercial deep fryer designed for professional kitchen environments. It features a 40 lb. fry pot capacity, a 90,000 BTU liquid propane burner system, and durable stainless steel construction for longevity and ease of cleaning.

Figure 1: Front view of the Krollen Industrial FF300 Liquid Propane Floor Fryer, showcasing its stainless steel construction and dual fry baskets.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always ensure the fryer is installed by a qualified professional in accordance with all local and national codes.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Never attempt to move the fryer when it contains hot oil.
• Always turn off the gas supply and allow the oil to cool completely before cleaning or performing any maintenance.
• Use caution when handling hot oil. Wear appropriate personal protective equipment (PPE), including heat-resistant gloves and eye protection.
• Ensure adequate ventilation in the area where the fryer is operated.
• Keep the area around the fryer clear of combustible materials.

Figure 2: Rear view of the FF300 fryer, showing the caution label regarding professional installation and proper ventilation.

3. Setup and Installation

3.1 Unpacking

Carefully remove the fryer from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and your supplier. Retain all packaging materials for inspection.

3.2 Location and Placement

• Place the fryer on a level, non-combustible surface.
• Ensure adequate clearance from walls and other equipment for proper ventilation and maintenance access. Refer to local codes for specific clearance requirements.
• The fryer must be installed under an appropriate commercial exhaust hood system.

3.3 Gas Connection

IMPORTANT: Gas connection must be performed by a licensed gas technician.

• The FF300 is designed for Liquid Propane (LP) gas only. Do not attempt to connect to Natural Gas.
• Connect the fryer to the gas supply line using a flexible connector suitable for commercial kitchen equipment.
• Install a manual shut-off valve in the gas supply line upstream of the fryer for emergency shut-off.
• Perform a leak test on all gas connections using a soap solution. Never use an open flame to check for leaks.

3.4 Initial Cleaning and Oil Filling

• Before first use, clean the fry pot and baskets with warm, soapy water. Rinse thoroughly and dry completely.
• Fill the fry pot with cooking oil to the indicated "MIN" and "MAX" fill lines. Do not overfill or underfill.

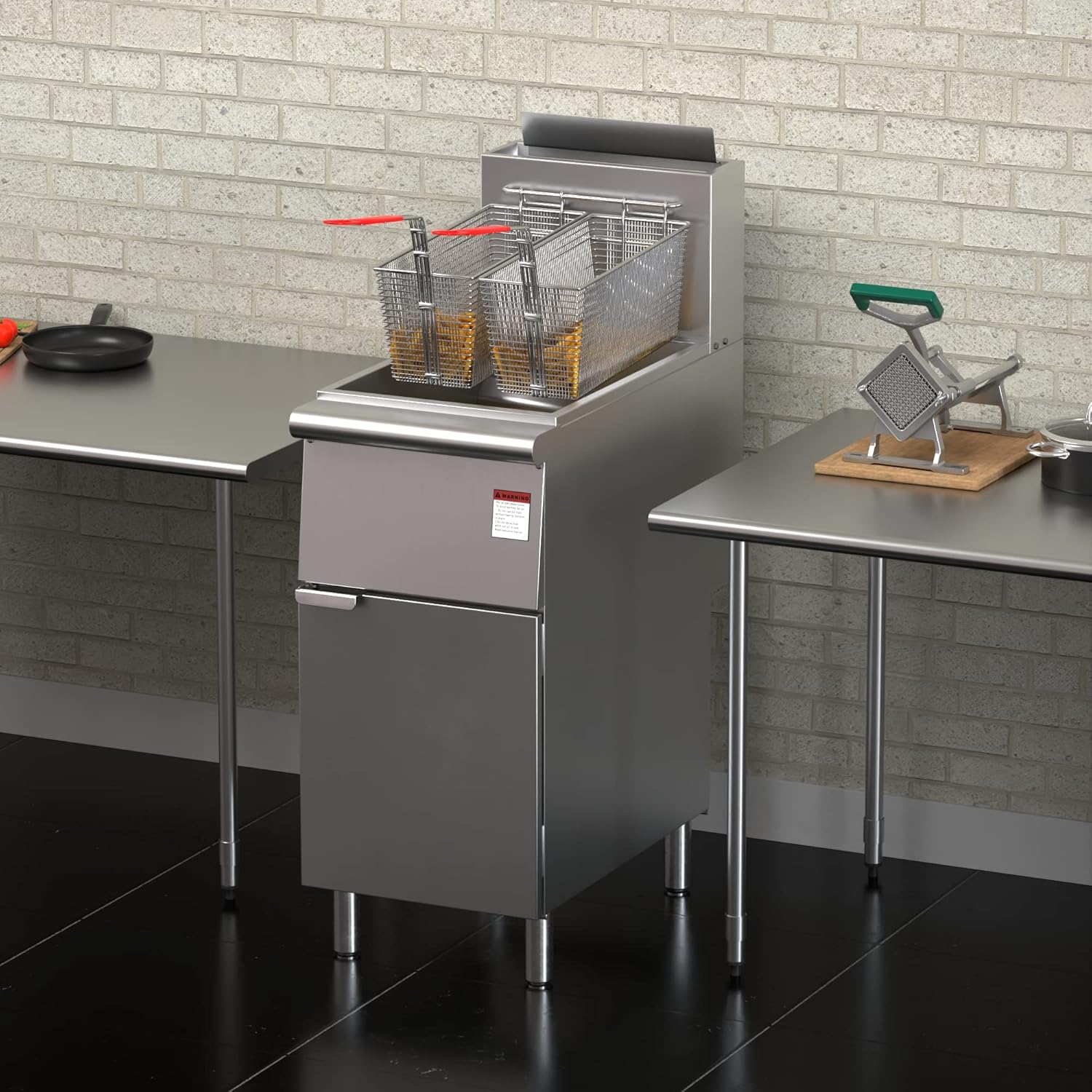

Figure 3: The FF300 fryer properly installed in a commercial kitchen, demonstrating appropriate spacing and integration with other equipment.

4. Operating Instructions

4.1 Lighting the Pilot

1. Ensure the main gas supply valve to the fryer is open.
2. Turn the thermostat knob to the "PILOT" position.
3. Press and hold the red ignition button (or pilot button) while simultaneously lighting the pilot burner with a long match or lighter.
4. Continue to hold the button for approximately 30-60 seconds after the pilot ignites to allow the thermocouple to heat up.
5. Release the button. If the pilot extinguishes, repeat the process.

4.2 Main Burner Operation

1. Once the pilot is lit, turn the thermostat knob to the desired frying temperature (between 200°F and 400°F).
2. The main burners will ignite automatically and heat the oil to the set temperature.
3. Allow sufficient time for the oil to reach the target temperature before adding food.

4.3 Frying Procedure

• Do not overload the fry baskets. Fry in small batches to maintain oil temperature and ensure even cooking.
• Carefully lower baskets into the hot oil to prevent splashing.
• Monitor cooking progress and remove food when golden brown and cooked through.
• Shake off excess oil before serving.

4.4 Shut Down

• At the end of operation, turn the thermostat knob to the "OFF" position.
• For extended periods of non-use, turn off the main gas supply valve to the fryer.

5. Maintenance

5.1 Daily Cleaning

• Oil Filtration: Filter the cooking oil daily to remove food particles and extend oil life. Ensure oil is cooled to a safe temperature before filtering.
• Crumb Removal: Use the full port drain to remove crumbs and sediment from the bottom of the fry pot.
• Exterior Cleaning: Wipe down all stainless steel surfaces with a damp cloth and mild detergent. Dry thoroughly to prevent water spots.

5.2 Deep Cleaning (Weekly/Bi-Weekly)

• Drain all oil from the fry pot.
• Fill the fry pot with water and a commercial fryer cleaning solution.
• Heat the solution to a simmer (do not boil) for 20-30 minutes.
• Drain the solution and scrub the interior of the fry pot with a non-abrasive brush.
• Rinse thoroughly with clean water multiple times until all cleaning solution residue is removed. Dry completely.

5.3 Burner and Pilot Maintenance

• Periodically inspect burner tubes and pilot for obstructions or carbon buildup. Clean as necessary.
• Ensure the pilot flame is strong and blue. If it is weak or yellow, contact a qualified technician.

6. Troubleshooting

For issues not listed above or if solutions do not resolve the problem, contact a qualified service technician or Krollen Industrial customer support.

7. Specifications

8. Warranty and Support

Krollen Industrial products are manufactured to high standards and are typically covered by a limited warranty against defects in materials and workmanship. Specific warranty terms and conditions are provided with your purchase documentation or can be obtained directly from Krollen Industrial.

For technical support, service, or warranty claims, please contact Krollen Industrial customer service. Ensure you have your model number (FF300) and purchase information readily available when contacting support.

Krollen Industrial Contact Information:

• Refer to your purchase documentation for the most current contact details.
• Visit the official Krollen Industrial website for support resources.
