Ghopy Adjustable Ratchet Wrench User Manual

1. Introduction

Thank you for choosing the Ghopy Adjustable Ratchet Wrench. This manual provides essential information for the safe and effective use, maintenance, and care of your new tool. Please read this manual thoroughly before operation and retain it for future reference.

This versatile hand tool is engineered for durability and adaptability, featuring a unique design that automatically adjusts to various fastener sizes and shapes. Its robust construction and ergonomic design ensure reliable performance for a wide range of tasks.

Figure 1.1: Ghopy Adjustable Ratchet Wrench, showcasing its design and adjustable jaw.

2. Product Overview and Parts List

The Ghopy Adjustable Ratchet Wrench is designed for ease of use and efficiency. Its primary components are integrated into a single, robust unit.

Parts List:

• 1 x Ratchet Wrench: The complete tool, ready for use.

Figure 2.1: Key components and material specifications of the wrench.

3. Key Features

The Ghopy Adjustable Ratchet Wrench incorporates several features designed to enhance performance and user experience:

• Strong & Durable Construction: Crafted from premium steel with a polished and smooth surface, ensuring high strength, durability, and resistance to wear and rust. Designed for long-term use without breaking or deforming.
• Adjustable Ratchet Mechanism: Features a unique socket design that automatically adjusts to any size or shape. It is suitable for 6-22mm (1/4-7/8 inch) screws and most irregular shapes, providing versatile application.
• Ergonomic Handle: Equipped with an ergonomically designed handle that provides a secure grip and comfortable feel, enhancing control and ease of use, thereby improving work efficiency.
• Portable & Practical Design: Its compact and lightweight design makes it easy to control, carry, and apply conveniently, saving time and effort. An ideal tool for various equipment repairs.
• Wide Application Range: This multifunctional wrench can be used for tightening or loosening eye bolts, wing nuts, square nuts, hooks, and even rusty or damaged bolt heads. It is perfect for repairing cars, motorcycles, bicycles, and other equipment.

4. Specifications

Detailed specifications for the Ghopy Adjustable Ratchet Wrench:

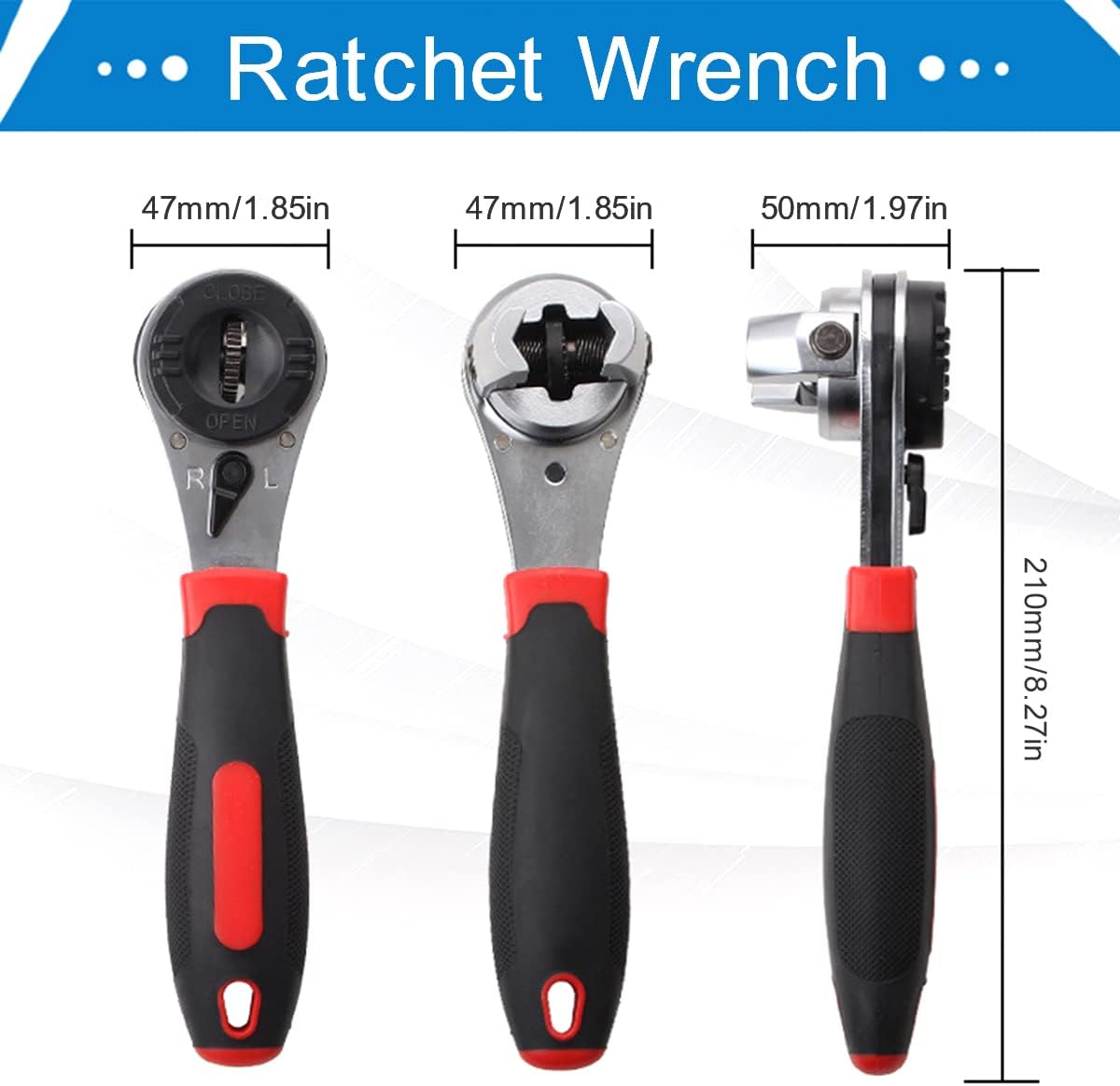

Figure 4.1: Dimensions of the Ghopy Adjustable Ratchet Wrench.

5. Safety Information

Always prioritize safety when using any hand tool. Adhere to the following guidelines to prevent injury and ensure proper tool function:

• Wear Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
• Inspect Tool Before Use: Before each use, check the wrench for any signs of damage, cracks, or wear. Do not use a damaged tool.
• Ensure Proper Fit: Always ensure the wrench jaw is fully engaged and properly seated on the fastener to prevent slipping and potential injury.
• Avoid Over-tightening: Do not apply excessive force that could damage the fastener or the wrench. Use appropriate torque for the application.
• Keep Hands Clear: Position your hands to avoid pinching or striking them against surfaces when applying force.
• Store Safely: Store the wrench in a dry, secure place, out of reach of children.
• Use for Intended Purpose: This wrench is designed for tightening and loosening fasteners. Do not use it as a hammer, pry bar, or for any other unintended purpose.

6. Setup and Operation

The Ghopy Adjustable Ratchet Wrench is designed for straightforward operation. Follow these steps for effective use:

Setup:

1. Identify Fastener Size: Determine the size and type of the fastener (nut, bolt head, etc.) you intend to work with.
2. Adjust Wrench Jaw: The wrench features an automatic adjustment mechanism. Simply press the top part of the wrench head (marked 'OPEN' and 'CLOSE') to open the jaw, then release to allow it to automatically grip the fastener. Ensure the jaw fully encompasses the fastener for a secure fit.
3. Select Ratchet Direction: Use the small lever on the wrench head to select the desired direction for ratcheting (tightening or loosening). 'R' typically indicates clockwise (tighten) and 'L' indicates counter-clockwise (loosen).

Operation:

1. Position Wrench: Place the adjusted wrench jaw firmly onto the fastener. Ensure it is seated squarely and securely.
2. Apply Force: Apply steady, even pressure to the handle in the desired direction (tightening or loosening). The ratchet mechanism will allow you to reset your grip without removing the wrench from the fastener.
3. Monitor Progress: Continue applying force until the fastener is adequately tightened or loosened. Avoid over-tightening, which can strip threads or damage components.

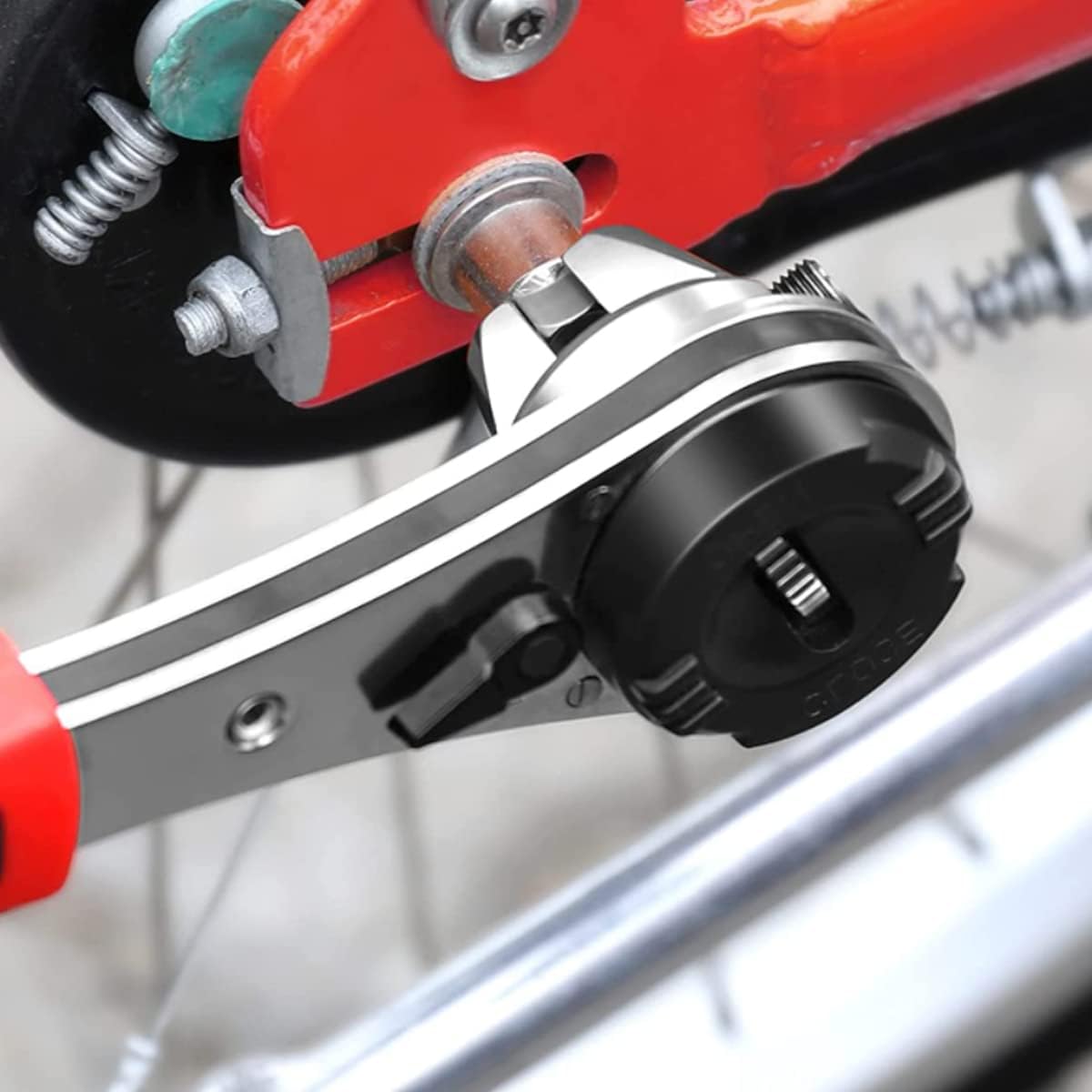

Figure 6.1: Wrench in use on a bicycle component.

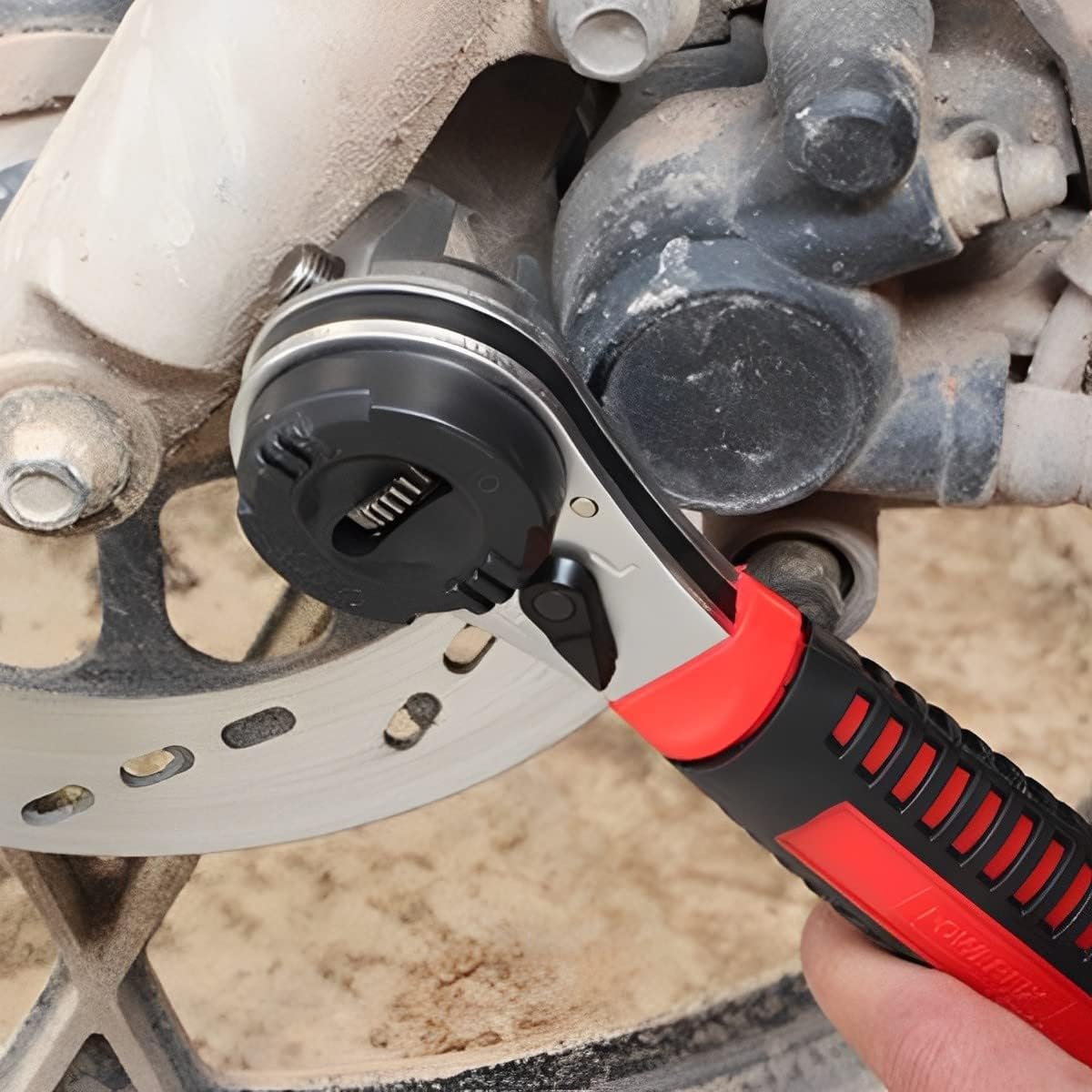

Figure 6.2: Wrench in use on a vehicle's brake assembly.

Figure 6.3: Demonstrating the adjustment mechanism and application.

7. Maintenance and Care

Proper maintenance will extend the life and performance of your Ghopy Adjustable Ratchet Wrench:

• Cleaning: After each use, wipe the wrench clean with a dry cloth to remove dirt, grease, and debris. For stubborn grime, use a mild degreaser and then wipe dry.
• Lubrication: Periodically apply a light coat of machine oil to the moving parts of the jaw mechanism and the ratchet to ensure smooth operation and prevent rust.
• Storage: Store the wrench in a dry environment to prevent corrosion. Avoid storing it in damp or humid conditions.
• Inspection: Regularly inspect the wrench for any signs of wear, damage, or deformation. If any significant damage is found, discontinue use and consider replacement.

8. Troubleshooting

The Ghopy Adjustable Ratchet Wrench is a simple mechanical tool, and issues are typically straightforward to address.

• Wrench Not Gripping Fastener:
  • Ensure the jaw is fully open before placing it over the fastener and that it closes securely around it.
  • Check for debris or obstruction within the jaw mechanism. Clean if necessary.
  • Verify the fastener size is within the wrench's specified range (6-22mm or 1/4-7/8 inch).
• Ratchet Mechanism Sticking or Not Engaging:
  • Clean the ratchet mechanism to remove any accumulated dirt or grime.
  • Apply a small amount of light machine oil to the ratchet teeth and pivot points.
  • Ensure the direction lever is fully engaged in either the 'R' or 'L' position.
• Tool Appears Damaged:
  • If the wrench shows signs of bending, cracking, or significant wear, discontinue use immediately. Using a damaged tool can be dangerous.

For issues not covered here, or if the problem persists, please contact Ghopy customer support.

9. Warranty and Support

Ghopy is committed to providing high-quality tools. While specific warranty details are not provided in this manual, standard consumer rights and return policies apply.

• Return Policy: This product is typically eligible for a 30-day refund/replacement return policy from the date of purchase. Please refer to your purchase platform's specific return guidelines for detailed information.
• Manufacturer Support: For any questions, concerns, or support needs regarding your Ghopy Adjustable Ratchet Wrench, please contact the manufacturer directly.
• Online Resources: You may find additional information or support by visiting the official Ghopy store page on Amazon: Ghopy Store.
