Macook CFXB20-4H 1-Liter Electric Rice Cooker Instruction Manual

1. Introduction

Thank you for purchasing the Macook CFXB20-4H 1-Liter Electric Rice Cooker. This appliance is designed for efficient cooking of rice and other grains, and includes an external steamer for versatile meal preparation. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Figure 1: Macook CFXB20-4H Electric Rice Cooker with Steamer and Glass Lid.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions carefully before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the main body of the cooker, power cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance has an automatic power-off function and dry boil protection with two levels of thermal safety (thermal cut-off and fuse).
• The perforated design of the cooking plate separates the rice from the water, helping to regulate the temperature and prevent the rice from burning.
• The perforated and breathable design at the bottom of the electric cooker removes heat quickly and prolongs the life of the rice cooker.

3. Parts List

Your Macook Rice Cooker includes the following components:

• 1 x Electric Rice Cooker Main Unit
• 1 x External Steamer
• 2 x Aluminium Inner Pans
• 1 x Toughened Glass Lid
• 1 x Cooking Plate (perforated)
• 1 x Measuring Cup
• 1 x Rice Scoop
• 1 x Detachable Power Cord (1.5 M)

Figure 2: Included components of the Macook Rice Cooker.

4. Setup and First Use

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Wash the inner pans, steamer, glass lid, measuring cup, and rice scoop with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the rice cooker on a stable, flat, heat-resistant surface away from water and direct heat sources.
4. Power Cord: Ensure the power cord is securely connected to the rice cooker's power inlet and then to a suitable electrical outlet (230V).

Figure 3: Control panel with 'COOK' and 'WARM' indicators.

5. Operating Instructions

5.1 Cooking Rice

1. Measure Rice: Use the provided measuring cup to measure the desired amount of rice. One cup of raw rice typically yields two cups of cooked rice. The cooker has a 1-liter capacity, suitable for 1-3 persons (5 cups of raw rice).
2. Wash Rice: Rinse the rice thoroughly under cold water until the water runs clear.
3. Add Water: Place the washed rice into one of the aluminium inner pans. Add the appropriate amount of water. The inner pan has water level indicators engraved for easy measurement. A common ratio is 1 cup of rice to 1.5-2 cups of water, depending on the rice type.
4. Place Pan: Insert the inner pan with rice and water into the main unit. Ensure the cooking plate is at the bottom of the main unit before placing the inner pan.
5. Close Lid: Place the glass lid securely on the rice cooker.
6. Start Cooking: Plug in the power cord. Press the "COOK" switch down. The "COOK" indicator light will illuminate.
7. Automatic Keep Warm: Once the rice is cooked, the cooker will automatically switch to the "WARM" function, and the "WARM" indicator light will illuminate.
8. Serve: Allow the rice to rest for 5-10 minutes on "WARM" for best results. Use the provided rice scoop to serve.

Figure 4: Inner pot with capacity markings.

Figure 5: Serving cooked rice from the cooker.

5.2 Steaming Food

1. Prepare Water: Add water to the inner pan, ensuring it does not exceed the maximum fill line and is below the steamer basket.
2. Prepare Food: Place food to be steamed (e.g., vegetables) into the external steamer basket.
3. Assemble: Place the inner pan with water into the main unit. Then, place the external steamer basket on top of the inner pan. Cover with the glass lid.
4. Start Steaming: Plug in the power cord and press the "COOK" switch down. The "COOK" indicator light will illuminate.
5. Monitor: Steam until food is cooked to desired tenderness. The cooker will switch to "WARM" when the water boils away, but it's best to monitor steaming times manually.
6. Caution: Be careful when removing the lid and steamer basket as hot steam will escape.

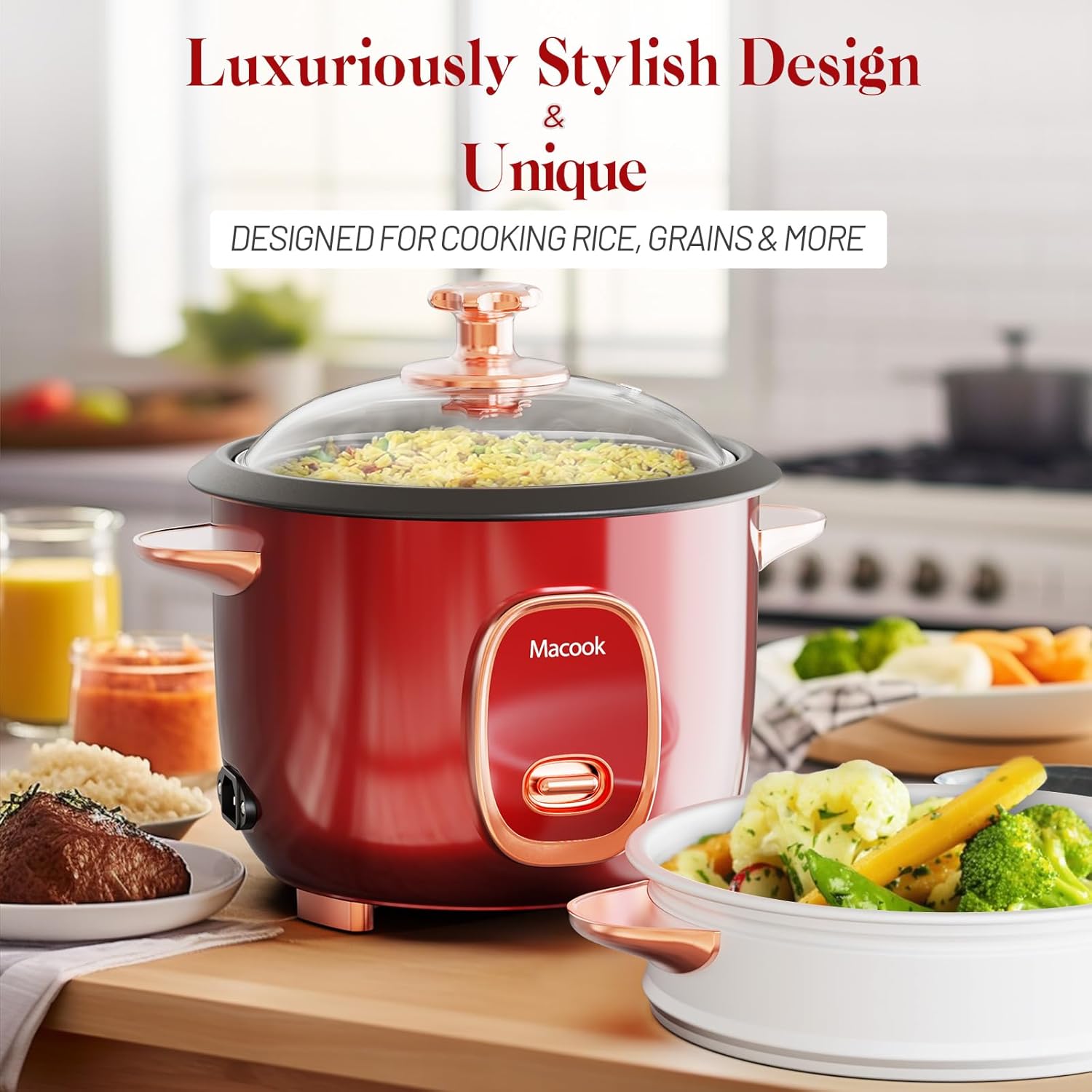

Figure 6: Rice cooker with external steamer in use.

6. Cleaning and Maintenance

Proper cleaning and maintenance will ensure the longevity and optimal performance of your rice cooker.

• Before Cleaning: Always unplug the rice cooker from the power outlet and allow it to cool completely before cleaning.
• Inner Pans and Steamer: The aluminium inner pans, external steamer, glass lid, measuring cup, and rice scoop are removable and can be washed by hand with warm, soapy water. They are also dishwasher safe.
• Main Unit: Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the main unit in water or any other liquid. Its electrical insulation may get damaged.
• Heating Plate: If food particles stick to the heating plate, gently wipe them off with a damp cloth. Do not use metal objects to scrape the heating plate, as this can damage it.
• Storage: Ensure all parts are completely dry before storing the rice cooker. Store in a cool, dry place.

Figure 7: Inner pans are easy to clean and dishwasher safe.

7. Troubleshooting

If you encounter any issues with your rice cooker, please refer to the following common problems and solutions:

For issues not listed here, please contact Macook customer support.

8. Specifications

9. Warranty and Support

Warranty: This Macook Rice Cooker comes with a 1-year manufacturer's warranty from the date of purchase. Please retain your purchase receipt for warranty claims.

The warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, unauthorized repair, or commercial use.

Customer Support: For any product inquiries, technical assistance, or warranty claims, please contact Macook customer support. Refer to the product packaging or the official Macook website for contact details.

Important Note: Do not attempt to repair the appliance yourself. Unauthorized repairs will void the warranty and may pose safety risks.
