Ortizan X8 Pro & X10 Blue Portable Bluetooth Speaker User Manual

1. Introduction

Thank you for purchasing the Ortizan X8 Pro and X10 Blue Portable Bluetooth Speakers. These speakers are designed to provide high-quality audio with features such as IPX7 waterproofing, dynamic light shows, and long battery life. This manual provides detailed instructions on how to set up, operate, and maintain your speakers to ensure optimal performance and longevity.

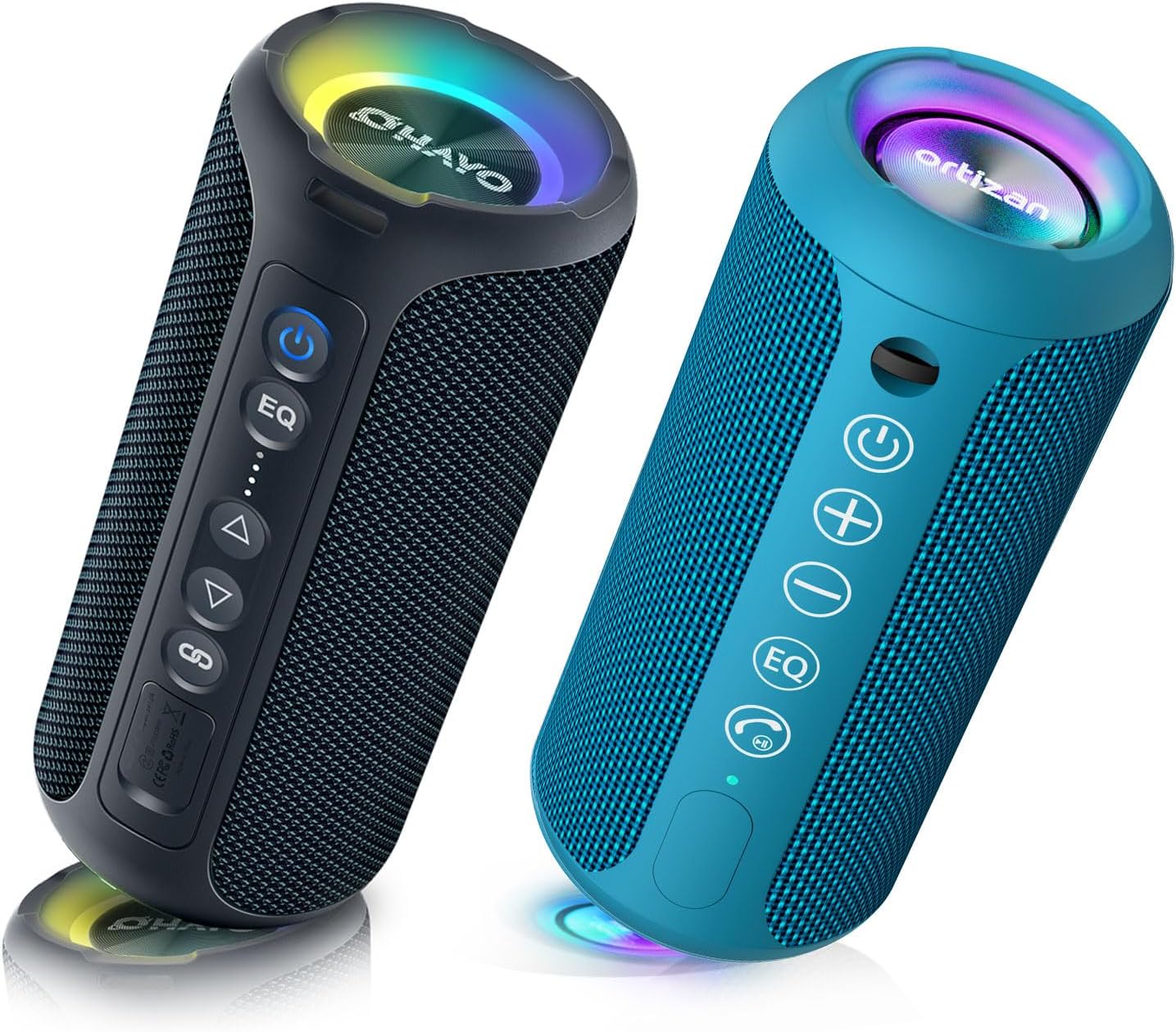

Image: Ortizan X8 Pro Navy and X10 Blue Portable Bluetooth Speakers. The image displays two cylindrical portable Bluetooth speakers, one in navy and one in blue, standing upright. Both speakers feature a mesh grille, control buttons on the side, and a light ring at the top, indicating their dynamic light show capability.

2. Safety Information

Please read all safety warnings and instructions carefully before using this product. Keep these instructions for future reference.

• Do not expose the speaker to extreme temperatures or direct sunlight for prolonged periods.
• Avoid dropping or subjecting the speaker to strong impacts.
• Do not disassemble, repair, or modify the speaker yourself. This will void the warranty.
• Keep the speaker away from medical devices, as its magnetic components may interfere with their operation.
• Ensure the charging port cover is securely closed when the speaker is exposed to water to maintain its IPX7 waterproof rating.
• Use only the provided charging cable or a certified equivalent.
• Do not immerse the speaker in water deeper than 3.3 feet (1 meter) or for longer than 30 minutes.

3. Package Contents

Verify that all items are present in your package:

• Ortizan X8 Pro Portable Bluetooth Speaker (Navy)
• Ortizan X10 Blue Portable Bluetooth Speaker (Blue)
• 1 x USB-C Charging Cable
• 1 x User Manual (This document)

4. Product Overview

Familiarize yourself with the speaker's components and controls.

Image: Ortizan Portable Bluetooth Speaker with labeled buttons. The image shows a single blue Ortizan speaker from an angled top-down view, highlighting the control panel on its side. The buttons include Power, Volume Up, Volume Down, EQ, and a Call/Voice Assistant button. The top of the speaker shows the light ring and the Ortizan logo.

Control Buttons:

• Power Button (⏻): Press and hold to power on/off. Short press to check battery level.
• Volume Up (+): Short press to increase volume. Long press for next track.
• Volume Down (-): Short press to decrease volume. Long press for previous track.
• EQ Button (EQ): Short press to cycle through equalizer modes.
• Play/Pause Button (▶︎/‖): Short press to play/pause music.
• Call/Voice Assistant Button (📞): Short press to answer/end calls. Long press to activate voice assistant.
• Light Mode Button (💡): Short press to cycle through light modes. Long press to turn lights off.

Ports:

• USB-C Charging Port: For charging the speaker. Ensure the waterproof cover is sealed after charging.
• AUX-in Port: For wired audio connection (cable not included).

5. Setup

5.1 Charging the Speaker

Before first use, fully charge the speaker. A full charge takes approximately 3-4 hours.

1. Open the waterproof cover on the side of the speaker.
2. Connect the provided USB-C charging cable to the speaker's charging port.
3. Connect the other end of the cable to a USB power adapter (not included) or a computer's USB port.
4. The power indicator light will show charging status. Once fully charged, the light will change or turn off depending on the model.
5. After charging, securely close the waterproof cover to maintain IPX7 rating.

Image: Ortizan Portable Bluetooth Speaker with 30 hours playtime. The image shows a blue Ortizan speaker placed on a wooden surface outdoors, with a backpack in the background, emphasizing its portability and long battery life. The speaker's light ring is illuminated.

5.2 Powering On/Off

• To Power On: Press and hold the Power button (⏻) for 2-3 seconds until you hear an audible prompt and the indicator light turns on.
• To Power Off: Press and hold the Power button (⏻) for 2-3 seconds until you hear an audible prompt and the indicator light turns off.

5.3 Bluetooth Pairing

Pair your speaker with a Bluetooth-enabled device.

1. Ensure the speaker is powered on and in Bluetooth pairing mode (indicator light will flash).
2. On your device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
3. Select "Ortizan X8 Pro" or "Ortizan X10" from the list of devices.
4. Once paired, you will hear a confirmation sound, and the indicator light will stop flashing and remain solid.

Image: Ortizan Portable Bluetooth Speaker connected to a smartphone. The image shows a blue Ortizan speaker next to a smartphone displaying a music player interface, illustrating the Bluetooth connectivity. The speaker's light ring is active, and a colorful sound wave graphic is overlaid on the image.

5.4 Wireless Stereo Pairing (TWS)

For an immersive stereo sound experience, you can pair two identical Ortizan speakers together.

Important Note: The Ortizan X8 Pro and X10 Blue speakers are sold as a bundled product but do not support TWS pairing with each other. Only two Ortizan X8 Pro speakers can be paired together, or two Ortizan X10 Blue speakers can be paired together for stereo sound.

1. Ensure both identical speakers are powered on and disconnected from any Bluetooth device.
2. On one speaker (this will be the master speaker), double-press the Power button (⏻). It will enter TWS pairing mode.
3. The master speaker will automatically search for the other identical speaker.
4. Once successfully paired, you will hear a confirmation sound, and the indicator lights on both speakers will change to indicate TWS connection.
5. Now, connect your device to the master speaker via Bluetooth as described in section 5.3. Audio will play through both speakers in stereo.

Image: Two Ortizan Portable Bluetooth Speakers set up for wireless stereo pairing. The image shows two blue Ortizan speakers positioned in front of a large screen displaying a concert, illustrating their use in a wireless stereo setup for an enhanced audio experience.

6. Operation

6.1 Music Playback Controls

• Play/Pause: Short press the Play/Pause button (▶︎/‖).
• Volume Up: Short press the Volume Up button (+).
• Volume Down: Short press the Volume Down button (-).
• Next Track: Long press the Volume Up button (+).
• Previous Track: Long press the Volume Down button (-).

6.2 Call Management

The speaker has a built-in microphone for hands-free calls.

• Answer Call: Short press the Call/Voice Assistant button (📞) when a call comes in.
• End Call: Short press the Call/Voice Assistant button (📞) during a call.
• Reject Call: Long press the Call/Voice Assistant button (📞) when a call comes in.

6.3 Light Modes

The speaker features dynamic LED lights with 7 colors and 6 lighting modes.

• Change Light Mode: Short press the Light Mode button (💡) to cycle through available modes.
• Turn Lights Off: Long press the Light Mode button (💡).

Image: Ortizan Portable Bluetooth Speaker with mixing colored lights. The image shows a blue Ortizan speaker from an elevated perspective, highlighting its top light ring which displays a vibrant mix of colors, indicating its dynamic light show feature.

6.4 Voice Assistant

Activate your device's voice assistant (Siri, Google Assistant, etc.) through the speaker.

• Activate Voice Assistant: Long press the Call/Voice Assistant button (📞).

6.5 Waterproof Usage (IPX7)

The speaker is IPX7 waterproof, meaning it can be submerged in water up to 1 meter (3.3 feet) for up to 30 minutes.

• Ensure the USB-C charging port and AUX-in port covers are securely sealed before exposing the speaker to water.
• Do not expose the speaker to saltwater or other chemicals, as this may damage the seals.
• After exposure to water, wipe the speaker dry with a soft cloth before charging or opening the port covers.

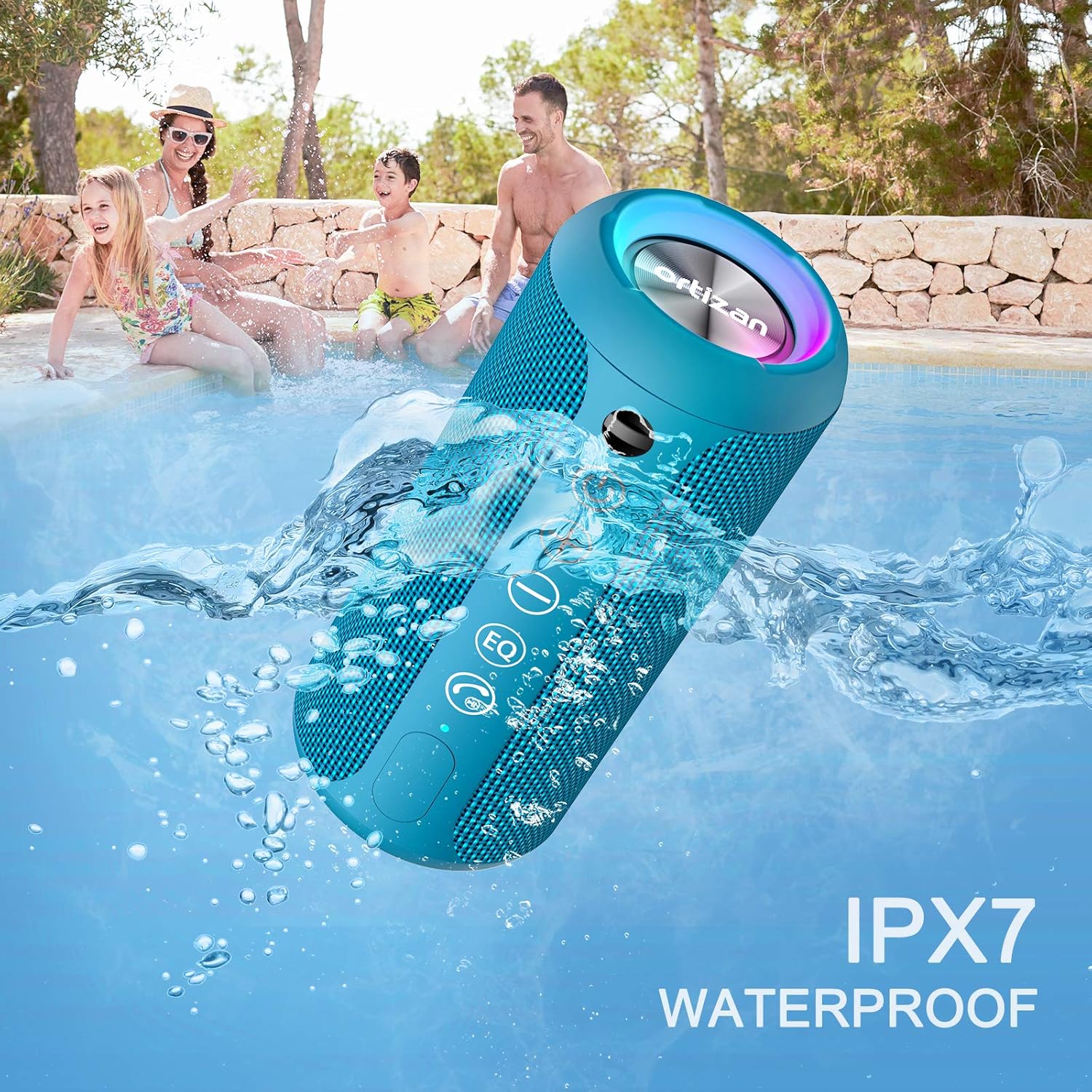

Image: Ortizan Portable Bluetooth Speaker submerged in water. The image shows a blue Ortizan speaker partially submerged in clear water, with splashes around it, demonstrating its IPX7 waterproof capability. People are visible in the background near a pool, suggesting outdoor use.

7. Maintenance

7.1 Cleaning

• Wipe the speaker with a soft, damp cloth.
• Do not use abrasive cleaners, alcohol, or chemical solvents.
• Ensure the charging port is dry before charging.

7.2 Storage

• Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
• If storing for an extended period, charge the battery to about 50% every few months to preserve battery life.

8. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

9. Specifications

Technical specifications for the Ortizan X8 Pro and X10 Blue Portable Bluetooth Speakers:

10. Warranty & Support

Ortizan products come with a limited warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official Ortizan website.

If you experience any issues or have questions not covered in this manual, please contact Ortizan customer support. Contact information can typically be found on the product packaging, the official Ortizan website, or through your purchase platform.

Ortizan Customer Support:

• Website: Visit the Ortizan Store on Amazon (for general inquiries and product information)
• Please refer to your product packaging or the Ortizan official website for direct contact methods such as email or phone number.
