1. Introduction
Thank you for choosing the Kohler Artifacts 18-inch Towel Bar. This product is designed to provide both functionality and a timeless aesthetic to your bathroom. The Artifacts collection allows for coordination with other Kohler accessories, creating a cohesive and elegant space. This manual provides essential information for safe installation, proper use, and maintenance of your new towel bar.
Image 1.1: The Kohler Artifacts 18-inch Towel Bar in Matte Black finish.
2. Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in product damage, property damage, or personal injury.
- Always wear appropriate safety gear, including eye protection, during installation.
- Ensure the mounting surface is structurally sound and capable of supporting the weight of the towel bar and any towels.
- Locate and avoid electrical wires and plumbing pipes behind the wall before drilling.
- Use only the provided mounting hardware or suitable alternatives for your specific wall type.
- Do not overtighten screws, as this may damage the product or mounting surface.
- This product is intended for hanging towels and light garments only. Do not use it as a grab bar or for climbing.
3. Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, please contact Kohler customer service.
- Towel Bar Assembly (1)
- Mounting Brackets (2)
- Mounting Hardware (screws, anchors)
- Installation Template (1)
4. Installation Instructions
Tools Required: Pencil, Level, Drill, Drill Bits (appropriate for anchors), Phillips Head Screwdriver, Measuring Tape.
- Prepare the Mounting Location: Choose a suitable location on your wall. Use a level and pencil to mark the desired height and ensure the bar will be straight.
- Position the Template: Place the provided installation template on the wall at your marked location. Use a level to ensure it is perfectly horizontal. Tape the template securely to the wall.
- Mark Drilling Points: Through the template, mark the drilling points for the mounting brackets with your pencil.
- Drill Pilot Holes: Carefully drill pilot holes at the marked points. Ensure the drill bit size matches the recommended size for the wall anchors.
- Insert Wall Anchors: If using wall anchors, insert them into the pilot holes until they are flush with the wall surface.
- Attach Mounting Brackets: Align the mounting brackets with the drilled holes/anchors. Secure them to the wall using the provided screws and a Phillips head screwdriver. Do not overtighten.
- Attach Towel Bar: Position the towel bar assembly onto the mounted brackets. Secure the towel bar to the brackets using the small set screws, typically located on the underside of the bracket bases. Tighten these screws with the provided hex key (if applicable) until the bar is firm.
- Verify Stability: Gently pull on the installed towel bar to ensure it is securely fastened to the wall.

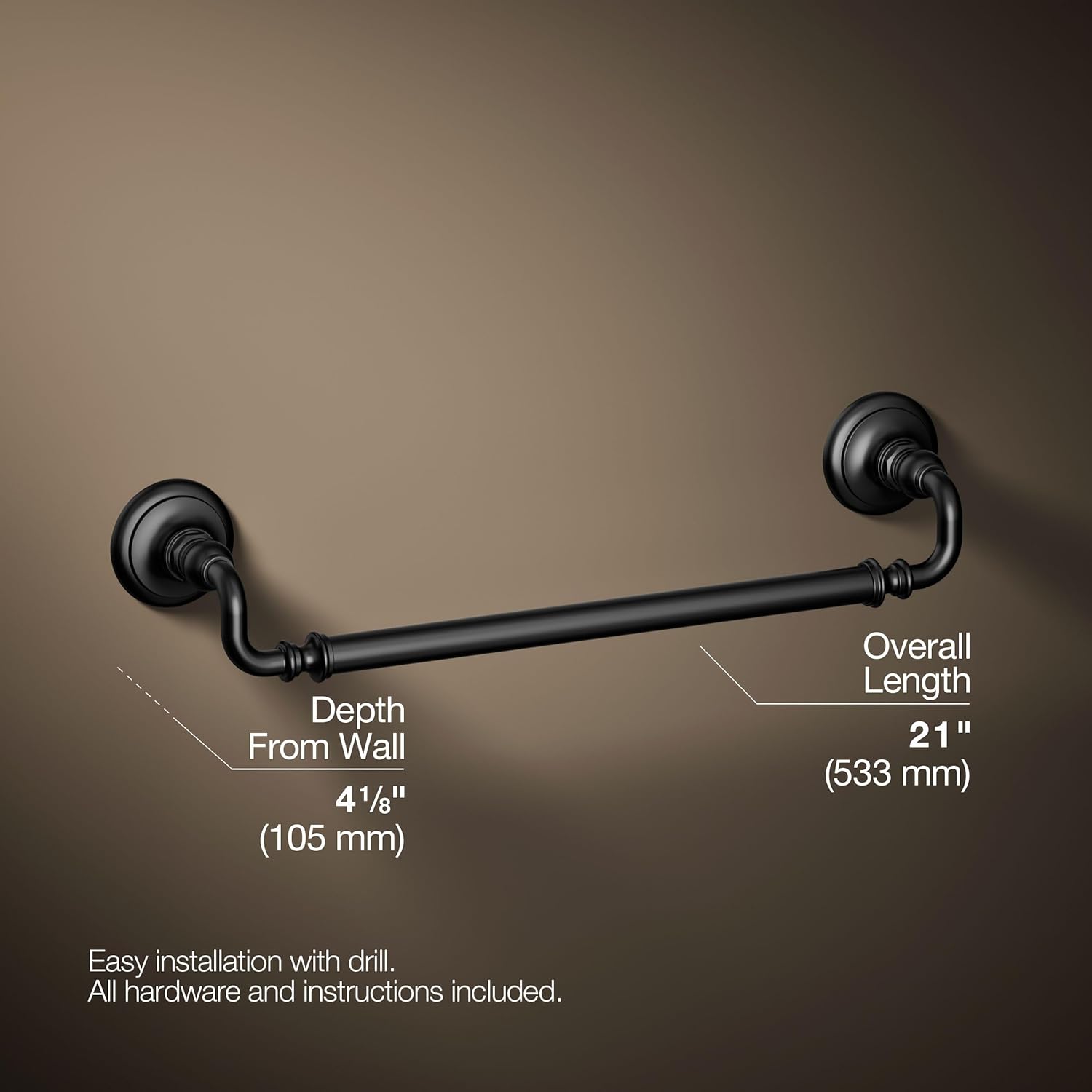

Image 4.1: Product dimensions and a note on easy installation with a drill. Overall length is 21 inches (533 mm), and depth from wall is 4-1/8 inches (105 mm).
Image 4.2: The 18-inch towel bar installed in a bathroom setting, holding a white towel.
5. Care and Maintenance
To maintain the finish and appearance of your Kohler Artifacts towel bar, follow these guidelines:
- Clean regularly with a soft, damp cloth.
- For stubborn spots, use a mild soap and water solution. Rinse thoroughly and dry with a soft cloth.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Do not use cleaners containing ammonia, bleach, or acid.

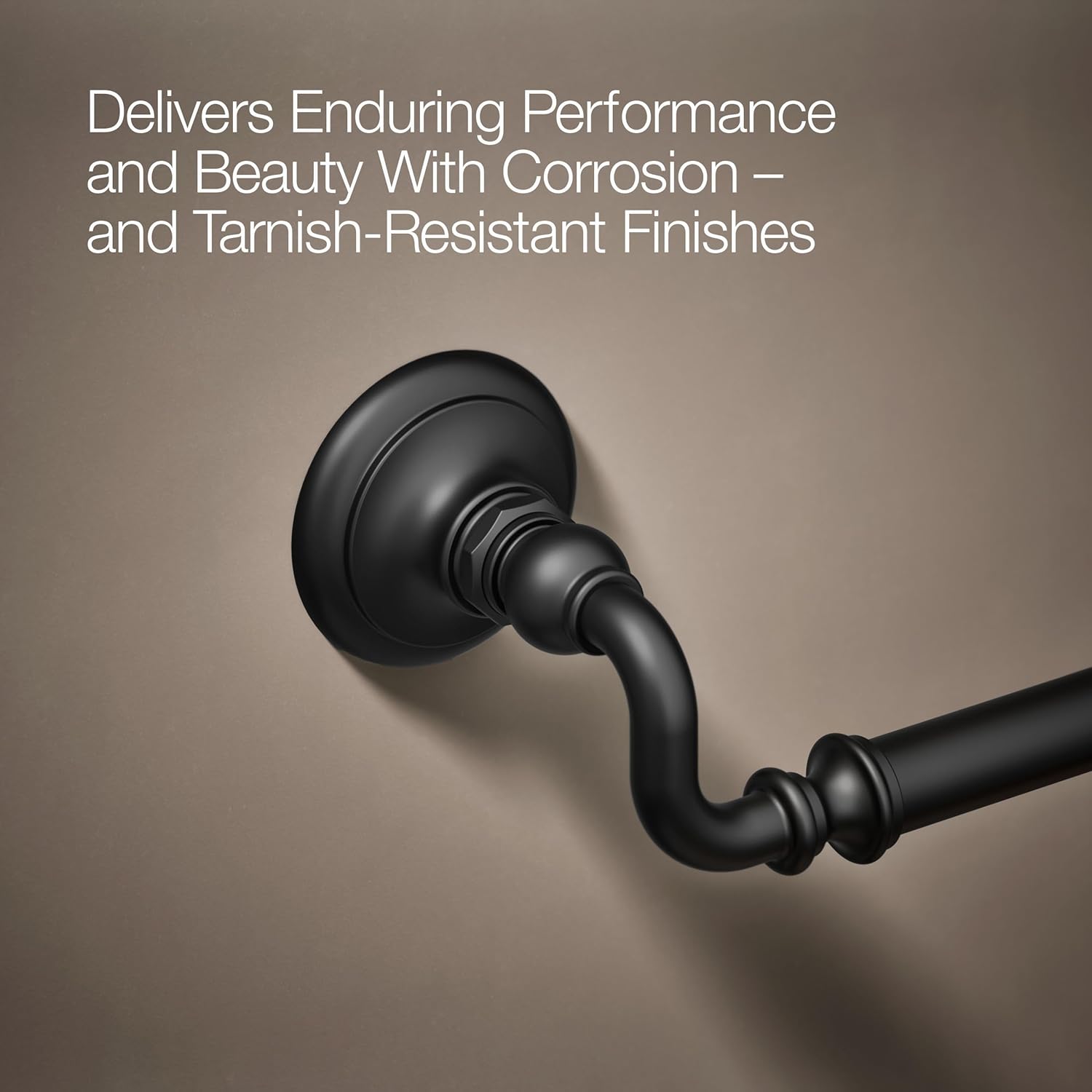

Image 5.1: The Matte Black finish is designed for enduring performance and resistance to corrosion and tarnish.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Towel bar feels loose after installation. | Mounting screws or set screws are not fully tightened. | Ensure all mounting screws and set screws are securely tightened. If using wall anchors, verify they are properly seated. |
| Finish appears dull or stained. | Residue from cleaning products or hard water. | Clean with a soft, damp cloth and mild soap. Rinse thoroughly and dry immediately. Avoid harsh chemicals. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 72567-BL |
| Brand | Kohler |
| Collection | Artifacts |
| Color | Matte Black |
| Material | Metal |
| Finish Type | Powder Coated |
| Product Dimensions (L x W x H) | 20.98" x 3.5" x 3" (533 mm x 89 mm x 76 mm) |
| Installation Type | Wall-Mounted |
| Item Weight | 2.59 pounds (1.17 kg) |
| UPC | 195711025654 |
Image 7.1: The Kohler Artifacts collection offers a complete range of coordinated bathroom accessories.
8. Warranty and Support
Kohler products are manufactured to the highest quality standards and are backed by a limited warranty. For specific warranty details, product support, or to order replacement parts, please visit the official Kohler website or contact Kohler customer service directly. Keep your purchase receipt for warranty claims.
Contact Information:
- Website: www.kohler.com
- Customer Service: Refer to the Kohler website for regional contact numbers.
