Introduction
Welcome to the user manual for your new EDESA Combi Integrable refrigerator-freezer, model EFC-1711-I/C. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.
Important Safety Information
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Read all instructions before using the appliance.
- Ensure the appliance is properly grounded.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Do not damage the refrigerant circuit.
- This appliance is intended for household use only.
- Keep ventilation openings clear of obstruction.
- Unplug the appliance before cleaning or performing maintenance.
Product Overview
The EDESA Combi Integrable EFC-1711-I/C is a combined refrigerator and freezer unit designed for integrated installation, offering efficient food storage solutions.
Key Features
- Integrated design for seamless kitchen aesthetics.
- Separate refrigerator and freezer compartments.
- Optimal storage capacity for fresh and frozen goods.
- Efficient cooling system.

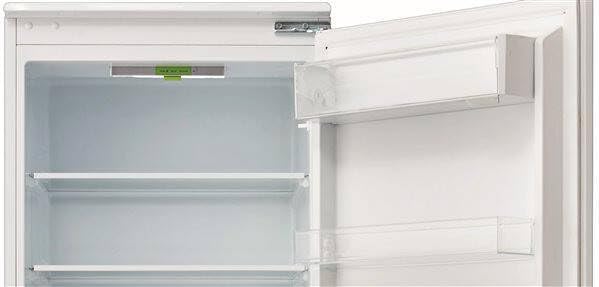

Components
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the appliance for any shipping damage. Report any damage immediately to your retailer.
Location
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources. Ensure sufficient space for door opening and proper ventilation around the appliance.
Electrical Connection
Connect the appliance to a dedicated, grounded electrical outlet. Ensure the voltage and frequency match the ratings on the appliance's rating plate.
Integrated Installation
For integrated installation, follow the specific instructions provided in the separate installation guide for cabinetry integration. Ensure the appliance is level and securely fastened within the cabinet.
Operating Instructions
Initial Start-up
After installation, wait at least 4 hours before plugging in the appliance to allow the refrigerant to settle. Set the temperature controls to the recommended settings.
Temperature Control
The refrigerator and freezer compartments have independent temperature controls. Adjust the settings according to your needs and the ambient temperature.
Food Storage
- Store fresh food in the refrigerator compartment.
- Store frozen food in the freezer compartment.
- Do not place hot food directly into the appliance.
- Ensure food is properly wrapped to prevent drying out and odor transfer.
Care and Maintenance
Cleaning
Unplug the appliance before cleaning. Clean the interior and exterior regularly with a mild detergent and warm water. Do not use abrasive cleaners or solvents.
Defrosting
The freezer compartment may require manual defrosting if ice buildup becomes excessive. Refer to the specific defrosting instructions in this manual.
Door Seals
Regularly check and clean the door seals to ensure a tight seal, which helps maintain efficiency.
Power Outage
In case of a power outage, keep the doors closed to maintain the internal temperature for as long as possible.
Troubleshooting
Before contacting customer service, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | Not plugged in; circuit breaker tripped | Check power cord; reset circuit breaker |
| Temperature is not cold enough | Door not closed properly; temperature setting too high; excessive food load | Ensure door is sealed; adjust temperature; reduce food load |
| Unusual noises | Appliance not level; objects touching the back | Level the appliance; move objects away from the back |
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | EDESA |
| Model | EFC-1711-I/C |
| Manufacturer Reference | 924271350 |
| Product Weight | 50 Kilograms |
| Type | Combi Integrable Refrigerator-Freezer |
| Dimensions | 1.77m height (approximate) |
Warranty and Customer Support
Your EDESA Combi Integrable EFC-1711-I/C appliance comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, spare parts, or warranty claims, please contact EDESA customer support. Contact details can typically be found on the official EDESA website or your purchase documentation.
