Deaf Bonce Machete MF-15R D2 15-inch Subwoofer Instruction Manual

Introduction

Thank you for choosing the Deaf Bonce Machete MF-15R D2 15-inch Subwoofer. This subwoofer is engineered to deliver powerful and clear bass performance for your car audio system. This manual provides essential information for the proper installation, operation, and maintenance of your new subwoofer. Please read it thoroughly before installation and keep it for future reference.

Figure 1: Top view of the Deaf Bonce Machete MF-15R D2 15-inch Subwoofer.

Safety Information

• Always disconnect the vehicle's battery before performing any electrical work.
• Ensure proper wiring and connections to prevent damage to the subwoofer, amplifier, or vehicle's electrical system.
• Avoid exposing the subwoofer to moisture or extreme temperatures.
• High sound pressure levels can cause permanent hearing damage. Use caution when adjusting volume levels.
• Consult a professional installer if you are unsure about any aspect of the installation process.

Unpacking and Inspection

Carefully remove the subwoofer from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. If you find any damage, contact your dealer immediately. Retain the packaging materials for future transport or in case of return.

Figure 2: Retail packaging for the Deaf Bonce Machete MF-15R D2 Subwoofer.

Setup and Installation

Mounting the Subwoofer

The MF-15R D2 subwoofer requires a suitable enclosure for optimal performance. Ensure the enclosure is robust and properly sealed. Use appropriate mounting hardware (not included) to secure the subwoofer firmly.

• Mounting Depth: 7.1 inches (182.0 mm)
• Cut-out Dimension: 13.9 inches (355.0 mm)

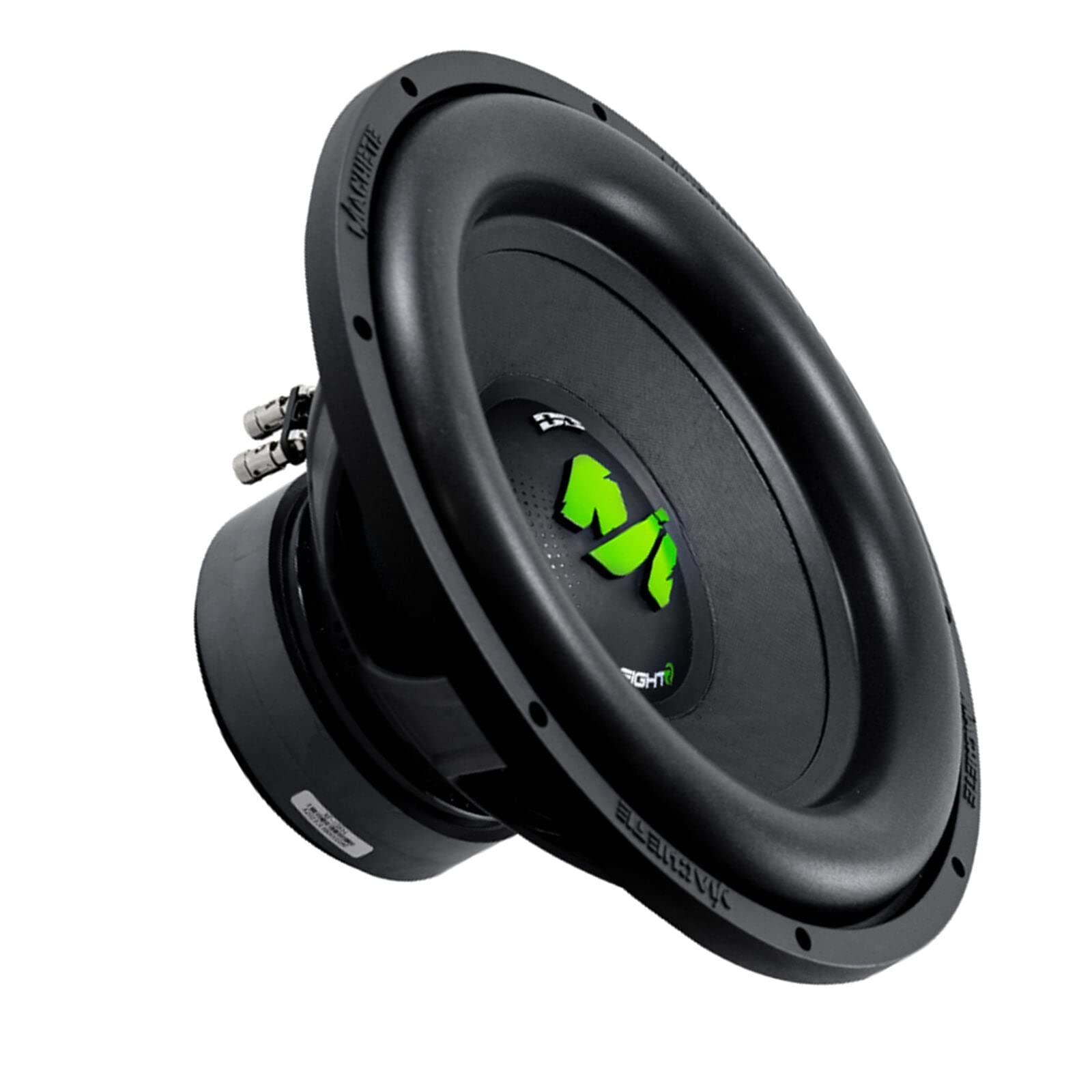

Figure 3: Angled view of the subwoofer, showing the cone and surround.

Wiring Configurations (Dual 2 Ohm Voice Coils)

The MF-15R D2 features dual 2 Ohm voice coils, offering flexibility in wiring to achieve different impedance loads for your amplifier. Always ensure your amplifier is stable at the chosen impedance.

Series Wiring (4 Ohm Total Impedance)

Connect the positive terminal of Voice Coil 1 to the negative terminal of Voice Coil 2. Then, connect the amplifier's positive output to the positive terminal of Voice Coil 2, and the amplifier's negative output to the negative terminal of Voice Coil 1. This configuration results in a 4 Ohm load.

Parallel Wiring (1 Ohm Total Impedance)

Connect the positive terminals of both Voice Coil 1 and Voice Coil 2 together. Connect the negative terminals of both Voice Coil 1 and Voice Coil 2 together. Then, connect the amplifier's positive output to the combined positive terminals, and the amplifier's negative output to the combined negative terminals. This configuration results in a 1 Ohm load.

Figure 4: Rear view of the subwoofer, highlighting the dual voice coil terminals.

Connecting to an Amplifier

Use high-quality speaker wire to connect the subwoofer to your amplifier. Ensure all connections are secure and free from shorts. The subwoofer is designed for wired connectivity, typically using RCA inputs from your head unit to the amplifier, and then speaker wire from the amplifier to the subwoofer.

Operating Instructions

Break-in Period

It is highly recommended to allow a break-in period for your new subwoofer. During the first 8-10 hours of use, operate the subwoofer at moderate volume levels. This allows the suspension components (spider and surround) to loosen up and reach their optimal performance characteristics. Operating at high volumes immediately after installation may reduce the subwoofer's lifespan and performance.

Power Handling

The MF-15R D2 subwoofer has a rated RMS power handling of 1200 Watts and a maximum power handling of 2400 Watts. Ensure your amplifier's output matches these specifications to prevent damage. Underpowering or overpowering the subwoofer can lead to distortion and potential failure.

Optimal Usage

For the best audio experience, properly tune your amplifier's crossover and gain settings. A low-pass filter is essential to ensure the subwoofer only reproduces low frequencies. Adjust the gain to match the output of your head unit without introducing distortion.

Maintenance

The Deaf Bonce Machete MF-15R D2 subwoofer requires minimal maintenance. Keep the cone and surround free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or solvents. Regularly check wiring connections for tightness and corrosion.

Troubleshooting

If you experience issues with your subwoofer, consider the following common troubleshooting steps:

• No Sound: Check all power and signal connections. Ensure the amplifier is powered on and receiving a signal. Verify the subwoofer's wiring impedance matches the amplifier's stable load.
• Distorted Sound: Reduce the amplifier's gain. Check for proper crossover settings. Ensure the subwoofer is not overdriven. Inspect the subwoofer cone and surround for physical damage.
• Weak Bass: Verify the amplifier's gain and bass boost settings. Check the phase setting on your amplifier or head unit. Ensure the enclosure is properly sealed and sized for the subwoofer.
• Intermittent Sound: Check for loose wiring connections at both the subwoofer and amplifier terminals.

If problems persist after performing these checks, consult your dealer or a qualified car audio technician.

Specifications

Warranty Information

The Deaf Bonce Machete MF-15R D2 Subwoofer comes with a Limited Manufacturer's Warranty. Please refer to the warranty card included with your product or contact Deaf Bonce directly for specific terms and conditions. This warranty typically covers defects in materials and workmanship under normal use.

Support and Contact

For technical support, warranty claims, or further assistance, please contact your authorized Deaf Bonce dealer or visit the official Deaf Bonce website. You can also visit the Deaf Bonce Store on Amazon for more product information.
