1. Product Overview
The Ledvion LED Batten T8 Tube is an energy-efficient lighting solution designed for various applications, including garages, workshops, and commercial spaces. This model features an ultra-thin design, integrated LED chips, and provides a cool white light (6500K) with a high luminous output.

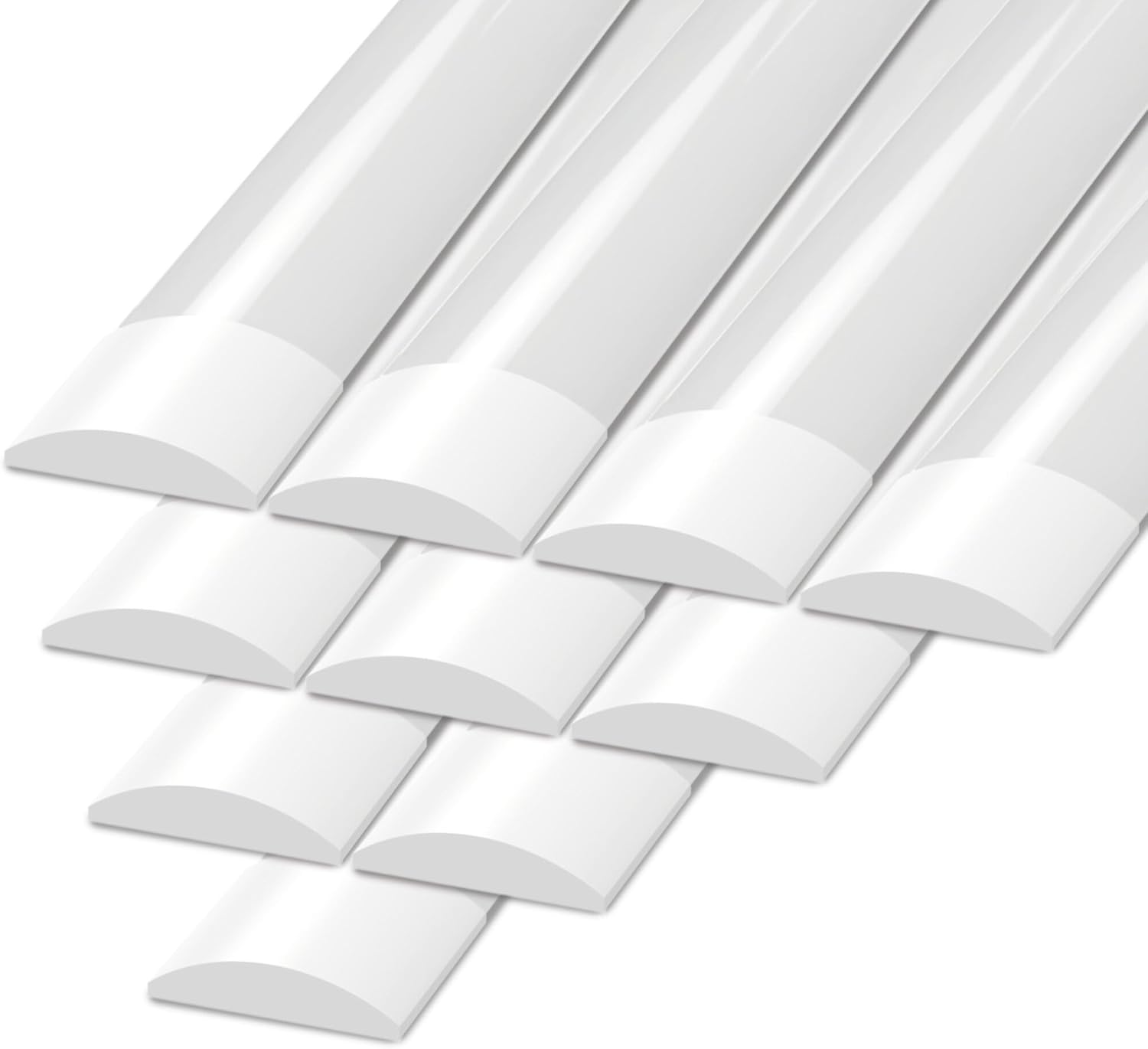

Image 1.1: Ledvion 10x LED Batten T8 Tubes. These tubes are designed for efficient and bright illumination.
Key features include:
- Integrated LED System: The light source is built directly into the batten for a sleek design and easy installation.
- High Luminous Efficacy: Delivers 4800 lumens with 30W power consumption, equating to 160 lumens per Watt.
- Cool White Light (6500K): Provides bright, clear illumination suitable for task-oriented environments.
- Ultra-Thin Design: With a height of only 2.4 cm, these battens offer a discreet lighting solution.
- Easy Connector Included: Facilitates quick and secure connection to the mains.
Image 1.2: Example installation of Ledvion LED battens in a garage setting, demonstrating their bright and uniform light distribution.
Image 1.3: Ledvion LED battens providing illumination in a retail environment, highlighting their versatility.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Electrical Safety: Always disconnect power at the circuit breaker before installing or servicing the fixture.
- Qualified Personnel: Installation should be performed by a qualified electrician if you are not familiar with electrical wiring.
- Voltage: Ensure the supply voltage matches the fixture's requirements (230 Volts).
- Mounting: Mount the fixture securely to a stable surface.
- Environment: Do not install in locations with excessive moisture or extreme temperatures unless the product is specifically rated for such conditions.
- No User-Serviceable Parts: Do not attempt to open or modify the fixture. There are no user-serviceable parts inside.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation. The package for the 10x LED Batten T8 Tube (Model LV40005) should contain the following items:
Image 3.1: What's in the Box. This image displays all components included with your Ledvion LED Batten purchase.
- 10x LED Batten Tubes
- 20x Easy Connectors
- 20x Mounting Clips
- 20x Screws
- 20x Wall Plugs
- 1x Instruction Manual
4. Setup and Installation
Follow these steps for safe and proper installation of your Ledvion LED Batten tubes.
- Prepare the Installation Area: Choose a suitable location for mounting the LED battens. Ensure the surface is clean, dry, and capable of supporting the fixture's weight.
- Mark Mounting Points: Use the batten as a template to mark the positions for the mounting clips on the ceiling or wall. Ensure the marks are level and spaced appropriately for secure attachment.
- Install Mounting Clips: Drill pilot holes at the marked points. Insert the wall plugs (if necessary) and secure the mounting clips using the provided screws.
- Mount the LED Batten: Carefully snap the LED batten into the installed mounting clips. Ensure it is firmly seated.
- Electrical Connection:
- WARNING: Disconnect power at the main circuit breaker before making any electrical connections.
- Connect the mains wiring to the easy connector. The easy connector allows for tool-less setup.
- Insert the wires (Live, Neutral, Earth) into the corresponding slots on the easy connector. Ensure a secure connection.
Image 4.1: Easy Connector. This connector simplifies the electrical wiring process for the LED batten.
- Secure Wiring: Ensure all wiring is neatly routed and secured, avoiding any strain on the connections.
- Restore Power: Once all battens are securely mounted and wired, restore power at the circuit breaker.
Image 4.2: Ultra-Thin LED Batten. The slim profile of the batten ensures a discreet installation.
Image 4.3: Product Dimensions. This diagram illustrates the physical measurements of the 120cm LED batten.
5. Operating Instructions
Operating the Ledvion LED Batten is straightforward:
- Power On/Off: Use a standard wall switch connected to the fixture's power supply to turn the light on or off.
- Dimmability: This product is designed to be dimmable. To utilize the dimming feature, it must be connected to a compatible dimmer switch (not included). Consult a qualified electrician for proper dimmer installation.
6. Maintenance
The Ledvion LED Batten is designed for long-term, low-maintenance operation.
- Cleaning: Disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the batten. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- No User-Serviceable Parts: The integrated LED system means there are no bulbs to replace. Do not attempt to disassemble the fixture.
7. Troubleshooting
If you encounter issues with your LED Batten, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Loose electrical connection Faulty switch | Check circuit breaker and wall switch. Ensure all electrical connections are secure (with power disconnected). Test the switch with another device or replace if faulty. |
| Light flickers | Unstable power supply Incompatible dimmer switch Loose connection | Ensure stable power. If using a dimmer, ensure it is LED-compatible. Check electrical connections (with power disconnected). |
| Reduced brightness | Dust accumulation Aging LED chips | Clean the batten surface. LEDs have a long lifespan, but gradual degradation can occur over many years. |
If the problem persists after attempting these solutions, contact Ledvion customer support.
