1. Important Safety Information
Please read all instructions carefully before using your STAIGIS wine cooler. Retain this manual for future reference.
- Electrical Safety: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords.
- Ventilation: Allow adequate space around the unit for proper air circulation. Do not block ventilation openings.
- Placement: Place the unit on a stable, level surface away from direct sunlight, heat sources, and extreme temperatures.
- Initial Setup: After delivery, allow the wine cooler to stand upright for at least 24 hours before plugging it in to allow refrigerants to settle.
- Cleaning: Always unplug the unit before cleaning. Use a soft cloth and mild detergent.
- Children: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
2. Product Overview
The STAIGIS ST-15045-R is a compact, freestanding wine cooler designed to store up to 15 standard wine bottles. It features digital temperature control, a UV-resistant glass door, and an interior LED light.

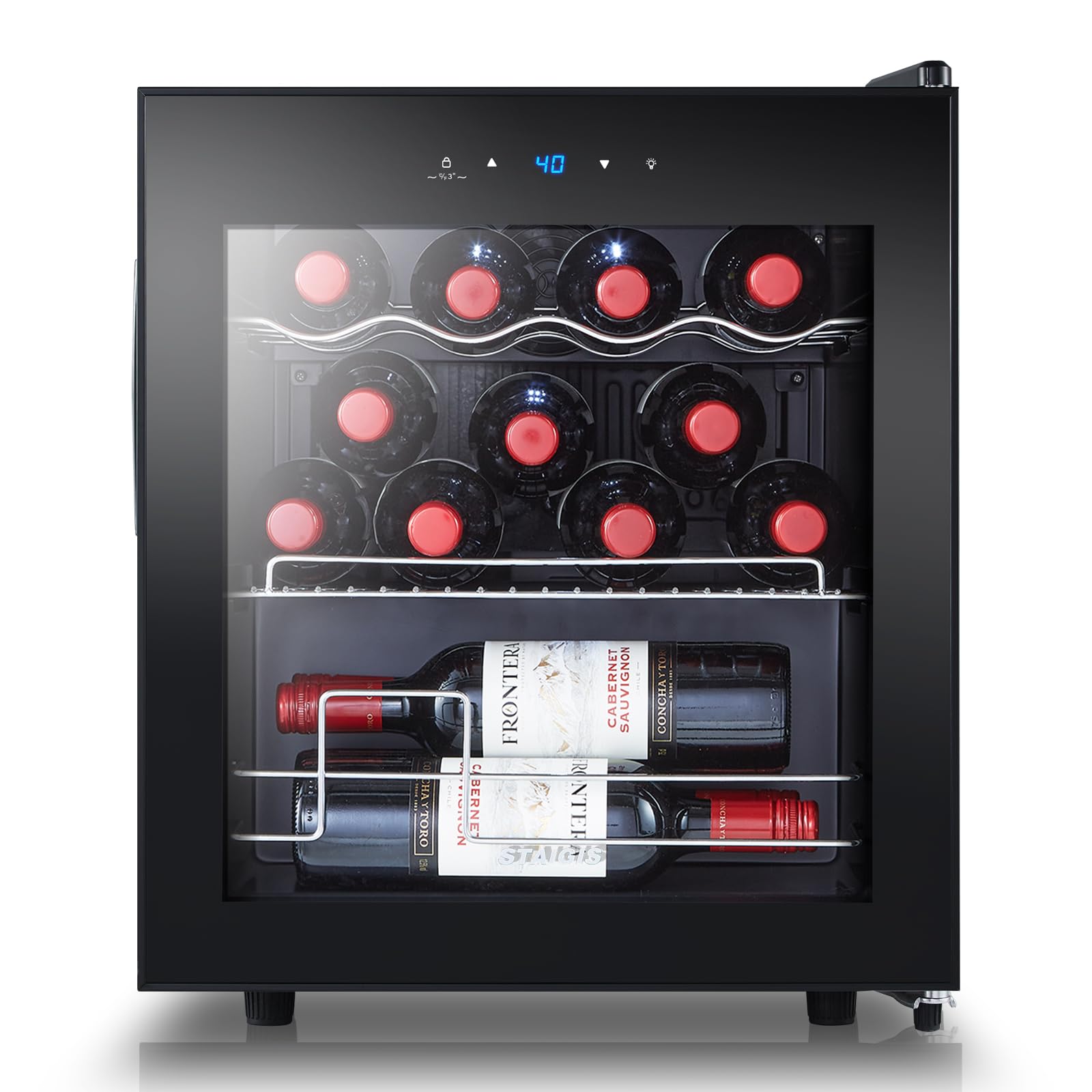

Figure 1: Front view of the STAIGIS 15-Bottle Wine Cooler.
Key Features:
- Capacity: Stores up to 15 standard wine bottles.
- Temperature Range: Adjustable from 40°F to 66°F (5°C to 18°C).
- Digital Control: Easy-to-use LCD touch panel for temperature adjustment and light control.
- UV-Resistant Glass Door: Protects wine from harmful UV rays.
- Interior LED Light: Illuminates the interior for visibility.
- Removable Shelves: Wavy chrome shelves for flexible storage.
- Quiet Operation: Designed for low noise levels, typically below 40 dB.
- Efficient Compressor: Provides fast and stable cooling.
Figure 2: Interior capacity and features of the wine cooler.
Figure 3: UV-resistant glass door protection.
Figure 4: Powerful and efficient compressor.
3. Setup
Unpacking:
- Carefully remove all packaging materials, including foam and tape.
- Inspect the unit for any damage. If damage is found, do not operate the appliance and contact customer support.
- Remove any internal packing materials and accessories.
Placement:
- This wine cooler is designed for freestanding or countertop installation.
- Ensure the unit is placed on a flat, stable surface capable of supporting its weight when fully loaded.
- Allow at least 5 inches (12.7 cm) of space at the back and sides for proper ventilation.
- Avoid placing the unit near heat sources (e.g., oven, radiator, direct sunlight) or in areas with high humidity.
- The dimensions of the unit are approximately 17.32"W x 17.64"D x 20.79"H.
Figure 5: Product dimensions for placement planning.
Initial Power-On:
After placing the unit in its desired location, wait at least 24 hours before plugging it into a power outlet. This allows the compressor oils and refrigerants to settle, preventing potential damage.
- After 24 hours, plug the power cord into a grounded electrical outlet.
- The unit will power on and display the current internal temperature.
4. Operating Instructions
The STAIGIS wine cooler features a user-friendly digital touch control panel located on the top of the door.
Figure 6: Digital Touch Control Panel.
Control Panel Functions:
- Lock Button (🔒): Press and hold for approximately 3 seconds to lock or unlock the control panel. This prevents accidental changes to settings.
- Temperature Up (▲): Press to increase the desired temperature.
- Temperature Down (▼): Press to decrease the desired temperature.
- Light Button (💡): Press to turn the interior LED light on or off.
- Temperature Unit Conversion: To switch between Fahrenheit (°F) and Celsius (°C), press and hold the Lock button (🔒) for approximately 3 seconds while the panel is unlocked.
Setting the Temperature:
- Ensure the control panel is unlocked. If locked, press and hold the lock button for 3 seconds.
- Use the Temperature Up (▲) or Temperature Down (▼) buttons to set your desired temperature. The display will flash the set temperature and then return to showing the actual internal temperature.
- For optimal wine storage, a temperature between 40°F and 66°F (5°C and 18°C) is recommended. Many prefer 55°F (13°C) for general wine storage.
Video 1: Official STAIGIS product video demonstrating the wine cooler's features, including touch screen control and interior lighting.
5. Maintenance
Cleaning the Interior:
- Unplug the wine cooler from the power outlet.
- Remove all bottles and shelves.
- Wash the shelves with a mild detergent solution and dry thoroughly.
- Clean the interior surfaces with a soft cloth dampened with a solution of warm water and mild detergent. Do not use abrasive cleaners or solvents.
- Rinse with clean water and wipe dry.
- Ensure the interior is completely dry before plugging the unit back in.
Cleaning the Exterior:
- Wipe the exterior with a soft cloth and mild detergent.
- For the glass door, use a glass cleaner.
- Do not use abrasive pads or cleaners that may scratch the surface.
Defrosting:
The STAIGIS wine cooler features an automatic defrost system. Frost will melt and drain into a drip tray at the back of the unit, where it evaporates. No manual defrosting is typically required.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | No power; power cord not fully plugged in; circuit breaker tripped. | Check power supply, ensure cord is secure, reset circuit breaker. |
| Temperature is not cold enough | Door not closed properly; excessive door opening; unit placed near heat source; ventilation blocked; temperature setting too high. | Ensure door is sealed; reduce door openings; relocate unit; clear ventilation; adjust temperature setting lower. |
| Unit is making unusual noise | Unit not level; loose parts; normal compressor operation. | Adjust leveling feet; check for loose items inside; compressor noise is normal. If noise is excessive or persistent, contact support. |
| Interior light not working | Light button off; LED bulb failure. | Press the light button on the control panel. If still not working, contact customer support. |
| Condensation on glass door | High humidity environment; frequent door opening. | This is normal in humid conditions. Reduce door openings. Ensure door seal is intact. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | STAIGIS |
| Model Number | ST-15045-R |
| Capacity | 15 Bottles / 1.6 Cubic Feet |
| Temperature Range | 40°F - 66°F (5°C - 18°C) |
| Dimensions (W x D x H) | 17.32 x 17.64 x 20.79 inches |
| Item Weight | 40 Pounds |
| Installation Type | Freestanding / Countertop |
| Door Material Type | Glass (UV-resistant) |
| Defrost System | Automatic |
| Voltage | 110 Volts (AC) |
| Annual Energy Consumption | 184 Kilowatt Hours Per Year |
| Included Components | Manual |
8. Warranty and Support
Warranty Information:
This STAIGIS wine cooler is backed by a 1-year quality warranty for complete satisfaction. This warranty covers defects in materials and workmanship under normal use.
Customer Support:
For any questions, technical assistance, or warranty claims, please contact STAIGIS customer support. Refer to the contact information provided on the product packaging or the official STAIGIS website.
