Generic Ceramic Stove Replacement Glass 6.5 x 9 Inch Instruction Manual

Introduction

This manual provides essential instructions for the safe installation, maintenance, and care of your Generic Ceramic Wood, Fuel, Coal, or Pallet Stove Replacement Glass, measuring 6 1/2" x 9" inches and 5mm (3/16") thick. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.

This ceramic glass is designed for high-temperature applications in various stove types, offering durability and clear viewing of the firebox.

Safety Information

Always prioritize safety when handling and installing stove components. Failure to follow these safety guidelines may result in injury or damage.

• Wear Protective Gear: Always wear heavy-duty gloves and safety glasses when handling glass to prevent cuts and eye injuries.
• Ensure Stove is Cold: Before attempting any installation or maintenance, ensure the stove is completely cold and has been off for several hours.
• Inspect for Damage: Before installation, carefully inspect the new glass for any cracks, chips, or imperfections. Do not install damaged glass.
• Handle with Care: Ceramic glass is strong but can break if dropped or subjected to sharp impacts. Handle it gently.
• Proper Sealing: Ensure all gaskets and seals are correctly installed to prevent smoke and carbon monoxide leaks. Refer to your stove's original manual for specific gasket requirements.
• Ventilation: Ensure adequate ventilation when working on the stove.

Installation Instructions

This section outlines the general steps for replacing stove glass. Specific procedures may vary depending on your stove model. Always consult your stove's original manufacturer manual for detailed instructions.

Tools Required:

• Heavy-duty gloves
• Safety glasses
• Screwdriver (appropriate type for your stove's fasteners)
• Utility knife or scraper (for old gasket removal)
• New stove gasket material (if required by your stove model)
• Soft cloth

Step-by-Step Installation:

1. Prepare the Stove: Ensure the stove is completely cold. Open the stove door and remove any ash or debris that might interfere with the glass replacement.
2. Remove Old Glass:
   • Locate the retaining clips or screws that hold the glass in place. These are typically found on the inside of the stove door.
   • Carefully loosen and remove these fasteners. Keep them organized as they will be reused.
   • Gently remove the old, broken glass. If the glass is shattered, use extreme caution and protective gloves to remove all fragments.
3. Clean the Frame:
   • Thoroughly clean the glass frame area on the stove door. Remove any old gasket material, adhesive, or glass fragments using a utility knife or scraper.
   • Ensure the surface is smooth and free of obstructions for a proper seal.
4. Install New Gasket (if applicable):
   • If your stove uses a gasket around the glass, apply new gasket material to the glass channel in the stove door frame. Ensure it forms a continuous seal.
   • Refer to your stove's manual for the correct type and placement of the gasket.
5. Insert New Glass:
   • Carefully place the new Generic Ceramic Stove Replacement Glass into the door frame. Ensure it sits flush and centered within the opening.
   • Do not force the glass into place.

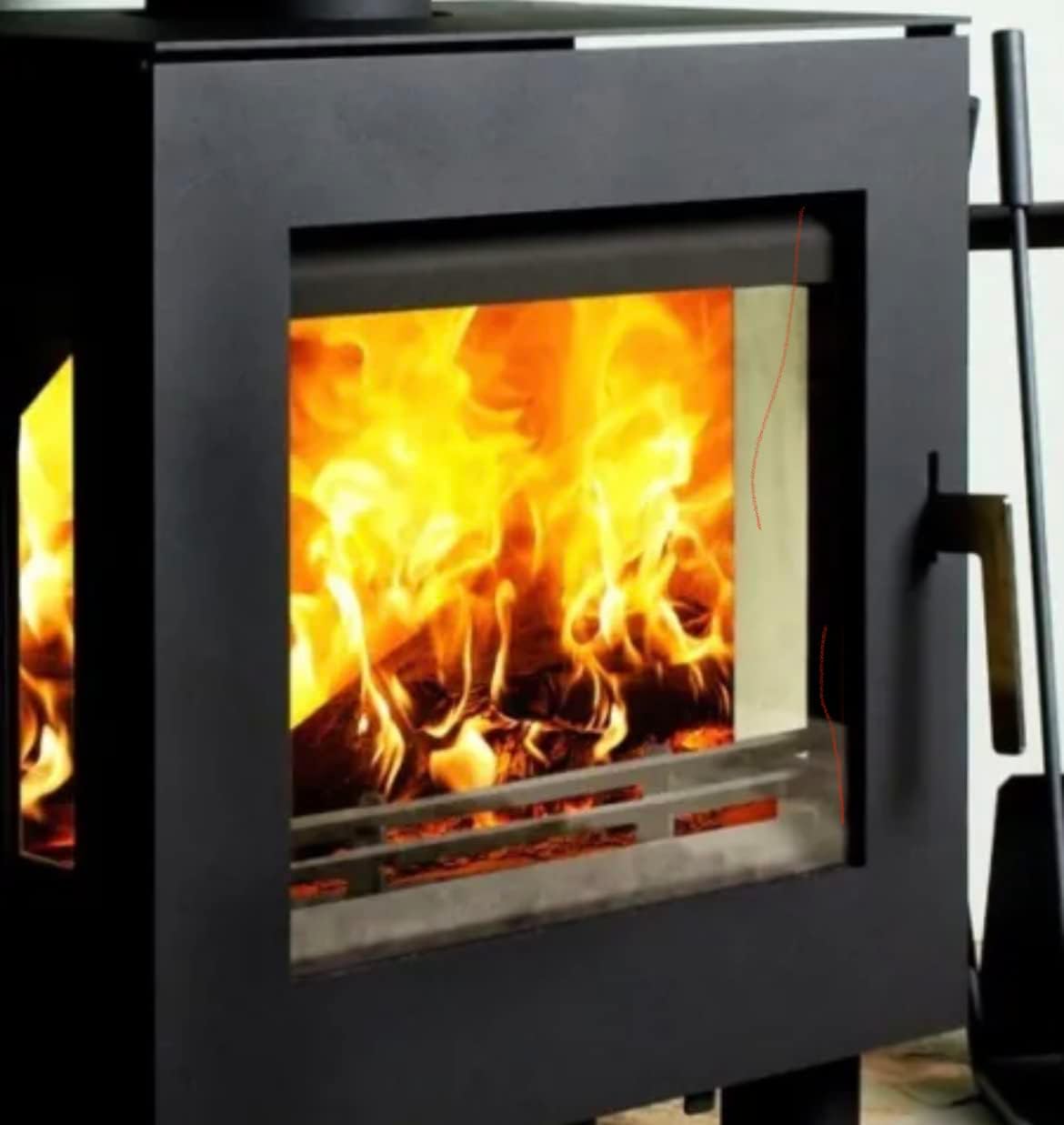

   Image: The ceramic replacement glass properly installed in a wood stove door, showcasing a clear view of the burning fire.

6. Secure the Glass:
   • Reinstall the retaining clips or screws. Tighten them gradually and evenly, alternating between fasteners to apply even pressure.
   • Do not overtighten, as this can crack the glass. The glass should be held firmly but not under excessive stress.
7. Final Check: Close the stove door and ensure it latches properly. Inspect the glass for any movement or gaps.

Maintenance

Proper maintenance ensures the longevity and clear visibility of your stove glass.

• Cleaning:
  • Only clean the glass when the stove is completely cold.
  • Use a specialized stove glass cleaner or a mixture of ash and damp paper towel for light soot.
  • Avoid abrasive cleaners or harsh chemicals, as these can scratch or damage the glass surface.
  • Wipe clean with a soft, dry cloth.
• Regular Inspection:
  • Periodically inspect the glass for any signs of cracks, chips, or stress.
  • Check the integrity of the gasket around the glass. Replace worn or damaged gaskets to maintain an airtight seal.

Troubleshooting

This section addresses common issues related to stove glass.

Glass Cracks or Breaks:

• Overtightening: Glass was tightened too much during installation. Ensure fasteners are snug but not excessively tight.
• Uneven Pressure: Fasteners were not tightened evenly. Loosen and retighten evenly.
• Impact: Object struck the glass.
• Thermal Shock: Rapid temperature changes (e.g., splashing cold water on hot glass).
• Improper Gasket: Missing or incorrect gasket material can cause stress points.
• Foreign Object: A piece of wood or coal may have struck the glass from the inside.

If the glass cracks or breaks, replace it immediately following the installation instructions.

Glass Becomes Sooty Quickly:

• Wet Wood: Burning unseasoned or wet wood produces more smoke and soot. Use dry, seasoned wood.
• Low Burn Temperature: The stove may not be burning hot enough. Ensure proper airflow and fuel load.
• Insufficient Airflow: Air intake vents may be partially closed or obstructed.

Regular cleaning as per the maintenance section is recommended.

Smoke Leaks Around Glass:

• Damaged Gasket: The glass gasket may be worn, compressed, or improperly installed. Replace the gasket.
• Loose Fasteners: The retaining clips or screws may be loose. Tighten them evenly.

Specifications

Images: Front and angled views of the ceramic replacement glass, illustrating its dimensions and material.

Warranty & Support

Specific warranty information for this Generic product is not provided in the product details. For any warranty claims or support inquiries, please refer to the retailer or seller from whom the product was purchased.

If you have questions regarding the installation or suitability of this replacement glass for your specific stove model, it is recommended to consult your stove's manufacturer manual or a qualified stove technician.
