Passeal Hobart Q1 Gasket Magnetic Door Seal Instruction Manual
Model: Q1 | Compatible with Hobart Part # 280984-2
Introduction
This manual provides comprehensive instructions for the installation, maintenance, and general use of your Passeal Hobart Q1 Gasket Magnetic Door Seal. Designed for commercial refrigeration units, this gasket ensures an optimal seal, contributing to energy efficiency and extending equipment life. Please read these instructions carefully before proceeding with installation or maintenance.
Product Overview

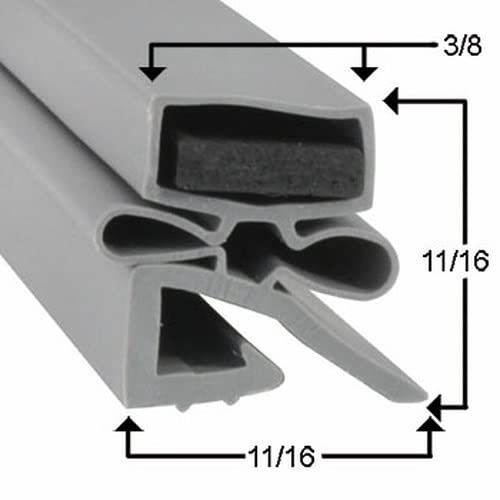

Figure 1: Gasket Profile. A detailed view of the gasket's cross-section, highlighting the magnetic core and flexible sealing elements.
Figure 2: Gasket Dimensions. Illustrates the critical measurements of the gasket profile for proper fitment.
Installation Instructions
The Passeal Hobart Q1 Gasket is designed for tool-less and easy installation. Follow these steps to replace your old gasket:
- Preparation: Ensure the refrigeration unit is turned off and the door is clean and free of debris where the gasket will be installed.
- Remove Old Gasket: Gently pull the old gasket away from the door frame. Most gaskets are held in place by a dart or spear that fits into a channel.
- Inspect Channel: Clean the gasket channel thoroughly to remove any dirt, food particles, or residue that could prevent a proper seal.
- Install New Gasket: Begin by pressing one corner of the new Passeal gasket firmly into the door channel. Work your way around the perimeter of the door, pressing the gasket's dart into the channel. Ensure a snug fit all around.
Figure 3: Corner Installation. Starting the installation by securing a corner of the gasket.
Figure 4: Edge Installation. Continuing to press the gasket firmly into the channel along the door's perimeter.
After installation, close the door and check for any gaps or areas where the seal is not tight. Adjust as necessary by gently pressing the gasket further into the channel.
Functionality and Benefits
Once properly installed, the Passeal Hobart Q1 Gasket provides a strong magnetic seal, crucial for maintaining consistent temperatures within your refrigeration unit. This helps to:
- Improve Energy Efficiency: Prevents cold air from escaping and warm air from entering, reducing the workload on the compressor.
- Extend Equipment Life: Reduces wear and tear on refrigeration components by maintaining stable internal conditions.
- Ensure Food Safety: Helps maintain required temperatures for safe food storage.
Figure 5: Quality and Origin. Highlighting the gasket's manufacturing quality and origin, contributing to reliable performance.
Figure 6: Gasket Features. Visual representation of the key advantages of using quality refrigeration gaskets.
Maintenance
Regular cleaning and inspection of your gasket will ensure its longevity and optimal performance.
- Cleaning: Clean the gasket regularly with a mild soap and warm water solution. Use a soft cloth or sponge. Avoid abrasive cleaners or harsh chemicals, as these can damage the gasket material.
- Inspection: Periodically check the gasket for any signs of wear, tears, cracks, or hardening. Ensure the magnetic seal is still strong and that there are no visible gaps when the door is closed.
- Replacement: If the gasket shows significant signs of damage or no longer provides an effective seal, it should be replaced promptly to maintain refrigeration efficiency.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Door not sealing tightly | Gasket not fully seated in channel; debris in channel; gasket damaged or worn. | Press gasket firmly into channel; clean channel thoroughly; inspect and replace gasket if damaged. |
| Condensation around door | Poor seal allowing warm, moist air to enter. | Check gasket for proper installation and damage; ensure door hinges are aligned. |
| Increased energy consumption | Ineffective gasket causing refrigeration unit to work harder. | Inspect gasket for leaks or damage; replace if necessary to restore efficiency. |
Specifications
- Model: Q1
- Compatibility: Hobart Part # 280984-2
- Dimensions: 24 1/2 x 29 5/8 inches
- Material: PVC Gasket Material and Rubberized Magnet
- Origin: Made in USA
Customer Support
Passeal is committed to providing quality products and excellent customer service. If you have any questions regarding the installation, maintenance, or performance of your Hobart Q1 Gasket, please contact our support team. Refer to your purchase documentation for specific contact information.
