Continental SW48 Gasket Magnetic Door Seal Instruction Manual

1. Product Overview

The Passeal Continental SW48 Gasket Magnetic Door Seal is a replacement part designed for commercial refrigeration units, specifically compatible with Continental part # 2-705. This magnetic door seal is engineered for durability and ease of installation, ensuring an effective and energy-efficient seal for your appliance.

Figure 1: Overview of the Continental SW48 Gasket Magnetic Door Seal.

2. Installation Instructions

This gasket is designed for a DIY, toolless, and easy installation process. Follow these steps to replace your old gasket:

1. Preparation: Ensure the refrigeration unit is turned off and the door is open. Clear any debris from the door frame.
2. Remove Old Gasket: Gently pull the old gasket away from the door frame. Most commercial gaskets are designed to be pulled out without tools. Start from a corner and work your way around.

Figure 2: Removing the old gasket from the door frame.
3. Clean Door Frame: Thoroughly clean the channel or groove where the gasket sits. Remove any adhesive residue, dirt, or mold to ensure a clean surface for the new gasket.
4. Install New Gasket: Align the new Continental SW48 gasket with the door frame channel. Starting from a corner, firmly press the gasket into the groove. Work your way around the entire perimeter, ensuring the gasket is fully seated and flush with the door frame.


Figure 3: Pressing the new gasket into the door frame channel.

5. Check Seal: Once installed, close the door and check for a complete and tight seal around the entire perimeter. You should feel a slight resistance when opening the door, indicating the magnetic seal is working correctly.

3. Operation and Usage

After installation, ensure the refrigerator or freezer door closes completely and the new gasket forms a tight seal. A properly sealed door is crucial for maintaining consistent internal temperatures and energy efficiency. Avoid forcing the door open or closed, as this can damage the gasket over time.

4. Care and Maintenance

Regular maintenance will extend the life of your gasket and ensure optimal performance:

• Cleaning: Clean the gasket regularly with a soft cloth, warm water, and a mild, non-abrasive detergent. Avoid harsh chemicals or abrasive cleaners, as these can damage the gasket material.
• Inspection: Periodically inspect the gasket for any signs of wear, tears, cracks, or hardening. A damaged gasket can compromise the seal and lead to energy loss.
• Alignment: Ensure the gasket remains properly seated in its channel. If it appears loose or misaligned, gently press it back into place.

5. Troubleshooting

If you encounter issues with your new gasket, consider the following:

• Door Not Sealing Properly:
  • Check if the gasket is fully seated in its channel around the entire door frame.
  • Inspect for any debris or obstructions preventing a complete seal.
  • Ensure the door hinges are properly aligned and not causing the door to sag.
• Gasket Appears Loose or Bulging:
  • Gently press the gasket back into the channel. If it repeatedly comes loose, the channel might be damaged or the gasket might be slightly oversized.
• Condensation Around Door:
  • This often indicates a poor seal. Re-check installation and inspect the gasket for any damage.

6. Product Specifications

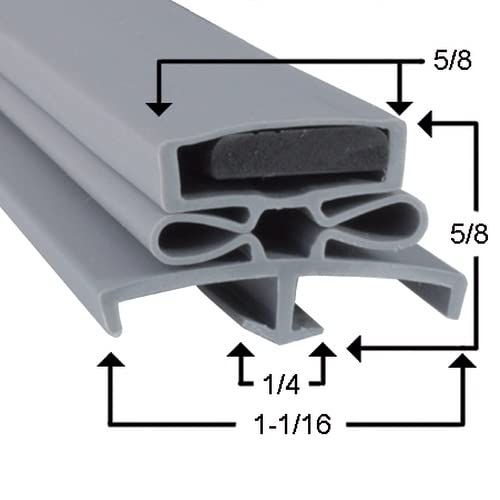

Figure 4: Detailed dimensional diagrams of the gasket profile.

7. Warranty and Support

Specific warranty information for the Passeal Continental SW48 Gasket Magnetic Door Seal is not provided in the product details. For any questions regarding warranty, technical support, or product assistance, please contact the seller or manufacturer directly through their official channels.
