Introduction
Thank you for choosing the Sougayilang 2.1m Fishing Rod and WA4000 Reel Combo. This high-performance fishing set is designed for coastal fishing, offering a blend of strength, sensitivity, and smooth operation. Constructed from virgin carbon fiber, the rod provides excellent performance, while the WA4000 round baitcasting reel features a robust carbon fiber drag system for reliable use. This manual provides essential information for the proper setup, operation, maintenance, and care of your new fishing equipment.
Product Components
Your Sougayilang Fishing Rod and Reel Combo package includes the following items:
- Sougayilang 2.1m (7ft) 2-piece Fishing Rod
- Sougayilang WA4000 Round Baitcasting Reel
Image: The complete Sougayilang 2.1m fishing rod and WA4000 reel combo, showcasing the two-piece rod and the gold-colored baitcasting reel.
Setup Instructions
1. Assembling the Fishing Rod
- Unpack Components: Carefully remove the two rod sections from their packaging.
- Align Sections: Hold the butt section (the section with the handle and reel seat) and the tip section. Align the guides on both sections.
- Join Sections: Gently push the tip section into the butt section. Twist slightly until the sections are firmly seated. Ensure the guides are perfectly aligned to prevent line friction and damage during casting.
2. Attaching the Reel
- Locate Reel Seat: Identify the reel seat on the rod handle. It typically has a fixed hood and a movable locking nut.
- Position Reel: Place the reel foot into the fixed hood of the reel seat.
- Secure Reel: Slide the movable locking nut up until it firmly secures the reel foot in place. Ensure the reel is tight and does not wobble.
Image: A close-up view of the Sougayilang WA4000 baitcasting reel securely attached to the rod handle, showing the cork grip and reel seat.
3. Spooling the Line (Not Included)
While fishing line is not included, the WA4000 reel is designed for 10-20 lb monofilament line. Follow these general steps for spooling:
- Tie Initial Knot: Tie the end of your fishing line to the reel spool using an arbor knot or similar secure knot.
- Apply Tension: Keep tension on the line as you reel it onto the spool. This prevents loose wraps and ensures smooth casting.
- Fill Spool: Fill the spool to about 1/8 inch (3mm) from the rim. Overfilling can cause tangles and casting issues.
Operating Instructions
1. Adjusting the Drag System
The WA4000 reel features a carbon fiber drag system, offering up to 10 kg (22 lbs) of smooth drag. The drag knob is typically located on the side of the reel. Turn it clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag to approximately 25-30% of your line's breaking strength. This allows the line to pay out when a fish pulls hard, preventing line breakage.
2. Casting with a Baitcasting Reel
Baitcasting reels require practice to master. Here are basic steps:
- Prepare for Cast: Press the thumb bar to disengage the spool. Keep your thumb firmly on the spool to prevent line from coming off prematurely.
- Backswing: Bring the rod back over your shoulder in a smooth motion.
- Forward Cast: Bring the rod forward, releasing your thumb from the spool as the lure reaches the desired trajectory.
- Control Spool: As the lure flies, use your thumb to lightly feather the spool to prevent a backlash (tangle). Apply more pressure as the lure approaches the water to stop it precisely.
- Engage Reel: Once the lure is in the water, turn the handle slightly to re-engage the spool.
Image: The Sougayilang fishing rod and reel combo positioned on rocks near a body of water, ready for fishing.
3. Reeling and Retrieving
Turn the reel handle to retrieve your line and lure. Maintain a steady retrieve speed appropriate for your lure and target species. The 5.2:1 gear ratio provides a balanced retrieve for various fishing techniques.
Maintenance
Proper maintenance ensures the longevity and performance of your fishing combo.
- Rinse After Use: After each use, especially in saltwater, rinse the rod and reel with fresh water to remove salt, dirt, and debris. Do not submerge the reel.
- Wipe Dry: Thoroughly wipe down all components with a soft, dry cloth.
- Lubrication: Periodically apply a small amount of reel oil to moving parts and grease to gears as recommended by general reel maintenance practices. Refer to specialized reel maintenance guides for detailed lubrication instructions.
- Inspect Guides: Regularly check the rod guides for any cracks or damage that could fray your line. The stainless steel guides are designed for durability.
- Storage: Store the rod and reel in a dry, cool place, away from direct sunlight and extreme temperatures. The 2-piece design allows for easier transport and storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Line tangles (backlash) during casting | Insufficient thumb control on spool; drag too loose; spool overfilled. | Practice thumb control; adjust drag; ensure spool is not overfilled. |
| Reel handle is stiff or grinding | Lack of lubrication; dirt/debris inside reel; damaged gears. | Clean and lubricate reel; if problem persists, professional service may be required. |
| Line fraying or breaking easily | Damaged rod guides; old or weak line; drag set too high. | Inspect rod guides for damage; replace old line; adjust drag settings. |
| Rod sections do not fit securely | Dirt in ferrule; improper alignment. | Clean ferrule; ensure proper alignment of sections and guides. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Sougayilang |
| Model Number | SKCG21WA4000 |
| Rod Length | 2.1 meters (7 feet) |
| Rod Material | Carbon Fiber |
| Rod Power | Medium |
| Rod Sections | 2-piece construction |
| Reel Model | WA4000 Round Baitcasting Reel |
| Reel Gear Ratio | 5.2:1 |
| Ball Bearings | 6BB + 1RB |
| Max Drag | 10 kg (22 lbs) |
| Recommended Line Weight | 10-20 lb |
| Hand Orientation | Right |
| Item Weight | 18.5 Ounces (approx. 524 grams) |
| Target Species | Trout, Redfish, Stripers, Fluke, Tarpon, Snook, Spots |
Image: A detailed table showing the specifications for both the fishing rod and the WA4000 fishing reel, including size, type, gear ratio, weight, and line capacity.

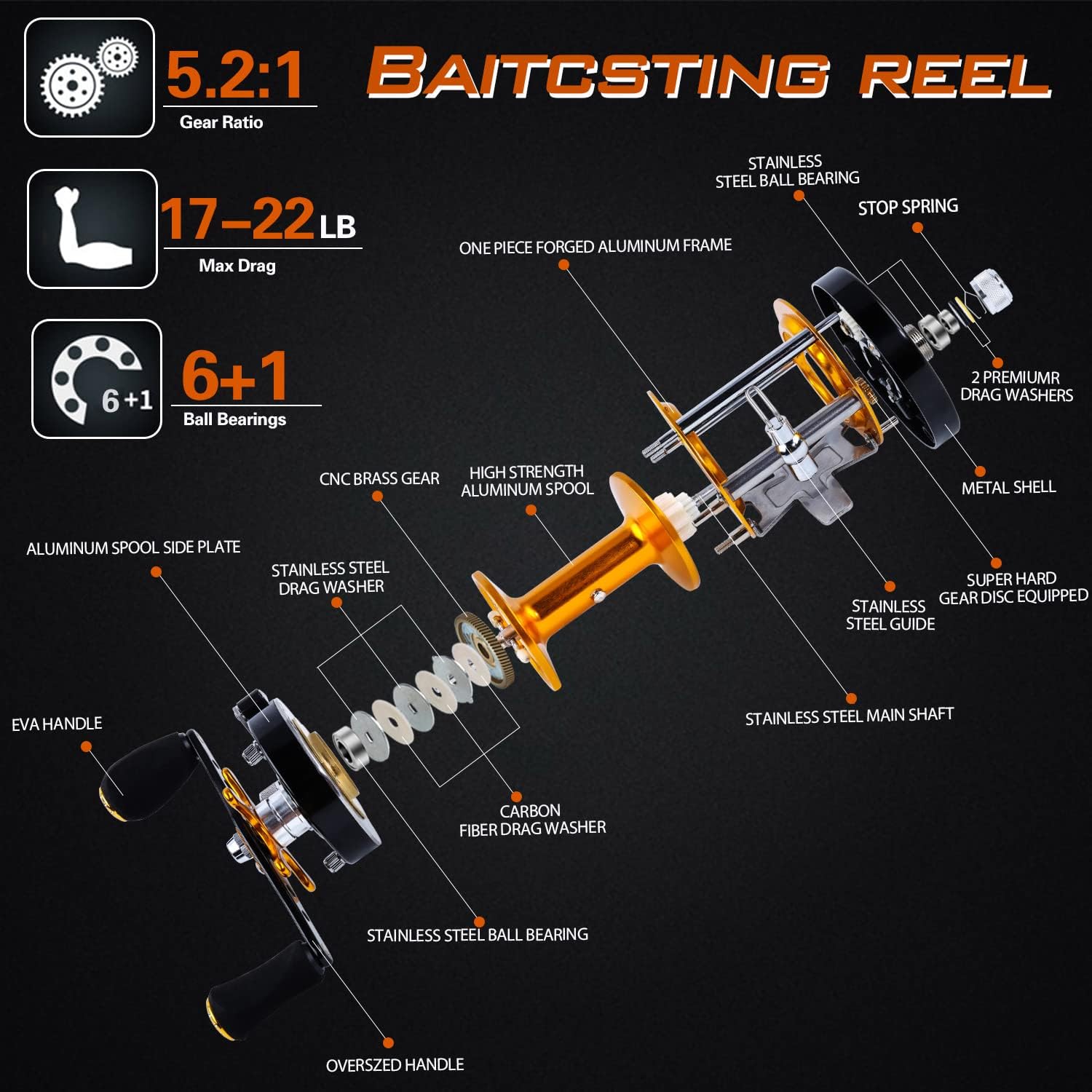

Image: An exploded diagram of the Sougayilang WA4000 baitcasting reel, highlighting internal components such as the CNC brass gear, high strength aluminum spool, carbon fiber drag washers, and stainless steel ball bearings.
Warranty and Support
Sougayilang offers a one-year worry-free service for this product. This includes a refund for non-artificial damage and a 100% satisfaction service. If you encounter any issues or have questions regarding your fishing rod and reel combo, please contact Sougayilang customer service directly for prompt assistance.
