ExperMarket SINBO SBM 4707 Bread Maker Motor End Belt Gear Instruction Manual

1. Product Overview

This manual provides detailed instructions for the installation and maintenance of the ExperMarket replacement motor end belt gear for the SINBO SBM 4707 bread maker. This component is crucial for the proper functioning of your bread maker's mixing mechanism.

The gear is designed to replace a worn or broken motor end belt gear, restoring the functionality of your appliance.

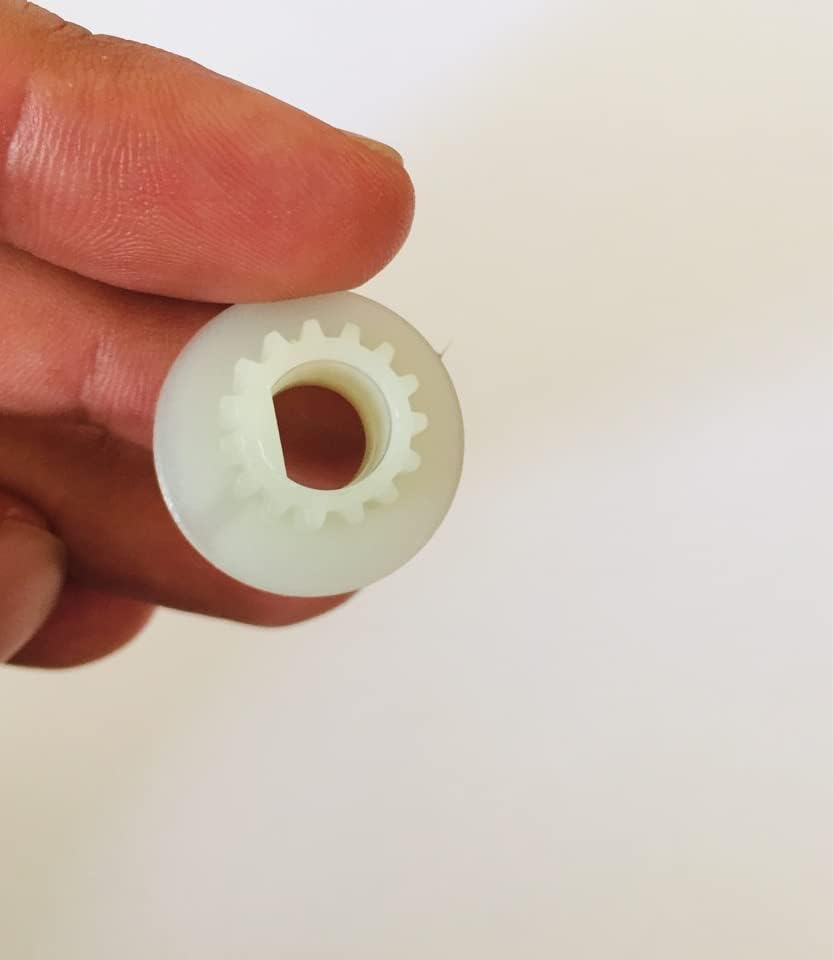

Image 1: The ExperMarket replacement motor end belt gear.

2. Compatibility

This motor end belt gear is specifically designed for the SINBO SBM 4707 bread maker model. Ensure your bread maker model matches this specification before attempting installation.

3. Safety Information

Always prioritize safety when working with electrical appliances. Failure to follow these safety guidelines may result in injury or damage to the appliance.

• Disconnect Power: Always unplug the bread maker from the power outlet before beginning any repair or maintenance.
• Use Proper Tools: Ensure you have the correct tools for disassembly and assembly.
• Handle with Care: Be careful when handling internal components, as some may have sharp edges or delicate wiring.
• Professional Assistance: If you are unsure about any step, consult a qualified technician.

4. Installation Instructions (Setup)

Follow these steps carefully to replace the motor end belt gear.

1. Prepare the Bread Maker: Ensure the bread maker is unplugged and completely cooled down. Clear a clean, well-lit workspace.
2. Access the Motor Assembly: Carefully disassemble the bread maker casing to gain access to the motor and belt assembly. This usually involves removing screws from the bottom or back panel. Refer to your bread maker's original service manual if available for specific disassembly instructions.
3. Locate the Old Gear: Identify the motor end belt gear. It is typically located on the motor shaft, connected to the drive belt.
4. Remove the Old Gear: Gently remove the old, damaged gear from the motor shaft. This may require a small screwdriver or pliers. Be careful not to damage the motor shaft or surrounding components.
5. Install the New Gear: Carefully slide the new ExperMarket motor end belt gear onto the motor shaft. Ensure it is seated correctly and securely.


Image 2: Example of a motor and belt assembly, showing where the gear is typically located.

6. Reattach the Drive Belt: If the drive belt was removed, carefully reattach it to the new gear and the larger pulley. Ensure the belt is taut and properly aligned.
7. Reassemble the Bread Maker: Carefully reassemble the bread maker casing, ensuring all screws are tightened and no components are pinched.
8. Test Functionality: Plug in the bread maker and perform a brief test cycle (e.g., kneading) to ensure the new gear and belt system are functioning correctly and smoothly.

5. Specifications

Key specifications for the ExperMarket SINBO SBM 4707 Bread Maker Motor End Belt Gear:

• Brand: ExperMarket
• Manufacturer: expermarket
• Compatible Model: SINBO SBM 4707 Bread Maker
• ASIN: B0BTLWJ5J6
• First Available Date: 1 February 2023

Image 3: Dimensional drawing of the gear, showing key measurements for verification.

6. Maintenance

The motor end belt gear is a wear-and-tear part. Proper maintenance of your bread maker can extend its lifespan.

• Regular Cleaning: Keep the area around the motor and belt free from flour, dough, or other debris that could interfere with the gear's movement.
• Inspect Belt: Periodically check the drive belt for signs of wear, cracking, or stretching. A worn belt can put undue stress on the gear.
• Avoid Overloading: Do not overload the bread maker, as this can strain the motor and gear assembly.

7. Troubleshooting

If you encounter issues after replacing the gear, consider the following:

• No Movement/Grinding Noise: Ensure the gear is fully seated on the motor shaft and the drive belt is correctly aligned and taut. Check for any obstructions.
• Gear Slips: Verify that the gear is the correct size and type for your SINBO SBM 4707 model. Ensure the motor shaft is clean and free of grease that could cause slipping.
• Appliance Not Powering On: Double-check all connections and ensure the bread maker is properly reassembled and plugged into a working power outlet. This issue is unlikely to be directly related to the gear replacement unless wiring was disturbed.

8. Warranty and Support

For warranty information or technical support regarding this ExperMarket replacement part, please contact the seller directly through your purchase platform. Retain your proof of purchase for any warranty claims.

Seller: ExperMarket
