TOMXCUTE 4L Stainless Steel Cat Water Fountain User Manual

Model: PET-0007 | Brand: TOMXCUTE

Introduction

Thank you for choosing the TOMXCUTE 4L Stainless Steel Cat Water Fountain. This manual provides essential information for the proper setup, operation, and maintenance of your new pet water fountain. Please read these instructions carefully before use to ensure optimal performance and the well-being of your pet.

Product Overview and Components

The TOMXCUTE 4L Stainless Steel Cat Water Fountain is designed to provide fresh, filtered water for your pets, encouraging healthy hydration habits. It features a durable stainless steel construction and an efficient filtration system.

The TOMXCUTE 4L Stainless Steel Cat Water Fountain fully assembled with water flowing from the gooseneck spout.

Image: TOMXCUTE 4L Stainless Steel Cat Water Fountain.

Included Components:

Diagram showing the disassembled components of the TOMXCUTE cat water fountain, including the stainless steel body, pump holder, water pump, activated carbon filter, and pre-filter sponge.

Image: Exploded view of the TOMXCUTE 4L Stainless Steel Cat Water Fountain components.

  • 304 Stainless Steel Body: Rust-proof and easy to clean, ensuring hygiene.
  • Ergonomic Buckle: Facilitates easy removal of the lid for refilling and cleaning.
  • Pump Holder: Secures the water pump in place.
  • Water Pump: Detachable for easy cleaning, operates quietly at 5V/1.5W.
  • Activated Carbon Filter: Removes bad taste and odor, filters hair and dirt.
  • Pre-filter Sponge: Traps hair and dirt, protecting the pump and extending its lifespan.
  • Gooseneck Design Spout: Provides a continuous, appealing water flow.

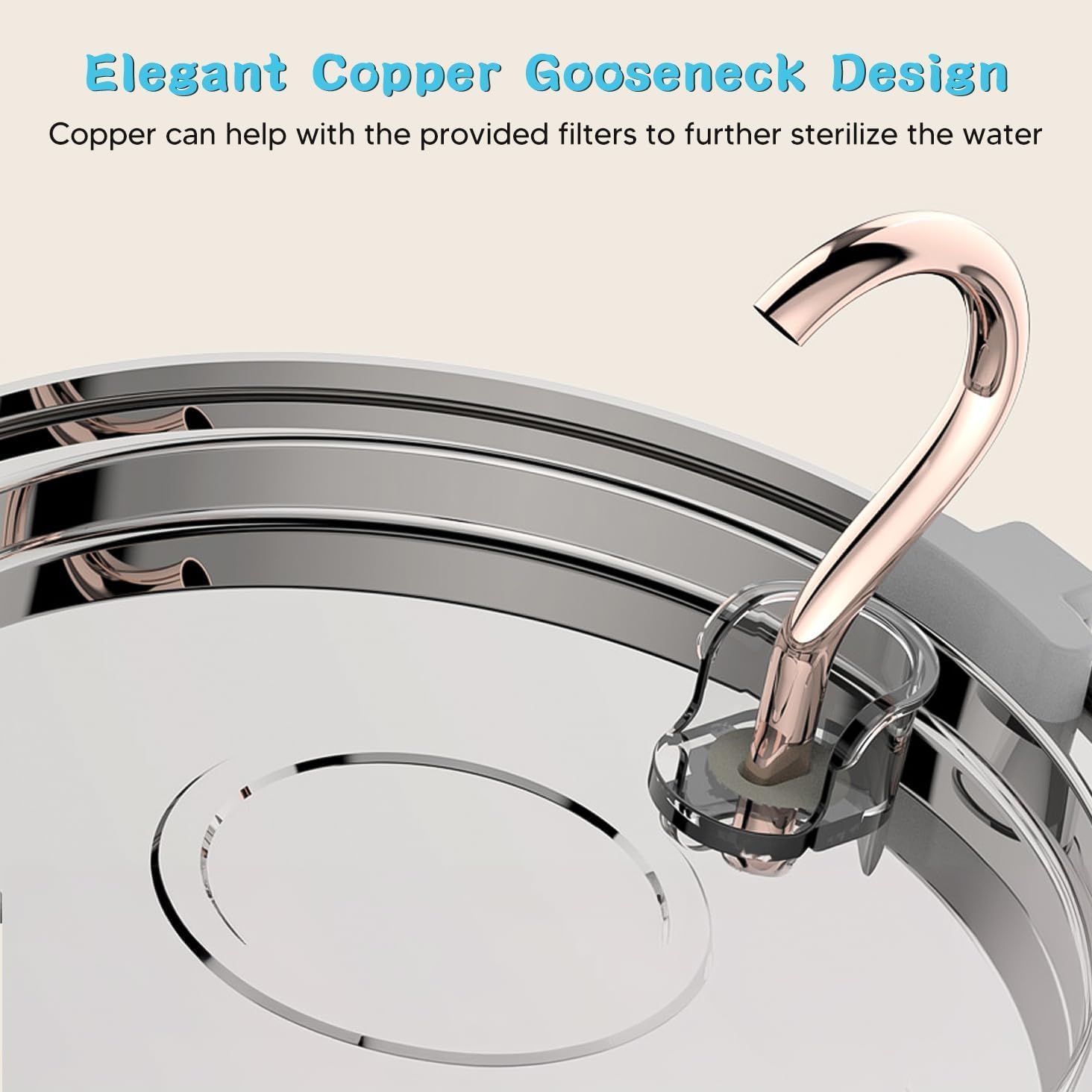

Close-up of the elegant copper gooseneck design spout of the TOMXCUTE cat water fountain.

Image: Detail of the gooseneck water spout.

Setup Instructions

  1. Unpack Components: Carefully remove all parts from the packaging. Ensure all included components (fountain body, pump, carbon filter, sponge, EU adapter) are present.
  2. Rinse Components: Rinse the stainless steel body, lid, and pump thoroughly with water.
  3. Prepare Filter: Soak the activated carbon filter in a clean bowl of water for 5 minutes. This ensures the filter is fully saturated before use and prevents water overflow. Do not soak the filter directly in the fountain tank to avoid dust on its surface.

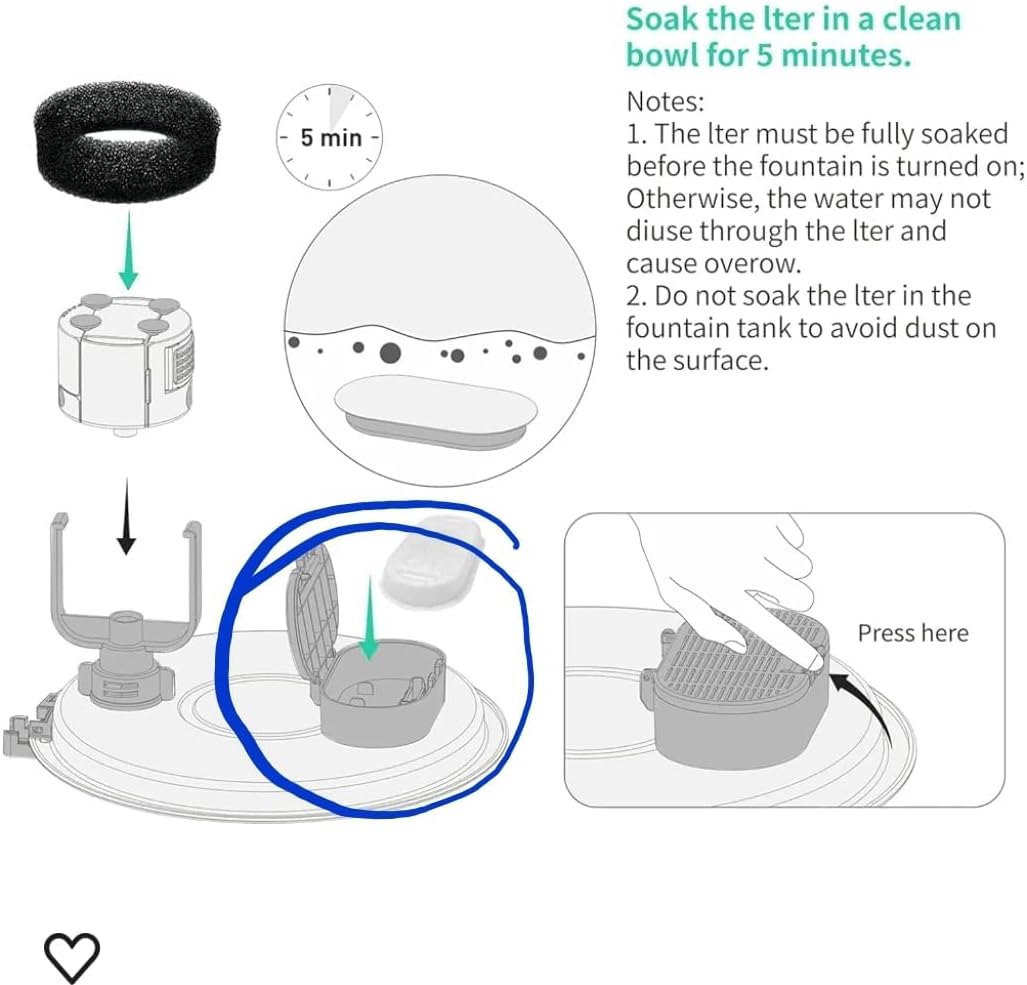

    Diagram showing how to soak the filter in a separate bowl for 5 minutes before placing it into the fountain.

    Image: Instructions for soaking the activated carbon filter.

  4. Assemble Pump and Sponge: Place the pre-filter sponge around the water pump.
  5. Install Pump: Insert the assembled pump and sponge into the pump holder located inside the fountain base. Ensure it is securely fixed.
  6. Place Filter: Insert the soaked activated carbon filter into its designated slot above the pump assembly.
  7. Fill with Water: Fill the stainless steel bowl with clean water up to the maximum fill line (4 liters capacity).
  8. Attach Lid: Place the lid securely onto the fountain body.
  9. Connect Power: Connect the power cable to the pump and then plug the EU adapter into a suitable power outlet.
  10. Operation Check: Ensure water flows smoothly from the gooseneck spout.

Operating Instructions

The TOMXCUTE Cat Water Fountain is designed for continuous operation to encourage your pet to drink more water throughout the day.

  • Continuous Operation: The 5V/1.5W ultra-quiet pump is designed to run 24 hours a day.
  • Water Level: Regularly check the water level and refill as needed to ensure the pump remains submerged and functions correctly. Do not allow the pump to run dry.
  • Encouraging Drinking: The flowing water from the gooseneck spout mimics natural water sources, which can attract pets and encourage them to drink more.
    Collage of cats drinking water from various faucet-like sources, demonstrating their preference for flowing water.

    Image: Cats drinking from a faucet-shaped water dispenser.

  • Quiet Operation: The pump operates at less than 20dB, making it suitable for placement in any room, including bedrooms, without causing disturbance.
    A cat and a dog sleeping peacefully next to the TOMXCUTE water fountain, highlighting its ultra-quiet operation.

    Image: Pets sleeping near the ultra-quiet water pump.

Maintenance

Regular cleaning and filter replacement are essential to maintain water quality and extend the lifespan of your fountain.

  • Daily: Check water level and refill with fresh water.
  • Weekly:
    • Clean Fountain: Disassemble the fountain and wash all stainless steel parts with soap and water. The stainless steel body is dishwasher safe for thorough sterilization.
      Various parts of the TOMXCUTE cat water fountain, including the stainless steel bowl and lid, placed inside a dishwasher for cleaning.

      Image: Fountain components are BPA-free and dishwasher safe.

    • Clean Pump: Detach the pump and clean it thoroughly. Remove any hair or debris that may have accumulated inside the pump impeller area.
    • Clean Sponge: Rinse the pre-filter sponge thoroughly. Replace if heavily soiled or damaged.
  • Monthly (or every 2-4 weeks, depending on usage and pet hair):
    • Replace Activated Carbon Filter: Replace the activated carbon filter with a new one. Always soak new filters for 5 minutes before use.

Troubleshooting

ProblemPossible CauseSolution
No water flow or weak flow
  • Low water level
  • Pump clogged with hair/debris
  • Filter clogged
  • Pump not properly assembled
  • Power disconnected
  • Refill water to the appropriate level.
  • Clean the pump thoroughly, especially the impeller.
  • Clean or replace the activated carbon filter and pre-filter sponge.
  • Ensure the pump is correctly installed in its holder.
  • Check power connection and adapter.
Fountain is noisy
  • Low water level
  • Pump not clean
  • Pump not properly seated
  • Add water to cover the pump.
  • Clean the pump and impeller.
  • Ensure the pump is securely placed in its holder.
Water tastes or smells bad
  • Filter needs replacement
  • Fountain needs cleaning
  • Replace the activated carbon filter.
  • Perform a thorough cleaning of all fountain components.

Specifications

  • Model Number: PET-0007
  • Capacity: 4 Liters
  • Material: 304 Stainless Steel, ABS
  • Product Dimensions (L x W x H): 24.5 x 24.5 x 12.5 cm
  • Weight: 890 grams
  • Power Source: Electric Cable
  • Voltage: 5 Volts
  • Pump Power: 1.5 Watts
  • Noise Level: < 20dB
  • Included Components: 1x EU Adapter, 1x Carbon Filter, 1x 4.0 L Cat Fountain, 1x Pump, 1x Sponge
  • Country of Origin: China

Warranty and Support

The TOMXCUTE 4L Stainless Steel Cat Water Fountain (Model PET-0007) comes with a 1-year warranty on the pump, covering manufacturing defects from the date of purchase.

For any questions, concerns, or support needs regarding your product, please contact TOMXCUTE customer service. Our team is dedicated to ensuring your pets are well-hydrated and healthy.

You can visit the official TOMXCUTE store for more information or to purchase replacement parts:

Visit TOMXCUTE Store
