1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Commercial Electric Residential LED Outdoor Wall Pack/Flood Light, model FSNX15-5CCT-BZ. This versatile 3000 lumen LED fixture is designed for outdoor residential environments, offering adjustable color temperature settings from warm white (2700K) to daylight (5000K).
Please read this manual thoroughly before installation and use to ensure safe and optimal performance of the product. Retain this manual for future reference.
2. Important Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installation or servicing. All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- Ensure the power supply is 120 Volts AC.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create a safety hazard.
- Consult a qualified electrician if you are unsure about the installation process.
- This fixture is rated for wet locations. Ensure all connections are properly sealed to prevent water intrusion.
- Do not look directly into the LED light source when illuminated.
3. What's in the Box
Verify that all components are present before beginning installation:
- LED Wall Pack/Flood Light Fixture
- Mounting Hardware (screws, wire nuts, gasket)
- Remote Control
- User Manual (this document)
4. Setup and Installation
This fixture features a hands-free installation design, allowing for easier electrical connections.
4.1 Tools Required (Not Included)
- Phillips head screwdriver
- Wire strippers
- Pliers
- Electrical tape
- Safety glasses
4.2 Installation Steps
- Turn Off Power: Locate the circuit breaker or fuse box controlling the power to the installation location and turn off the power. Verify power is off using a voltage tester.
- Prepare Mounting Surface: Ensure the mounting surface is clean, dry, and structurally sound.
- Attach Mounting Bracket: Secure the mounting bracket to the junction box using the provided screws. Ensure the bracket is oriented correctly for the fixture.
- Make Electrical Connections: Using the hands-free feature, connect the fixture's wires to the household wiring. Connect the black wire (live) to the black wire, the white wire (neutral) to the white wire, and the green/bare copper wire (ground) to the ground wire. Secure connections with wire nuts and electrical tape.
- Mount the Fixture: Carefully align the fixture with the mounting bracket and secure it using the provided screws. Ensure a tight seal to prevent moisture entry.
- Restore Power: Once the fixture is securely mounted and all connections are checked, restore power at the circuit breaker.
5. Operating Instructions
This LED fixture is designed for simple operation and offers adjustable color temperature settings.
5.1 Power On/Off
Once installed and power is restored, the light can be controlled via a standard wall switch or the included remote control.

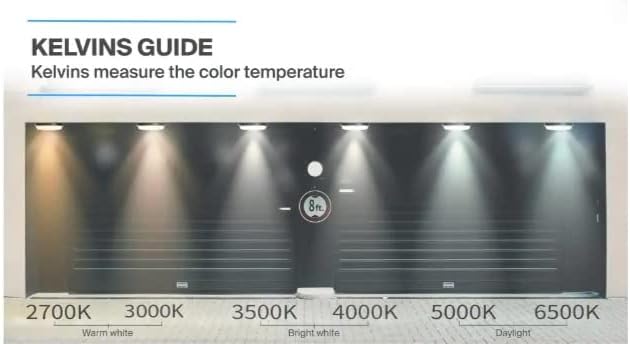

5.2 Adjusting Color Temperature (CCT)
The fixture offers 5 tunable CCT settings, ranging from 2700K (Warm White) to 5000K (Daylight). Use the provided remote control to cycle through the available color temperatures to suit your preference or application.
5.3 Remote Control Functions
The remote control allows for convenient adjustment of the light's settings. Refer to the remote control's specific buttons for power, CCT selection, and any other available features.
6. Maintenance
The Commercial Electric LED Outdoor Wall Pack/Flood Light is designed for over 50,000 hours of maintenance-free operation.
6.1 Cleaning
- Ensure power is disconnected before cleaning.
- Clean the exterior of the fixture with a soft, damp cloth.
- Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components.
6.2 LED Module Replacement
The integrated LED module is not user-replaceable. If the LED module fails, the entire fixture should be replaced.
7. Troubleshooting
If you experience issues with your LED Wall Pack/Flood Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wiring connection Faulty wall switch | Check circuit breaker or fuse. Verify all wire connections are secure (ensure power is off first). Test or replace the wall switch. |
| Light flickers | Loose wiring connection Incompatible dimmer switch (if applicable) | Check all wire connections (ensure power is off first). Ensure a non-dimming switch is used, as this fixture may not be dimmable. |
| Incorrect color temperature | Remote control setting issue | Use the remote control to cycle through CCT settings. Ensure remote batteries are functional. |
If the problem persists after attempting these solutions, contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | FSNX15-5CCT-BZ |
| Brand | Commercial Electric |
| Light Source Type | Integrated LED |
| Brightness | 3000 Lumens |
| Wattage | 28 Watts |
| Voltage | 120 Volts |
| Color Temperature (CCT) | Tunable (2700K - 5000K) |
| Finish Type | Painted, Powder Finish (Bronze) |
| Indoor/Outdoor Usage | Outdoor |
| Water Resistance Level | Water Resistant |
| Item Weight | 2.2 Pounds |
| Product Dimensions | 7 x 7.7 x 5.3 inches |
| Life Expectancy | 50,000+ hours |
| Certifications | cULus-listed for wet locations, DLC-listed |
| Included Components | Mounting Hardware, Remote Control |
9. Warranty Information
This Commercial Electric LED Outdoor Wall Pack/Flood Light is backed by a 5-year limited warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific terms and conditions, or to make a warranty claim, please refer to the warranty documentation included with your purchase or contact Commercial Electric customer support.
10. Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact Commercial Electric customer support. Refer to the product packaging or the official Commercial Electric website for the most current contact information.
Online Resources: Visit the Commercial Electric website for FAQs, additional product information, and support resources.
