Tyenaza XHP160 Camping Flashlight User Manual

1. Introduction

Thank you for choosing the Tyenaza XHP160 Camping Flashlight. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.

The Tyenaza XHP160 is a high-performance LED torch designed for outdoor activities, emergencies, camping, and hiking. It features an XHP160 LED, USB Type-C charging, IPX4 waterproof rating, and adjustable light focus.

2. Safety Information

• Do not look directly into the LED light. The intense beam can cause temporary vision impairment or eye damage.
• Keep the flashlight out of reach of children.
• Ensure correct battery polarity when installing batteries. Incorrect installation can damage the device.
• Use only recommended battery types (18650, 26650, or AAA).
• This flashlight has an IPX4 waterproof rating, meaning it is protected against splashing water from any direction. It is suitable for daily waterproof use but should not be immersed in water for extended periods.
• Avoid exposing the flashlight to extreme temperatures or direct sunlight for prolonged durations.
• Do not attempt to disassemble or modify the flashlight, as this will void the warranty and may cause damage or injury.

3. Package Contents

Verify that all items are present in the package:

• 1 x Tyenaza XHP160 Camping Flashlight
• 1 x USB Charging Cable (Type-C)

Image: The Tyenaza XHP160 Camping Flashlight shown alongside its included USB charging cable and a wrist lanyard.

4. Product Overview

Familiarize yourself with the main components of your Tyenaza XHP160 Flashlight:

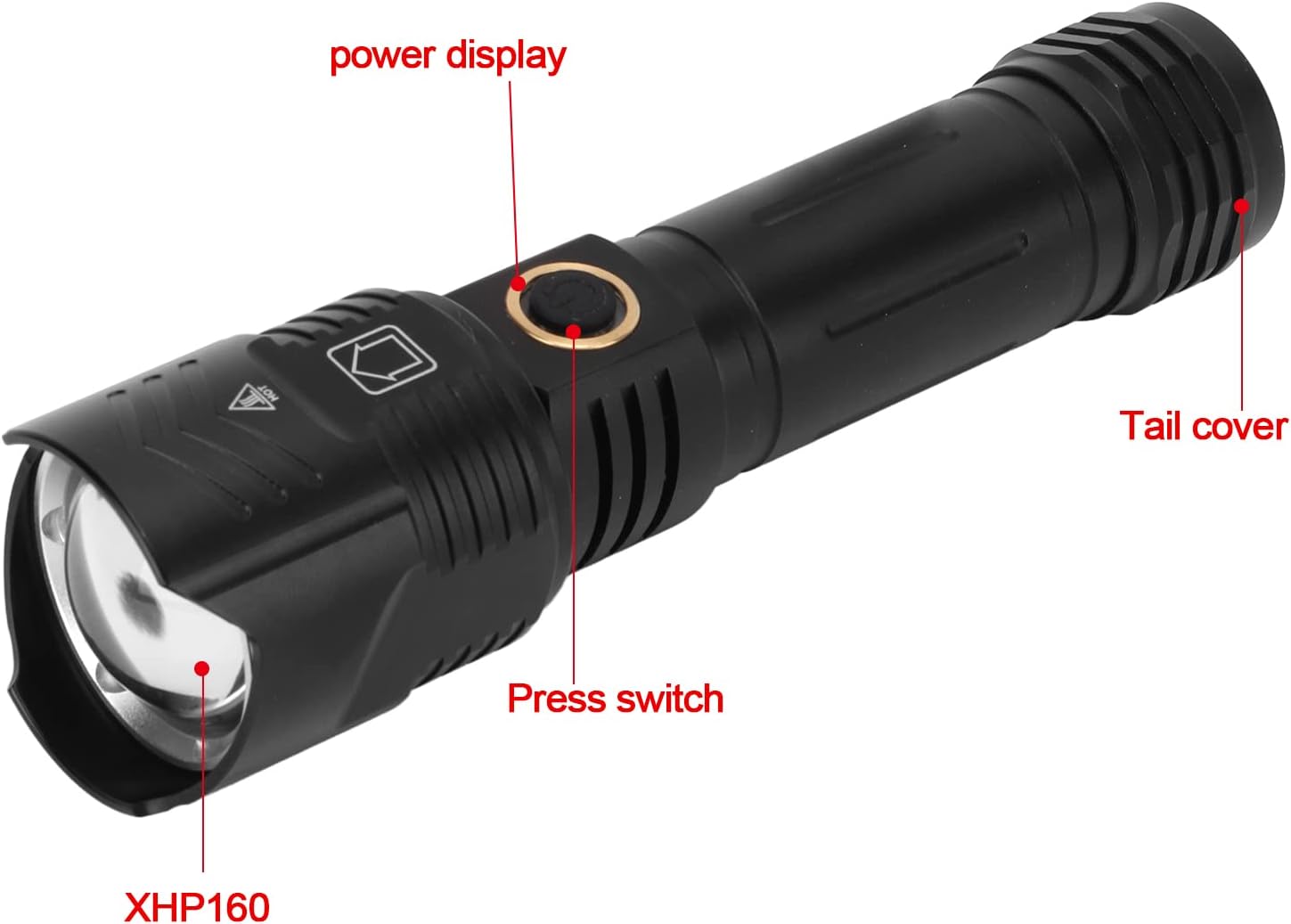

Image: A labeled diagram indicating the key parts of the flashlight, including the XHP160 LED at the front, the press switch and power display on the body, and the tail cover at the rear.

• XHP160 LED: The high-power light source located at the front of the flashlight.
• Press Switch: Used to power on/off and cycle through lighting modes.
• Power Display: Indicates the remaining battery charge.
• Tail Cover: Removable section for battery access and lanyard attachment.

5. Setup

5.1 Battery Installation

1. Unscrew the tail cover of the flashlight by turning it counter-clockwise.
2. Insert one 18650 battery, one 26650 battery, or three AAA batteries (using a compatible adapter, not included) into the battery compartment. Ensure the positive (+) end of the battery faces towards the flashlight head.
3. Screw the tail cover back on clockwise until securely tightened.

5.2 Initial Charging

Before first use, it is recommended to fully charge the flashlight.

1. Locate the Type-C USB charging port on the flashlight body.
2. Connect the provided USB Type-C cable to the flashlight's charging port.
3. Connect the other end of the USB cable to a 5V 1A USB power source (e.g., wall adapter, computer USB port, power bank).
4. The power display indicator will show charging status. Once fully charged, disconnect the cable.

6. Operating Instructions

6.1 Power On/Off and Mode Selection

1. To Power On: Press the press switch once. The flashlight will turn on in High Brightness mode.
2. To Change Modes: While the flashlight is on, press the switch repeatedly to cycle through the 5 lighting modes: High Brightness → Medium Brightness → Weak Brightness → Burst Flash → SOS.
3. To Power Off: Press and hold the switch for approximately 2 seconds from any mode.

6.2 Adjustable Light Focus

The flashlight features a telescopic zoom function to adjust the light beam from a wide floodlight to a focused spotlight.

• Gently push or pull the head of the flashlight forward or backward to adjust the focus.
• Extend the head for a narrow, long-distance beam.
• Retract the head for a wider, shorter-distance beam.

Image: The Tyenaza XHP160 Flashlight demonstrating its powerful beam illuminating a distant hillside at night.

7. Maintenance

7.1 Cleaning

• Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Keep the lens clean for optimal light output. Use a lens cleaning cloth if necessary.

7.2 Storage

• Store the flashlight in a cool, dry place when not in use.
• If storing for an extended period, remove the batteries to prevent leakage and corrosion.

7.3 Waterproof Care

Image: The Tyenaza XHP160 Flashlight being splashed with water, illustrating its IPX4 waterproof capability.

• Ensure the tail cap and charging port cover are securely closed to maintain the IPX4 waterproof rating.
• After exposure to water, wipe the flashlight dry to prevent water spots or mineral buildup.

8. Troubleshooting

If you encounter issues with your flashlight, please refer to the following common solutions:

• Flashlight does not turn on:
  • Check if the batteries are installed correctly with the correct polarity.
  • Ensure the batteries are charged. Try charging the flashlight.
  • Verify that the tail cap is fully tightened.
• Light output is dim:
  • The batteries may be low. Recharge or replace them.
  • Clean the flashlight lens if it appears dirty.
• Flashlight does not charge:
  • Ensure the USB cable is securely connected to both the flashlight and the power source.
  • Try a different USB cable or power adapter.
  • Check if the charging port is free of debris.

If the problem persists after trying these steps, please contact customer support.

9. Specifications

10. Warranty Information

Specific warranty information for the Tyenaza XHP160 Camping Flashlight is not provided in the product details. Please refer to the retailer or manufacturer's website for details regarding warranty coverage and terms.

11. Support Information

For further assistance, technical support, or inquiries regarding your Tyenaza XHP160 Camping Flashlight, please contact the seller or visit the official Tyenaza store page on Amazon:
