COSTWAY Kitchen Buffet Cabinet User Manual

1. Introduction

Thank you for choosing the COSTWAY Kitchen Buffet Cabinet. This manual provides important information regarding the assembly, operation, maintenance, and safety of your new cabinet. Please read this manual thoroughly before assembly and use, and retain it for future reference.

This versatile cabinet features a spacious countertop, two tempered glass doors, an open wine rack, and two sliding drawers, offering ample storage for various items such as wine bottles, cups, dishes, spice jars, and decorative pieces. The 3-level adjustable shelf allows for customized storage space to accommodate items of different sizes. Constructed with a solid pine wood frame and equipped with anti-tipping devices, this cabinet ensures overall stability and durability.

2. Safety Instructions

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer service.
• Do not overtighten screws during assembly, as this may damage the material.
• Always use the provided anti-tipping device to secure the cabinet to a wall. This is crucial for preventing accidental tipping, especially in households with children or pets.
• Do not allow children to climb on or play with the cabinet.
• Distribute weight evenly across shelves and drawers to maintain stability.
• Regularly check all connections and fasteners to ensure they remain tight.

Figure 2.1: Anti-tipping device installation and safety warning. The anti-tipping device helps secure the cabinet to the wall, preventing accidental falls and ensuring increased stability and safety.

3. Parts List

Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact COSTWAY customer service for assistance.

4. Assembly Instructions

This cabinet is designed for quick assembly with clear instructions provided. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Carefully unpack all components and hardware. Refer to the "Parts List" to ensure everything is present.
2. Assemble the Main Frame: Connect the side panels to the bottom and top panels using the provided screws and dowels. Ensure all connections are secure but do not overtighten.
3. Install Back Panel: Slide or attach the back panel into the designated grooves or using the provided fasteners.
4. Assemble Drawers: Follow the specific instructions for assembling the two drawers, including attaching the smooth metal slides and easy-to-grip handles.
5. Install Drawers: Insert the assembled drawers into their respective slots on the main frame.
6. Install Adjustable Shelf: Place the adjustable shelf into the cabinet. The shelf can be adjusted to 3 different positions, with a distance of 6.5 cm between each level. Choose the desired height based on your storage needs.
7. Attach Glass Doors: Secure the two tempered glass doors using the provided hinges. Ensure the magnetic catches are properly aligned for easy opening and closing.
8. Assemble Wine Rack: Install the wine rack slats in the open bottom section.
9. Install Anti-Tipping Device: Securely attach the anti-tipping device to the back of the cabinet and to a sturdy wall stud using the provided hardware. This step is critical for safety.

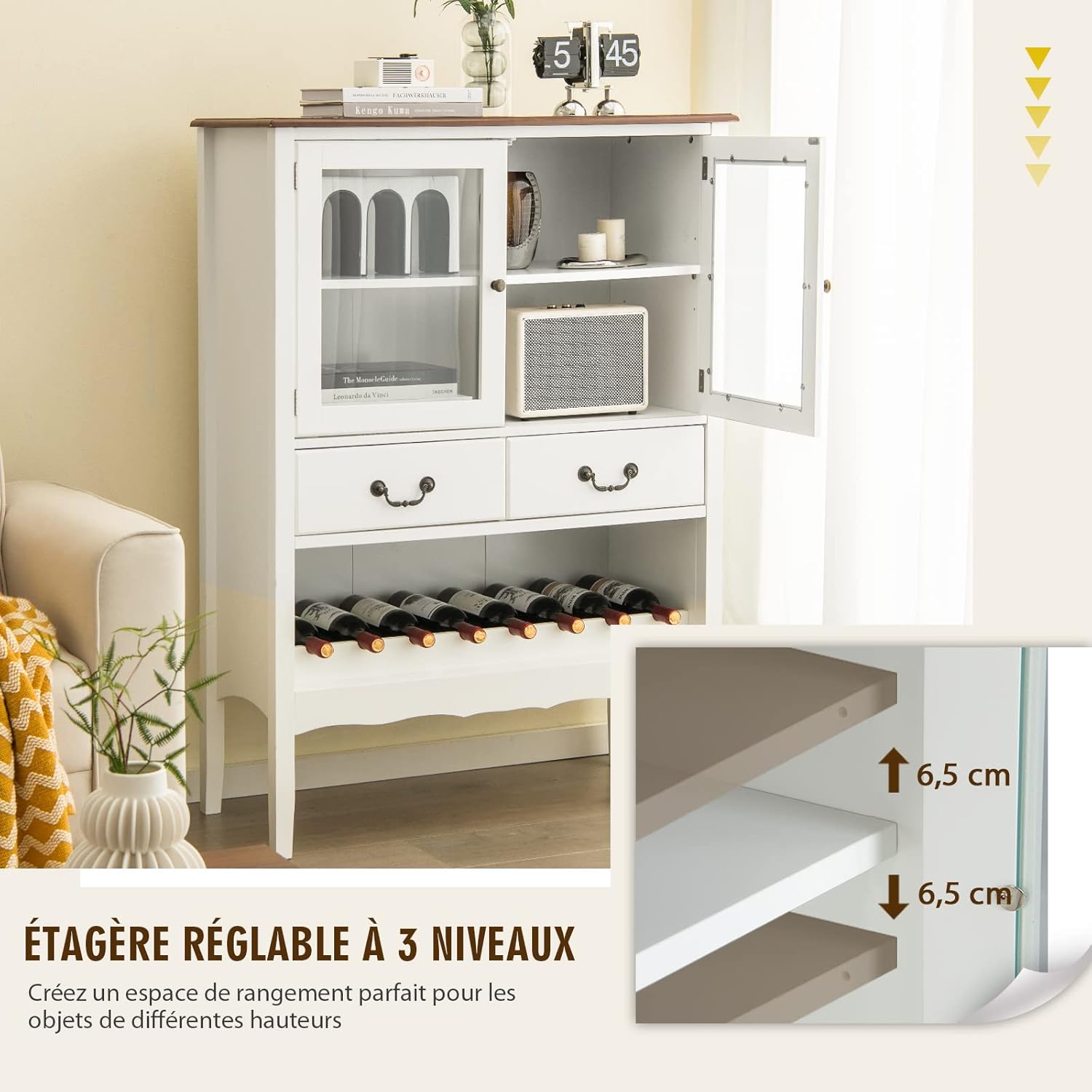

Figure 4.1: Adjustable Shelf. The cabinet features a 3-level adjustable shelf, allowing you to customize storage space for items of varying heights.

Figure 4.2: Global Dimensions. This diagram illustrates the overall dimensions of the cabinet (90x40x126.5 cm) and specific measurements for internal compartments and drawers, aiding in assembly and placement.

5. Operating Instructions

The COSTWAY Kitchen Buffet Cabinet is designed for convenient storage and display.

• Countertop Use: The spacious countertop (90 cm L x 40 cm W) is ideal for placing serving dishes, glasses, small appliances, or decorative ornaments.

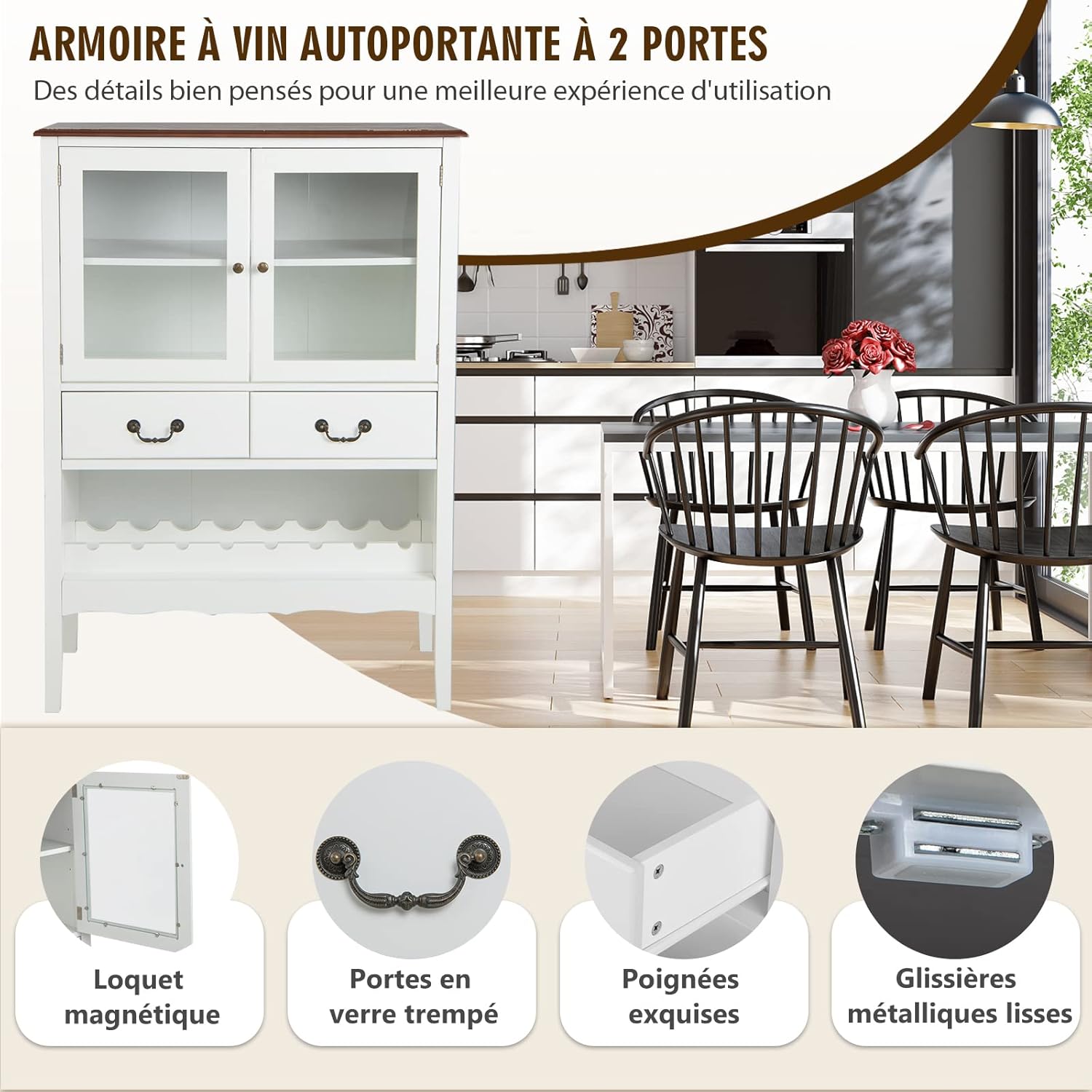

• Glass Door Cabinet: The two tempered glass doors protect contents from dust while allowing visibility. Use the exquisite door handles and magnetic catches for easy access. This section is perfect for displaying dinnerware, glassware, or other collectibles.
• Adjustable Shelf: To adjust the shelf height, remove the shelf, reposition the shelf pins to the desired level (6.5 cm increments), and reinsert the shelf. This allows customization for items of different heights.
• Drawers: The two deep drawers with smooth metal slides and easy-to-grip handles provide concealed storage for utensils, linens, or other kitchen essentials.
• Wine Rack: The open wine rack at the bottom is designed to store your wine collection, making bottles easily accessible and neatly organized.

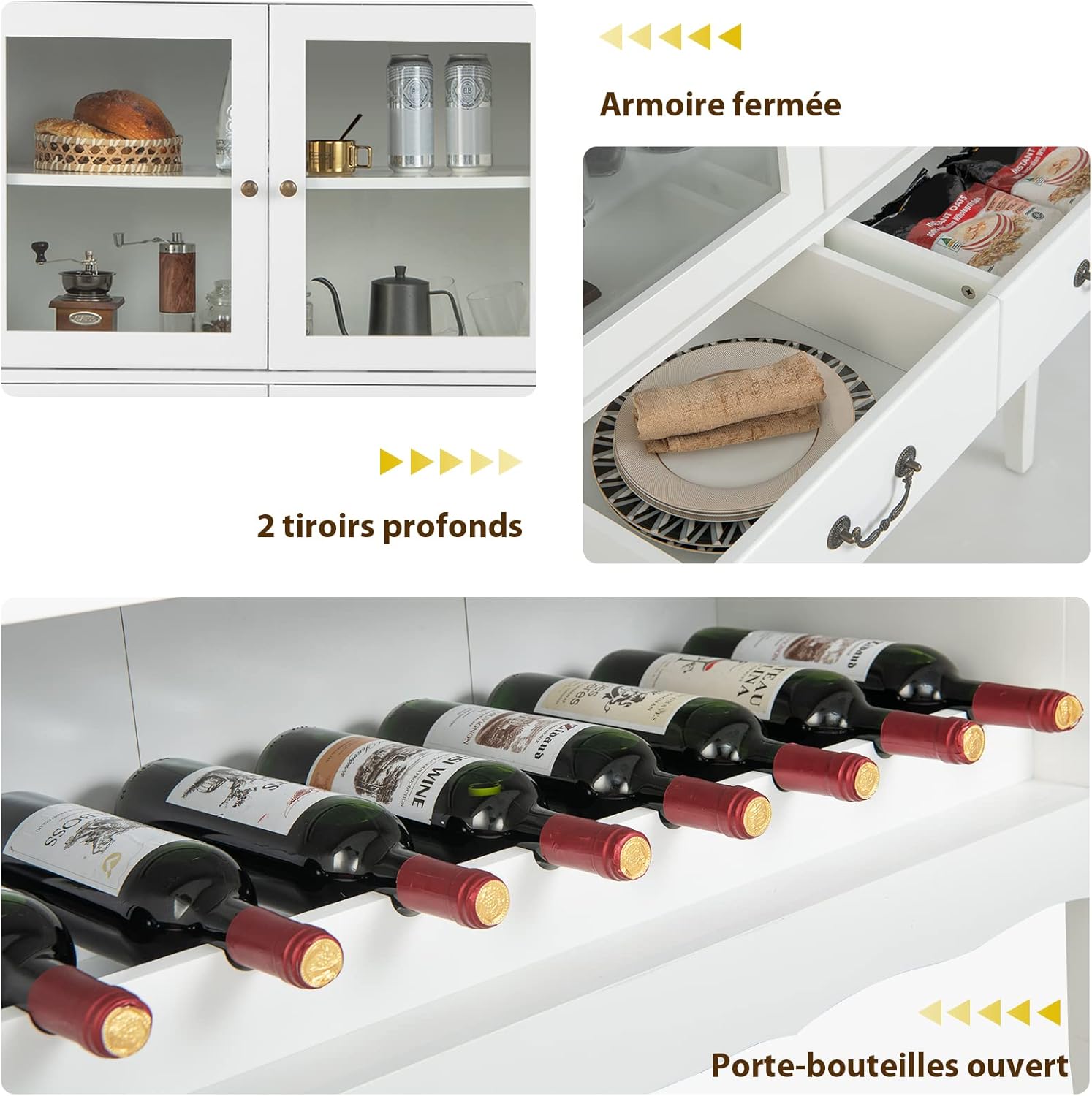

Figure 5.1: Storage Features. This image highlights the closed cabinet, the spacious drawers, and the organized wine bottle storage, demonstrating the cabinet's versatile storage capabilities.

Figure 5.2: Organization Benefit. This visual comparison illustrates how the cabinet helps organize and declutter your space, transforming a messy area into a tidy and functional one.

6. Maintenance and Care

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the finish. For glass doors, use a standard glass cleaner.
• Spills: Immediately wipe up any spills to prevent staining or damage to the wood.
• Hardware: Periodically check all screws, bolts, and fasteners to ensure they are tight. Retighten if necessary to maintain stability.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or warping of the wood.
• Humidity Control: Maintain a stable humidity level in the room to prevent wood from expanding or contracting excessively.

7. Troubleshooting

8. Specifications

• Model Number: JV10445WHFR
• Color: White
• Overall Dimensions (L x W x H): 90 x 40 x 126.5 cm (35.4 x 15.7 x 49.8 inches)
• Net Weight: 37.5 kg (82.7 lbs)
• Material: Pine wood, Metal, MDF, Tempered Glass
• Countertop Capacity: 30 kg (66 lbs)
• Each Drawer Capacity: 5 kg (11 lbs)
• Each Shelf Capacity: 10 kg (22 lbs)
• Adjustable Shelf Levels: 3 (6.5 cm / 2.5 inches between levels)

9. Warranty and Support

COSTWAY products are designed for quality and durability. For specific warranty information, please refer to the warranty card included with your purchase or visit the official COSTWAY website. If you encounter any issues or have questions regarding your product, please contact COSTWAY customer support.

Customer Support: For assistance, please visit the COSTWAY Brand Store on Amazon or refer to the contact information provided in your product packaging.
